$1001 Off Full Price

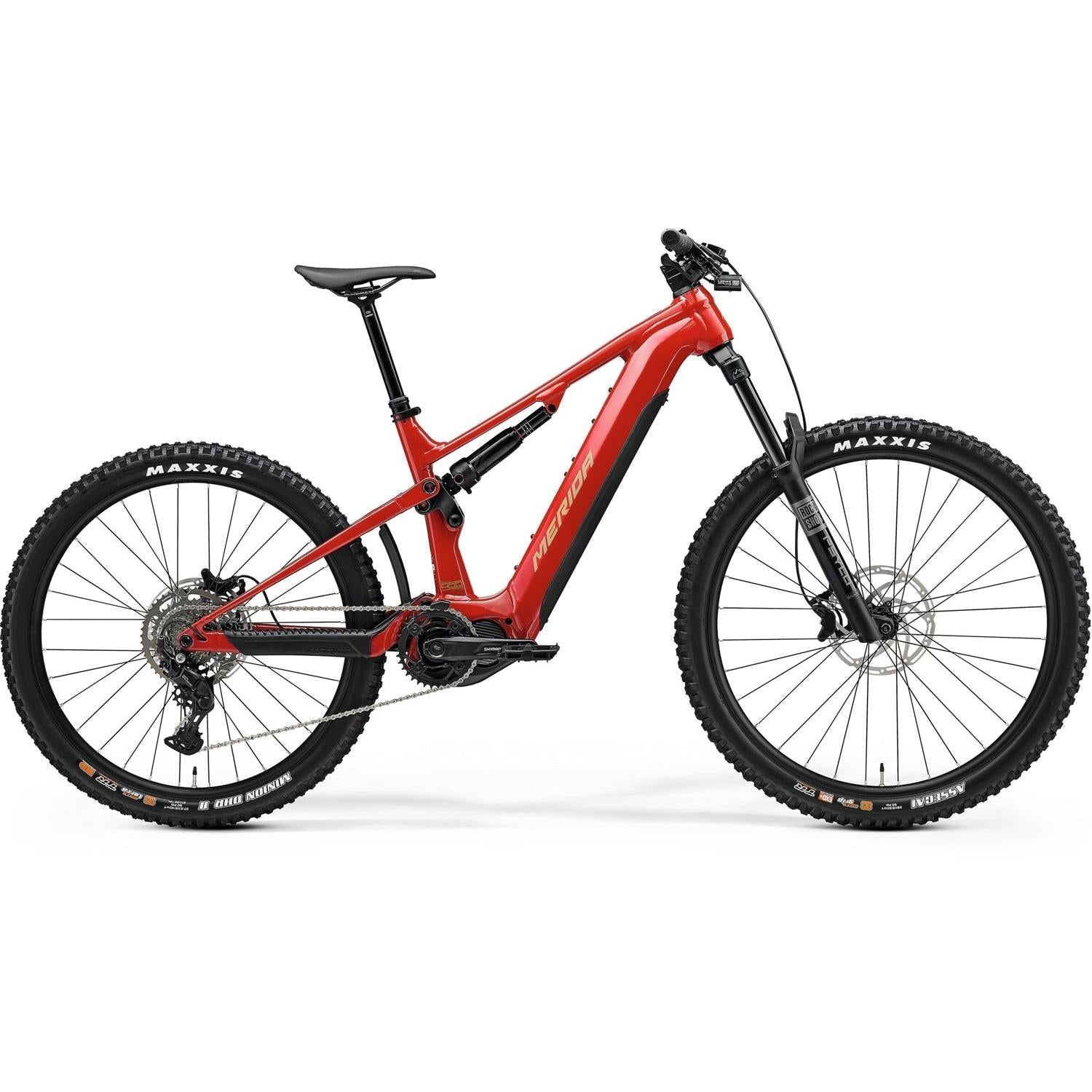

Merida eOne-Sixty 400 Electric Enduro Bike 630Wh Battery Heritage Red/River Clay

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,498.00 Full price

$5,498.00

Club price

$6,499.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

160mm Front Travel / 160mm Rear

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 400 Electric Enduro Bike in Heritage Red/River Clay is designed for trail enthusiasts. It features a durable aluminum frame, 160mm of suspension travel, and a powerful Shimano EP801 motor with a 630Wh battery. This combination provides excellent performance on rugged terrains. The Rock Shock fork and reliable Shimano components ensure a smooth and controlled ride, ideal for challenging enduro trails.

Key Features

Robust eONESIXTY LITE IV MAT frame
160mm rear suspension travel
Rock Shock Psylo Silver R fork
Shimano Cues U4000 drivetrain
Integrated Shimano EP801 motor

Specifications

Product Overview

Product

Merida eOne-Sixty 400 Electric Enduro Bike 630Wh Battery Heritage Red/River Clay

Brand

Merida

Parent SKU

Merida25eONESIXTY400HeritageRedRiverClay

Size SKUs

XS: MEEB2502818
SM: MEEB2502819
MD: MEEB2502820
LG: MEEB2502821
XL: MEEB2502822

Matrix Barcodes

XS: 25028182818
SM: 25028192819
MD: 25028202820
LG: 25028212821
XL: 25028222822

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

160mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eONESIXTY LITE IV MAT aluminium 160 STR 29x26 max WHS 148x12 AST intube 750 Wh

Fork

Rock Shock Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shock Deluxe

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Bottom Bracket

included

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Front Rotor

Tektro TR203-45; 203mm

Rear Rotor

Tektro TR203-45; 203mm

Rear Derailleur

Shimano Cues U4000; GS

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 400 used for?

The Merida eOne-Sixty 400 is a high-performance electric enduro bike designed to handle challenging trails and descents with confidence.

Why choose the Merida eOne-Sixty 400?

Ideal for enduro enthusiasts, the Merida eOne-Sixty 400 combines durable construction, reliable Shimano components, and advanced suspension to excel in demanding off-road conditions.

Who is the Merida eOne-Sixty 400 designed for?

This bike is crafted for enduro riders looking to push their limits on technical trails and descents, relying on quality components for performance and reliability.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 400 Electric Enduro Bike 630Wh Battery Heritage Red/River Clay we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Shimano Cues U4000 Drivetrain

The Shimano Cues U4000 drivetrain provides seamless shifting, allowing riders to tackle steep climbs and technical descents with ease. Its reliability is essential for those who demand performance on challenging trails.

Rock Shock Psylo Silver R Fork

Equipped with 160mm of travel, the Rock Shock Psylo Silver R fork enhances control and responsiveness. This feature is crucial for aggressive riding on rough terrains, ensuring a smooth and stable experience.

Tektro TR203-45 Hydraulic Disc Brakes

The Tektro TR203-45 hydraulic disc brakes, featuring 203mm rotors, offer exceptional stopping power. This ensures safety and reliability, especially during steep descents and adverse weather conditions.

Riders Height (cm)

Merida eOne-Sixty 400 Electric Enduro Bike 630Wh Battery Heritage Red/River Clay geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
