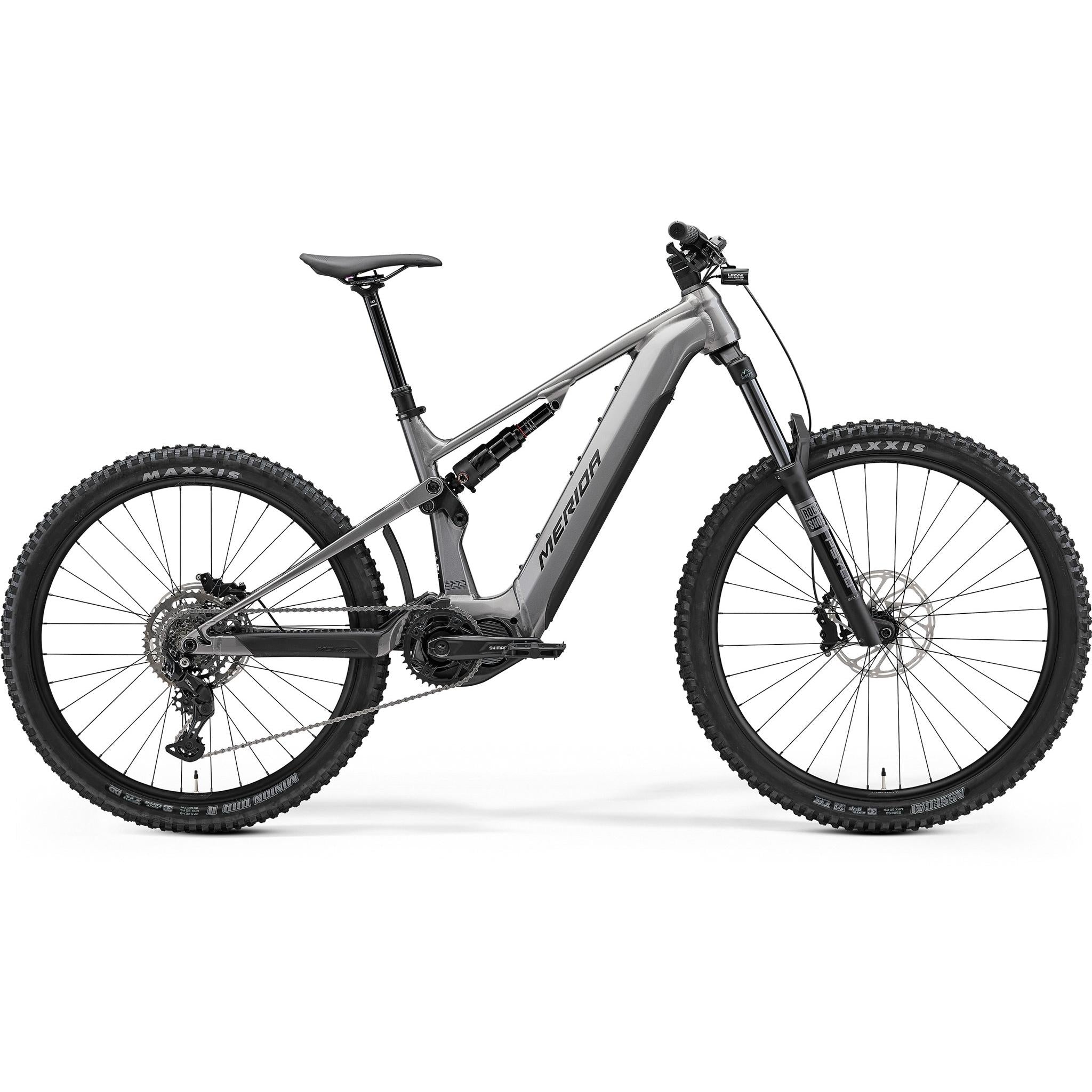

Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,499.00 Full price

$5,499.00

Club price

$6,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

160mm Front Travel / 160mm Rear

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 400 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging terrains. Equipped with a robust Shimano motor delivering 85Nm of torque, this bike ensures powerful assistance on steep climbs and tough trails. Its 630Wh battery provides extended ride times, allowing you to explore further without worry. The bike's alloy frame and 160mm suspension travel offer durability and comfort, while hydraulic disc brakes ensure precise stopping power. With a mullet wheel setup and high-quality components, the eOne-Sixty 400 is ready to tackle any enduro challenge.

Key Features

Powerful Shimano motor with 85Nm torque
Long-lasting 630Wh Shimano battery
Durable alloy frame for rugged trails
160mm front and rear suspension travel
Hydraulic disc brakes for reliable stopping

Specifications

Product Overview

Product

Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida26eONESIXTY400GUNMETALGREYBLACK

Size SKUs

XS: MEEB2601506
SM: MEEB2601507
MD: MEEB2601508
LG: MEEB2601509
XL: MEEB2601510

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

160mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Rock Shox Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shox Deluxe

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500-B; 15x100 WHF; 32 SPH; Centerlock | R: Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) | R: Shimano Cues U4000-9

Rear Derailleur

Shimano Cues U4000; GS

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 400 used for?

The Merida eOne-Sixty 400 is used for enduro biking, designed to handle challenging terrains and steep climbs with ease.

Why choose the Merida eOne-Sixty 400?

Choose the Merida eOne-Sixty 400 for its powerful motor, long-lasting battery, and durable design, making it ideal for adventurous riders seeking performance and reliability.

Who is the Merida eOne-Sixty 400 designed for?

The Merida eOne-Sixty 400 is designed for enduro enthusiasts and adventurous riders who want a reliable and powerful e-bike for tackling tough trails.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Battery

The Shimano motor provides 85Nm of torque, offering strong assistance on steep climbs, while the 630Wh battery ensures long-lasting power for extended rides.

Durable and Comfortable Design

The alloy frame and 160mm suspension travel provide a robust and comfortable ride, perfect for tackling rugged trails and enduro challenges.

Reliable Stopping Power

Equipped with hydraulic disc brakes, the Merida eOne-Sixty 400 ensures precise and reliable stopping power in all conditions, enhancing safety and control.

Riders Height (cm)

Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
