17% Off Full Price

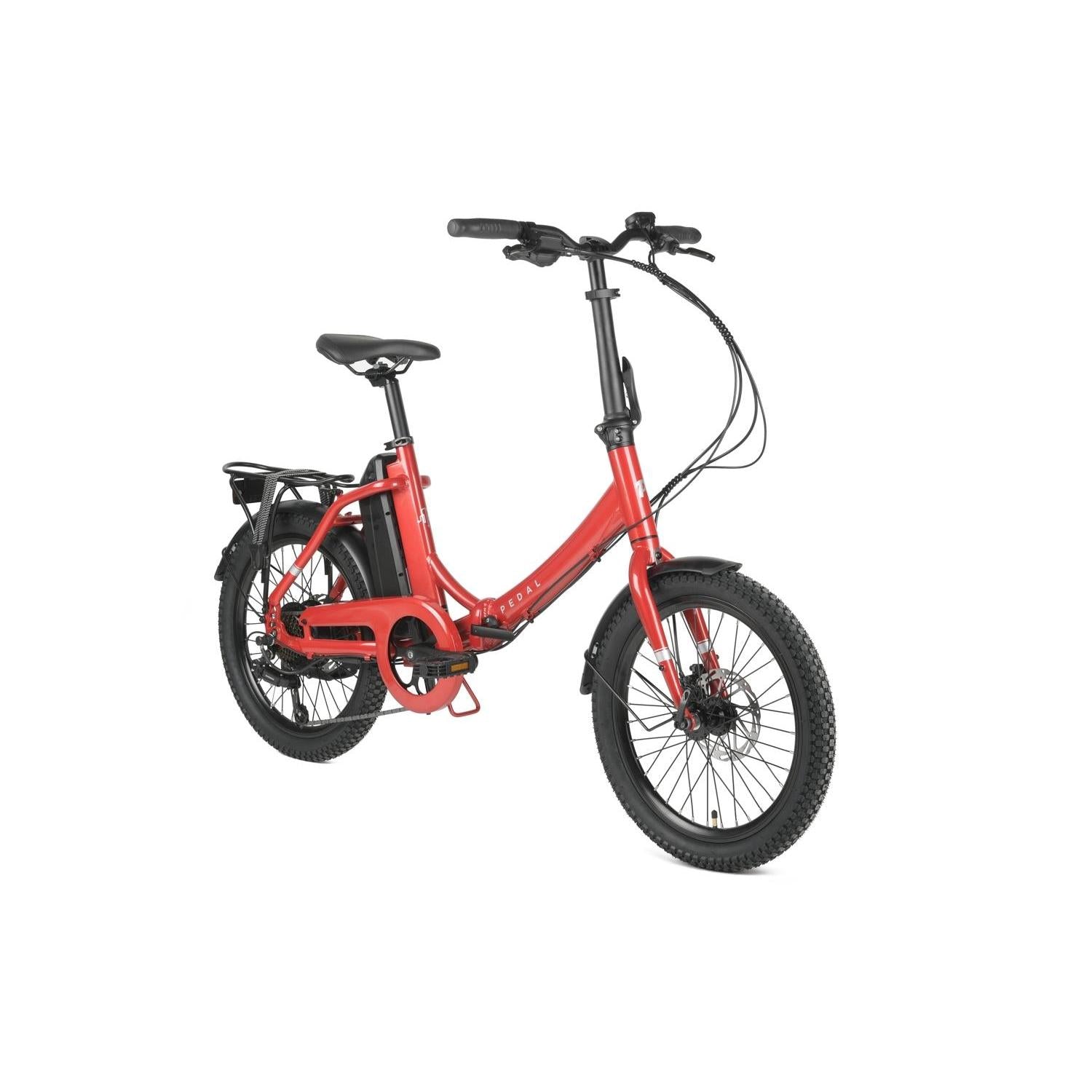

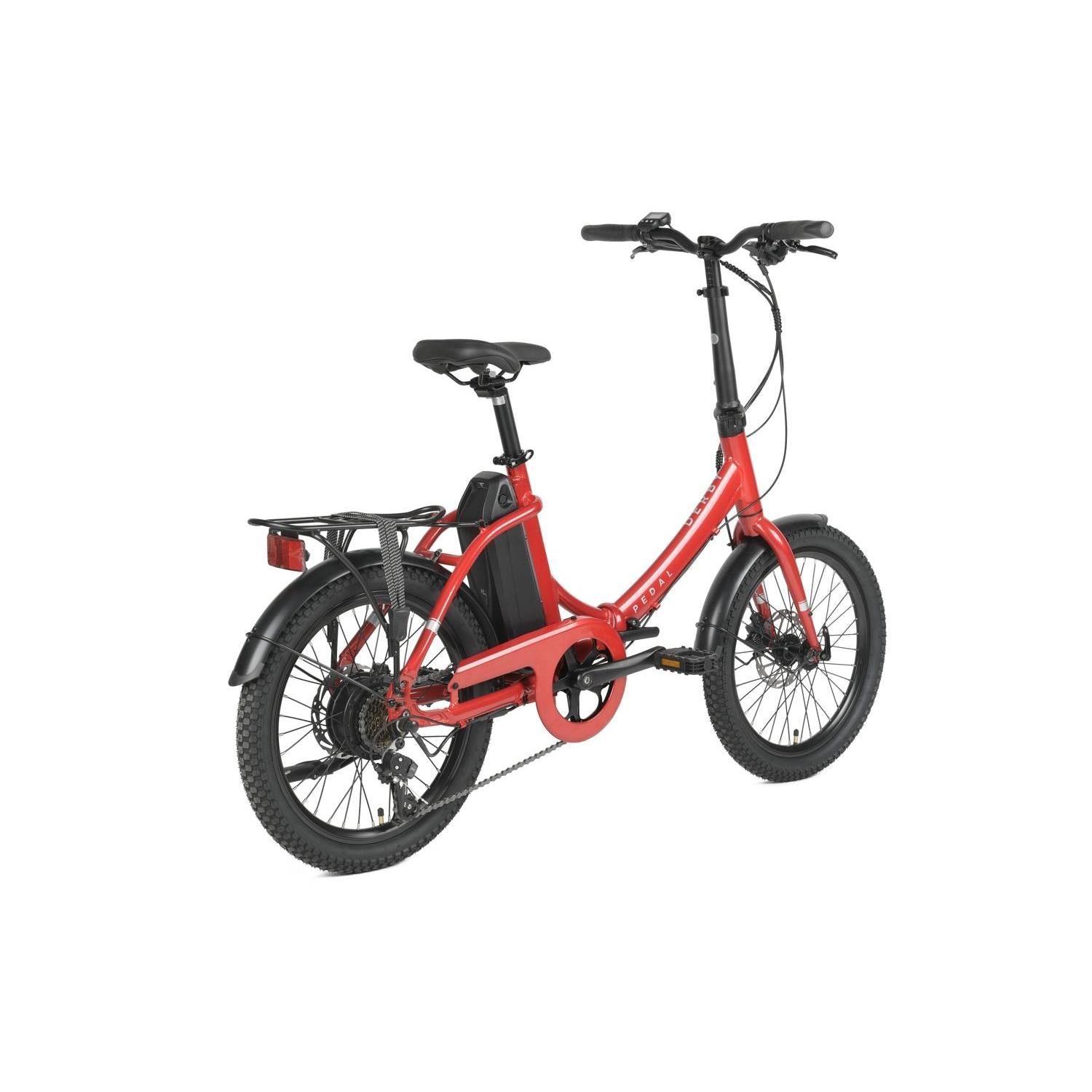

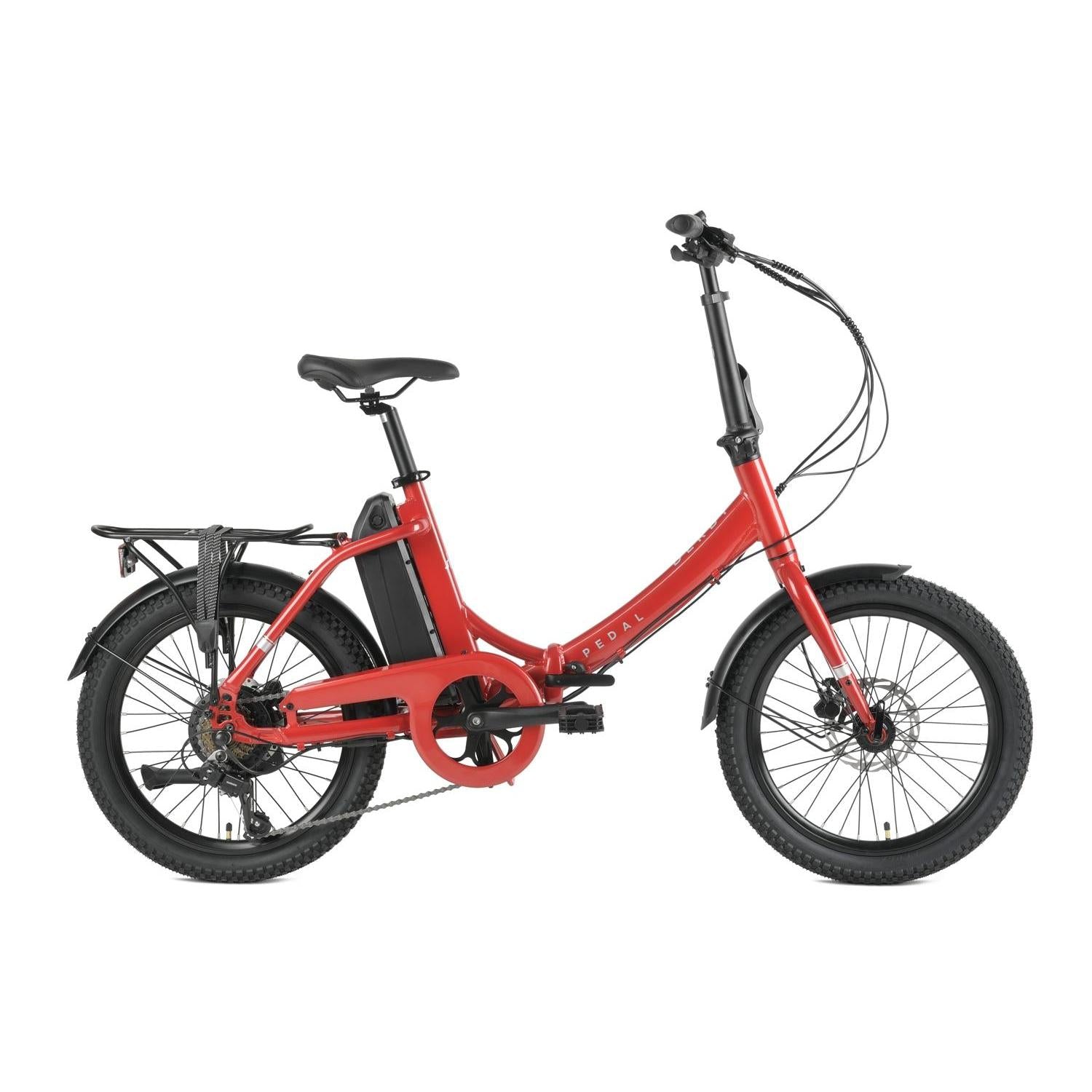

Pedal Derby Electric Folding Bike Red

Brand: Pedal

SKU: PDRDDB207400

Other Colours

Red

Pedal Derby Electric Folding Bike Dark Navy

Black

Size: UNI

UNI

$1,899.00 Full price

$1,899.00

Club price

$2,299.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Flat to Modestly Steep Hills / 40 Nm Torque

Up to 50 km Range

Alloy Frame/ Steel Fork

374Wh Battery

Folding Style Frame

20" Wheel Size

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Pedal Derby Electric Folding Bike features compact 20" wheels, making it easy to ride and store. It folds down to a space-saving size of 86L x 46W x 68H cm, allowing for convenient transport on trains or in the boot of a car.

Key Features

Compact low stepthrough frame
250W rear hub motor
Adjustable stem, handlebar and seatpost
Shimano Tourney 7-speed drivetrain
Powerful hydraulic brakes
Compact folded-down size (86L x 46W x 68H cm)
Bike weight: 20.5kg
Rear rack rated to 17kg, Max. rider weight 100kg

Specifications

Product Overview

Product

Pedal Derby Electric Folding Bike Red

Brand

Pedal

Parent SKU

PedalDerbyRed

SKU

PedalDerbyRed

Size SKUs

UNI: PDRDDB207400

Matrix Barcodes

UNI: 9356844007400

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Folding

Colour

Red

Wheel Size

20"

Brake Type

Hydraulic Disc Brake

Gears

1 x 7

Fork Material

Steel

Weight

20.5kg

Charge Time

Weight Limit

100kg

Motor and Battery System

Drive Type

Rear Wheel

Motor

Rear Hub Geared Planetary Drive 250W 25KPH

Torque (Nm)

Motor Climbing Ability

Flat to Modestly Steep Hills

Battery Size (Watt-Hours)

374

Battery

Removable Pod Battery w/Internal BMS

Max. Range (KMs)

Charge Time (Hours)

Display

KD-58C

Declared Article Number (NSW)

SGS-251196-EA

Build

Frame

Folding Step Through Alloy 6061

Fork

Steel Bladed

Handlebars

DNF-A806 Alloy 600mm 30mm Rise 6 Deg Sweep

Headset

Integrated 44mm

Grips

XL G78 125mm Ergo Rubber

Stem

FH05W Telescopic & Folding 160-240mm Alloy

Bottom Bracket

Sealed BSA Cartridge 119mm

Pedals

YH Folding Plastic 9/16"

Saddle

QF3103 Ergo Saddle

Seat Post

350mm 30.9mm Alloy Single Bolt

Accessories

Kickstand + 42V 2A Charger (3 pin for 36V Battery)

Wheels

Wheel Size

20"

Rims

Alloy Double Wall 20" 36h 13g

Hubs

F: Alloy LBB w/Nutted 6 Bolt / R: Electric Geared Hub Motor Nutted

Tyres

Kenda K1040 20x2.3 City Tyre

Groupset

Crankset

Prowheel 170mm Alloy Crankset w/ steel 52t chainring

Chain

KMC Z7 116L

Brakes

Tektro HD-M275

Front Rotor

160mm 6 bolt

Rear Rotor

160mm 6 bolt

Shifters

Ltwoo Trigger 7 Speed

Rear Derailleur

Shimano Tourney 7 Speed

Cassette

7 Speed

Frequently Asked Questions

What is the Pedal Derby used for?

The Pedal Derby is used for convenient urban commuting and easy storage, thanks to its compact folding design.

Why choose the Pedal Derby?

Choose the Pedal Derby for its powerful 250W rear hub motor, adjustable components, and reliable Shimano Tourney 7-speed drivetrain, making it a versatile and efficient choice for city travel.

Who is the Pedal Derby designed for?

The Pedal Derby is designed for urban commuters and riders who need a compact, foldable bike that is easy to transport and store.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
