Alloy Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano GRX Groupset

2 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

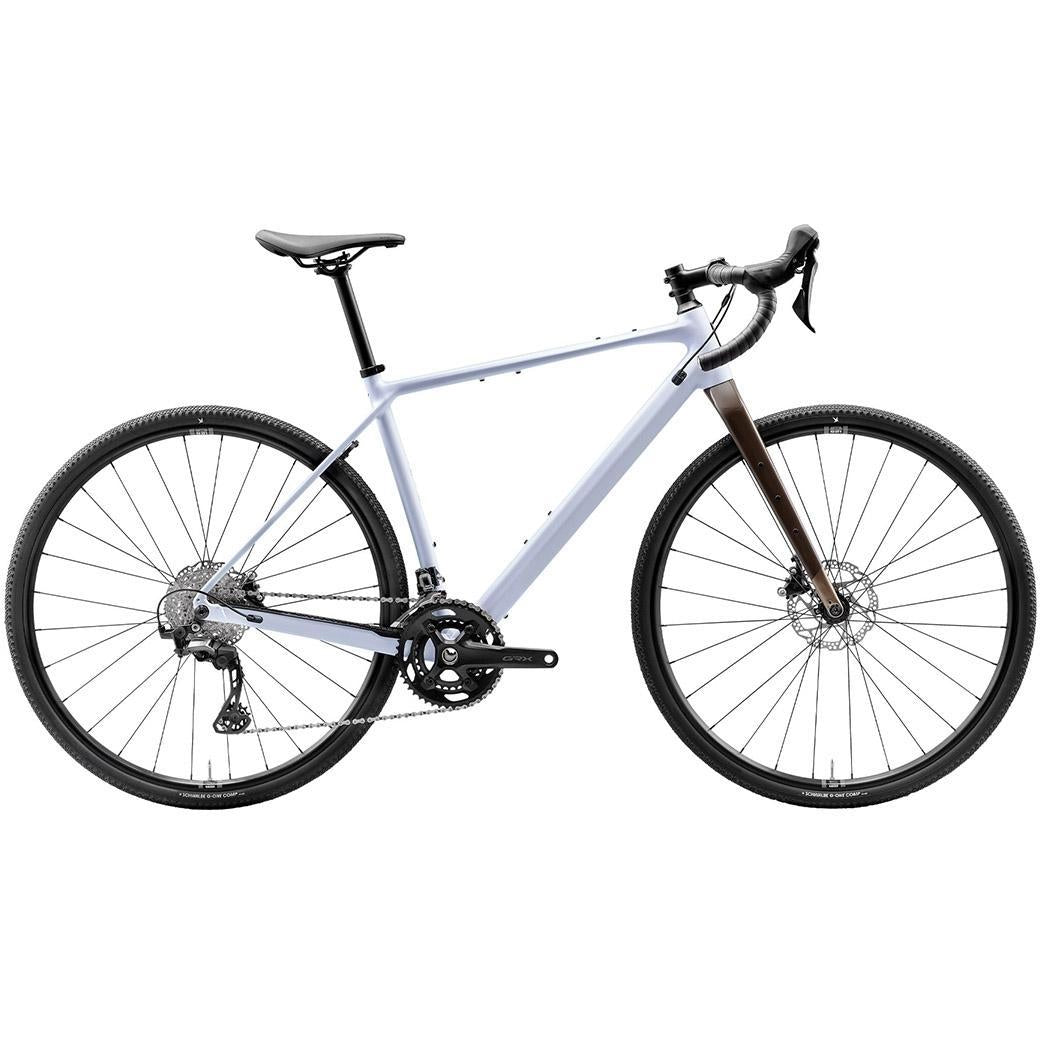

The Norco Search A GRX Gravel Bike in Grey is a purpose-built adventure machine that blends off-road capability with long-distance comfort. Featuring a lightweight butted alloy frame, carbon fork, and a reliable Shimano GRX 2x12-speed groupset, this gravel bike handles rough roads and extended rides with ease. With wide 700x45c Schwalbe tyres, tubeless-ready rims, and powerful hydraulic disc brakes, it delivers confident traction and all-weather stopping power on dirt, gravel, or pavement.

Key Features

Lightweight butted alloy frame with carbon fork
Shimano GRX 2x12-speed gravel groupset
Hydraulic disc brakes with 160mm rotors
Schwalbe G-One 700x45c gravel tyres
Tubeless-ready alloy rims, 700c wheel size

Specifications

Product Overview

Product

Norco Search A GRX Gravel Bike Grey

Brand

Norco

Parent SKU

Norco25SearchagrxGrey

Size SKUs

XS: NORE256015824
SM: NORE256015825
MD: NORE256015826
LG: NORE256015827
XL: NORE256015828

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Build

Frame

Search XR Butted Aluminum w/Smooth Welds

Fork

Search XR Carbon, 51mm offset, 12x100 TA, Flat Mount

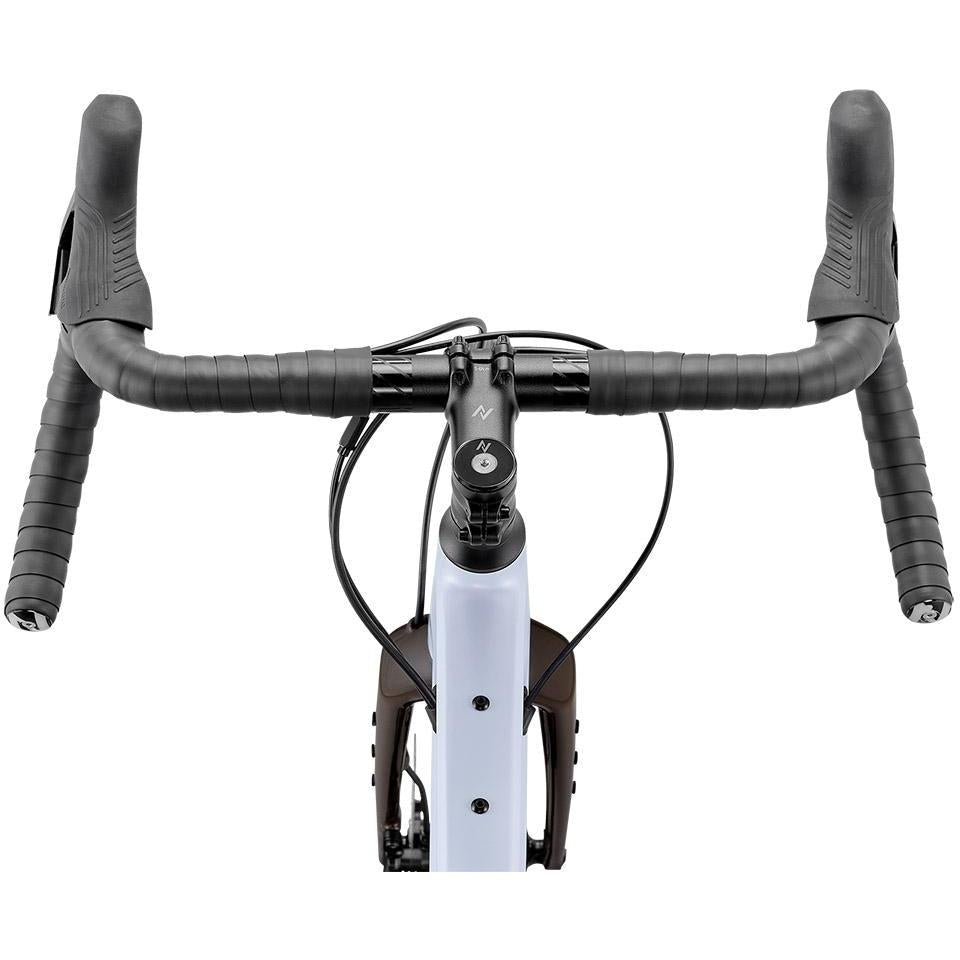

Handlebars

Norco Super Flare Aluminum, 16 Deg Flare, S1/2=40cm; S3=42cm; S4=44cm; S5=46cm

Headset

Integrated Angular Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )

Grips

Griptacular Shockproof Tape, 3mm

Stem

Norco SL Aluminum, 70mm length, 31.8mm Clamp

Bottom Bracket

Shimano SM-BBR60, Threaded, HOLLOWTECH II ,68/70 mm

Saddle

Selle Royale SRX Gravel, 148mm Width

Seat Post

Norco Aluminum, 12mm offset, 27.2mm ID, 350mm Length

Seat Clamp

Norco Aluminum, 31.8mm

Wheels

Wheel Size

700c

Rims

Alloy Tubeless Pinned, 23mm ID, 28H

Hubs

F: Shimano HB-TC500, 12x100mm, Sealed Bearing, 28H, C-lock | R: Shimano FH-TC500, 12x142mm, Sealed Bearing, Microspline, 28H, C-lock

Tyres

F: Schwalbe G-One, 700x45c All Round Perf Race Guard | R: Schwalbe G-One, 700x45c All Round Perf Race Guard

Spokes

Sapim Leader 2.0mm, Brass Nipples

Groupset

Crankset

Shimano GRX FC-RX610, 46-30T, 2x12spd, BSA 24mm , S1/2/3/4=170; S5=172.5

Chain

KMC X12, 12sp

Brakes

Shimano BR-RX400, Resin pads

Front Rotor

Shimano SM-RT54, 160mm, C-lock

Rear Rotor

Shimano SM-RT54, 160mm, C-lock

Shifters

Shimano GRX ST-RX610

Front Derailleur

Shimano CS-HG710, 11-36T, 12sp

Rear Derailleur

Shimano GRX RD-RX822, 12sp

Cassette

12 Speed

Frequently Asked Questions

What is the Norco Search A GRX used for?

The Norco Search A GRX is used for adventure cycling, blending off-road capability with long-distance comfort on dirt, gravel, or pavement.

Why choose the Norco Search A GRX?

Choose the Norco Search A GRX for its lightweight butted alloy frame, carbon fork, reliable Shimano GRX 2x12-speed groupset, and powerful hydraulic disc brakes, offering confident traction and all-weather stopping power.

Who is the Norco Search A GRX designed for?

The Norco Search A GRX is designed for cyclists seeking a versatile and reliable gravel bike for rough roads and extended rides.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Search A GRX Gravel Bike Grey we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXL

Wheel Size

700c

Stack

554

564

587

611

634

Reach

385

400

415

430

445

Top Tube Length

539

559

583

608

633

Seat Tube Length

440

475

510

545

580

Seat Tube Angle

74.5

74.25

74.0

73.75

73.5

Fork Length

Head Tube Length

100

110

135

160

185

Head Tube Angle

69.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
