Discontinued

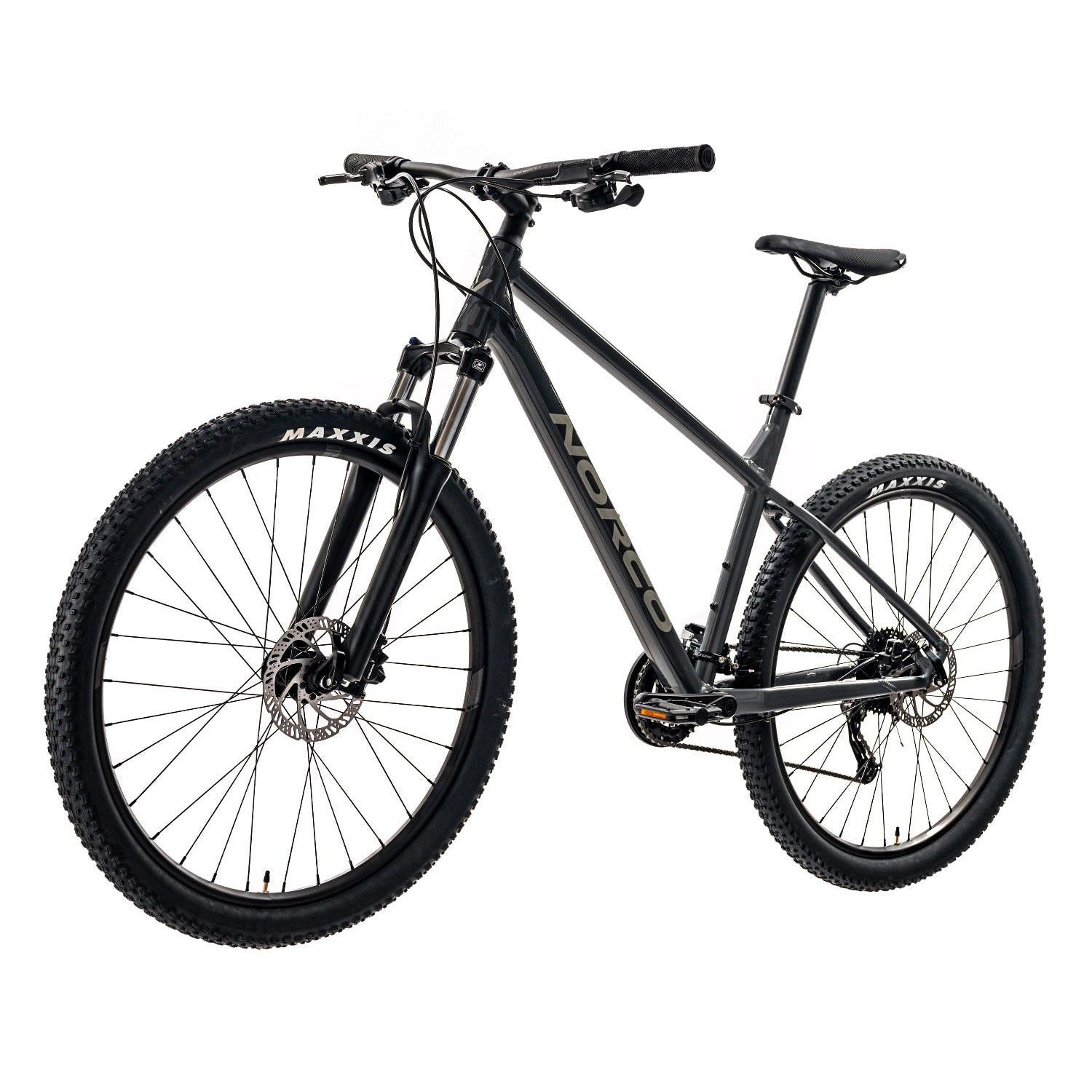

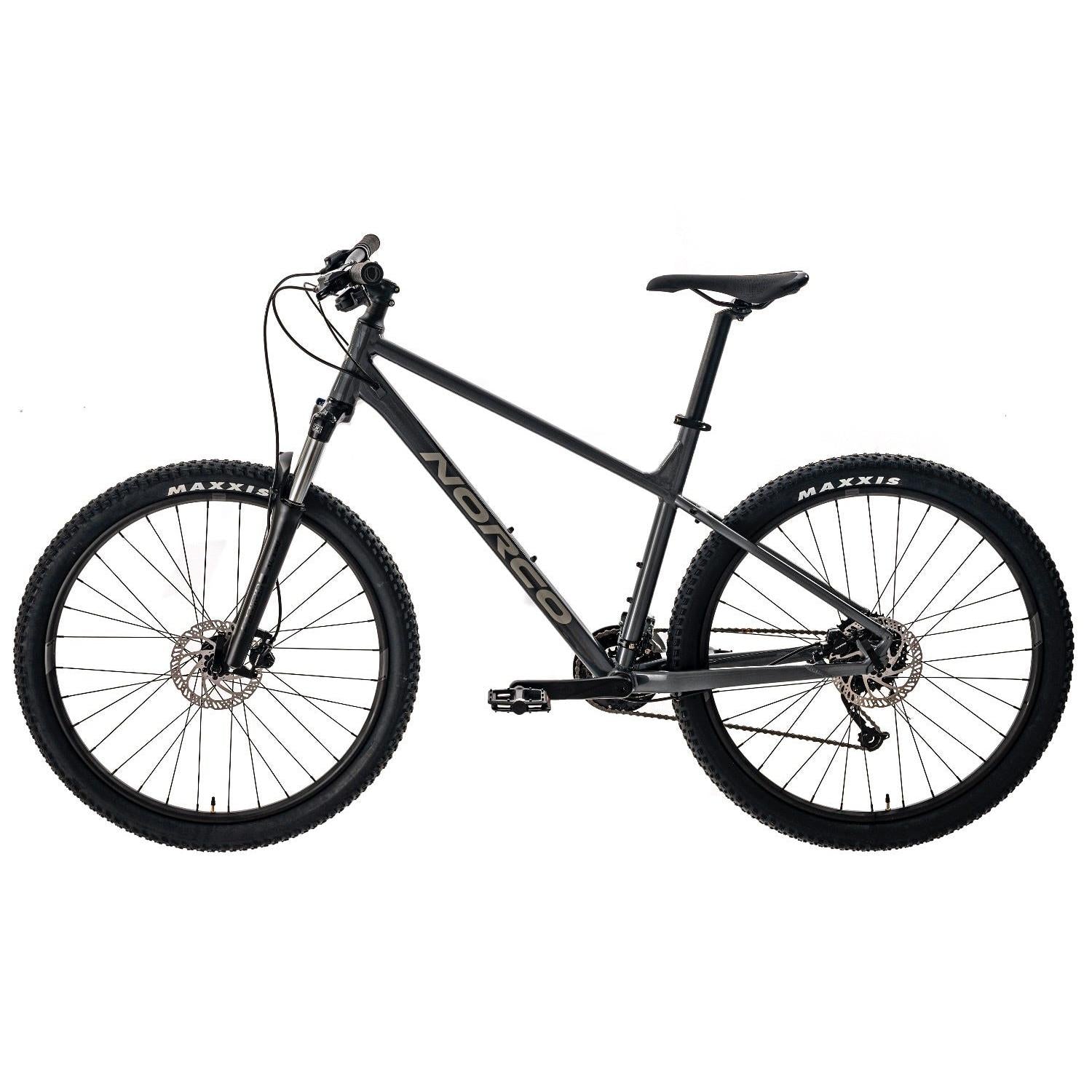

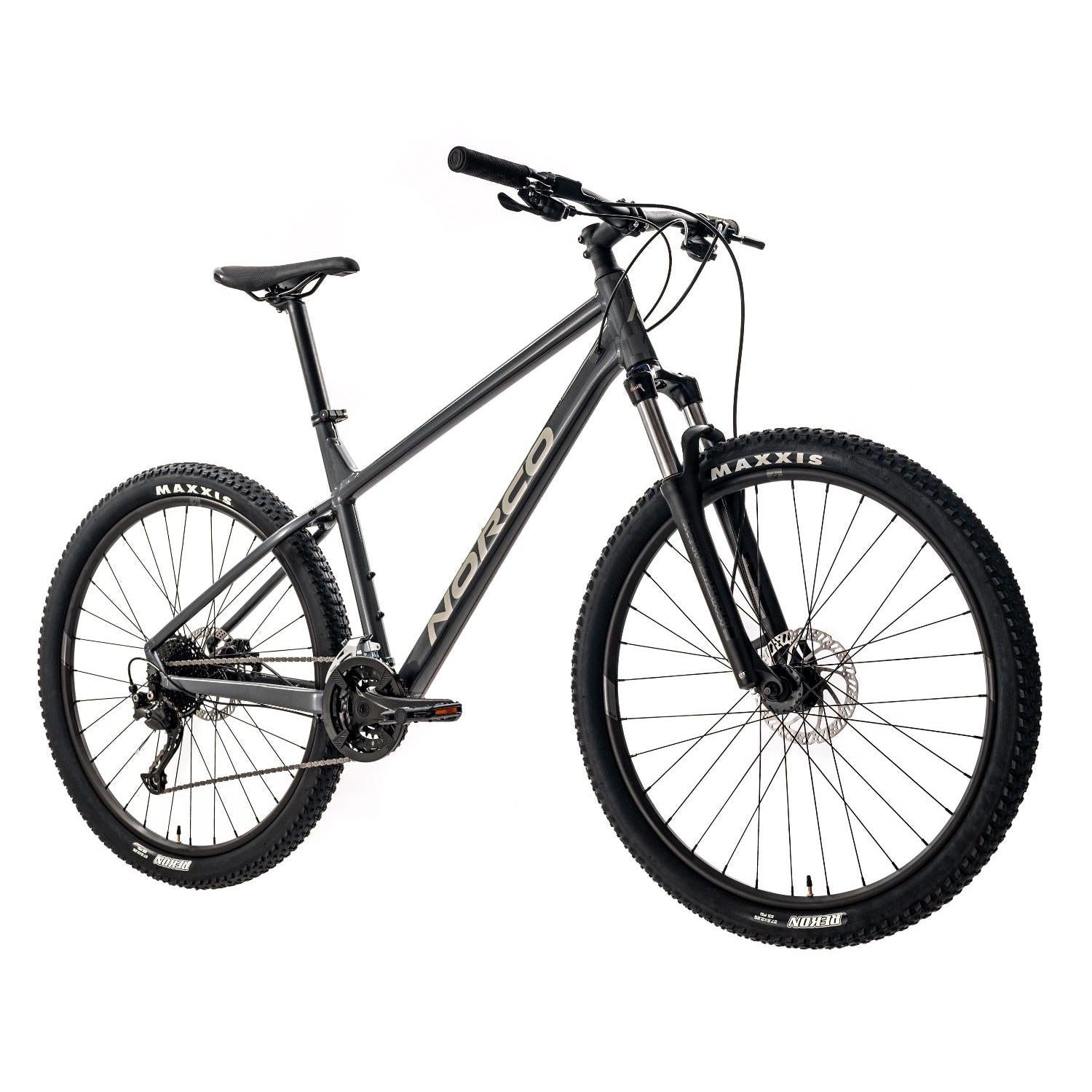

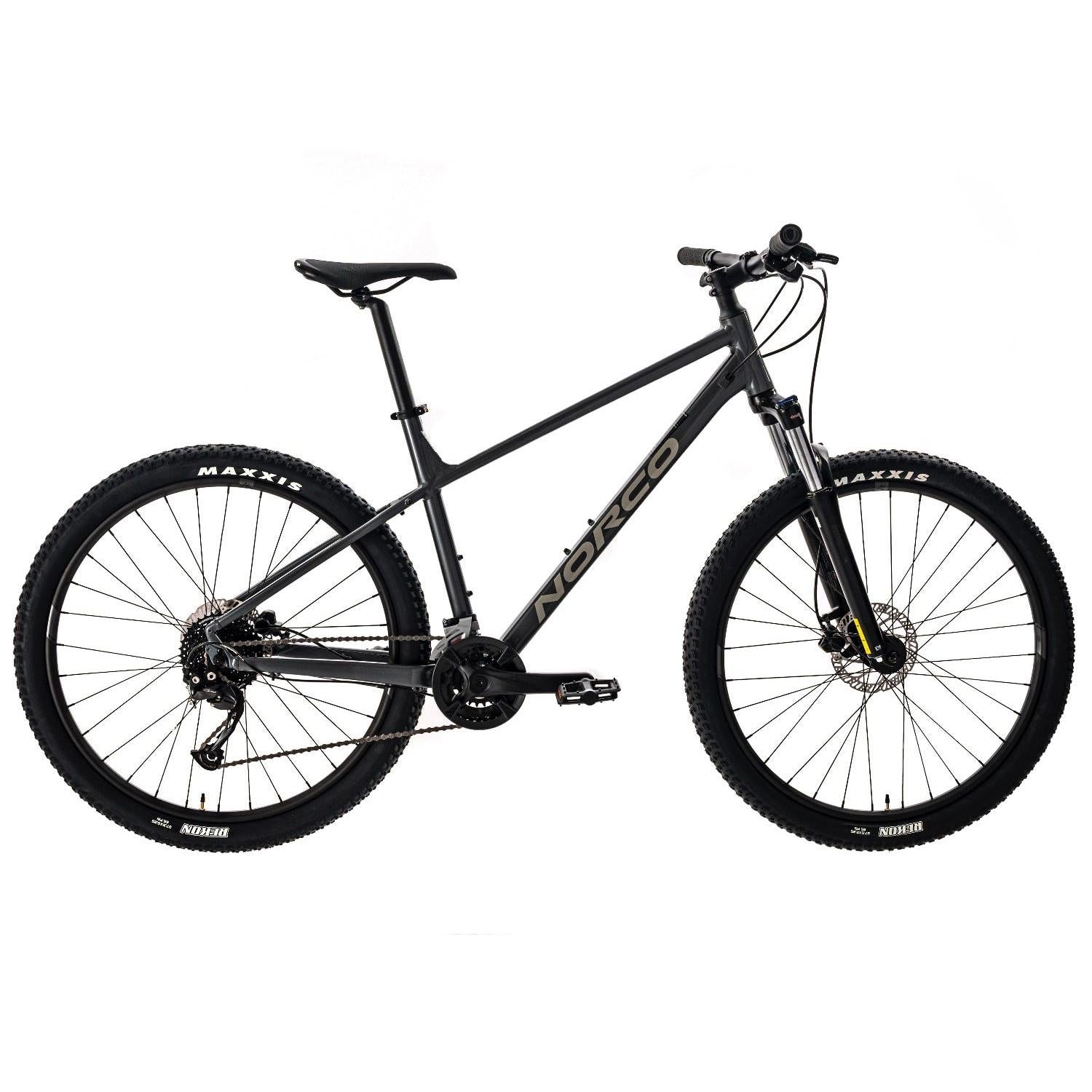

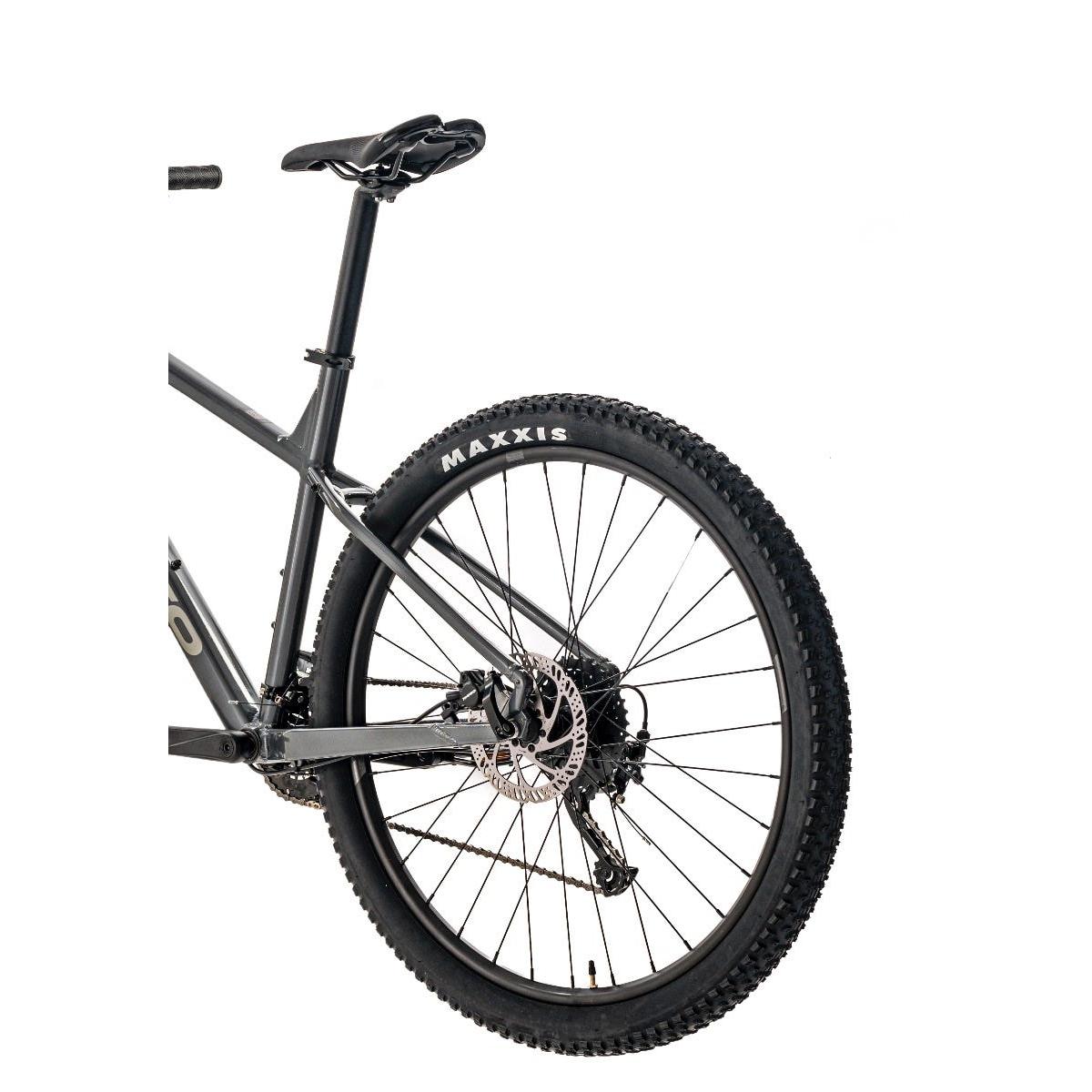

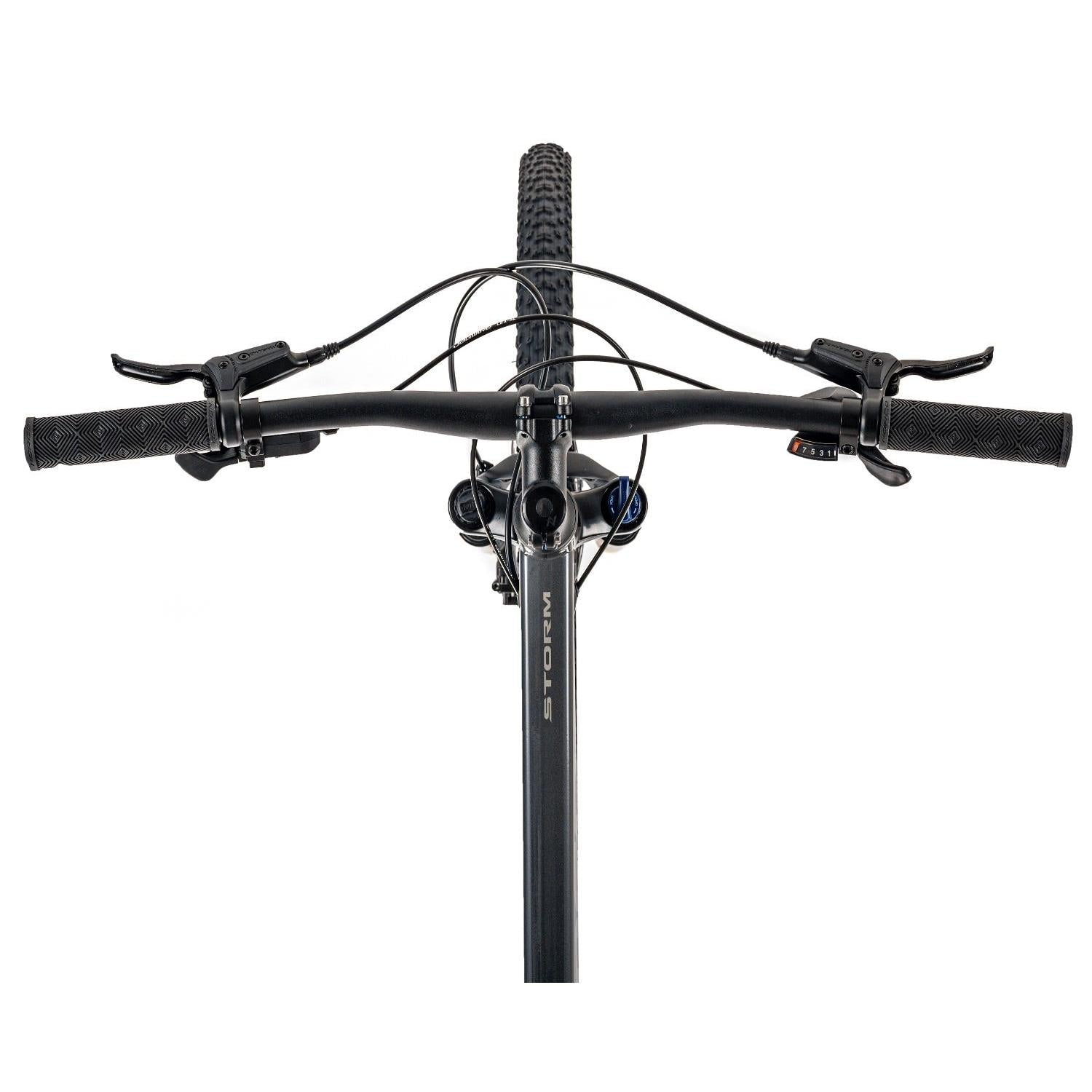

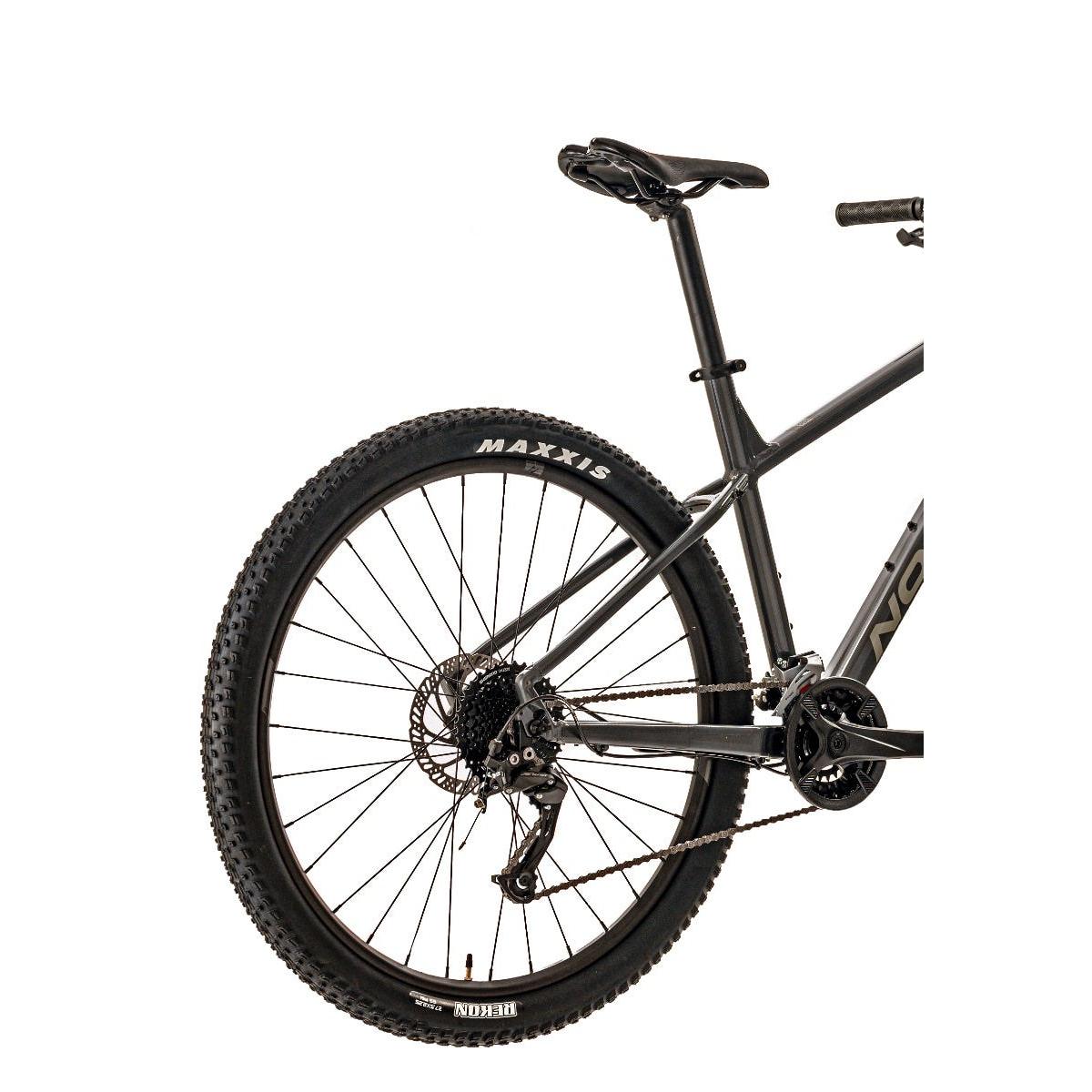

Norco Storm 3 27 Mountain Bike Charcoal/Silver

Norco Storm 3 27 Mountain Bike Charcoal/Silver

Brand: Norco

SKU: Select a size

Size: Select a size

XXS XS SM MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Alivio Groupset

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The image is provided solely to illustrate the color scheme. For more detailed information, please refer to the specifications.

Specifications

Product Overview

Product

Norco Storm 3 27 Mountain Bike Charcoal/Silver

Brand

Norco

Parent SKU

21NorcoStorm327CharcoalSilver

Size SKUs

XXS: NOHA2170411722
XS: NOHA2170411723
SM: NOHA2170411724
MD: NOHA2170411725

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Weight Limit

138kg (includes bike)

Build

Frame

Alloy

Fork

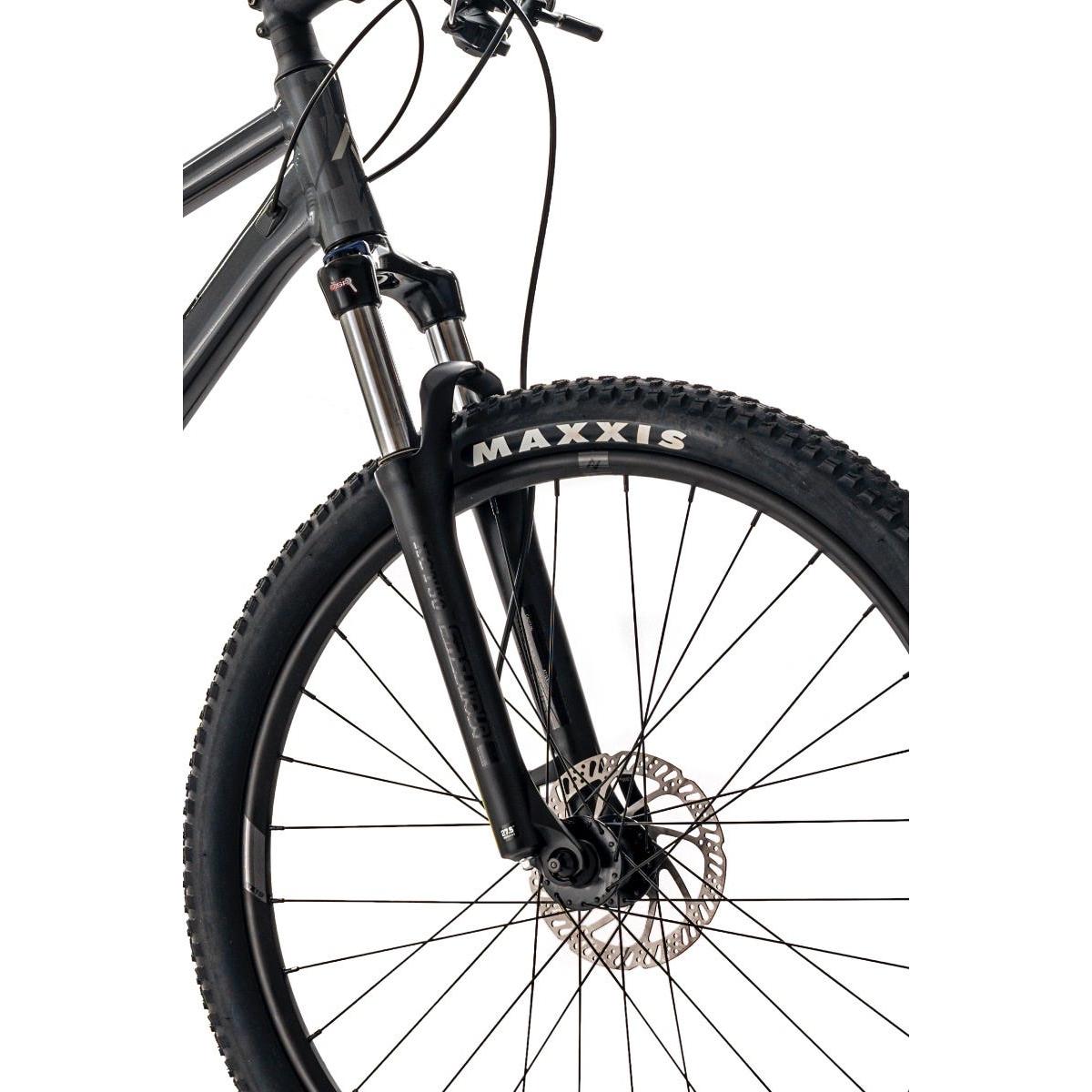

Suntour XCT30 HLO DS, 100mm Travel, 42mm Offset

Handlebars

X6 Alloy 720mm x 31.8/25mm Rise

Grips

Norco Grip

Stem

Norco Alloy 60mm

Bottom Bracket

Cartridge BB

Pedals

VP Nylon Flat Pedal

Saddle

Norco XC Saddle

Seat Post

Alloy 31.6mm

Wheels

Wheel Size

27.5" (650b)

Rims

WTB SX19 Rims

Hubs

F: Joytech D761DSE Alloy Disc QR / R: Joytech D762TSE Alloy Disc QR

Tyres

Maxxis Rekon DK60 2.25"

Spokes

Stainless Steel 14g - Black

Groupset

Crankset

Prowheel ZEPHYR-501, 36/22T, 170mm (XXS, XS, S), 175mm (M)

Chain

KMC Z99

Brakes

Tektro HD-M275 Hydraulic 160mm

Front Rotor

Tektro 160mm

Rear Rotor

Tektro 160mm

Shifters

Shimano Alivio SL-M3100 9spd

Front Derailleur

Shimano Altus FD-M2020 2spd

Rear Derailleur

Shimano Alivio RD-M3100 Shadow

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Storm 3 27 Mountain Bike Charcoal/Silver we suggest the following size.

More playful More stable

XXS

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

Norco Storm 3 27 Mountain Bike Charcoal/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

592

602

611

615

Reach

335

365

395

425

Top Tube Length

494

526

559

590

Seat Tube Length

340

390

430

470

Seat Tube Angle

75.0

Fork Length

Head Tube Length

105

115

125

135

Head Tube Angle

68.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

588

616

632

673

Minimum Seat Height

Maximum Seat Height
