$1156 Off Full Price

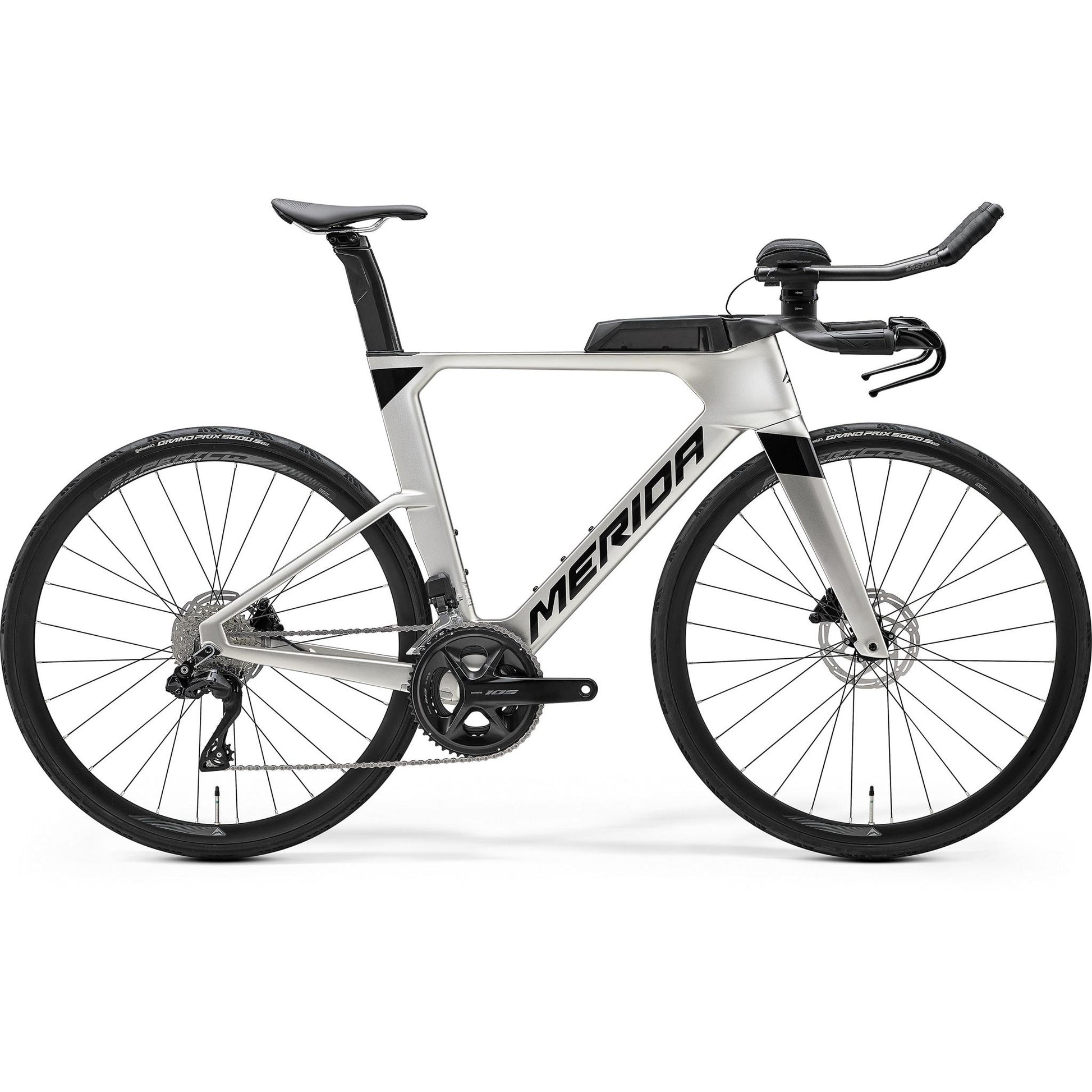

Merida Time Warp Tri 5000 Time Trial/Triathlon Bike Titan Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,543.00 Full price

$6,543.00

Club price

$7,699.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano 105 Di2 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Time Warp Tri 5000 Time Trial/Triathlon Bike in Titan Black is engineered for speed and efficiency, making it an ideal choice for competitive triathletes and time trial enthusiasts. Its lightweight carbon frame and fork provide a responsive ride, while the Shimano 105 Di2 groupset ensures precise and reliable shifting. The bike's aerodynamic design, including an aero shape seat post and integrated accessories like an aero bottle carrier and Bento box, enhances performance by reducing drag. Hydraulic disc brakes offer superior stopping power, and the tubeless ready wheels provide a smoother ride with reduced risk of punctures. This bike is designed to help you achieve your best times with confidence and style.

Key Features

Carbon frame and fork
Shimano 105 Di2 groupset
Hydraulic disc brakes
Aero shape seat post
Tubeless ready wheels

Specifications

Product Overview

Product

Merida Time Warp Tri 5000 Time Trial/Triathlon Bike Titan Black

Brand

Merida

Parent SKU

MERE26TIMEWARPTRI5000TITANBLACK

Size SKUs

XS: MERE2601314
SM: MERE2601315
MD: MERE2601316
LG: MERE2601317

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Build

Frame

TIME-WARP TRI CF5 IV; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

TIME-WARP TRI CF5 IV disc; MAT carbon; 700x30C max. WHS

Handlebars

MERIDA Metron TT; MAT carbon

Headset

Meida TIME WARP TT

Grips

MERIDA ROAD Expert

Stem

MERIDA Metron TT; MAT carbon; -17 ASD

Bottom Bracket

Shimano SM-BB71-41B; Pressfit 86.5

Saddle

MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TT II; Aero shape; Carbon

Seat Clamp

TIME WARP TT insert

Accessories

Aero bottle carrier; Bar-End Switch SW-R9160; MERIDA TIME WARP TRI Bento box

Wheels

Wheel Size

700c

Rims

MERIDA EXPERT CW; 19 IWR; 30 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

F: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock | R: Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock

Tyres

F: Maxxis Highroad; 700x28C; fold; tubeless ready | R: Maxxis Highroad; 700x28C; fold; tubeless ready

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano 105 R7100; 52-36 ATC; 165 mm-XS, 170 mm-S/M, 172,5 mm-L

Chain

Shimano M6100-12

Brakes

F: RIVER TRIVA; Hydraulic disc | R: RIVER TRIVA; Hydraulic disc

Front Rotor

REVER TRIVA; 160mm

Rear Rotor

REVER TRIVA; 160mm

Shifters

F: REVER TRIVA | R: REVER TRIVA

Rear Derailleur

Shimano 105 Di2

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Time Warp Tri 5000 used for?

The Merida Time Warp Tri 5000 is used for competitive triathlons and time trials, where speed and aerodynamics are crucial for achieving the best performance.

Why choose the Merida Time Warp Tri 5000?

Choose the Merida Time Warp Tri 5000 for its lightweight carbon construction, precise electronic shifting, and aerodynamic design, all of which contribute to faster times and a more efficient ride.

Who is the Merida Time Warp Tri 5000 designed for?

The Merida Time Warp Tri 5000 is designed for serious triathletes and time trial cyclists who demand high performance, reliability, and cutting-edge technology in their racing equipment.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Time Warp Tri 5000 Time Trial/Triathlon Bike Titan Black we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Aerodynamic Design

The Merida Time Warp Tri 5000 features a sleek carbon frame and fork that minimize air resistance, allowing you to maintain higher speeds with less effort. Its integrated components, like the aero bottle carrier, further enhance its streamlined profile.

Precision Shifting

Equipped with the Shimano 105 Di2 groupset, this bike offers electronic shifting for smooth and accurate gear changes. This ensures you can focus on your performance without worrying about mechanical issues.

Superior Stopping Power

Hydraulic disc brakes provide reliable and powerful braking in all weather conditions. This gives you the confidence to tackle descents and sharp turns with ease, knowing you can stop safely when needed.

Riders Height (cm)

Merida Time Warp Tri 5000 Time Trial/Triathlon Bike Titan Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

518

533

574

Reach

381

417

427

Top Tube Length

510

550

570

Seat Tube Length

500

540

580

Seat Tube Angle

76.0

Fork Length

371

Head Tube Length

130

173

Head Tube Angle

72.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

781

799

838

Minimum Seat Height

Maximum Seat Height
