36% Off Full Price

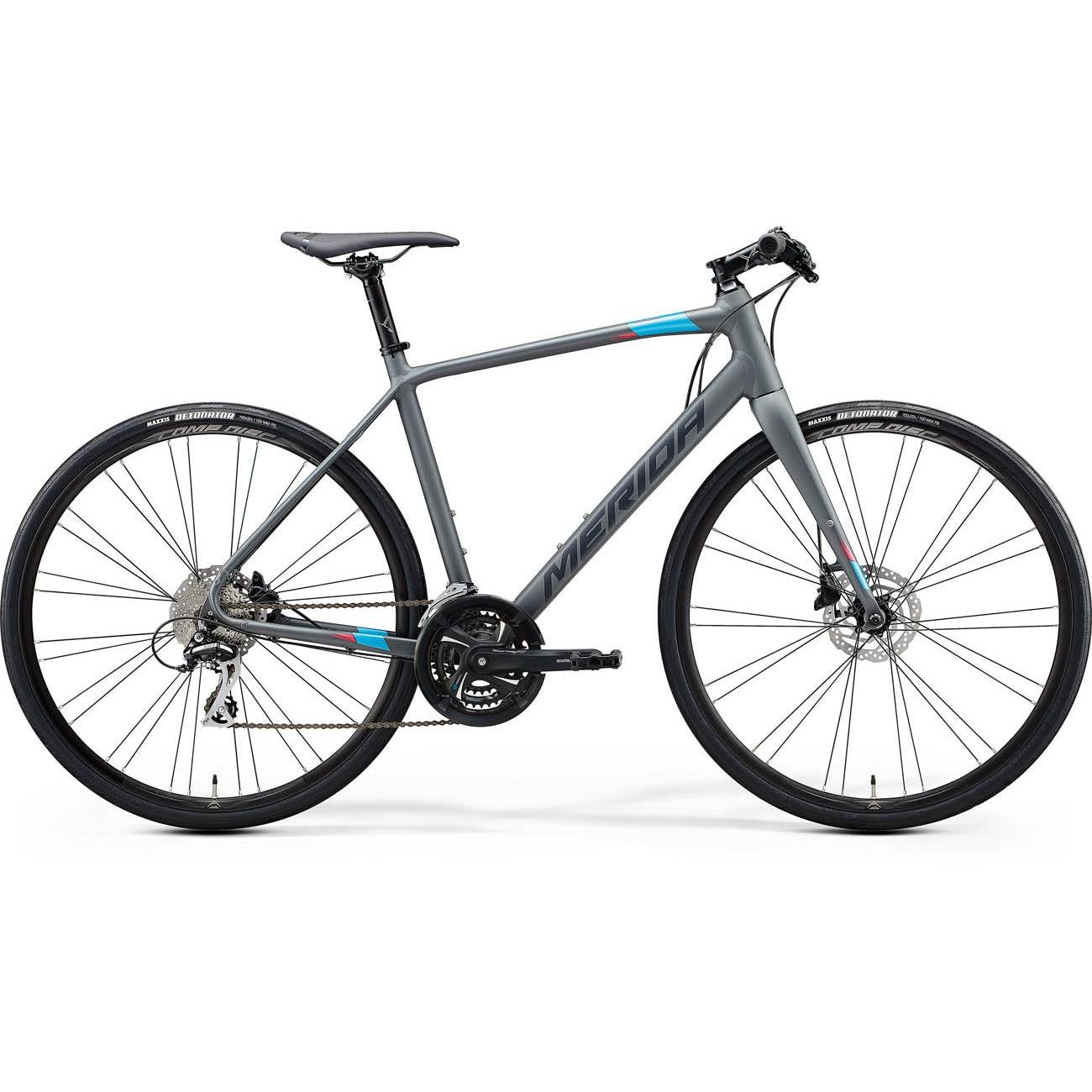

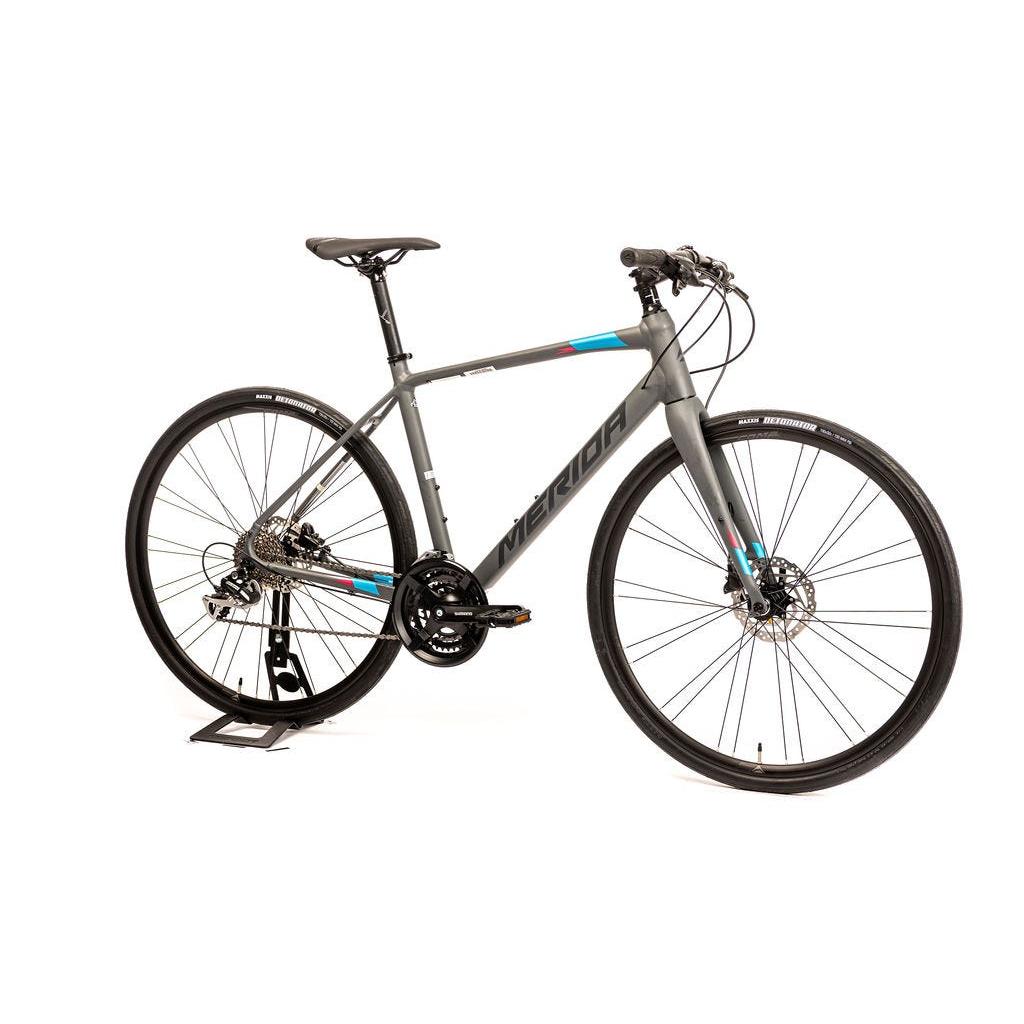

Merida Speeder 100 Flat Bar Road Bike Matt Cool Grey/Blue/Red

Merida Speeder 100 Flat Bar Road Bike Matt Cool Grey/Blue/Red

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM SM/MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano Acera Groupset

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

Please note: The image is provided solely to illustrate the color scheme.

Specifications

Product Overview

Product

Merida Speeder 100 Flat Bar Road Bike Matt Cool Grey/Blue/Red

Brand

Merida

Parent SKU

21MeridaSpeeder100MattCoolGreyBlueRed

Size SKUs

XS: MEFB2164099
SM: MEFB2164107
SM/MD: MEFB2164118
MD/LG: MEFB2164129
LG: MEFB2164130

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Fork Material

Carbon

Weight

10.58kg

Weight Limit

120kg (includes bike)

Build

Frame

Alloy

Fork

MERIDA SPEEDER CF2; Tapered; MAT carbon

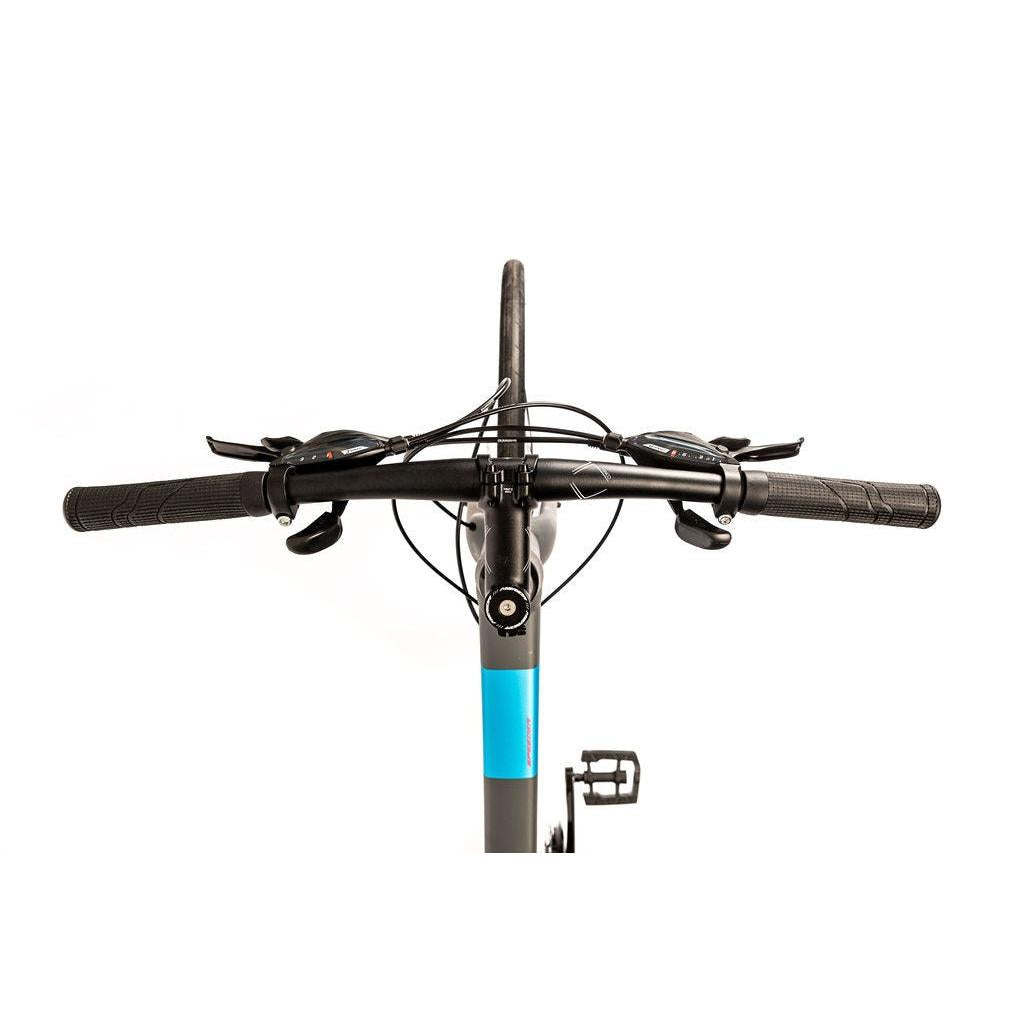

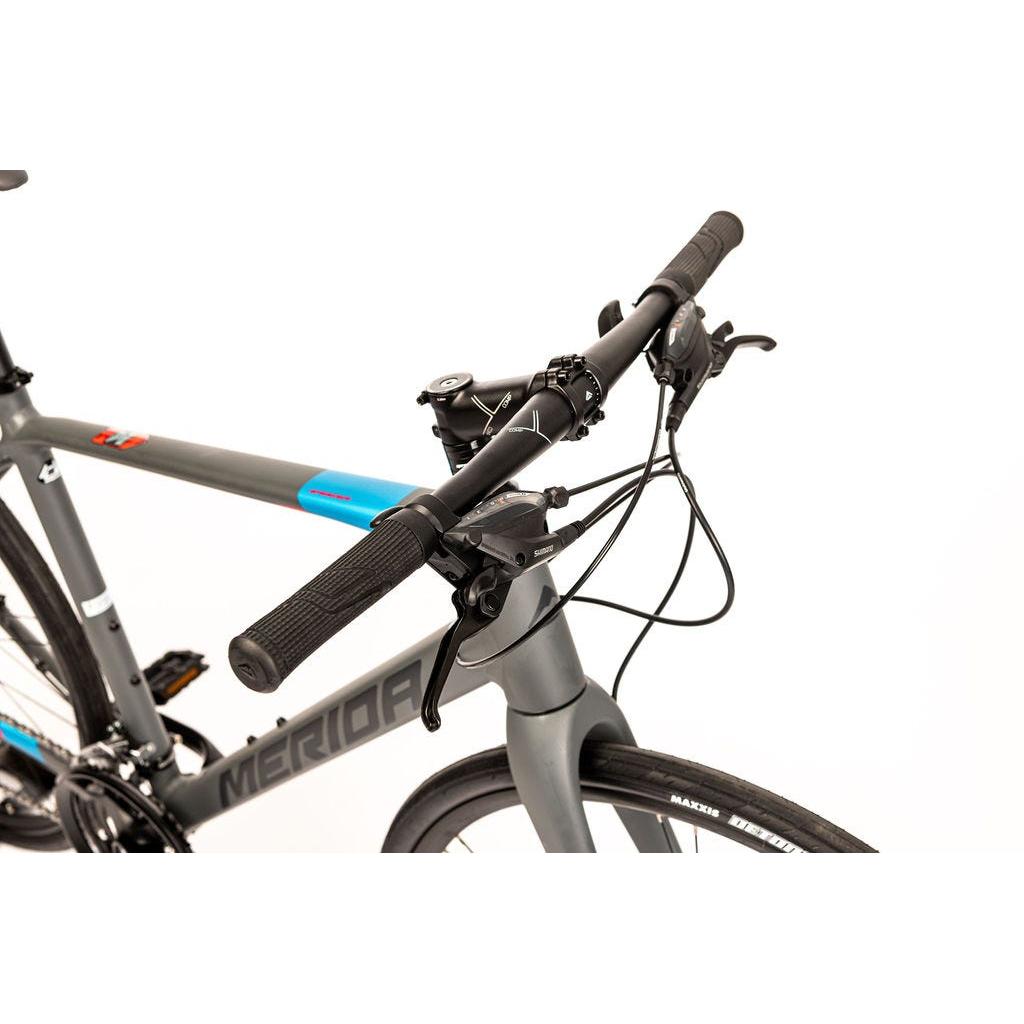

Handlebars

MERIDA COMP TK; MAT aluminium; 600 Wide; Flat

Headset

MERIDA M2341 Neck

Grips

MERIDA Comp EC

Stem

MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

FSA TH-7420ST, Cartridge Bearing

Pedals

PP pedal ( VPE-891 )

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 12 Setback

Wheels

Wheel Size

700c

Rims

MERIDA COMP SL; 17 IWR; 22 HRI; MAT aluminium

Hubs

Shimano FH-TX505; 135x9 WHR; 32 Spokes; centerlock

Tyres

Maxxis Detonator; 700x32C; wire

Spokes

Black stainless

Groupset

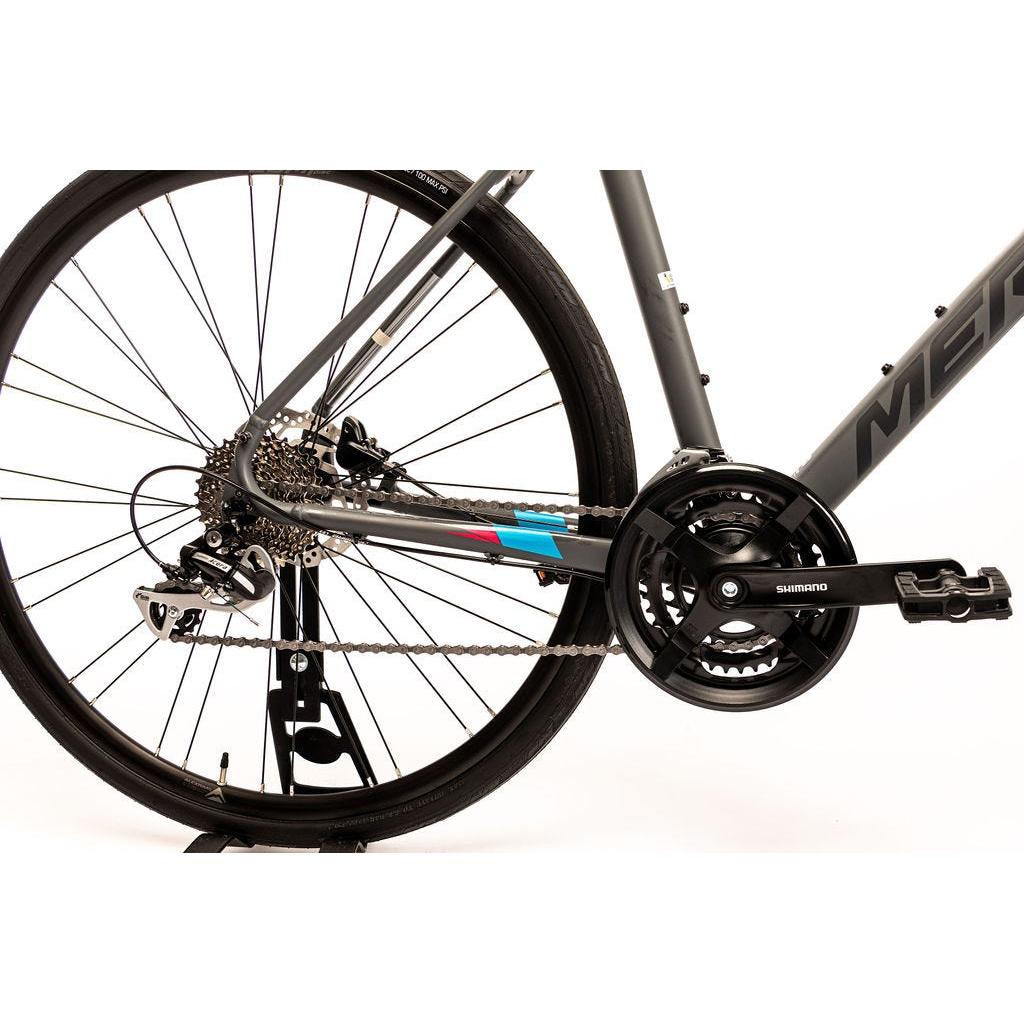

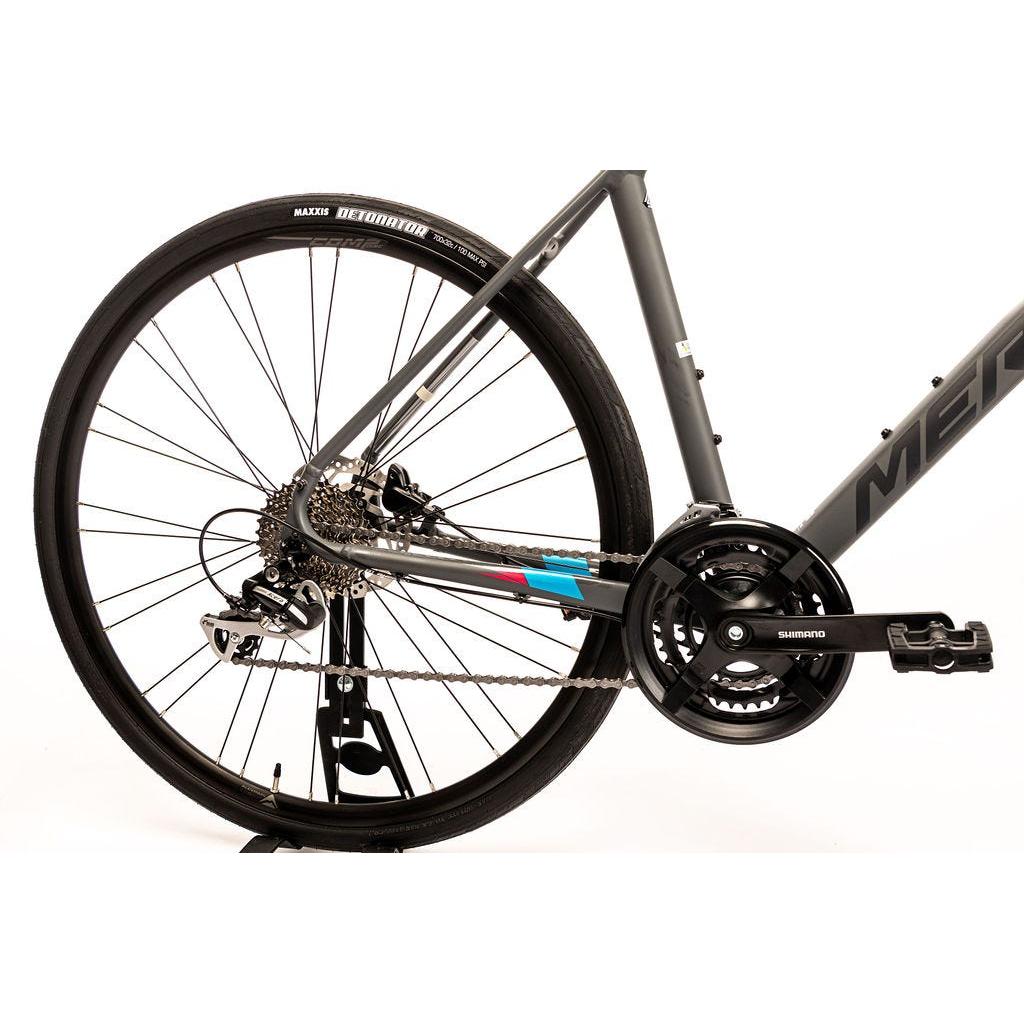

Crankset

Shimano TY301; 48-38-28 ATC

Chain

Sunrace CN-M84

Brakes

Shimano BR-MT200

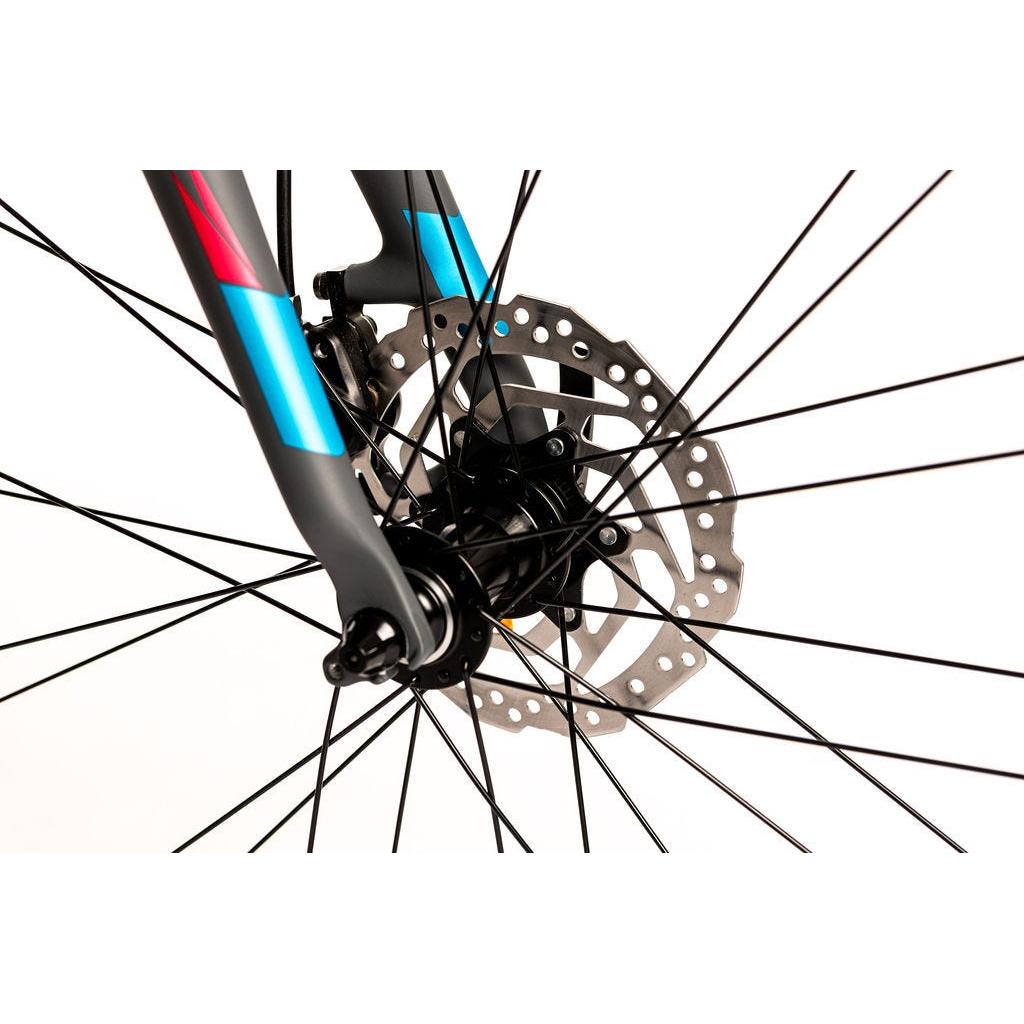

Front Rotor

Shimano RT10 160mm

Rear Rotor

Shimano RT10 160mm

Shifters

Shimano ST-EF505

Front Derailleur

Shimano TY710

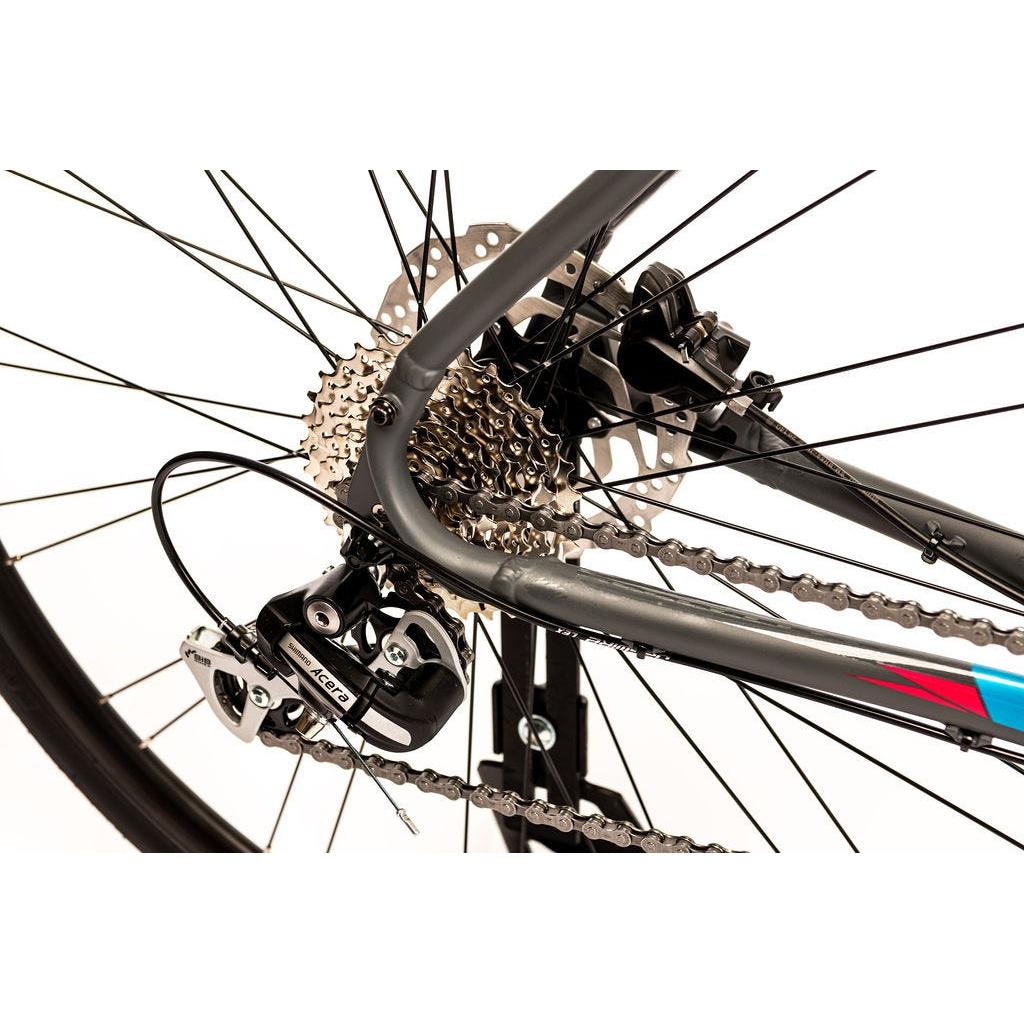

Rear Derailleur

Shimano Acera-X

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Speeder 100 Flat Bar Road Bike Matt Cool Grey/Blue/Red we suggest the following size.

More relaxed More aggressive

SM/MD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

SM/MD

MD/LG

Merida Speeder 100 Flat Bar Road Bike Matt Cool Grey/Blue/Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

562

573

585

Reach

389

392

398

Top Tube Length

555

561

571

Seat Tube Length

470

500

520

Seat Tube Angle

73.5

Fork Length

Head Tube Length

150

160

170

Head Tube Angle

70.0

70.5

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

744

769

787

Minimum Seat Height

Maximum Seat Height
