$1500 Off Full Price

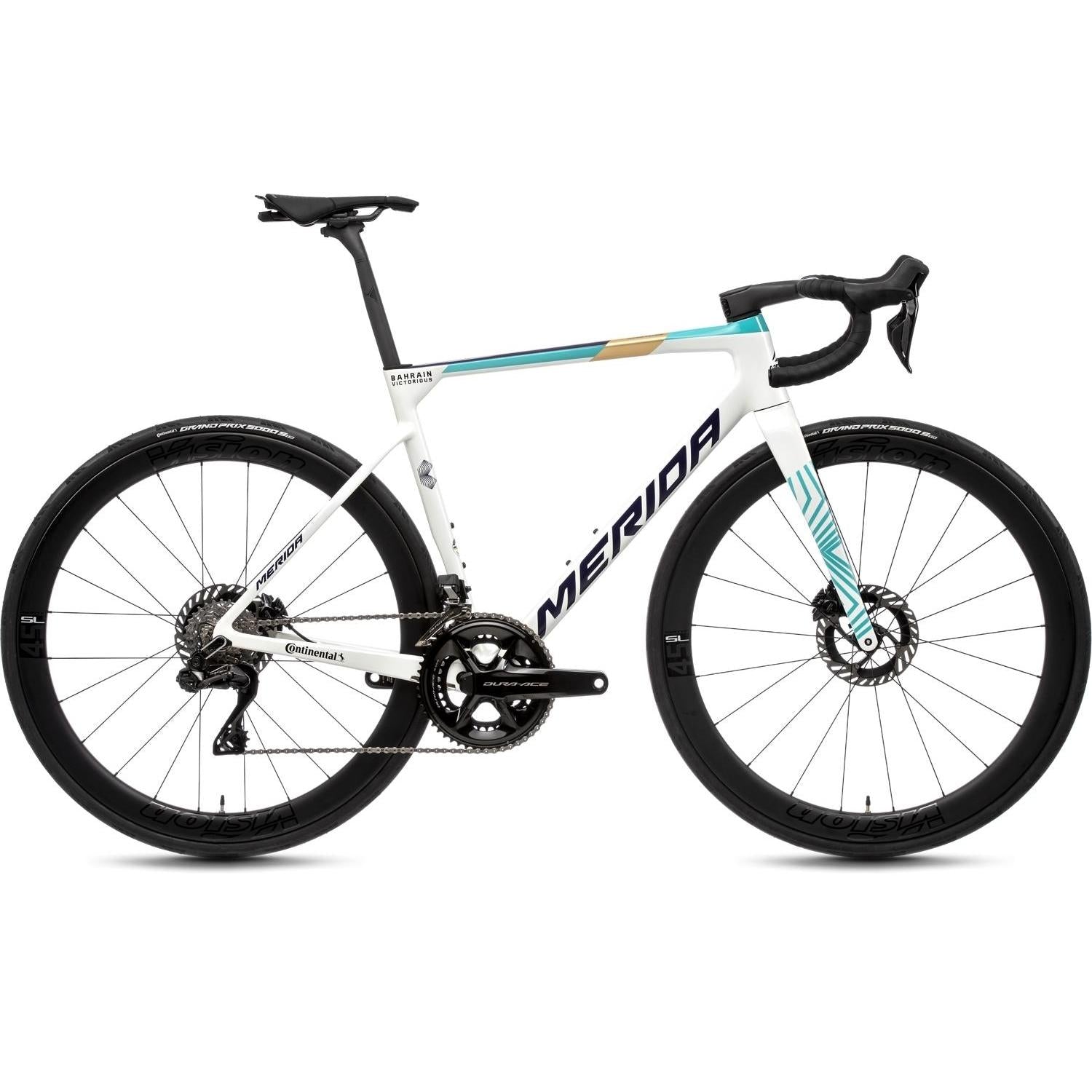

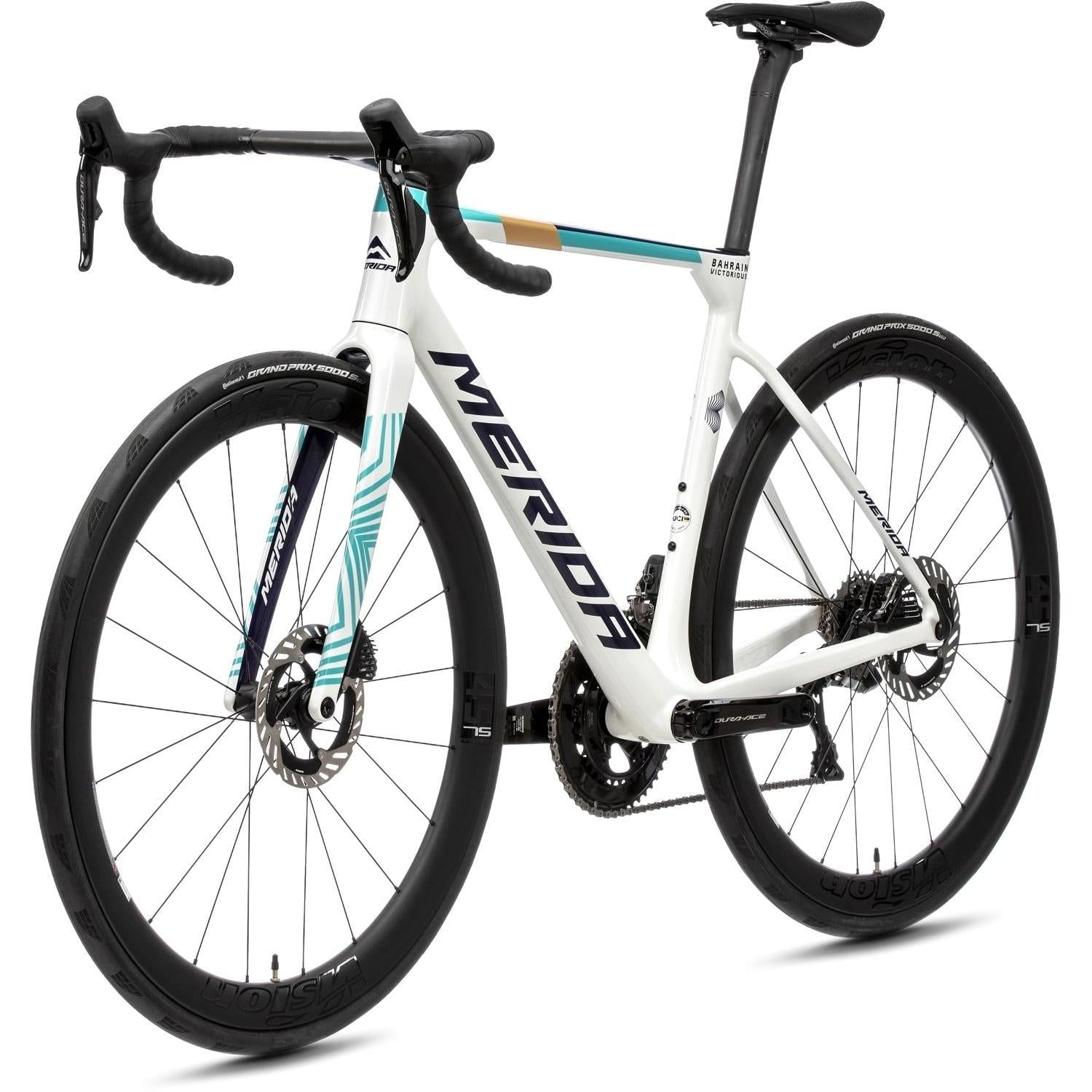

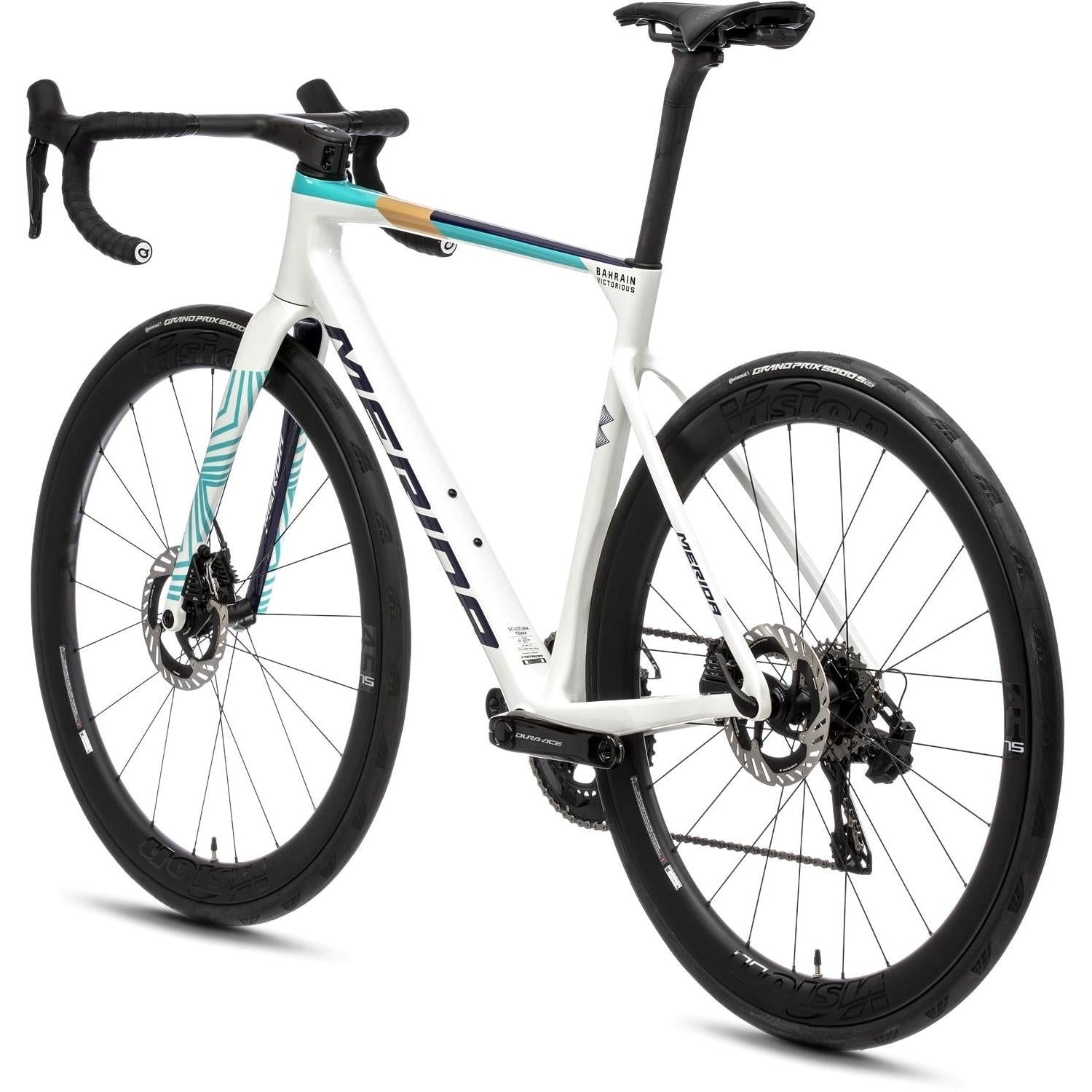

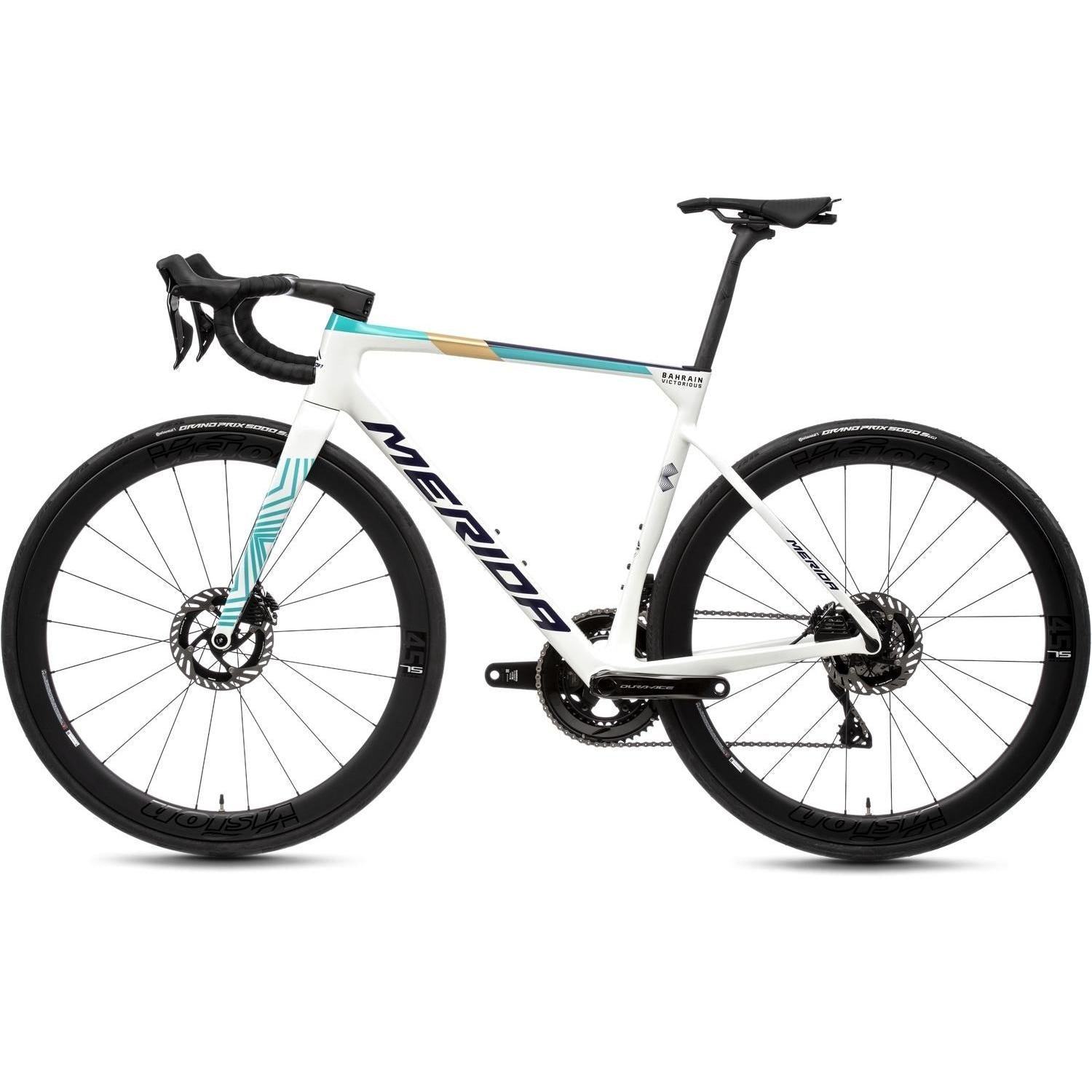

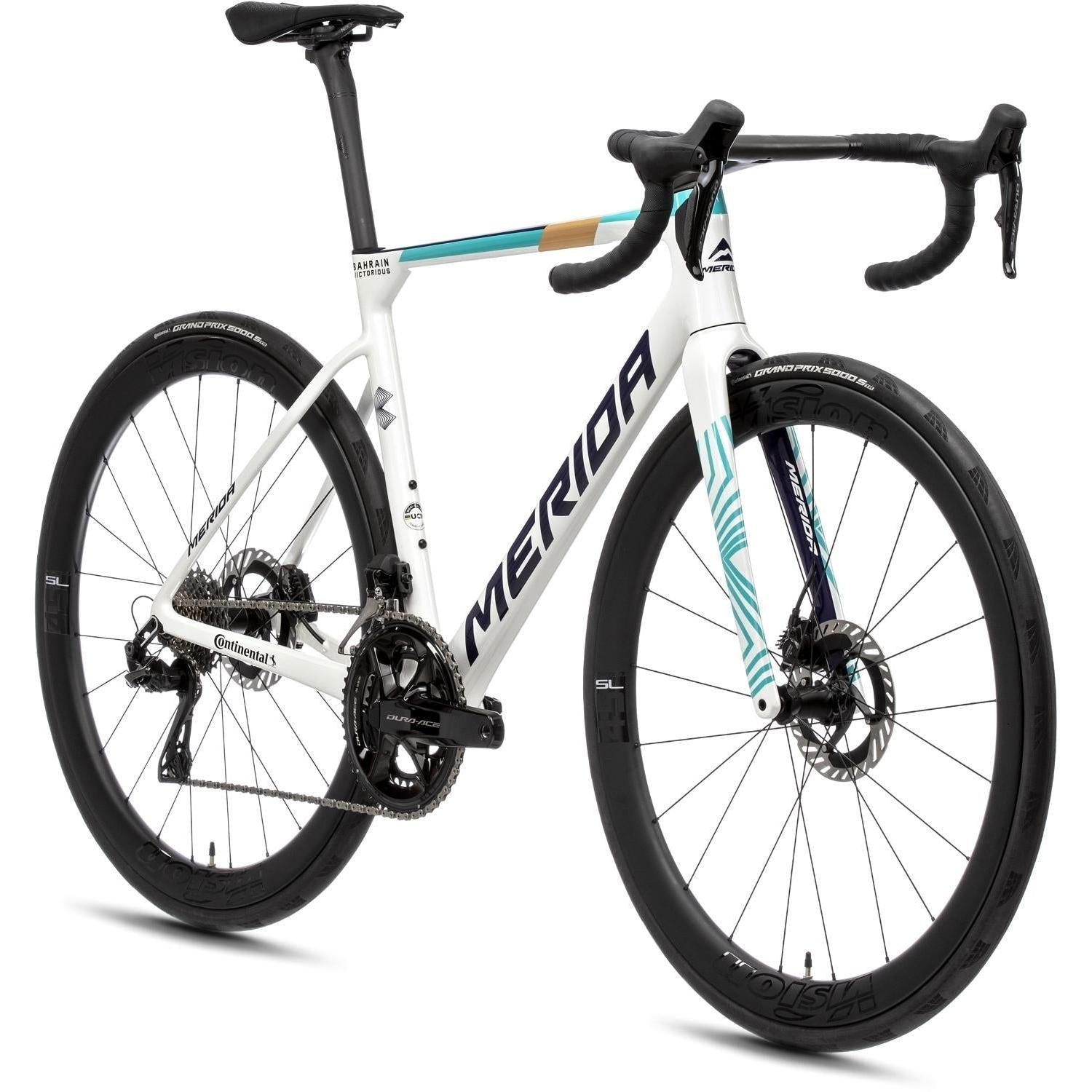

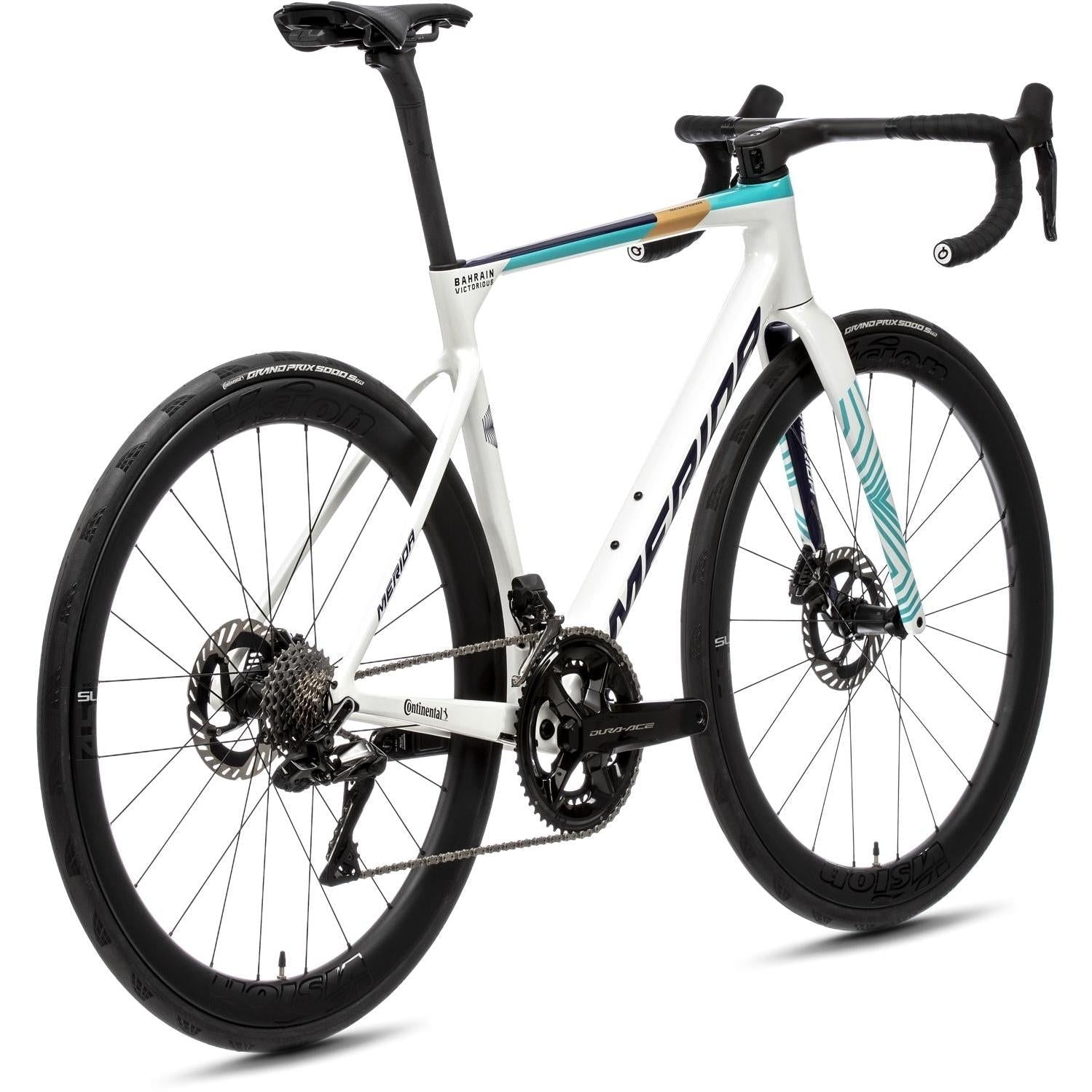

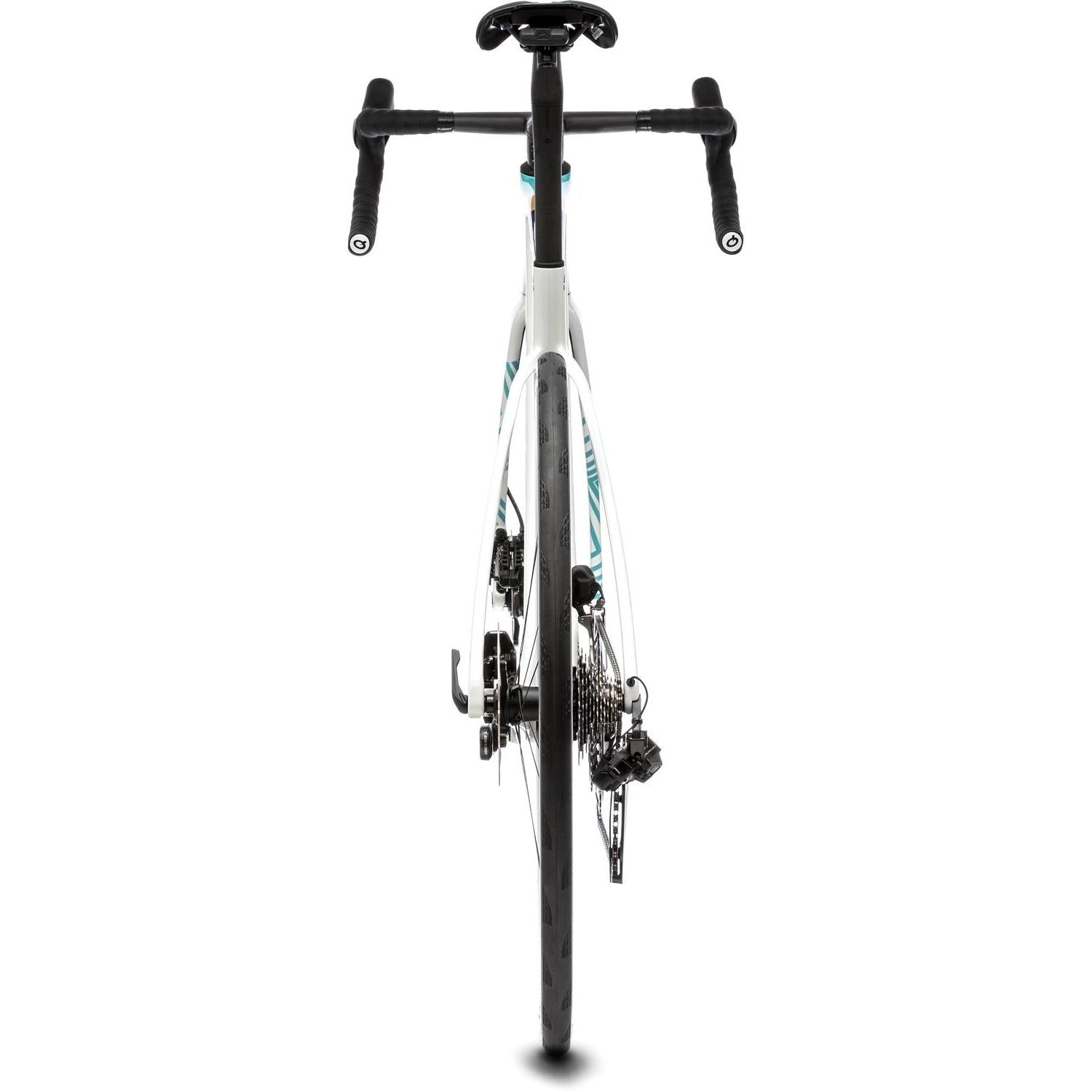

Merida Scultura Team Road Bike Teal/Pearl Blue

Merida Scultura Team Road Bike Teal/Pearl Blue

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano Dura-Ace Di2 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

Key Features

Scultura CF5 V MAT carbon frame for reduced weight and increased stiffness
Shimano Dura Ace Di2 groupset for precise electronic shifting
Aerodynamic design for enhanced performance
Versatile tire clearance with disc brakes for reliable stopping power
Striking teal and pearl finish for a standout look

Specifications

Product Overview

Product

Merida Scultura Team Road Bike Teal/Pearl Blue

Brand

Merida

Parent SKU

MERE25SCULTURATEAMV2PEARLBLUETEAMCY25

Size SKUs

XS: MERE2503963
SM: MERE2503964
MD: MERE2503965
LG: MERE2503966
XL: MERE2503967

Matrix Barcodes

XS: 4711256503915
SM: 4711256503905
MD: 4711256503912
LG: 4711256503913
XL: 4711256503914

Year Model

2025

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

White

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Front Travel

Rigid

Weight

Approx. 7.2kg (MD frame)

Build

Frame

SCULTURA CF5 V MAT carbon 700x30C max WHS 100x12 142x12 AST Pressfit 865

Fork

SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS

Handlebars

TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S), 400mm (M-L-XL)

Headset

MERIDA TEAM SL; VP-MRBHB (OP-203 neck)

Grips

Prologo One-Touch

Stem

TEAM ONE-PIECE INTEGRATED; MAT carbon

Bottom Bracket

SM-BB92-41B, Pressfit 86.5

Saddle

SCRATCH M5; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex

Wheels

Wheel Size

700c

Rims

Vision METRON 45 SL Clincher TL Disc; 100x12 WHF; 142x12 WHR; 18 IWR; 45 HRI; Centerlock; MAT carbon; Tubeless ready (tubeless tape and valves included)

Tyres

Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Groupset

Crankset

Shimano Dura Ace, 52-36T; Power Meter; 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

Chain

Shimano CN-M9100-12

Brakes

Shimano Dura Ace disc

Front Rotor

Shimano CL900; 160mm

Rear Rotor

Shimano CL900; 160mm

Shifters

Shimano Dura Ace disc Di2

Front Derailleur

Shimano Dura Ace Di2

Rear Derailleur

Shimano Dura Ace Di2

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura Team Road Bike Teal/Pearl Blue we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

SM/MD

MD/LG

Merida Scultura Team Road Bike Teal/Pearl Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
