$1800 Off Full Price Clearance

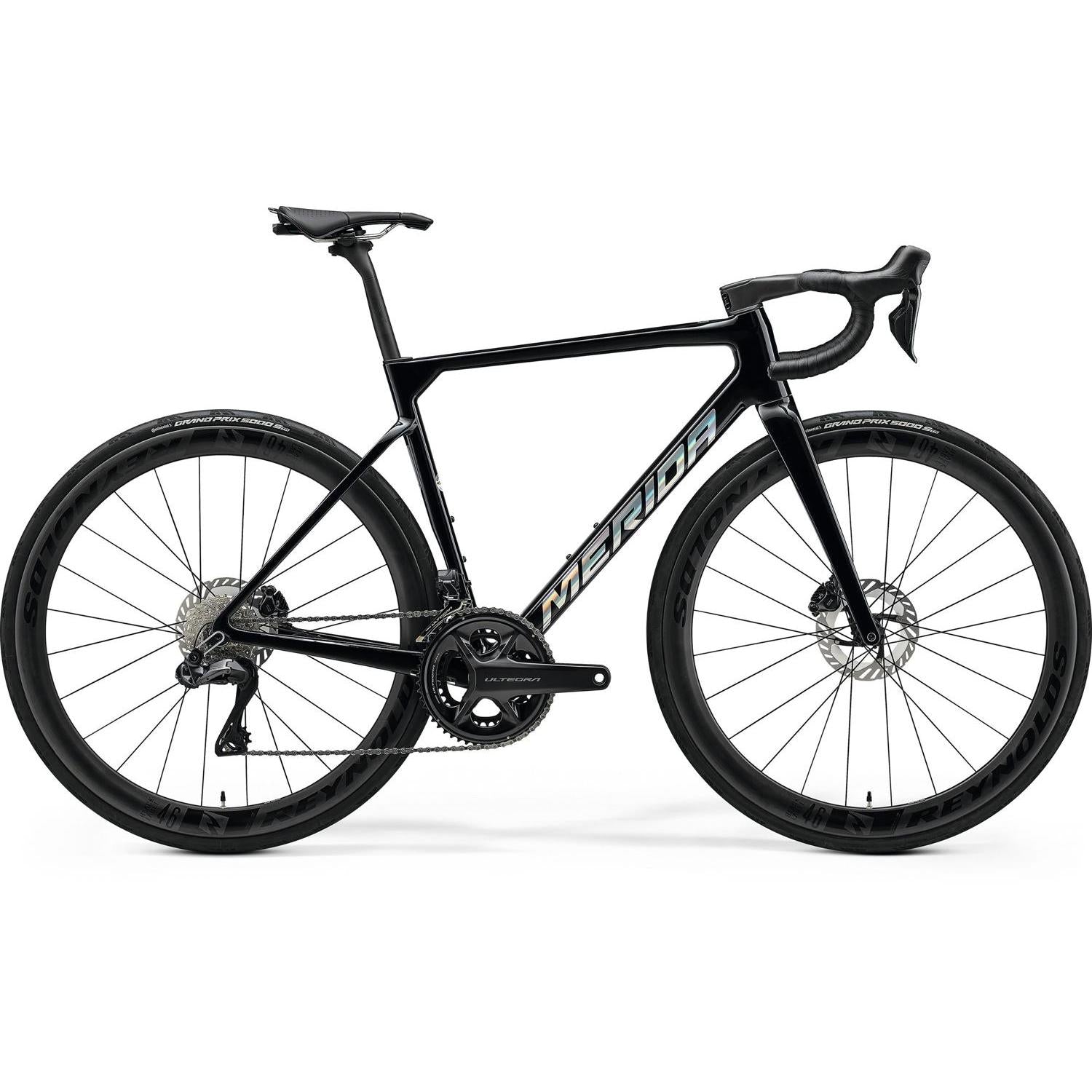

Merida Scultura 9000 Road Race Bike Metallic Black/Flash Bcp

Brand: Merida

SKU: Select a size

Other Colours

Black

Red

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,399.00 Full price

$6,399.00

Club price

$8,199.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano Ultegra Di2 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Scultura 9000 Road Race Bike is crafted for elite cyclists, featuring a Scultura CF5 V MAT carbon frame that accommodates tires up to 700x30C. It combines lightweight construction with robust performance. The Shimano Ultegra Di2 electronic shifting ensures precise and efficient gear changes, while Shimano CL800 hydraulic disc brakes provide reliable stopping power in all conditions. The bike includes a Merida Team SL carbon seatpost and Reynolds BL 46 Expert Disc Brake wheels, enhancing comfort, aerodynamics, and performance. Perfect for competitive racing and long-distance rides, the Scultura 9000 meets the demands of serious cyclists.

Key Features

Scultura CF5 V MAT carbon frame
Shimano Ultegra Di2 electronic shifting
Shimano CL800 hydraulic disc brakes
Reynolds BL 46 Expert disc brake wheels

Specifications

Product Overview

Product

Merida Scultura 9000 Road Race Bike Metallic Black/Flash Bcp

Brand

Merida

Parent SKU

Merida25SCULTURA9000MetallicBlackFlashBcp

SKU

Merida25SCULTURA9000MetallicBlackFlashBcp

Size SKUs

XS: MERE2501341
SM: MERE2501342
MD: MERE2501343
LG: MERE2501344
XL: MERE2501345

Matrix Barcodes

XS: 25013411341
SM: 25013421342
MD: 25013431343
LG: 25013441344
XL: 25013451345

Year Model

2025

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Front Travel

Rigid

Build

Frame

SCULTURA CF5 V MAT carbon 700x30C max WHS 100x12 142x12 AST Pressfit 865

Fork

SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS

Handlebars

TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S), 400mm (M-L-XL)

Grips

MERIDA ROAD Expert

Stem

TEAM ONE-PIECE INTEGRATED; MAT carbon

Bottom Bracket

SM-BB72-41B, Pressfit 86.5

Saddle

SCRATCH M5; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

Reynolds BL 46 Expert DB, 100x12 WHF; 142x12 WHR; 21 IWR; 41 HRI; Centerlock; Shimano HG; MAT carbon; Tubeless ready (tubeless tape and valves included)

Tyres

Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Groupset

Crankset

165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

Chain

Shimano CN-M8100-12

Brakes

Shimano Ultegra

Front Rotor

Shimano CL800; 160mm

Rear Rotor

Shimano CL800; 160mm

Front Derailleur

Shimano Ultegra Di2; FD-R8150

Rear Derailleur

Shimano Ultegra Di2; RD-R8150

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Scultura 9000 used for?

The Scultura 9000 is designed for competitive racing and demanding road conditions, offering high performance and reliability.

Why choose the Merida Scultura 9000?

With its Scultura CF5 V MAT carbon frame, Shimano Ultegra Di2 electronic shifting, powerful Shimano hydraulic disc brakes, and advanced Reynolds BL 46 Expert disc brake wheels, the Scultura 9000 delivers exceptional performance and aerodynamics for serious road cyclists.

Who is the Merida Scultura 9000 designed for?

This bike is ideal for competitive cyclists who demand top-tier equipment to achieve peak performance in races and challenging road environments.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 9000 Road Race Bike Metallic Black/Flash Bcp we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Shimano Ultegra Di2 Electronic Shifting

The Shimano Ultegra Di2 system provides precise electronic shifting, enhancing performance for competitive racing.

Hydraulic Disc Brakes

Shimano CL800 hydraulic disc brakes offer powerful and consistent braking performance, ensuring confidence in any riding condition.

Reynolds BL 46 Expert Wheels

The Reynolds BL 46 Expert Disc Brake wheels provide superior aerodynamics and efficiency, enhancing speed and stability on the road.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 9000 Road Race Bike Metallic Black/Flash Bcp geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

529

542

557

571

593

Reach

383

390

395

400

409

Top Tube Length

535

545

560

575

590

Seat Tube Length

458

481

501

521

550

Seat Tube Angle

74.0

73.5

73.0

Fork Length

385

Head Tube Length

112

128

140

155

176

Head Tube Angle

72.0

72.5

73.5

74.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

745

765

782

800

823

Minimum Seat Height

Maximum Seat Height
