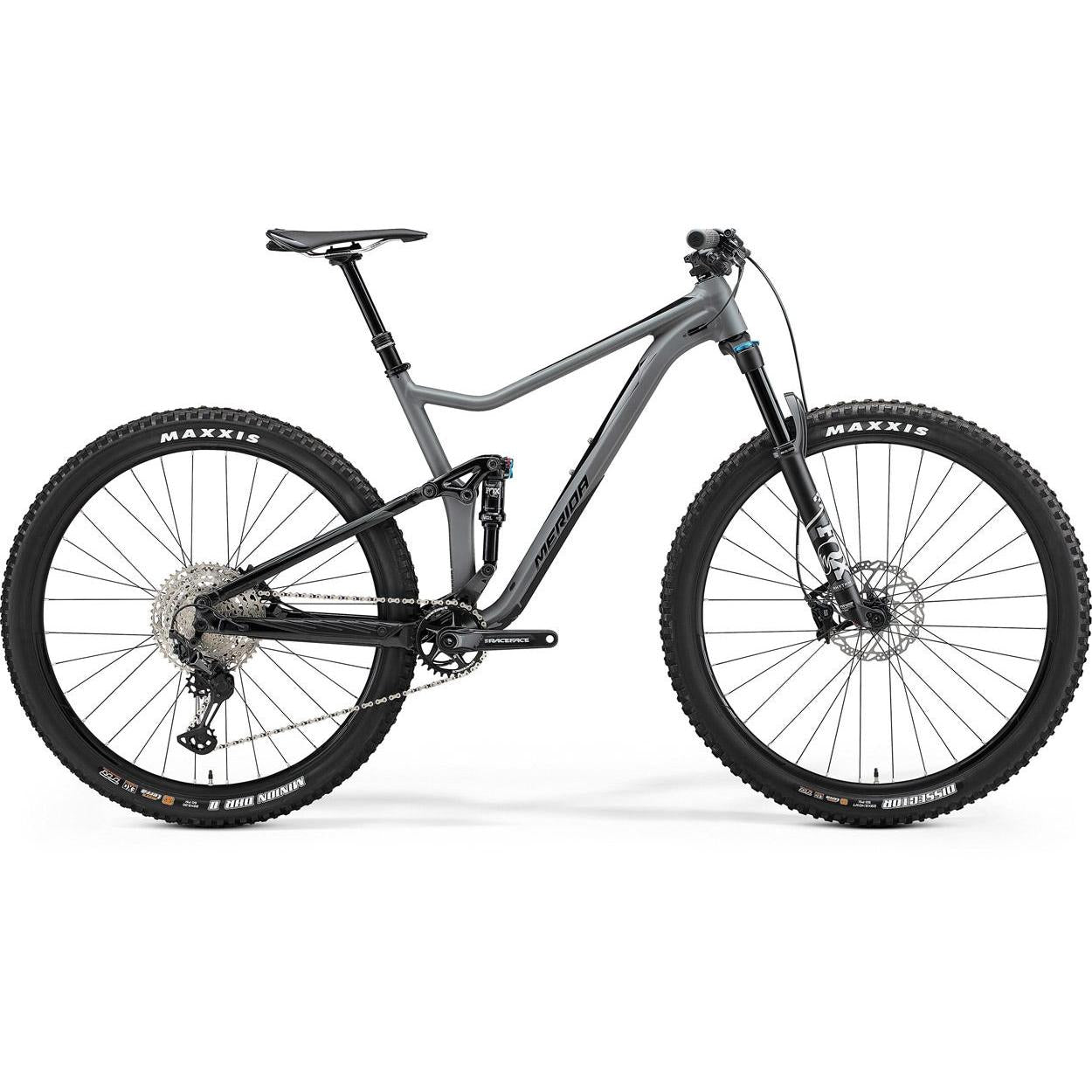

Merida One Twenty 700 Mountain Bike Matt Grey/Glossy Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Fox Fork

130mm Front Travel / 120mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One Twenty 700 Mountain Bike combines the climbing prowess of the Merida Ninety XC race bike with the descending capabilities of the Merida One Forty all-mountain bike. It features a lightweight alloy frame, a 120mm Fox Performance Float DPS Rear Shock with lockout, and a Fox Rhythm 34 Float Fork with 130mm travel for versatile trail performance. The Float Link Rear Suspension Design enhances sensitivity and responsiveness, making it a standout choice for trail enthusiasts.

Specifications

Product Overview

Product

Merida One Twenty 700 Mountain Bike Matt Grey/Glossy Black

Brand

Merida

Parent SKU

21MeridaOneTwenty700MattGreyGlossyBlack

Size SKUs

SM: MEDA2179067
MD: MEDA2179078
LG: MEDA2179089
XL: MEDA2179090

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

130mm

Rear Travel

120mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Fox Rhythm 34 Float; Air; 130 STR; Tapered; 44mm fork offset

Shock

Rock Shox Deluxe Select+

Handlebars

MERIDA EXPERT TR; MAT aluminium; 760 Wide; 20 Rise

Headset

FSA NO.47/50

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT TR; All 50mm, MAT aluminium; 35 Diameter; 0 Angle

Bottom Bracket

Race Face BB BB92â€“ Ã˜24mm

Pedals

not included

Saddle

MERIDA EXPERT CC + MERIDA Multitool with Saddlebox

Seat Post

MERIDA EXPERT TR; 30.9 Diameter; 0 Setback; S: 125 SPT - M 150 SPT - L/XL 170 SPT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano SLX; 148x12 WHR, 32 Spokes; Centerlock

Tyres

Front: Maxxis Dissector; 29x2.4"; fold; TR EXO 3C MaxxTerra , Rear: Maxxis Minion DHR II; 29x2.3"; fold; TR EXO 3C MaxxTerra

Spokes

Double Butted Black stainless

Groupset

Crankset

Race Face Aeffect; 32 ATC

Chain

Shimano Deore CN-M6100 12s

Brakes

Shimano SLX M7120; 4 piston

Front Rotor

180mm

Rear Rotor

180mm

Shifters

Shimano SL -MT500-IL

Rear Derailleur

Shimano XT M8100 Shadow+

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Twenty 700 Mountain Bike Matt Grey/Glossy Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida One Twenty 700 Mountain Bike Matt Grey/Glossy Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

607

616

626

Reach

415

435

455

475

Top Tube Length

572

592

614

637

Seat Tube Length

400

440

480

520

Seat Tube Angle

75.5

Fork Length

Head Tube Length

105

115

Head Tube Angle

67.3

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

707

730

759

787

Minimum Seat Height

Maximum Seat Height
