$1280 Off Full Price

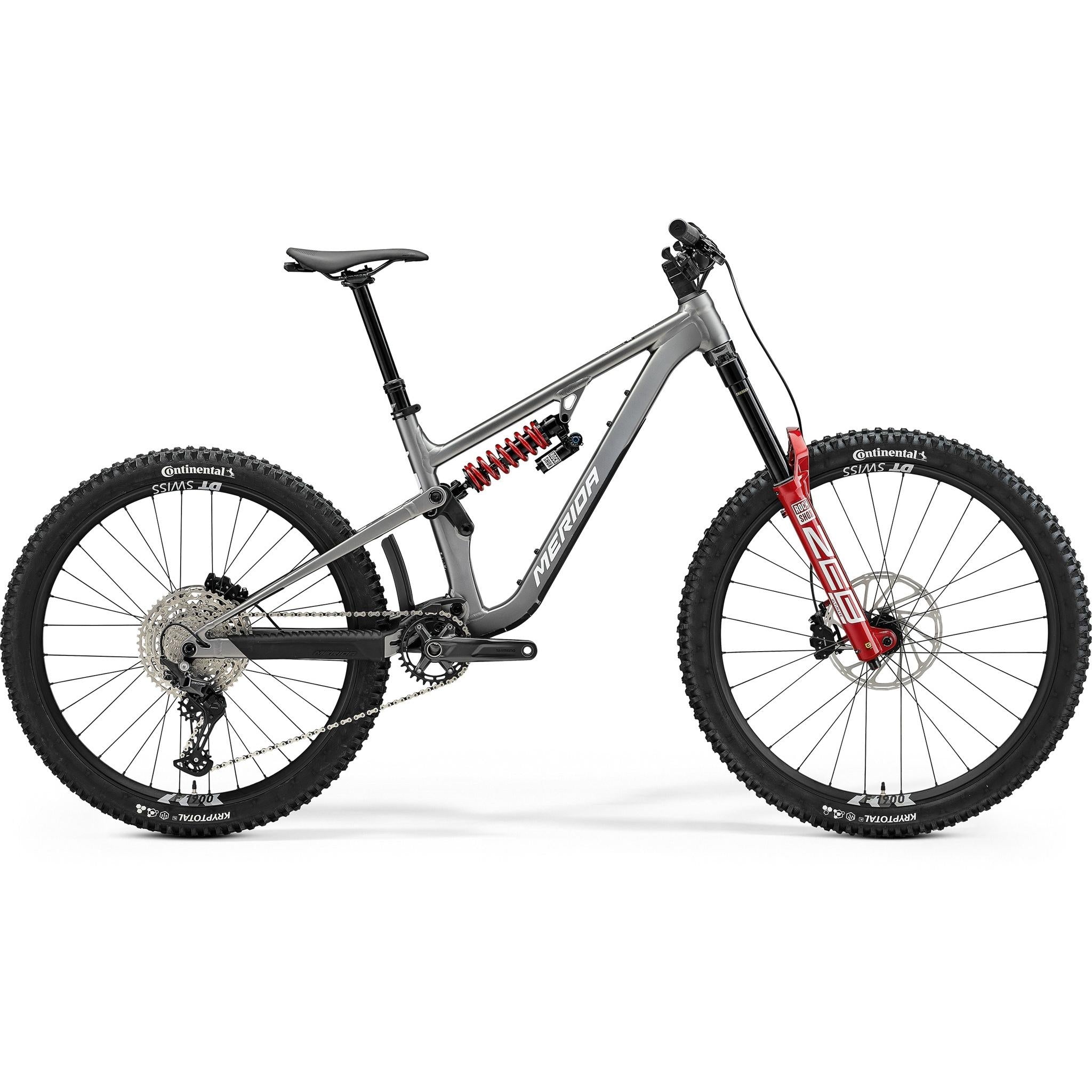

Merida One-Sixty Fr 800 Enduro Bike Silk Gunmetal Grey/White

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,119.00 Full price

$5,119.00

Club price

$6,399.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

180mm Front Travel / 170mm Rear

29" / 27.5" (Mullet Bike) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Sixty Fr 800 Enduro Bike in Silk Gunmetal Grey/White is designed for riders who crave adventure on challenging terrains. Built with a robust alloy frame, this bike offers durability and strength for demanding trails. The RockShox Zeb Ultimate fork provides 180mm of front travel, ensuring smooth rides over rough surfaces. Equipped with a Shimano Deore 12-speed groupset, it delivers precise and reliable shifting. Hydraulic disc brakes offer superior stopping power, while the mullet wheel setup enhances agility and control. Whether you're tackling steep descents or technical climbs, the Merida One-Sixty Fr 800 is engineered to elevate your enduro experience.

Key Features

Alloy frame for durability and strength
RockShox Zeb Ultimate fork with 180mm travel
Shimano Deore 12-speed groupset
Hydraulic disc brakes for superior stopping power
Mullet wheel setup for agile handling

Specifications

Product Overview

Product

Merida One-Sixty Fr 800 Enduro Bike Silk Gunmetal Grey/White

Brand

Merida

Parent SKU

Merida26ONESIXTYFR800SILKGUNMETALGREYWHITE

Size SKUs

XS: MERE2601666
SM: MERE2601667
MD: MERE2601668
LG: MERE2601669
XL: MERE2601670

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

180mm

Rear Travel

170mm

Build

Frame

ONE-SIXTY LITE III; 171 STR mullet; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Zeb Ultimate; Air; 180 STR; 44mm offset; 29x2.6" max. WHS

Shock

Rock Shox Vivid coil; lockout; spring rate: XSHORT 300 lbs; SHORT:350 lbs; MID:400; LONG: 450 lbs; XLONG: 500 lbs

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 30 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA EXPERT TR; recycled material

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT III; 34.9 DSP; 0 SSB; 25mm travel adjustability; XSHORT: 170mm, SHORT/MID: 200mm, LONG/XLONG: 230mm

Seat Clamp

MERIDA EXPERT

Accessories

Brake adapter front 200mm to 220mm; Velcro strap & Tube Base Mount LITE; V-mount adapter; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

DT Swiss F 1900; 110x15 WHF; 148x12 WHR; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5"

Tyres

F: Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft Compund | R: Continental Kryptotal-R; 27.5x2.4"; fold; TR; Downhill Casing; Soft Compound

Spokes

Double Butted Black stainless w/black nipples

Groupset

Crankset

Shimano Deore MT512; 32 ATC; 165 mm for all sizes

Chain

KMC X12

Brakes

F: Sram Maven; 4 piston | R: Sram Maven; 4 piston

Front Rotor

Sram CenterLine; 220mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Sram dropper lever MMX | R: Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida One-Sixty Fr 800 used for?

The Merida One-Sixty Fr 800 is used for enduro biking, designed to handle challenging terrains and steep descents. Its robust build and advanced suspension make it ideal for adventurous riders seeking thrilling off-road experiences.

Why choose the Merida One-Sixty Fr 800?

Choose the Merida One-Sixty Fr 800 for its durable alloy frame, superior suspension, and reliable Shimano Deore groupset. These features ensure a smooth, controlled ride, making it perfect for tackling tough trails with confidence.

Who is the Merida One-Sixty Fr 800 designed for?

The Merida One-Sixty Fr 800 is designed for enduro enthusiasts and adventurous riders who enjoy challenging terrains. Its advanced features cater to those seeking performance and reliability in demanding off-road conditions.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty Fr 800 Enduro Bike Silk Gunmetal Grey/White we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Superior Suspension System

The Merida One-Sixty Fr 800 features a RockShox Zeb Ultimate fork with 180mm of travel, providing exceptional shock absorption on rough terrains. This ensures a smoother ride and better control, even on the most challenging trails.

Precision and Control

With a Shimano Deore 12-speed groupset, the bike offers precise and reliable gear shifting. This allows riders to maintain optimal cadence and efficiency, whether climbing steep hills or speeding down descents.

Enhanced Stopping Power

Equipped with hydraulic disc brakes, the Merida One-Sixty Fr 800 ensures superior stopping power in all weather conditions. This feature provides riders with confidence and safety, allowing for quick and controlled stops.

Riders Height (cm)

Merida One-Sixty Fr 800 Enduro Bike Silk Gunmetal Grey/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

620

629

643

Reach

409

437

464

492

519

Top Tube Length

537

564

591

623

655

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

78.0

Fork Length

594

Head Tube Length

105

120

Head Tube Angle

63.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

735

740

743

740

735

Minimum Seat Height

Maximum Seat Height
