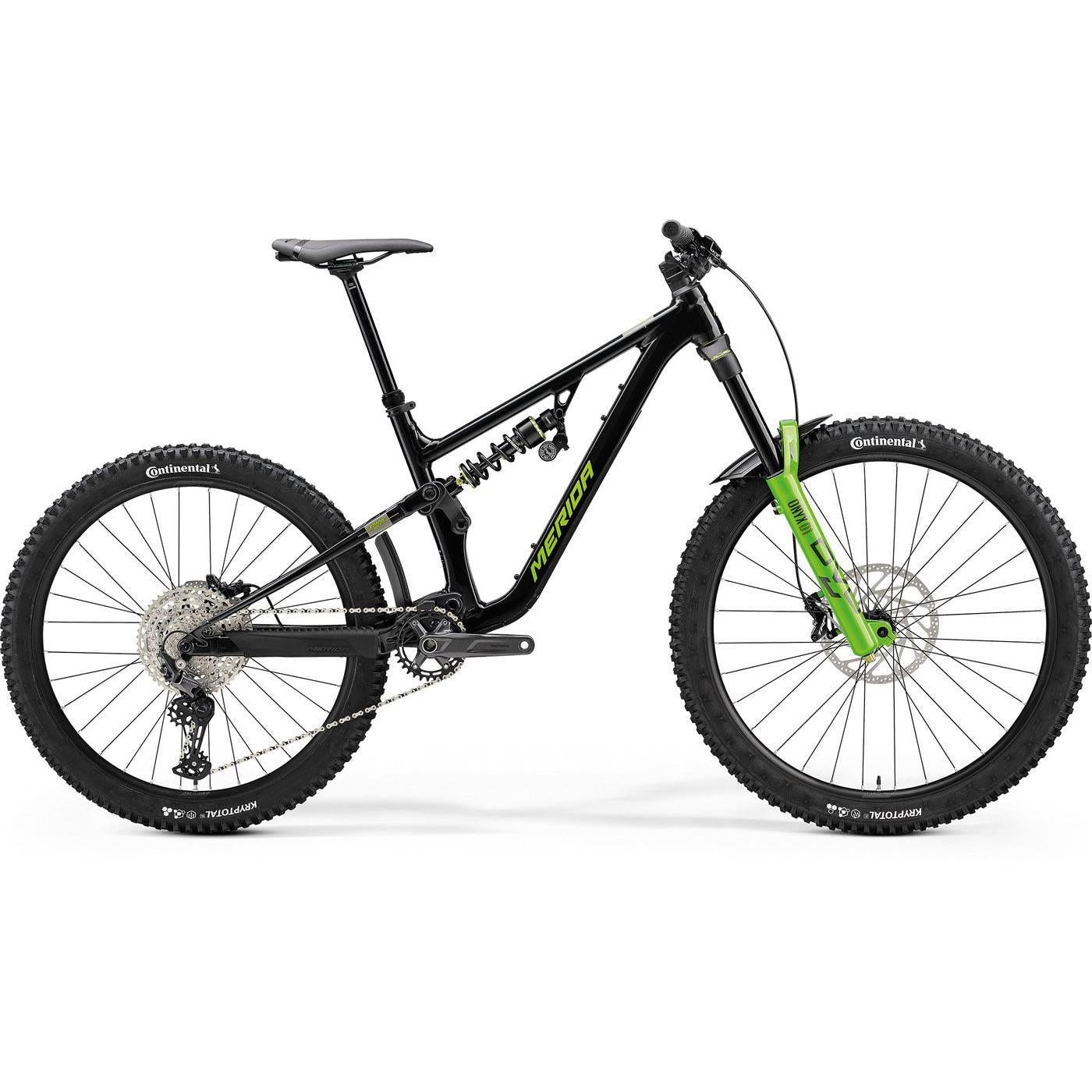

Merida One-Sixty FR 600 Dual Suspension Mountain Bike Metallic Black/Grey/Green

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ DVO Fork

180mm Front Travel / 170mm Rear

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

Unleash your inner shredder with the Merida One-Sixty FR 600 Dual Suspension Mountain Bike, a hard-hitting enduro beast designed to dominate the bike park. This metallic black, grey, and green machine features Merida's award-winning aluminium frame, enhanced with mixed wheels for nimble handling and a powerful 180mm travel DVO Onyx fork paired with a plush DVO Jade coil shock for consistent, smooth runs. Merida's FAST kinematic suspension ensures controlled rides, complemented by top-quality brakes and a reliable Shimano Deore drivetrain for precise shifting. Adaptable with a flip-chip system for a full 29er setup and AGILOMETER sizing for personalized reach and progressive suspension, this bike also includes long-travel dropper posts for maximum versatility, making it perfect for riders who love to push their limits.

Key Features

Hard-hitting enduro bike for aggressive riding
Mixed wheels, 180mm DVO suspension for control
FAST kinematic suspension, top-quality brakes
Shimano Deore drivetrain, flip-chip 29er compatibility
AGILOMETER sizing, long-travel dropper post

Specifications

Product Overview

Product

Merida One-Sixty FR 600 Dual Suspension Mountain Bike Metallic Black/Grey/Green

Brand

Merida

Parent SKU

Merida24One-SixtyFR600MetallicBlackGreyGreen

Size SKUs

XS: MEDE242402696
SM: MEDE242402697
MD: MEDE242402698
LG: MEDE242402699
XL: MEDE242402700

Matrix Barcodes

XS: 4710949868048
SM: 4710949868055
MD: 4710949868062
LG: 4710949868079
XL: 4710949868086

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Front Travel

180mm

Rear Travel

170mm

Build

Frame

ONE-SIXTY LITE III; 171 STR mullet; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

DVO Onyx 38 D2; Air; 180 STR; tapered; 44mm Offset; 29"

Shock

DVO Jade X D2; coil

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD, 40 mm all sizes

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock:Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft Compund:Continental Kryptotal-R; 27.5x2.4"; fold; TR; Downhill Casing; Soft Compound

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano MT512; 32 ATC

Chain

KMC X12

Brakes

TRP Trail Evo HD-M843; 4 piston

Front Rotor

TRP RS01E; 220 mm

Rear Rotor

TRP RC01E; 203mm

Shifters

Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100 Shadow+; SGS

Frequently Asked Questions

What is the Merida One-Sixty FR 600 used for?

The Merida One-Sixty FR 600 is used for aggressive enduro riding and dominating bike parks.

Why choose the Merida One-Sixty FR 600?

Choose the Merida One-Sixty FR 600 for its award-winning aluminium frame, mixed wheels for nimble handling, and top-quality components like the DVO suspension and Shimano Deore drivetrain, ensuring a smooth and controlled ride.

Who is the Merida One-Sixty FR 600 designed for?

The Merida One-Sixty FR 600 is designed for riders who love to push their limits and seek a versatile bike for challenging terrains.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty FR 600 Dual Suspension Mountain Bike Metallic Black/Grey/Green we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida One-Sixty FR 600 Dual Suspension Mountain Bike Metallic Black/Grey/Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

620

629

643

Reach

409

437

464

492

519

Top Tube Length

537

564

591

623

655

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

78.0

Fork Length

594

Head Tube Length

105

120

Head Tube Angle

63.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

735

740

743

740

735

Minimum Seat Height

Maximum Seat Height
