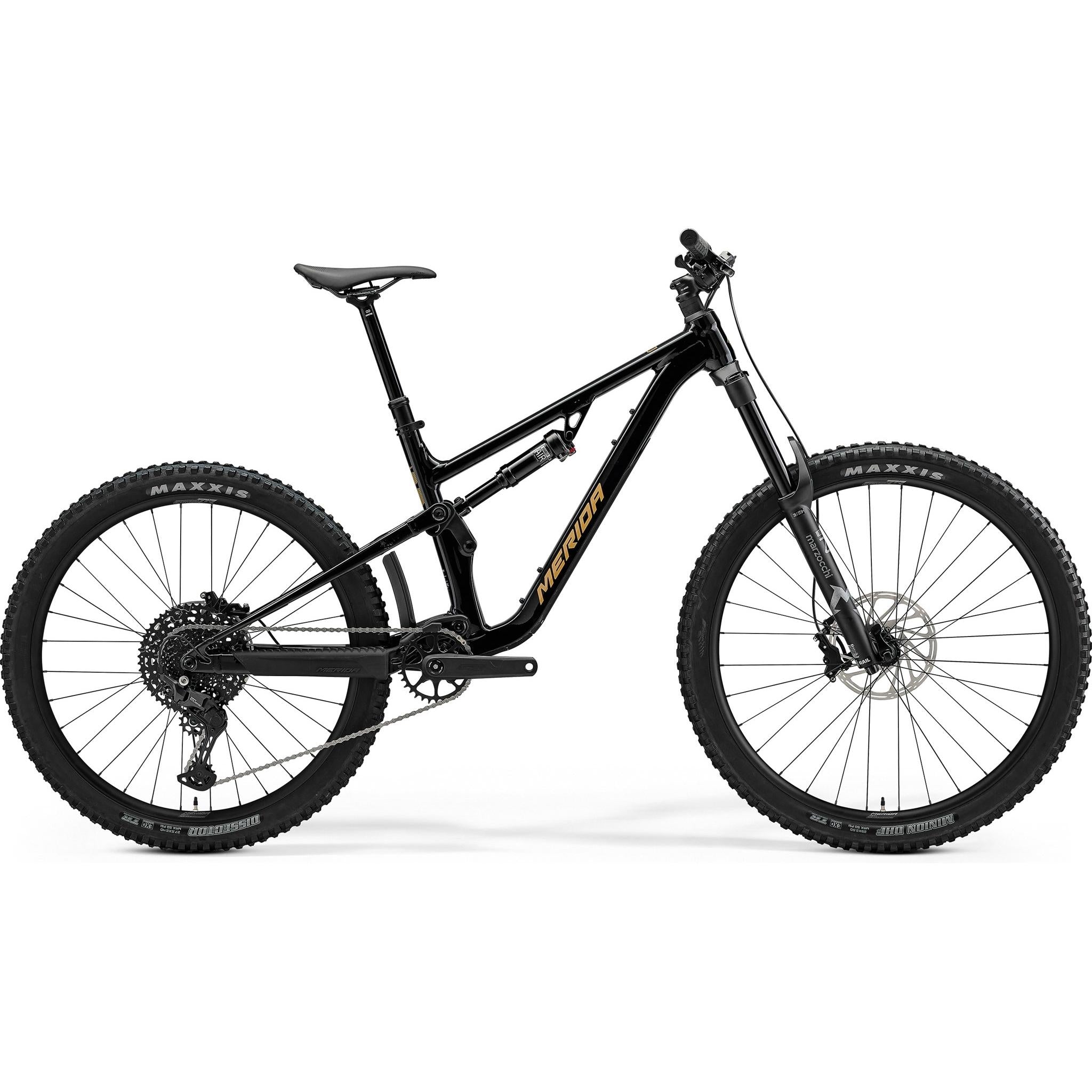

Merida One-Sixty 400 Enduro Bike Black/River Clay

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,699.00 Full price

$2,699.00

Club price

$3,899.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

170mm Front Travel / 170mm Rear

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Sixty 400 Enduro Bike is designed for riders who crave adventure on challenging terrains. With its robust alloy frame and crossbar design, this bike offers durability and stability. The Marzocchi Z1 fork and rear shock provide 170mm of travel, ensuring a smooth ride over rough trails. Equipped with Shimano CUES U6000 components and Sram DB4 hydraulic disc brakes, it delivers reliable performance and control. The tubeless-ready Maxxis tires enhance grip and reduce the risk of punctures, making it an ideal choice for enduro enthusiasts.

Key Features

Alloy frame with crossbar design
Marzocchi Z1 fork with 170mm travel
Shimano CUES U6000 rear derailleur
Sram DB4 hydraulic disc brakes
Tubeless-ready Maxxis tires

Specifications

Product Overview

Product

Merida One-Sixty 400 Enduro Bike Black/River Clay

Brand

Merida

Parent SKU

Merida26ONESIXTY400BLACKRIVERCLAY

Size SKUs

XS: MERE2601656
SM: MERE2601657
MD: MERE2601658
LG: MERE2601659
XL: MERE2601660

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

170mm

Build

Frame

ONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Marzocchi Z1; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max. WHS

Shock

Marzocchi Bomber inline; lockout

Handlebars

MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Samox BSA 24mm EB2401

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Sram Front Brake Adapter PM 180mm to 200mm rotor; Velcro strap & Tube Base Mount LITE

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Minion DHF; 29x2.5"; EXO wire; tubeless ready | R: Maxxis Dissector; 27.5x2.4" XS/S/M; 29x2.4" L/XL; EXO wired; tubeless ready

Spokes

Double Butted Black stainless w/black nipples

Groupset

Crankset

MERIDA Expert TR II; 32 ATC; 165 mm for all sizes

Chain

KMC xGlide

Brakes

F: Sram DB4; 4 piston | R: Sram DB4; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

R: Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000; GS

Cassette

11 Speed

Frequently Asked Questions

What is the Merida One-Sixty 400 used for?

The Merida One-Sixty 400 is used for enduro riding, designed to handle challenging terrains and provide a smooth, controlled ride on rough trails.

Why choose the Merida One-Sixty 400?

Choose the Merida One-Sixty 400 for its superior suspension system, reliable braking performance, and durable design, making it ideal for adventurous riders seeking performance and stability.

Who is the Merida One-Sixty 400 designed for?

The Merida One-Sixty 400 is designed for enduro enthusiasts and adventurous riders who demand a bike capable of tackling tough trails with confidence and control.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty 400 Enduro Bike Black/River Clay we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Superior Suspension System

The Merida One-Sixty 400 features a Marzocchi Z1 fork and rear shock, offering 170mm of travel for a smooth and controlled ride over rough terrains. This advanced suspension system ensures comfort and stability, allowing riders to tackle challenging trails with confidence.

Reliable Braking Performance

Equipped with Sram DB4 hydraulic disc brakes, the Merida One-Sixty 400 provides powerful and consistent stopping power in all weather conditions. The 200mm rotors enhance braking efficiency, ensuring safety and control during high-speed descents.

Durable and Versatile Design

Constructed with a robust alloy frame, the Merida One-Sixty 400 is built to withstand the rigors of enduro riding. Its tubeless-ready Maxxis tires offer excellent traction and puncture resistance, making it suitable for various terrains and riding styles.

Riders Height (cm)

Merida One-Sixty 400 Enduro Bike Black/River Clay geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

615

625

638

Reach

415

442

470

498

525

Top Tube Length

535

562

589

621

653

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

79.0

Fork Length

581

Head Tube Length

105

120

Head Tube Angle

64.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

735

740

743

740

735

Minimum Seat Height

Maximum Seat Height
