$600 Off Full Price

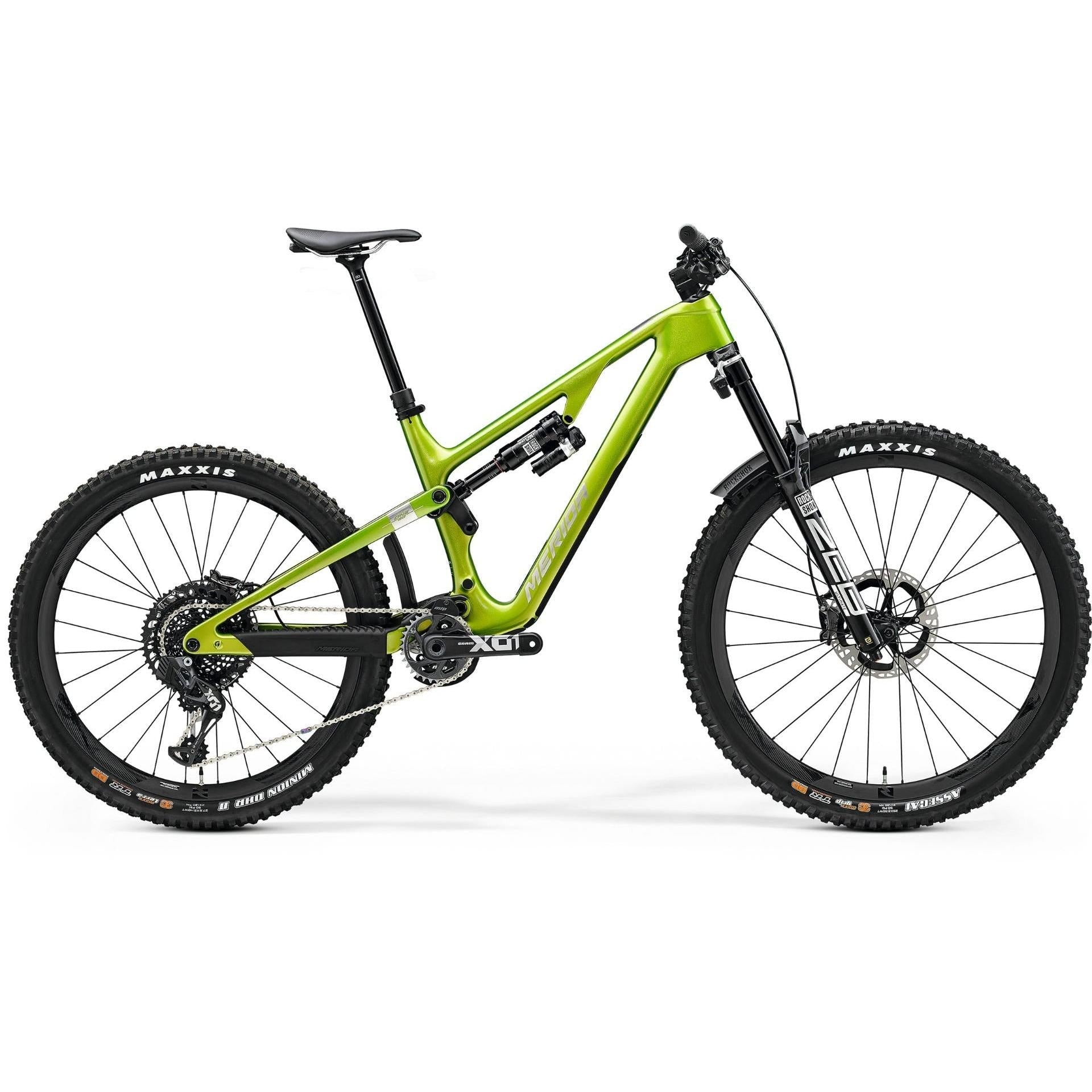

Merida One-Sixty 10K Dual Suspension Mountain Bike Green/Ti-Flash/Black

Brand: Merida

SKU: MEDE2269643

Size: LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Fork

170mm Front Travel / 160mm Rear

29" Wheel Size

Shimano XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Sixty 10k is built on a lightweight yet durable carbon frame, designed to handle the toughest tracks and race stages. It features a new FAST kinematic design and offers a choice between a full 29er or a mixed wheel setup. The bike is equipped with top-tier RockShox suspension, including a 170 mm Zeb fork and Super Deluxe shock with Flight Attendant smart lockout technology. It also includes a high-end SRAM Eagle drivetrain for precise wireless shifting. The 2022 model introduces a radical design with a flex stay suspension system and adjustable rocker, maintaining geometry whether set up as a full 29er (162 mm travel) or mixed 29/27.5" (171 mm travel). It boasts a steep 79-degree seat tube angle for climbing and a slack 64-degree head angle for downhill stability. New sizing options allow for adjustable reach, and the suspension becomes more progressive with larger sizes. Additional features include WIRE PORT cable routing and a threaded bottom bracket.

Specifications

Product Overview

Product

Merida One-Sixty 10K Dual Suspension Mountain Bike Green/Ti-Flash/Black

Brand

Merida

Parent SKU

22MeridaOne-Sixty10KFallGreen/Ti-Flash/Black

Size SKUs

MD: MEDE2269632
LG: MEDE2269643
XL: MEDE2269654

Year Model

2022

Product Features

Frame Material

Carbon

Colour

Green

Wheel Size

29"

Gears

1 x 12

Front Travel

170mm

Rear Travel

160mm

Weight Limit

135kg (includes bike)

Build

Frame

ONE-SIXTY CF4 III; 171 STR mullet / 162 STR 29"; MAT carbon; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Zeb Flight Attendant; Air; 170 STR; Tapered; 42mm fork offset; 29x2.8" max. WHS

Handlebars

MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Headset

MERIDA-8151 1-1/8"-1.5" cartridge bearing set

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Sram BB DUB PF MTB 92

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Wheels

Wheel Size

29"

Rims

Reynolds BLACKLABEL Enduro 289/287 I9; 110x15 WHF; 148x12 WHR; 28 IWR; Centerlock; Sram XD; MAT carbon; Tubeless ready (tubeless tape and valves included); rear 27.5" up to Size M / L & XL rear 29"; Lifetime warranty

Groupset

Crankset

Sram Next Gen XX1 Flight Attendant; 32 ATC

Chain

Next Gen Sram XX1

Rear Derailleur

Next Gen Sram XX1 AXS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty 10K Dual Suspension Mountain Bike Green/Ti-Flash/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

P-Flex Technology

Merida's proprietary P-Flex technology, uses the inherent compliance of the carbon and a leaf-spring-like frame design, to allow the frame to flex near the seat and chainstay junction enough to make the pivot point obsolete, all without impacting durability. This gives you a lighter bike and increased stiffness for a better ride.

SRAM X01 Eagle AXS

X01 Eagle AXS utilizes the proven backbone of SRAMs 1x 520% gear range. More secure and longer wearing X-Sync 2 chainring. The resilience of an aluminium cage, paired with the connected components of Eagle AXS. Ready for the new gen of superbikes.

X-Taper Headtube

The X-Tapered headtube on this bike provides room for a tapered fork to be fitted. Tapered forks provide superb stiffness and precise confidence-inspiring shifting, With this setup you'll be able to navigate the tightest of corners with ease!
