$1772 Off Full Price

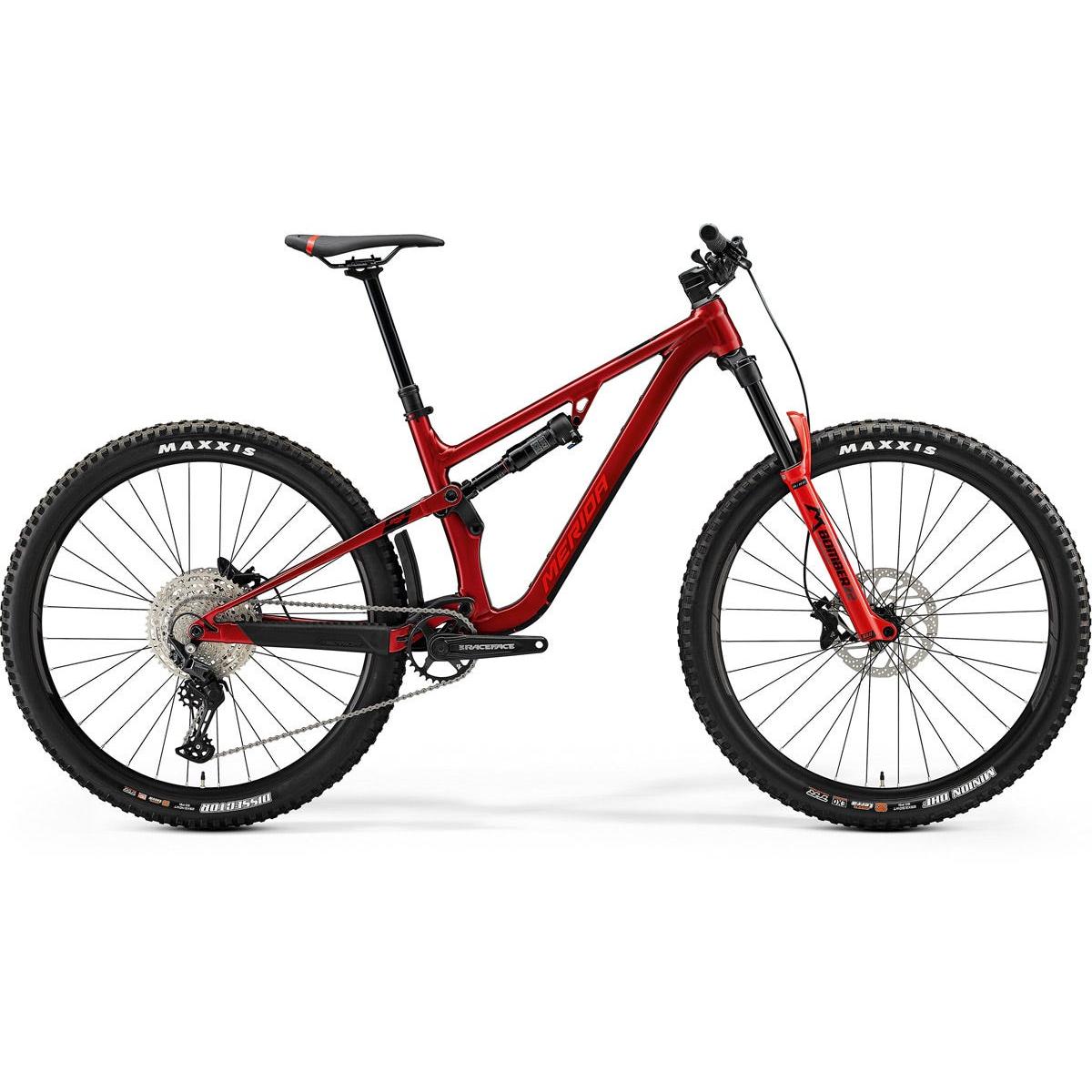

Merida One-Forty 500 Dual Suspension Mountain Bike Dark Strawberry/Red/Blk

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

150mm Front Travel / 140mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The ONE-FORTY 500 offers exceptional climbing and descending capabilities in a cost-effective package featuring a new aluminum frame. It shares the innovative geometry of its pricier counterparts but is equipped with components that provide necessary performance at a lower cost. All models include dropper posts, an 11-speed Shimano drivetrain with a wide range, and reliable suspension from SR Suntour and RockShox.

Key Features

Aluminium frame with hydro and technoforming
Internal cable routing for clean look
Shimano Deore 11-speed drivetrain
Dropper posts on all models
SR Suntour and RockShox suspension

Specifications

Product Overview

Product

Merida One-Forty 500 Dual Suspension Mountain Bike Dark Strawberry/Red/Blk

Brand

Merida

Parent SKU

22MeridaOne-Forty500SilkDarkStrawberry/Red/Blk

Size SKUs

XS: MEDA2270714
SM: MEDA2270725
MD: MEDA2270736
LG: MEDA2270747
XL: MEDA2270758

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

150mm

Rear Travel

140mm

Weight Limit

135kg (includes bike)

Build

Frame

ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Marzocchi Z2; Air; 150 STR; Tapered; 44mm fork offset

Shock

Rock Shox Deluxe Select+; lockout

Handlebars

MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Headset

MERIDA-8151 1-1/8"-1.5" cartridge bearing set

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Shimano BB52 BSA

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tyres

Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC

Chain

KMC X11

Brakes

Shimano Deore M6120, 4 piston

Front Rotor

203mm

Rear Rotor

203mm

Shifters

Shimano SL -MT500-IL

Rear Derailleur

Shimano Deore M6100 Shadwo+

Cassette

11 Speed

Frequently Asked Questions

What is the Merida One-Forty 500 used for?

The Merida One-Forty 500 is used for mountain biking on challenging terrains, offering a smooth and controlled ride with its dual suspension system.

Why choose the Merida One-Forty 500?

Choose the Merida One-Forty 500 for its combination of durability, lightweight design, and reliable braking performance, making it ideal for adventurous riders.

Who is the Merida One-Forty 500 designed for?

The Merida One-Forty 500 is designed for mountain biking enthusiasts who seek a versatile and high-performance bike for tackling various trails and conditions.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Forty 500 Dual Suspension Mountain Bike Dark Strawberry/Red/Blk we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

HYDRO & TECHNOFORMING

A combined process of hydroforming and techno forming is used in the construction of the frame, the process involves negative moulds and a range of techniques to form complex shapes. Double pass welds are used to create a clean look to the frame at first glance you might be so impressed with the shape you'd be convinced it's carbon and not aluminium!

Internal Cable Routing

With internal cable routing you have the benefit of a modern clean look and the added benefit of preventing rust and fraying of your shift and brake cable, being internal also means your cables are protected while in storage or being transported on the car!

Shimano Deore 11-Speed Drivetrain

Featuring Shimano Deore 1 x 11 drivetrain and smooth, crisp shifting, this bike offers a wide range of gears to help you climb and descend with ease.

Riders Height (cm)

Merida One-Forty 500 Dual Suspension Mountain Bike Dark Strawberry/Red/Blk geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
