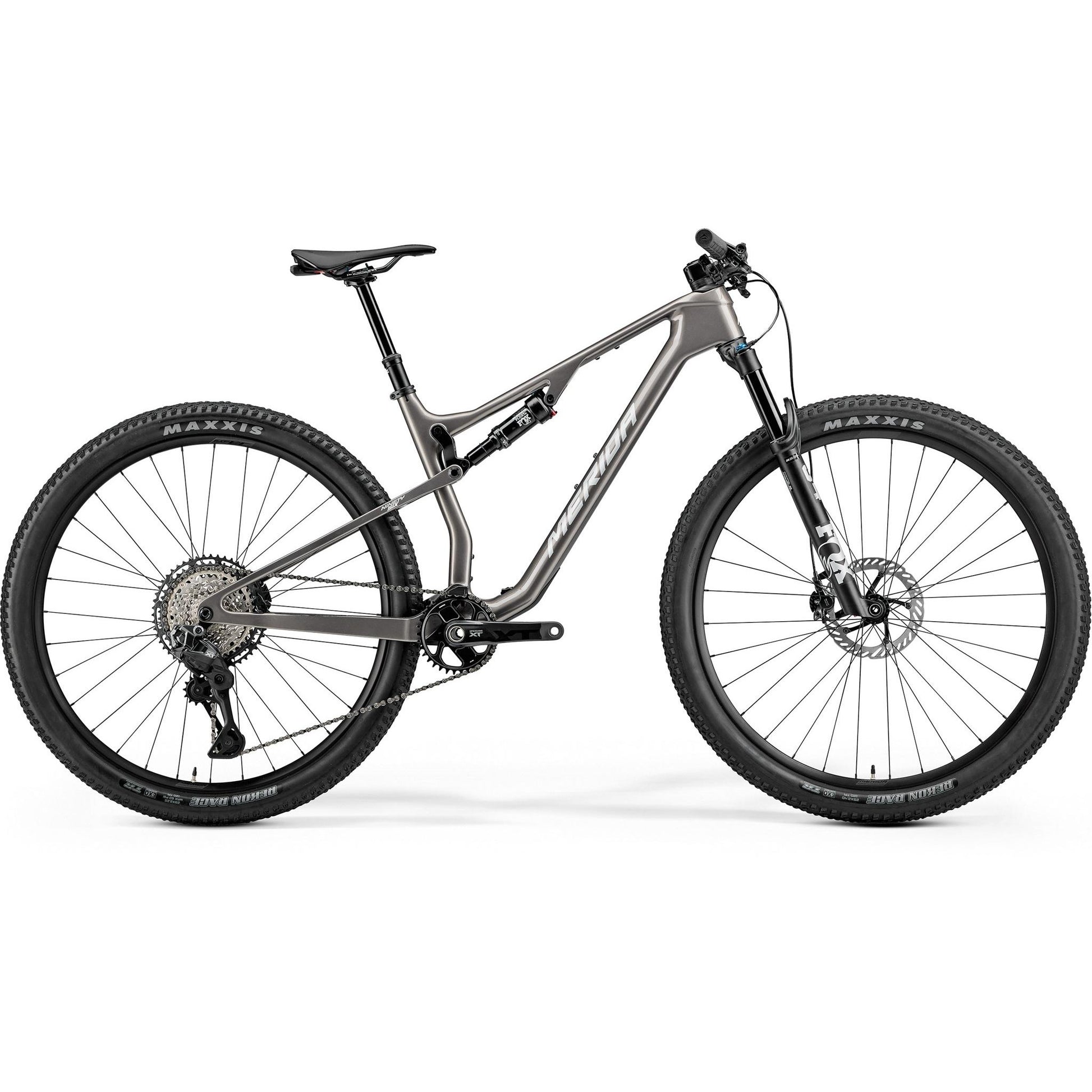

Merida Ninety-Six XT Cross-Country Bike Warm Slate Grey/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$7,399.00 Full price

$7,399.00

Club price

$8,399.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Fox Fork

120mm Front Travel / 100mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano XT Di2 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Ninety-Six XT Cross-Country Bike in Warm Slate Grey/Silver is a high-performance mountain bike designed for serious cross-country enthusiasts. Its carbon frame ensures a lightweight yet robust structure, perfect for tackling challenging terrains. Equipped with a Fox 34 Float SL Performance fork and a Fox Float SL Performance Elite shock, it offers smooth and responsive handling. The Shimano XT Di2 wireless groupset provides precise and effortless shifting, while the hydraulic disc brakes deliver reliable stopping power. With tubeless-ready wheels and Maxxis Rekon Race tires, this bike is ready for any trail adventure.

Key Features

Carbon frame for lightweight performance
Fox 34 Float SL Performance fork
Shimano XT Di2 wireless shifting
Hydraulic disc brakes for superior control
Tubeless-ready wheels for enhanced traction

Specifications

Product Overview

Product

Merida Ninety-Six XT Cross-Country Bike Warm Slate Grey/Silver

Brand

Merida

Parent SKU

Merida26NINETYSIXXTWARMSLATEGREYSILVER

Size SKUs

SM: MERE2601380
MD: MERE2601381
LG: MERE2601382
XL: MERE2601383

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

120mm

Rear Travel

100mm

Build

Frame

NINETY-SIX CF4 III; 100 STR; MAT carbon; 29x2.35" max. WHS; 148x12 AST; BSA BBR

Fork

Fox 34 Float SL Performance; Air; 120 STR; Tapered; 3 Pos Remote lockout; 44mm fork offset

Shock

Fox Float SL Performance Elite; Large Volume aircan; 3 Pos PTL remote lockout; 29x2.5" max. WHS

Handlebars

FSA SIC CF 1-piece cockpit; MAT carbon; 760 WHB, -7°; S/M/L:60 mm, XL: 80 mm

Headset

Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

; S/M/L:60 mm, XL: 80 mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

Prologo Akero R PAS; reycled; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; 150 SPT

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA Multitool with saddlebox

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC II; 25 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC600-MS-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO | R: Maxxis Rekon Race; 29x2.25"; fold; TR EXO 120 TPI

Spokes

Double Butted Black stainless w/black nipples

Groupset

Crankset

Shimano XT M8200; 34 ATC; 170 mm for all sizes

Chain

KMC X12

Brakes

F: Shimano XT M8200; 2 piston | R: Shimano XT M8200; 2 piston

Front Rotor

Shimano RT-CL700; 180mm

Rear Rotor

Shimano RT-CL700; 160mm

Shifters

R: Shimano XT DI2 M8250; wireless

Rear Derailleur

Shimano XT DI2 M8250; wireless; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Ninety-Six XT used for?

The Merida Ninety-Six XT is used for cross-country mountain biking, offering a lightweight and responsive ride ideal for tackling various terrains and trails.

Why choose the Merida Ninety-Six XT?

Choose the Merida Ninety-Six XT for its advanced suspension, precise wireless shifting, and superior braking performance, all of which contribute to an exceptional cross-country biking experience.

Who is the Merida Ninety-Six XT designed for?

The Merida Ninety-Six XT is designed for serious cross-country enthusiasts and competitive riders seeking a high-performance bike that excels in challenging conditions.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Ninety-Six XT Cross-Country Bike Warm Slate Grey/Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Advanced Suspension System

The Merida Ninety-Six XT features a Fox 34 Float SL Performance fork and a Fox Float SL Performance Elite shock, providing 120mm front and 100mm rear travel. This setup ensures smooth rides over rough terrains, enhancing comfort and control.

Precision Wireless Shifting

Equipped with the Shimano XT Di2 wireless groupset, the bike offers seamless and accurate gear changes. This technology reduces maintenance and enhances the riding experience by providing quick and reliable shifting.

Superior Braking Performance

The hydraulic disc brakes with Shimano XT M8200 calipers ensure powerful and consistent braking in all conditions. This feature enhances safety and confidence, especially on steep descents and technical trails.

Riders Height (cm)

Merida Ninety-Six XT Cross-Country Bike Warm Slate Grey/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

595

605

614

Reach

420

440

460

480

Top Tube Length

581

601

624

648

Seat Tube Length

400

440

470

500

Seat Tube Angle

75.0

74.5

Fork Length

530

Head Tube Length

105

115

Head Tube Angle

67.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

740

741

747

749

Minimum Seat Height

Maximum Seat Height
