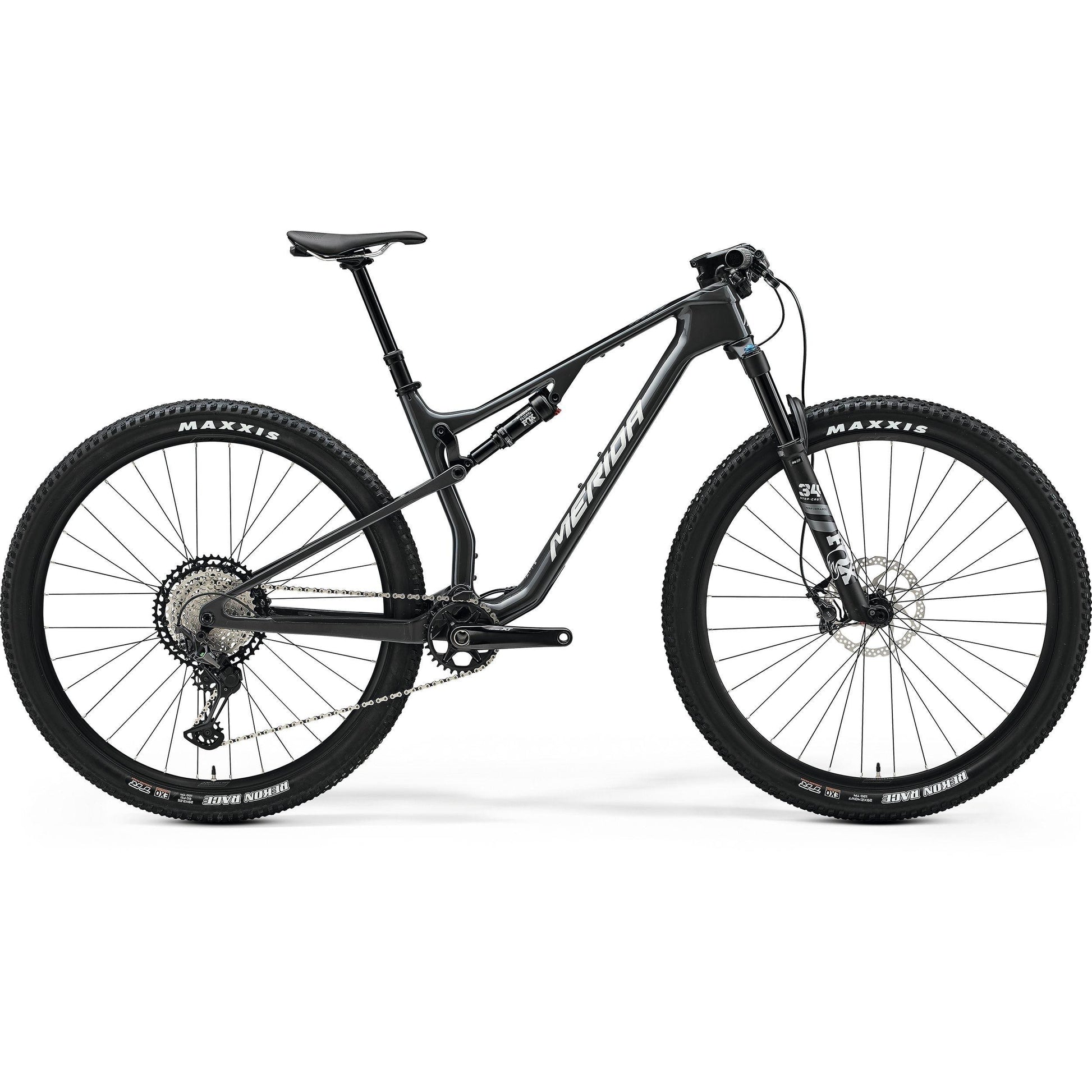

Merida Ninety-Six XT Cross-Country Bike Grey/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Fox Fork

120mm Front Travel / 100mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Ninety-Six XT Cross-Country Bike in Grey/Silver is a fast, lightweight carbon XC bike built for competitive racing and demanding trail rides. Featuring a 120mm Fox 34 Float SC Performance fork, 100mm rear suspension, and a precise Shimano XT drivetrain and braking system, it blends efficiency and control for high-speed climbs and confident descents.

Key Features

Lightweight carbon frame with 100mm travel
Fox 34 Float SC 120mm performance fork
Shimano XT 12-speed drivetrain setup
Shimano XT hydraulic disc brake system
Maxxis Rekon Race tubeless-ready tyres

Specifications

Product Overview

Product

Merida Ninety-Six XT Cross-Country Bike Grey/Silver

Brand

Merida

Parent SKU

MERE25NINETYSIXXTGREYSILVER

Size SKUs

SM: MEDX2500790
MD: MEDX2500791
LG: MEDX2500792
XL: MEDX2500793

Matrix Barcodes

SM: 4711256491745
MD: 4711256491738
LG: 4711256503916
XL: 4711256503917

Year Model

2025

Product Features

Frame Material

Carbon

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

120mm

Rear Travel

100mm

Weight

12kg

Build

Frame

Carbon; 100mm suspension travel; 29x2.35" max. wheelsize; 148x12mm axle standard; BSA bottom bracket standard

Fork

Fox 34 Float SC Performance; Air; 120mm; Tapered; 3 Pos Remote lockout; 44mm fork offset

Shock

Fox Float SL Performance Elite

Handlebars

MERIDA EXPERT CC

Headset

Acros ICR MERIDA INTEGRATED neck

Grips

Rock Shox TwistLoc grip

Stem

MERIDA TEAM CC III

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA EXPERT SL

Seat Post

MERIDA TEAM TR SL

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC II

Hubs

F : Shimano XT | R: Shimano XT

Tyres

F: Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO | R: Maxxis Rekon Race; 29x2.25"; fold ; TR EXO 120 TPI

Groupset

Crankset

Shimano XT

Chain

KMC X12

Brakes

Shimano XT M8100; 2 piston

Front Rotor

Shimano RT54 180mm

Rear Rotor

Shimano RT54 160mm

Shifters

F: JD-FL lever | R: Shimano XT M8100

Rear Derailleur

Shimano XT M8100 Shadow+

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Ninety-Six XT used for?

The Merida Ninety-Six XT is used for competitive cross-country racing and demanding trail rides, offering speed and efficiency on climbs and control on descents.

Why choose the Merida Ninety-Six XT?

Choose the Merida Ninety-Six XT for its lightweight carbon frame, advanced suspension system, and precise Shimano XT drivetrain and braking components, ensuring a high-performance ride.

Who is the Merida Ninety-Six XT designed for?

The Merida Ninety-Six XT is designed for competitive cyclists and trail enthusiasts seeking a fast, reliable, and efficient cross-country bike.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Ninety-Six XT Cross-Country Bike Grey/Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida Ninety-Six XT Cross-Country Bike Grey/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
