22% Off Full Price

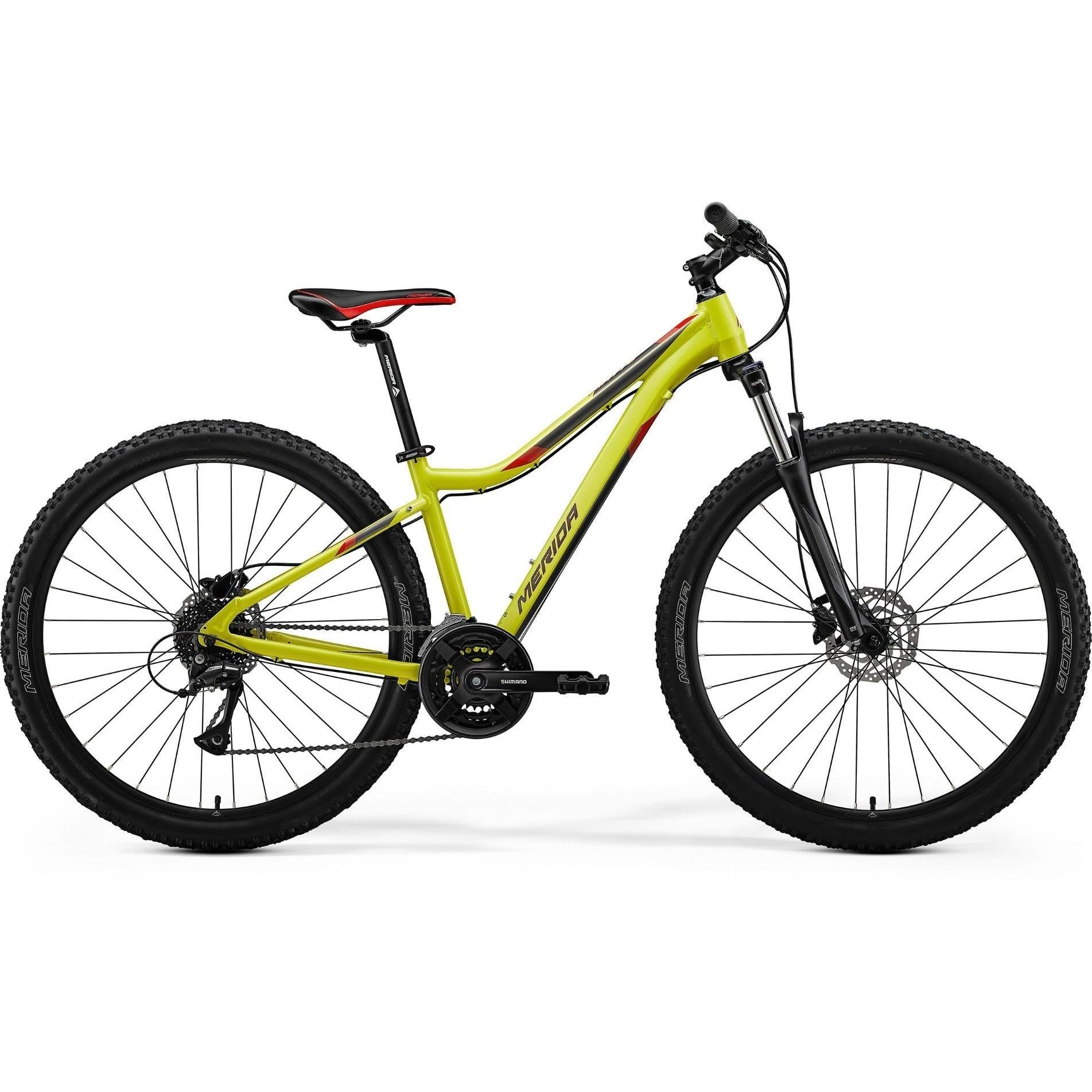

Merida Matts 20 Hardtail Mountain Bike Lime/Race Red

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$699.00 Full price

$699.00

Club price

$899.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Matts 20 is a budget-friendly hardtail bike designed for both trails and footpaths. It features a lightweight double-butted aluminum frame that provides a more upright seating position for enhanced comfort and control. Equipped with a 100mm suspension fork and powerful hydraulic disc brakes, it handles rough tracks and trails effortlessly. The Shimano drivetrain offers a broad gear range, making steep ascents manageable. Ideal for beginners or those upgrading to a quality build at a great price, the Merida Matts 20 delivers excellent value.

Key Features

Lightweight double butted aluminium frame
100mm suspension fork for rough trails
Powerful hydraulic disc brakes
Broad Shimano gear range for steep ascents
Comfortable upright seating position

Specifications

Product Overview

Product

Merida Matts 20 Hardtail Mountain Bike Lime/Race Red

Brand

Merida

Parent SKU

Merida24Matts20LimeRaceRed

Size SKUs

XS: MEHA242401030
SM: MEHA242401031
MD: MEHA242401032
LG: MEHA242401033

Matrix Barcodes

XS: 4711256474380
SM: 4711256474373
MD: 4711256474366
LG: 4711256474359

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Front Travel

100mm

Build

Frame

MATTS 7. SPEED-D; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS

Handlebars

MERIDA CC; MAT aluminium; 640 WHB; 25 RHB

Headset

FSA NO.10P Neck15

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 DSH; 17 ASD, 80 mm-XS/S/M, 90 mm-L

Bottom Bracket

Shimano BB-UN101 68-123

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 27.2 DSP; 15 SSB

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 100x9 WHF; 32 SPH; Centerlock:Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

MERIDA K1080; 27.5x2.2"; wire:MERIDA K1080; 27.5x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 42-34-24 ATC

Chain

KMC Z8.1

Brakes

Tektro M275 [or Shimano BR-MT200]

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

Microshift TS39 [or Shimano ST-EF505]

Front Derailleur

Shimano FD-TY600

Rear Derailleur

Shimano RD-M3020-8; SGS

Frequently Asked Questions

What is the Merida Matts 20 used for?

The Merida Matts 20 is used for mountain biking and exploring various terrains, offering a reliable and enjoyable ride for both casual and adventurous cyclists.

Why choose the Merida Matts 20?

Choose the Merida Matts 20 for its lightweight frame, versatile performance, and quality components, making it a great option for riders seeking comfort and control on diverse terrains.

Who is the Merida Matts 20 designed for?

The Merida Matts 20 is designed for novice and experienced riders who enjoy mountain biking and require a bike that can handle different terrains with ease.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Matts 20 Hardtail Mountain Bike Lime/Race Red we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Hydraulic Disc Brakes

Disc Brakes provide you with better braking performance in all conditions, unlike rim brakes which can be heavily impacted by dust and water, disc brakes maintain control in all conditions. These brakes give you confidence that you'll stop when you need to and with a hydraulic system you will have greater control and have better feedback through your levers, hydraulic systems aren't prone to cable stretch and self adjust as your brake pads wear down - meaning you can focus on the riding!

Double Butted Aluminium Frame

This double-butted aluminium frame offers strength and durability while keeping the weight down. This allows you more manoeuverability and makes tackling steeper climbs a breeze!

Comfortable Geometry

This bike is sporty yet comfortable, it has a more upright seating position thanks to additional height at the front of the bike in the headset. This bike is accessible and ready to ride without a bunch of riding experience!

Riders Height (cm)

Merida Matts 20 Hardtail Mountain Bike Lime/Race Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

602

607

618

628

Reach

372

380

392

399

Top Tube Length

536

546

561

571

Seat Tube Length

343

381

432

470

Seat Tube Angle

74.5

Fork Length

493

Head Tube Length

100

110

120

Head Tube Angle

69.5

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

582

612

664

694

Minimum Seat Height

Maximum Seat Height
