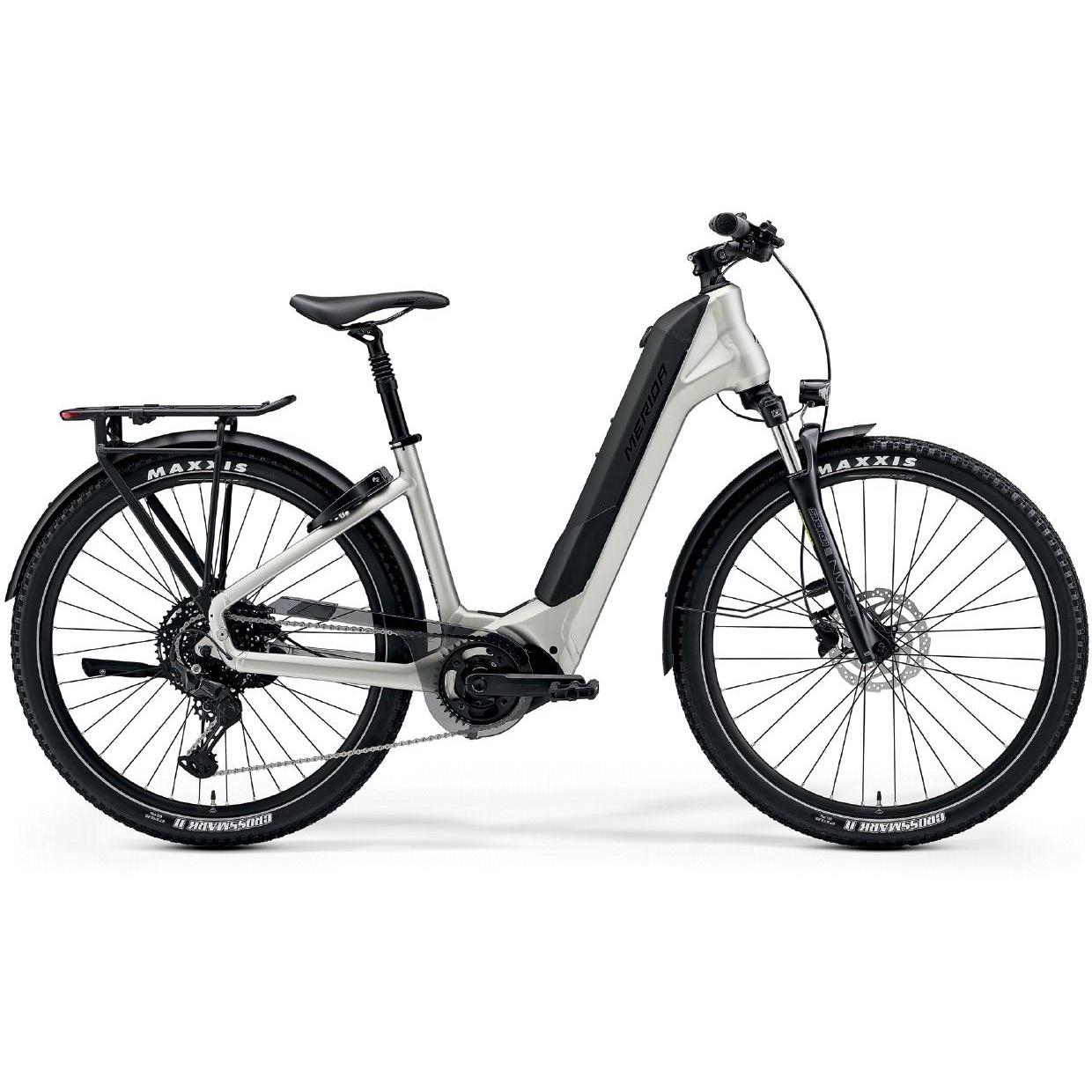

Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike Silk Titan-Black

Brand: Merida

SKU: Select a size

Other Colours

Merida eSpresso CC 400 EQ 504Wh Electric Hybrid Bike Silk Titan-Black

Grey

Black

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$4,398.00 Full price

$4,398.00

Club price

$4,899.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

under 100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike is designed for versatility, easily moving from city streets to countryside trails. It features a powerful Shimano EP6 drive unit and a 630 Wh battery for a smooth ride. The bike comes with mudguards, lights, and a luggage rack for added convenience.

Key Features

Powerful Shimano STEPS EP6 motor
Large 630 Wh battery capacity
Comfortable suspension fork and seatpost
Integrated lights and luggage rack
Durable design for urban and rural use

Specifications

Product Overview

Product

Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike Silk Titan-Black

Brand

Merida

Parent SKU

Merida25eSPRESSOCC500EQSilkTitanBlack

SKU

Merida25eSPRESSOCC500EQSilkTitanBlack

Size SKUs

XS: MEEB2500237
SM: MEEB2500238
MD: MEEB2500239
LG: MEEB2500240
XL: MEEB2500241

Matrix Barcodes

XS: 25002370237
SM: 25002380238
MD: 25002390239
LG: 25002400240
XL: 25002410241

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Step-Through

Colour

Grey

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP6; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Declared Article Number (NSW)

ULL-104164-EA

Build

Frame

eSPRESSO CC LITE III MAT aluminium 275x225 max WHS 135x9 AST internal

Fork

Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS

Handlebars

MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB

Headset

MERIDA-8254

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK II; V-mount

Seat Post

JD-SP79; 30.9 DSP; 15 SSB; 40 SST

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP TK; 20 IWR; MAT aluminium

Tyres

F: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line | R:

Groupset

Crankset

MERIDA EXPERT TK; 165mm

Chain

Shimano LG500

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 180 mm

Rear Rotor

Shimano RTEM300M; 180 mm

Rear Derailleur

Shimano CUES U6000; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eSpresso CC 500 EQ used for?

The Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike is designed as the ultimate tourer, perfect for both commuting and weekend adventures. Its rugged build and dual suspension make it ideal for tackling outdoor trails while providing a luxurious ride.

Why choose the Merida eSpresso CC 500 EQ?

The Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike stands out for its all-in-one design, offering everything you need for a great ride without additional costs. With its powerful motor and integrated features, it ensures a reliable and enjoyable cycling experience.

Who is the Merida eSpresso CC 500 EQ designed for?

The Merida eSpresso CC 500 EQ is designed for everyone, from first-time riders to experienced tourers looking to explore new terrains. Its versatile design and off-road capabilities make it suitable for a wide range of cycling enthusiasts.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike Silk Titan-Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Shimano STEPS EP6 Drive Unit

The Shimano STEPS EP6 motor delivers a powerful yet quiet performance, enhancing your pedaling experience. With a compact design and impressive torque, it effortlessly tackles steep hills, making it ideal for both urban commuting and outdoor adventures.

Hydraulic Disc Brakes

Equipped with hydraulic disc brakes, the eSpresso CC 500 EQ offers superior stopping power in all weather conditions. This system ensures reliable control and feedback, allowing you to focus on your ride without worrying about brake performance.

Integrated Convenience Features

This bike comes with integrated lights and a luggage rack, making it perfect for daily use. Whether you're commuting or running errands, the eSpresso CC 500 EQ provides the convenience and comfort you need for a hassle-free ride.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Wheel Size

27.5" (650b)

Stack

656

661

666

675

Reach

385

399

417

435

Top Tube Length

580

595

615

635

Seat Tube Length

380

430

480

530

Seat Tube Angle

73.5

Fork Length

476

Head Tube Length

170

175

180

190

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

403

402

Minimum Seat Height

Maximum Seat Height
