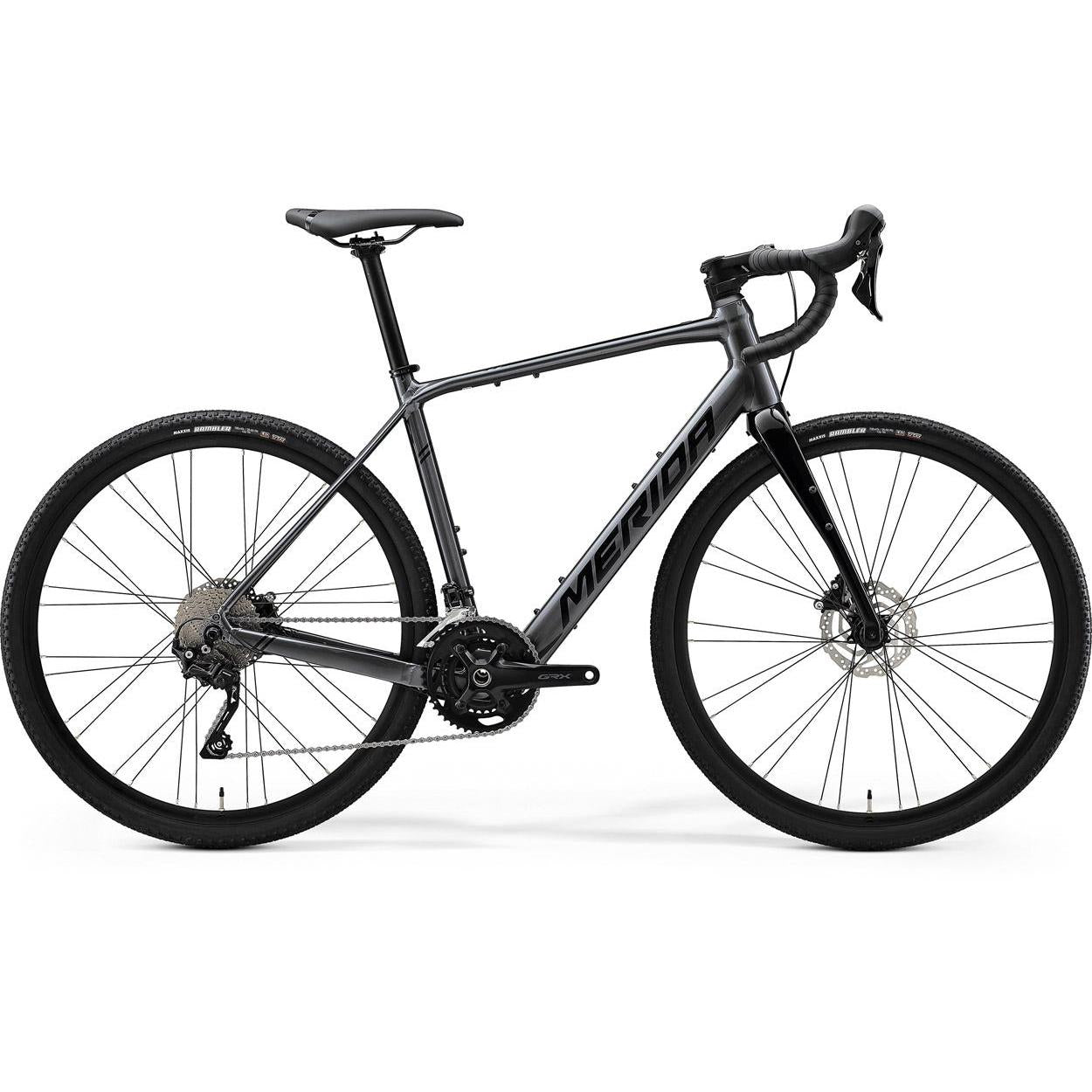

Merida eSilex 400 Electric Gravel Bike Dark Silver/Black

Merida eSilex 400 Electric Gravel Bike Dark Silver/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Flat to Modestly Steep Hills / 40 Nm Torque

Up to 36 km Range

Mahle X35+ Motor

Alloy Frame/ Carbon Fork

250Wh Battery

700c Wheel Size

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eSilex 400 Electric Gravel Bike in Dark Silver/Black combines the functionality of an electric bike with the classic design of a gravel bike. Featuring a robust Mahle rear hub motor and a 250Wh battery, it delivers impressive torque and range for both urban commuting and off-road adventures. The lightweight aluminum frame and carbon fork enhance comfort, while its versatile design accommodates various accessories, making it suitable for any riding scenario.

Key Features

Mahle rear hub motor with 40Nm torque
250Wh battery for extended rides
Customizable for commuting or bike packing
Shimano 10-speed gearset for smooth shifting
Carbon fork for comfort and control

Specifications

Product Overview

Product

Merida eSilex 400 Electric Gravel Bike Dark Silver/Black

Brand

Merida

Parent SKU

22MeridaeSilex400DarkSilver/Black

Size SKUs

XS: MEEB2248361
SM: MEEB2248372
MD: MEEB2248383
LG: MEEB2248394
XL: MEEB2248402

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 10

Fork Material

Carbon

Weight Limit

150kg (includes bike)

Motor and Battery System

Drive Type

Rear Wheel

Motor Brand

Mahle

Motor

MAHLE X35+ Hub Engine; 40Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Flat to Modestly Steep Hills

Battery Size (Watt-Hours)

250

Battery

MAHLE B1-D; 250Wh

Max. Range (KMs)

Build

Frame

eSILEX LITE; MAT aluminium; 700x45C / 700x42C (with fender) / 27,5x47C max. WHS; 100x9/135x9 AST; BSA BBR

Fork

MDF10; MAT carbon

Handlebars

MERIDA EXPERT GR; MAT aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL)

Stem

MERIDA EXPERT IR; MAT aluminium; 31.8 DSH; 5 ASD

Pedals

VP VPE-891

Saddle

MERIDA COMP CC; V-mount

Seat Post

MERIDA EXPERT; MAT aluminium; 30.9 DSP; 0 SSB

Wheels

Wheel Size

700c

Rims

MERIDA COMP SL; 17 IWR; 22 HRI; MAT aluminium

Tyres

Maxxis Rambler; 700Cx40; fold; EXO

Groupset

Crankset

Shimano GRX600; 46-30 ATC

Chain

KMC e10s

Brakes

Shimano GRX400; 2 piston

Front Rotor

Shimano RT64; 160 mm

Rear Rotor

Shimano RT66; 160 mm

Shifters

Shimano GRX

Front Derailleur

Shimano GRX400

Rear Derailleur

Shimano GRX400

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eSilex 400 Gravel Bike used for?

The Merida eSilex 400 Gravel Bike is used for versatile riding, excelling on gravel paths, dirt trails, and urban roads.

Why choose the Merida eSilex 400 Gravel Bike?

Choose the Merida eSilex 400 Gravel Bike for its exceptional versatility, quality components, and comfortable ride, making it perfect for commuting and off-road adventures.

Who is the Merida eSilex 400 Gravel Bike designed for?

The Merida eSilex 400 Gravel Bike is designed for riders seeking a capable and adaptable bike that offers electric assistance for both on-road and off-road experiences.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eSilex 400 Electric Gravel Bike Dark Silver/Black we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Versatile Riding Experience

The eSilex 400 is designed for both gravel paths and urban roads, making it an ideal choice for diverse riding conditions. Its electric assistance allows riders to tackle hills and long distances with ease.

Quality Components

With a Shimano 10-speed gearset and hydraulic disc brakes, the eSilex 400 ensures smooth shifting and reliable stopping power. The combination of these features enhances performance, especially in challenging terrains.

Customizable Design

This bike offers multiple mounting points for accessories like fenders and racks, allowing riders to tailor it to their needs. Whether for daily commutes or weekend bike packing, the eSilex 400 adapts to your lifestyle.

Riders Height (cm)

SM/MD

MD/LG

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
