$701 Off Full Price

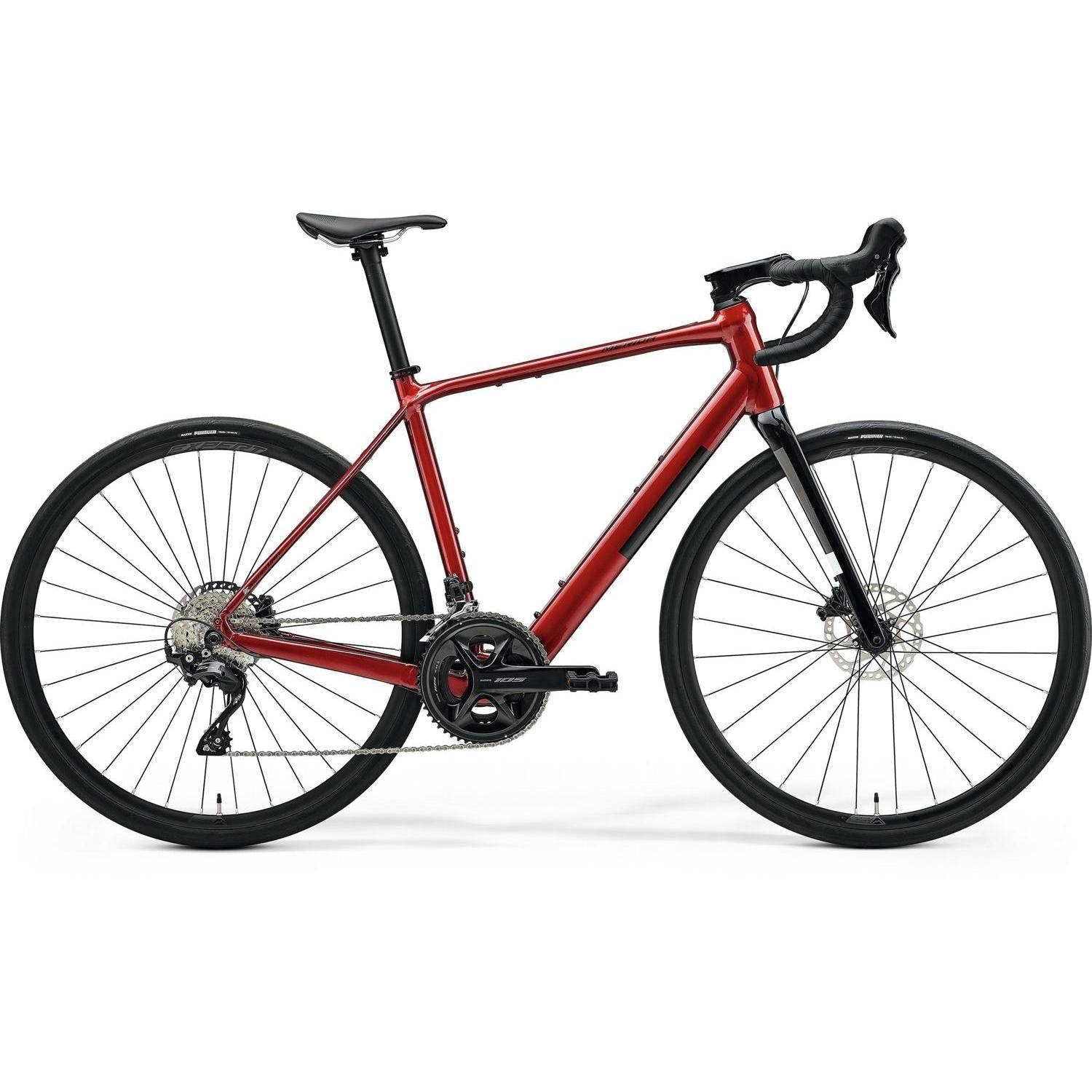

Merida eScultura 400 Electric Road Bike 250Wh Battery Dark Strawberry/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,798.00 Full price

$3,798.00

Club price

$4,499.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Moderately Steep Hills / 45 Nm Torque

Up to 35 km Range

Mahle X30 Motor

Alloy Frame/ Carbon Fork

250Wh Battery

700c Wheel Size

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eScultura 400 is an electric road bike featuring a lightweight aluminum frame and a Merida Mission CX carbon fork for agility and durability. It is equipped with a Shimano 105 2x12 drivetrain for smooth shifting and Shimano hydraulic disc brakes for reliable stopping power. The Mahle X30 Drive Unit and a 250Wh battery make it ideal for long rides and challenging climbs.

Key Features

Mahle X30 motor with 250Wh battery
Merida Mission CX carbon fork
Shimano 105 2x12 drivetrain
Shimano hydraulic disc brakes

Specifications

Product Overview

Product

Merida eScultura 400 Electric Road Bike 250Wh Battery Dark Strawberry/Black

Brand

Merida

Parent SKU

Merida25eSCULTURA400DarkStrawberryBlack

Size SKUs

XS: MEEB2502868
SM: MEEB2502869
MD: MEEB2502870
LG: MEEB2502871
XL: MEEB2502872

Matrix Barcodes

XS: 25028682868
SM: 25028692869
MD: 25028702870
LG: 25028712871
XL: 25028722872

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Front Travel

Rigid

Motor and Battery System

Drive Type

Rear Wheel

Motor Brand

Mahle

Motor

Mahle X30 Drive Unit 25KPH

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

250

Battery

Mahle ix250Wh Battery Pack; 250Wh

Max. Range (KMs)

Build

Frame

eSPEEDER LITE III MAT aluminium 700x45C 700x42C with fender 275x47C max WHS 100x9135x9 AST BSA BBR

Fork

MERIDA Mission CX; carbon; max. 700x40C (with fender) WHS

Handlebars

MERIDA Expert CW; MAT aluminium; 400mm (XS/S), 420mm (M/L), 440 (XL)

Headset

MERIDA 8158

Grips

MERIDA ROAD EXPERT

Stem

MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD

Bottom Bracket

Shimano BSA

Pedals

VP VPE-891

Saddle

MERIDA EXPERT SL; V-mount;

Seat Post

MERIDA EXPERT CC; MAT carbon; 30.9 DSP; 0 SSB

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

MERIDA Expert SL; 17 IWR; 22 HRI aluminium; Tubeless ready (tubeless tape and valves not included)

Tyres

F: Maxxis Pursuer; 700x32C; fold | R:

Groupset

Crankset

170 mm-XS/S/SM/ML, 175 mm-L/XL

Chain

Shimano M7100

Front Rotor

Shimano RT64; 160 mm

Rear Rotor

Shimano RT66; 160 mm

Front Derailleur

Shimano 105 R7100

Rear Derailleur

Shimano 105 R7100

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eScultura 400 used for?

The Merida eScultura 400 is designed for road cycling enthusiasts who want the benefits of electric assistance for long rides, steep climbs, and enhanced performance on the road.

Why choose the Merida eScultura 400?

With its advanced aluminium frame, Mahle X30 Drive Unit, Shimano 105 drivetrain, and hydraulic disc brakes, the eScultura 400 provides a high-performance ride with the added benefit of electric support for a competitive edge.

Who is the Merida eScultura 400 designed for?

The eScultura 400 is ideal for road cyclists seeking a high-performance bike with electric assistance to enhance their riding experience, whether for competitive racing or long-distance rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eScultura 400 Electric Road Bike 250Wh Battery Dark Strawberry/Black we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

MAHLE X30 DRIVE UNIT

The Mahle X30 Drive Unit offers a seamless electric boost, enhancing your performance on steep climbs and long rides. This feature ensures you can tackle challenging terrains with ease.

SHIMANO 105 R7100 DRIVETRAIN

Equipped with the Shimano 105 R7100 drivetrain, the eScultura 400 guarantees smooth and precise shifting. This reliable performance allows you to navigate various terrains effortlessly.

SHIMANO RT64 HYDRAULIC DISC BRAKES

The Shimano RT64 hydraulic disc brakes provide powerful stopping power with 160mm rotors. This ensures consistent control and reliability in all weather conditions and challenging terrains.

Riders Height (cm)

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
