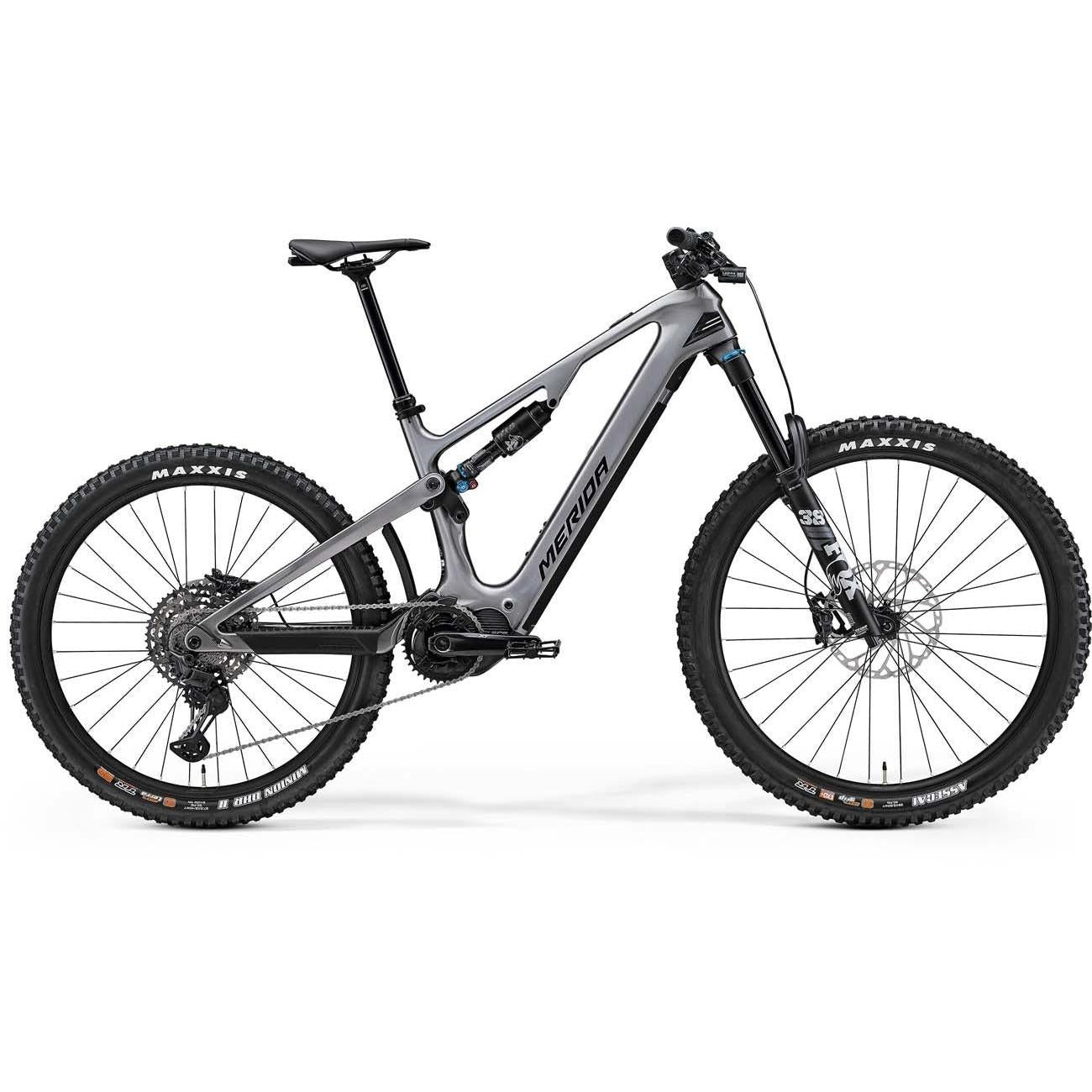

Merida eOne Sixty 7000 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black)

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 70 km Range

Shimano STePS EP801 Motor

Carbon Frame/ Fox Fork

170mm Front Travel / 160mm Rear

600Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 7000 Dual Suspension Electric Mountain Bike in Gunmetal Grey (Black) is engineered for adventure, combining a lightweight carbon fibre chassis with a powerful Shimano EP801 motor. With impressive suspension travel and a robust design, this bike excels in tackling challenging terrains, ensuring smooth handling and reliable performance for all off-road enthusiasts.

Key Features

Lightweight full carbon fibre frame
Shimano XT Linkglide 11-speed drivetrain
Fox 38 fork with 170 mm travel
Integrated 600 Wh battery with extender
Mixed wheel size, 29-inch front, 27.5-inch rear

Specifications

Product Overview

Product

Merida eOne Sixty 7000 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black)

Brand

Merida

Parent SKU

Merida24eOne-Sixty7000GunmetalGreyBlack

Size SKUs

SM: MEEB242402867
MD: MEEB242402868
LG: MEEB242402869

Matrix Barcodes

SM: 4711256468679
MD: 4711256468686
LG: 4711256468693

Year Model

2024

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

160mm

Weight

Charge Time

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

600

Battery

Trendpower internal battery B9CE2012F; 600Wh

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY CF III; MAT carbon; 160 STR; 29” x 2,6” max. WHS; 148x12 AST; intube; max. 630 Wh

Fork

FOX 38 Performance eMTB+; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

FOX Float X2 Performance; 2 Pos Lever

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

PROXIM W400 T2.0; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock | R: Shimano XT; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-E8150; 165mm

Chain

Shimano LG500

Brakes

Shimano XT; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Shifters

Shimano XT M8130

Rear Derailleur

Shimano XT RDM8130 LinkGlide 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne Sixty 7000 Dual Suspension Mountain Bike used for?

The Merida eOne Sixty 7000 is designed for enduro and trail riding, offering exceptional performance on challenging terrains. It excels in long-range off-road adventures, races, and repeated trail sessions thanks to its powerful motor and versatile suspension.

Why choose the Merida eOne Sixty 7000 Dual Suspension Mountain Bike?

The Merida eOne Sixty 7000 offers a unique blend of power and precision with its lightweight carbon frame, advanced suspension, and reliable Shimano XT components. It provides impressive range and handling for riders looking to push their limits in electric mountain biking.

Who is the Merida eOne Sixty 7000 Dual Suspension Mountain Bike designed for?

The Merida eOne Sixty 7000 is perfect for electric mountain biking enthusiasts who want top-tier components, a powerful motor, and agile handling. It caters to riders who demand high performance for technical trails, races, and extended rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Sixty 7000 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black) we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful and Efficient Design

The Merida eOne-Sixty 7000 features a full-power Shimano EP801 motor paired with a 600 Wh battery. This setup ensures an extended range, allowing riders to enjoy longer, more adventurous rides without sacrificing agility.

Premium Suspension and Components

Equipped with a Fox 38 Performance fork and Float X2 shock, this e-bike offers 170 mm of front and 174 mm of rear travel. The combination of advanced suspension and Shimano XT Linkglide drivetrain guarantees smooth performance on even the most technical trails.

Mixed Wheel Setup for Versatility

The eOne-Sixty 7000 utilizes a mixed wheel size configuration, with a 29" front wheel for stability and a 27.5" rear wheel for nimble handling. Riders can easily switch to a full 29" setup using the flip-chip design, allowing for tailored performance based on their riding style.

Riders Height (cm)

Merida eOne Sixty 7000 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

628

633

637

Reach

439

459

479

Top Tube Length

567

589

610

Seat Tube Length

410

425

445

Seat Tube Angle

78.5

78.4

Fork Length

581

Head Tube Length

105

110

115

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

770

765

760

Minimum Seat Height

Maximum Seat Height
