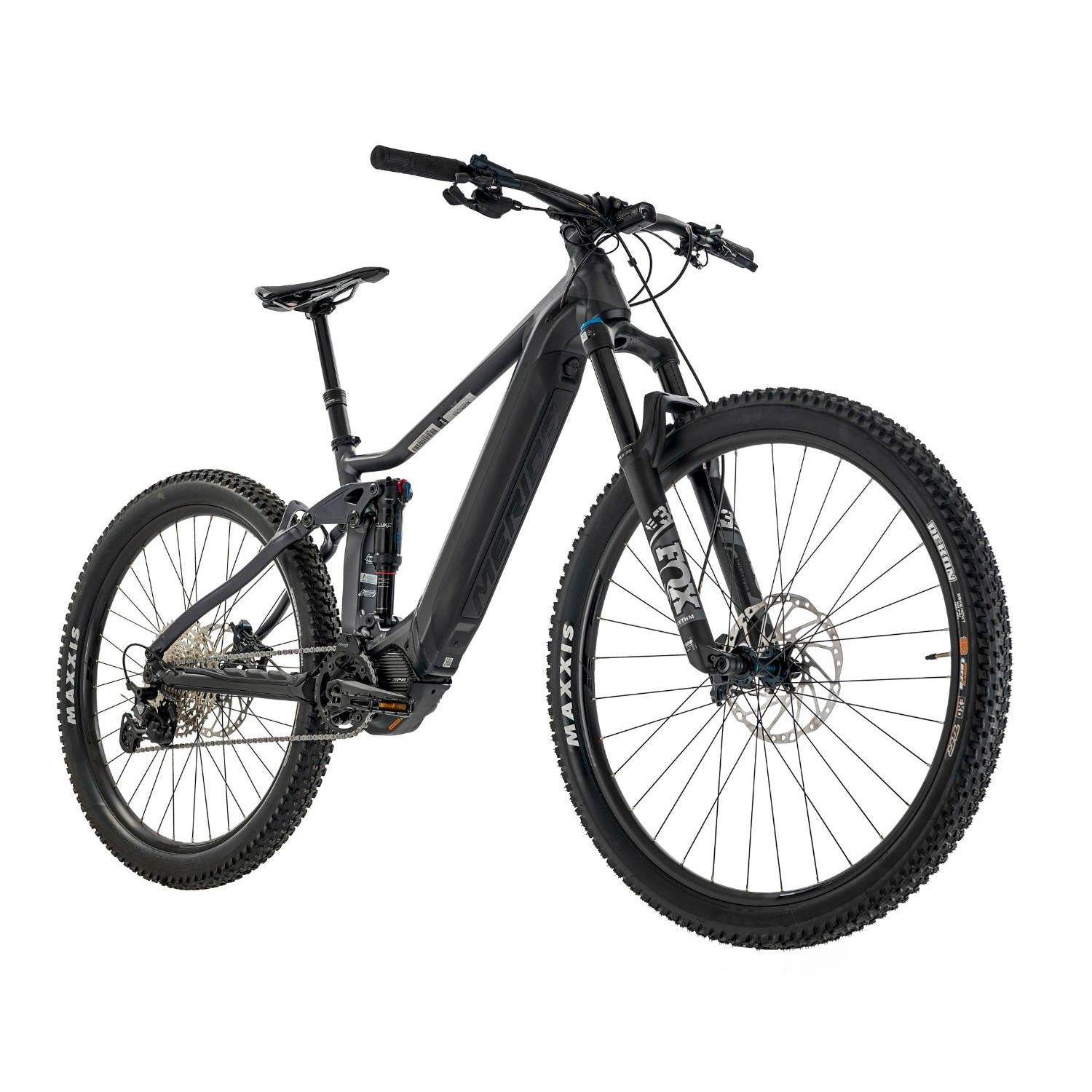

Merida eOne-Forty 700 Electric Mountain Bike Silk Dark Silver/Black

Merida eOne-Forty 700 Electric Mountain Bike Silk Dark Silver/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano Motor

Alloy Frame/ Fox Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 700 Electric Mountain Bike in Silk Dark Silver/Black is the ultimate blend of dual-suspension trail bike and electric performance, designed for adventurous riders. Featuring a powerful Shimano EP6 motor and a robust 630Wh battery, this bike excels on challenging terrains, ensuring a smooth and controlled ride with its lightweight aluminium frame and advanced suspension system.

Key Features

Shimano EP6 motor with 85Nm torque
630Wh battery for extended rides
140mm FOX Rhythm 34 Float fork
Lightweight aluminium frame construction
Mullet design for agile handling

Specifications

Product Overview

Product

Merida eOne-Forty 700 Electric Mountain Bike Silk Dark Silver/Black

Brand

Merida

Parent SKU

22MeridaeOne-Forty700SilkDarkSilver/Black

Size SKUs

SM: MEEB2238901
MD: MEEB2238912
LG: MEEB2238923
XL: MEEB2238934
XXL: MEEB2238945

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

140mm

Rear Travel

130mm

Weight

23.02kg

Weight Limit

140kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP8; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036 630Wh / Shimano E8035 504Wh for S only

Max. Range (KMs)

Display

Shimano SC-E7000

Build

Frame

eONE-FORTY LITE III; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube

Fork

FOX Rhythm 34 Float eMTB+; Air; 140 STR; Tapered; 51mm fork offset; 29x2.5" max WHS

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

MERIDA EXPERT CC; V-mount

Seat Post

MERIDA EXPERT TR; 30.9 DSP; 0 SSB; S 100 SPT - M 125 SPT - L/XL 150 SPT - XXL 170 SPT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Groupset

Crankset

Shimano CRE80-12-B; 34 ATC Shimano FCEM600; 165 mm for all sizes

Chain

KMC e12T EPT

Shifters

Shimano DEORE M6100 12

Rear Derailleur

Shimano XT RDM8100 Shadow+ 12

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 700 Mountain Bike used for?

The Merida eOne-Forty 700 is a trail-specific electric mountain bike perfect for shredding on singletrack. This truly is a capable, go-anywhere bike.

Why choose the Merida eOne-Forty 700 Mountain Bike?

The Merida eOne-Forty 700 is a fun, nimble, and capable bike, perfect for tearing it up down the singletrack and boosting you up the hills with the EP6 motor with 85Nm of torque. The huge 630Wh battery will keep you having fun for hours while the 12-speed Deore gearset will help you get up those hills and the powerful hydraulic disc brakes will give you pin-sharp stopping power.

Who is the Merida eOne-Forty 700 Mountain Bike designed for?

This bike is perfect for the trail-focused rider who wants to maximise their time on the bike while shredding down the singletrack. It has a total weight limit of 140kg including the bike.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 700 Electric Mountain Bike Silk Dark Silver/Black we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor Performance

The Shimano EP6 motor delivers an impressive 85Nm of torque, making steep climbs and rough trails manageable. This powerful drive unit ensures a natural riding feel, allowing you to maintain control on any terrain.

Extended Battery Life

With a 630Wh battery, the eOne-Forty 700 offers long-lasting power for extended rides. Its sleek integration into the frame not only enhances aesthetics but also provides a quick recharge time, keeping you on the trails longer.

Superior Suspension System

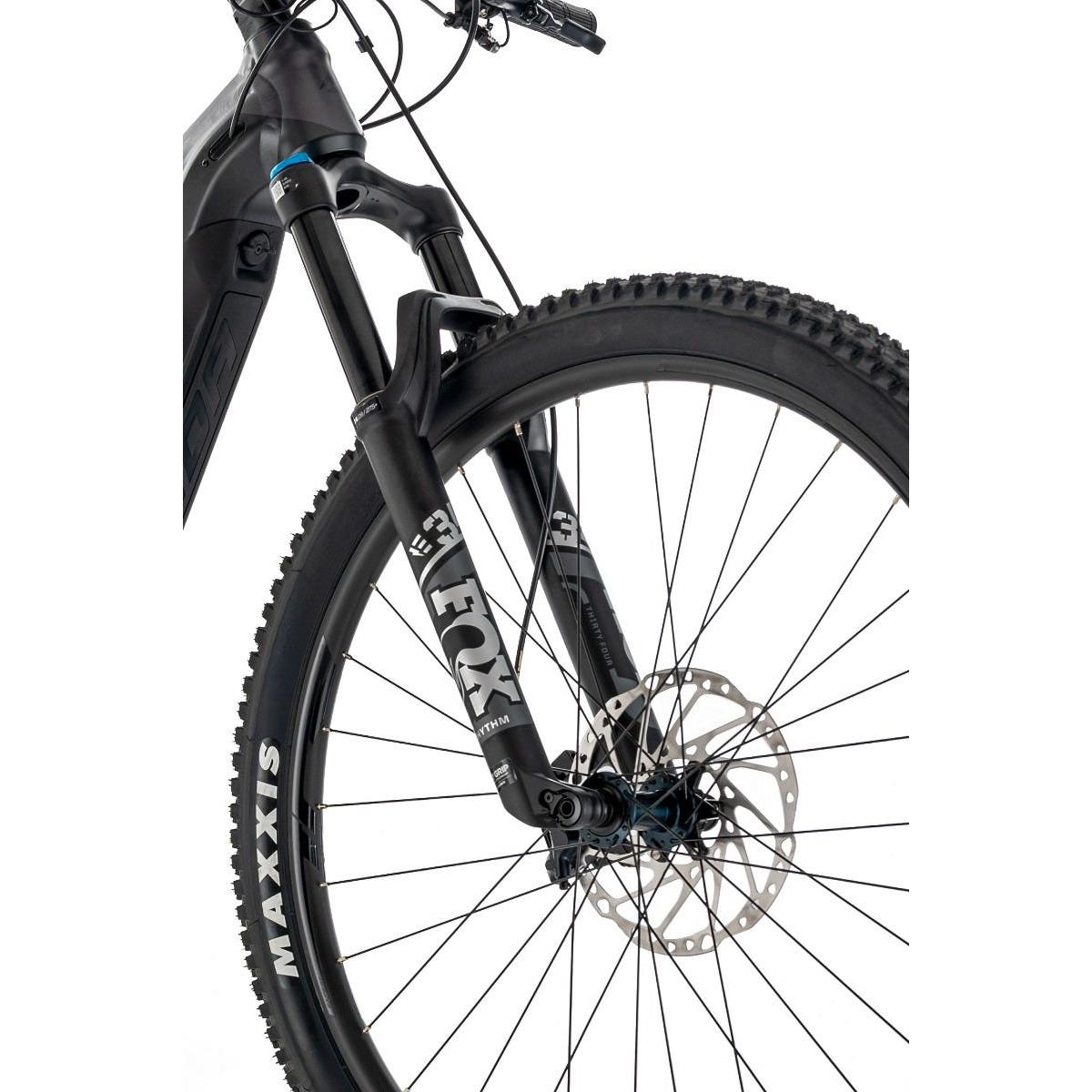

The 140mm FOX Rhythm 34 Float fork and RockShox Deluxe Select+ shock provide exceptional handling and comfort. This advanced suspension setup is designed to absorb impacts, ensuring a smooth ride even on the roughest trails.

Riders Height (cm)

Merida eOne-Forty 700 Electric Mountain Bike Silk Dark Silver/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
