$1702 Off Full Price

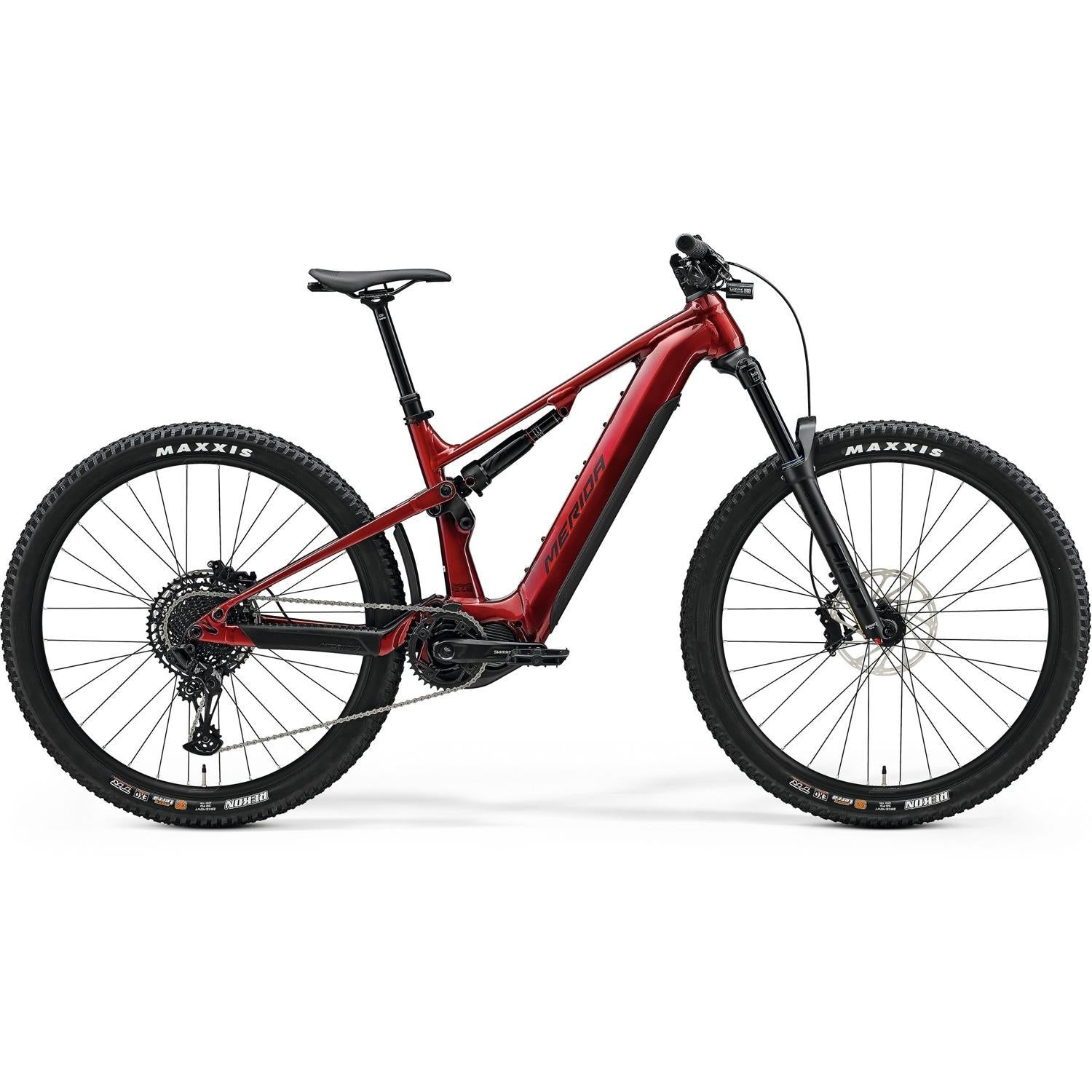

Merida eOne-Forty 675 Electric Enduro Bike 750Wh Battery Dark Strawberry/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,597.00 Full price

$6,597.00

Club price

$8,299.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Suntour Fork

750Wh Battery

27.5" (650b) Wheel Size

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 675 Dark Strawberry/Black is an electric mountain bike crafted for adventurous trails and rugged terrains. It features a lightweight aluminum frame and a powerful Shimano EP801 motor, ensuring exceptional reliability and performance. With a 750Wh battery, advanced components, and a sleek design, this bike is ideal for both challenging climbs and exhilarating descents.

Key Features

Shimano EP801 motor with 85Nm torque
750Wh battery for extended range
Rock Shox Deluxe Select shock, 133mm travel
Sram NX Eagle 1x12 drivetrain
Sram CenterLine brakes with 200mm rotors

Specifications

Product Overview

Product

Merida eOne-Forty 675 Electric Enduro Bike 750Wh Battery Dark Strawberry/Black

Brand

Merida

Parent SKU

Merida25eONEFORTY675DarkStrawberryBlack

Size SKUs

XS: MEEB2500088
SM: MEEB2500089
MD: MEEB2500090
LG: MEEB2500091

Matrix Barcodes

XS: 25000880088
SM: 25000890089
MD: 25000900090
LG: 25000910091

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery Gen 2; 750Wh

Max. Range (KMs)

Display

Shimano SC-EN600

Declared Article Number (NSW)

ULL-104179-EA

Build

Frame

eONEFORTY LITE IV MAT aluminium 133 STR 275x28 max WHS 148x12 AST intube 750 Wh

Fork

SF25-AION36X-BOOST

Shock

Rock Shox Deluxe Select

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Bottom Bracket

included

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Tyres

F: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra | R: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra

Groupset

Crankset

Shimano FC-EM600; 165 mm for all sizes

Chain

Sram NX Eagle

Brakes

Sram DB8 stealth 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Rear Derailleur

Sram NX Eagle

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 675 used for?

The Merida eOne-Forty 675 is built for adventurous trails and rugged terrains, offering high performance for both climbs and descents.

Why choose the Merida eOne-Forty 675?

This bike stands out thanks to its powerful Shimano EP801 motor, 750Wh battery, and advanced components such as the Rock Shox Deluxe Select shock and Sram NX Eagle drivetrain.

Who is the Merida eOne-Forty 675 designed for?

The eOne-Forty 675 is ideal for riders looking for a high-performance electric mountain bike that is agile and responsive and can handle both challenging climbs and exhilarating descents.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 675 Electric Enduro Bike 750Wh Battery Dark Strawberry/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor

The Shimano EP801 motor delivers 85Nm of torque, ensuring robust pedal assistance on varied terrains. This feature allows riders to tackle steep climbs with ease and confidence.

Long-Lasting Battery

Equipped with a 750Wh battery, the Merida eOne-Forty 675 offers extended range for longer rides. This means you can explore more trails without worrying about running out of power.

Reliable Drivetrain

The Sram NX Eagle 1x12 drivetrain ensures smooth and dependable shifting for a seamless riding experience. This reliability enhances performance on both technical climbs and fast descents.

Riders Height (cm)

Merida eOne-Forty 675 Electric Enduro Bike 750Wh Battery Dark Strawberry/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

616

620

624

628

Reach

431

451

471

491

Top Tube Length

543

564

585

607

Seat Tube Length

400

410

425

445

Seat Tube Angle

79.7

79.6

79.5

Fork Length

557

Head Tube Length

100

105

110

115

Head Tube Angle

66.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

758

752

746

744

Minimum Seat Height

Maximum Seat Height
