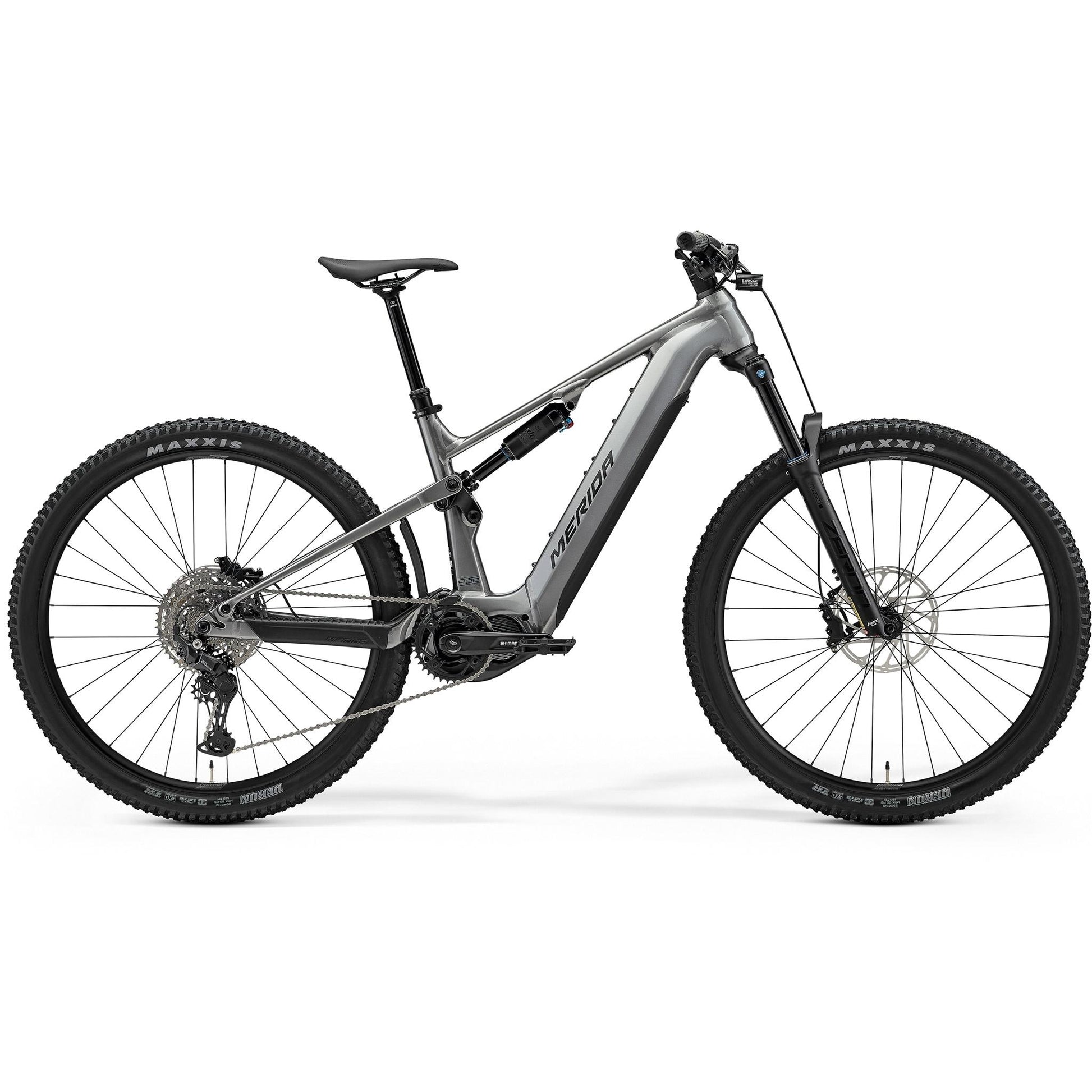

Merida eOne-Forty 400 Electric Trail Bike Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,199.00 Full price

$6,199.00

Club price

$6,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Suntour Fork

630Wh Battery

29" Wheel Size

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 400 Electric Trail Bike in Gunmetal Grey/Black is designed for those who crave adventure on rugged terrains. Equipped with a powerful Shimano motor delivering 85Nm of torque, this e-bike ensures a smooth and efficient ride, even on steep inclines. The 630Wh Shimano battery provides long-lasting power, allowing you to explore further without worrying about recharging. Its robust alloy frame and 130mm rear travel offer durability and comfort, while the hydraulic disc brakes ensure reliable stopping power in all conditions. Whether you're tackling challenging trails or enjoying a leisurely ride, the Merida eOne-Forty 400 is your perfect companion.

Key Features

Powerful Shimano motor with 85Nm torque
Long-lasting 630Wh Shimano battery
Durable alloy frame construction
130mm rear travel for smooth rides
Hydraulic disc brakes for reliable stopping

Specifications

Product Overview

Product

Merida eOne-Forty 400 Electric Trail Bike Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida26eONEFORTY400GUNMETALGREYBLACK

Size SKUs

XS: MEEB2601546
SM: MEEB2601547
MD: MEEB2601548
LG: MEEB2601549
XL: MEEB2601550

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh Shimano; NO Range Extender compatibility

Max. Range (KMs)

Display

Shimano SC-EN600

Build

Frame

eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube

Fork

SF25-ZERON36X-BOOST

Shock

SR Suntour Edge Plus; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra | R: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Shimano SL -MT500-LA | R: Shimano CUES U6000-10

Rear Derailleur

Shimano CUES U6000 ; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 400 used for?

The Merida eOne-Forty 400 is used for trail riding and exploring rugged terrains. Its powerful motor and durable design make it ideal for tackling challenging paths and enjoying outdoor adventures.

Why choose the Merida eOne-Forty 400?

Choose the Merida eOne-Forty 400 for its powerful Shimano motor and long-lasting battery, which provide excellent performance and range. Its durable construction and reliable braking system ensure a safe and enjoyable ride on any trail.

Who is the Merida eOne-Forty 400 designed for?

The Merida eOne-Forty 400 is designed for trail enthusiasts and adventure seekers. It's perfect for those who want a reliable and powerful e-bike to explore off-road paths and enjoy the thrill of trail riding.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 400 Electric Trail Bike Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Battery

The Merida eOne-Forty 400 features a robust Shimano motor with 85Nm of torque, providing ample power for tackling steep trails. Paired with a 630Wh battery, it offers extended range for longer adventures without frequent recharging.

Durable and Comfortable Design

Built with a sturdy alloy frame and 130mm rear travel, this e-bike ensures a comfortable ride over rough terrains. Its design is optimized for both durability and rider comfort, making it ideal for trail enthusiasts.

Reliable Braking System

Equipped with hydraulic disc brakes, the Merida eOne-Forty 400 offers dependable stopping power in various conditions. This ensures safety and control, whether you're descending steep hills or navigating tricky paths.

Riders Height (cm)

Merida eOne-Forty 400 Electric Trail Bike Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

616

620

624

628

633

Reach

431

451

471

491

511

Top Tube Length

543

564

585

607

628

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

79.7

79.6

79.5

Fork Length

557

Head Tube Length

100

105

110

115

120

Head Tube Angle

66.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

758

752

746

744

739

Minimum Seat Height

Maximum Seat Height
