$1367 Off Full Price

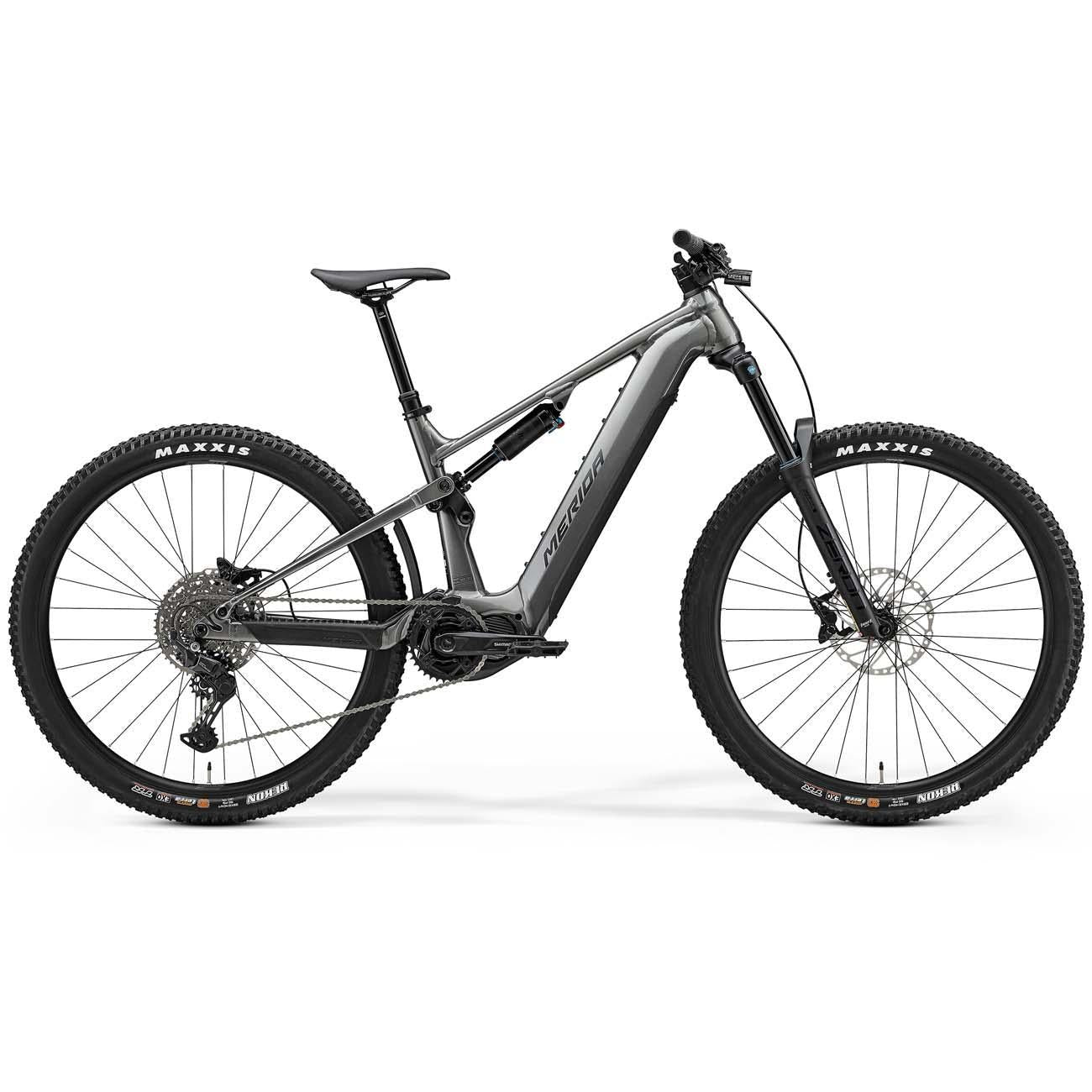

Merida eOne-Forty 400 Electric Enduro Bike 630Wh Battery Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,432.00 Full price

$5,432.00

Club price

$6,799.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Suntour Fork

630Wh Battery

27.5" (650b) Wheel Size

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 400 is an electric mountain bike ideal for trail rides and city commutes. It features a Shimano EP801 motor and a 630Wh battery for strong torque and long range. The SR Suntour suspension provides a smooth ride on different terrains.

Key Features

Shimano EP801 motor with 85Nm torque
SR Suntour Zeron 36X fork offering 150mm travel
SR Suntour Edge Plus shock providing 133mm travel
Shimano 1x10 drivetrain ensuring precise shifting
Hydraulic disc brakes for reliable stopping

Specifications

Product Overview

Product

Merida eOne-Forty 400 Electric Enduro Bike 630Wh Battery Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida25eONEFORTY400GunmetalGreyBlack

Size SKUs

SM: MEEB2500114
MD: MEEB2500115
LG: MEEB2500116
XL: MEEB2500117

Matrix Barcodes

SM: 25001140114
MD: 25001150115
LG: 25001160116
XL: 25001170117

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh Shimano; NO Range Extender compatibility

Max. Range (KMs)

Display

Shimano SC-EN600

Declared Article Number (NSW)

ULL-104179-EA

Build

Frame

eONEFORTY LITE IV MAT aluminium 133 STR 275x28 max WHS 148x12 AST intube

Fork

SF25-ZERON36X-BOOST

Shock

SR Suntour Edge Plus; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Bottom Bracket

included

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Tyres

F: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra | R: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra

Groupset

Crankset

Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

Shimano MT420 4 piston

Front Rotor

Shimano RT64; 203 mm

Rear Rotor

Shimano RTEM600; 203 mm

Rear Derailleur

Shimano CUES U6000 ; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 400 used for?

The Merida eOne-Forty 400 is a versatile trail bike designed for tackling rough terrain, mountain trails, and MTB parks, while also being a comfortable and capable commuter.

Why choose the Merida eOne-Forty 400?

The Merida eOne-Forty 400 stands out as a great value electric mountain bike, offering reliable suspension, powerful hydraulic disc brakes, and a versatile 1x10 drivetrain for an exhilarating mountain biking experience.

Who is the Merida eOne-Forty 400 designed for?

The Merida eOne-Forty 400 is ideal for riders seeking an agile bike with optimized geometry for efficient climbing, complemented by a 150mm SR Suntour air fork for tackling challenging downhill terrain.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 400 Electric Enduro Bike 630Wh Battery Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Shimano EP801 Motor

This lightweight motor delivers 85 Nm of torque, making steep climbs feel effortless. Coupled with a 630Wh battery, it allows for longer rides with less frequent charging.

Hydraulic Disc Brakes

Experience superior braking performance in all conditions with hydraulic disc brakes. They provide enhanced control and feedback, ensuring confidence on descents and tricky terrain.

150mm Front Suspension

The 150mm travel front suspension absorbs bumps and rough patches, allowing for a comfortable ride. Focus on the thrill of biking without worrying about the terrain beneath you.

Riders Height (cm)

Merida eOne-Forty 400 Electric Enduro Bike 630Wh Battery Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

620

624

628

633

Reach

451

471

491

511

Top Tube Length

564

585

607

628

Seat Tube Length

410

425

445

465

Seat Tube Angle

79.7

79.6

79.5

Fork Length

557

Head Tube Length

105

110

115

120

Head Tube Angle

66.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

752

746

744

739

Minimum Seat Height

Maximum Seat Height
