$1567 Off Full Price

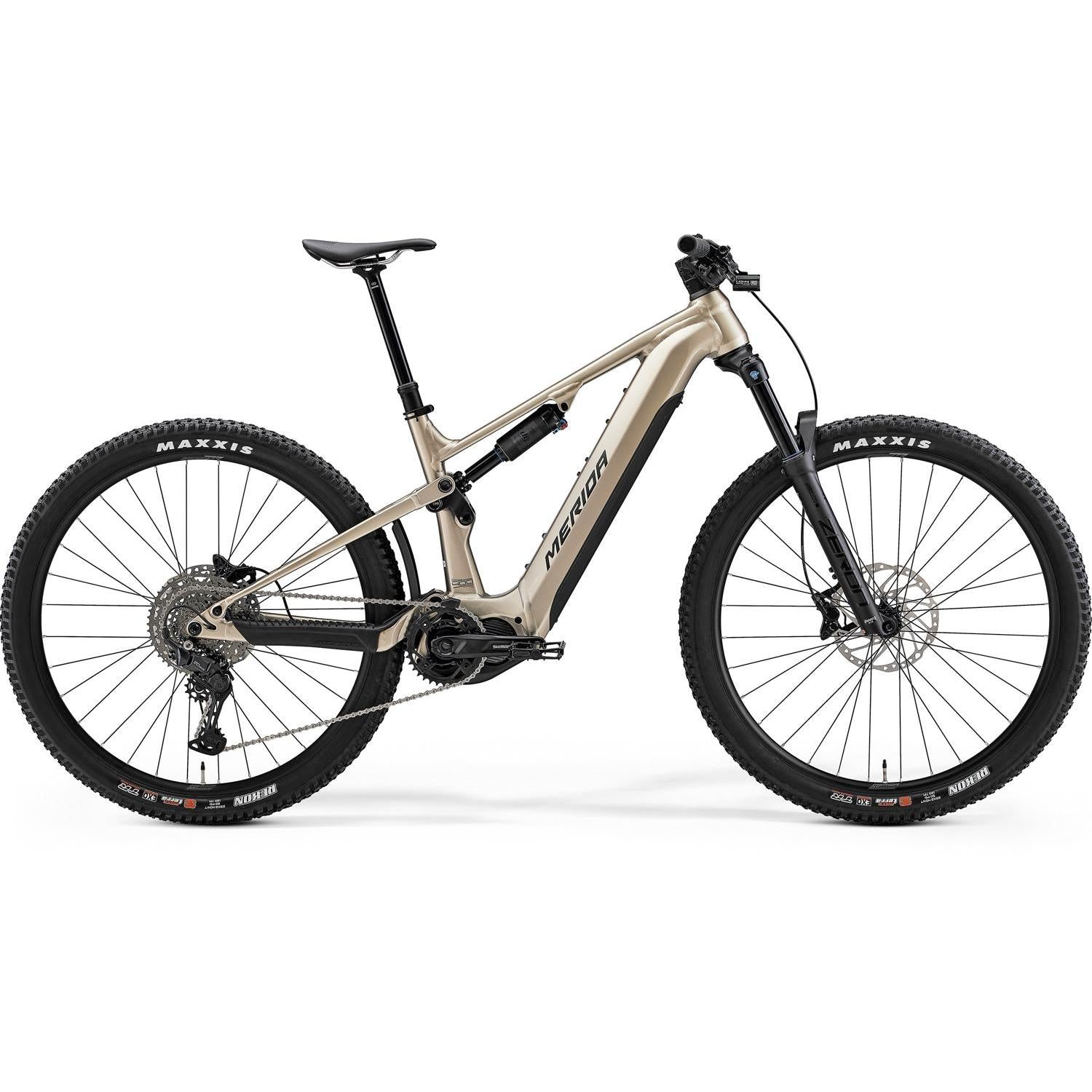

Merida eOne Forty 400 Dual Suspension Electric Mountain Bike High Cream (Black)

Merida eOne Forty 400 Dual Suspension Electric Mountain Bike High Cream (Black)

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Suntour Fork

150mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne Forty 400 Dual Suspension Electric Mountain Bike in High Cream (Black) is the ideal companion for adventurous riders seeking a reliable and budget-friendly off-road experience. With a user-removable 630 Wh battery and a robust Shimano EP801 drive unit, this bike offers extended riding time and powerful performance, while its Suntour Zeron 36 fork and air rear shock ensure exceptional comfort and control on rugged trails.

Key Features

User-removable 630 Wh battery
Powerful Shimano EP801 drive unit
Suntour Zeron 36 fork with 150 mm travel
Long travel dropper posts for all sizes
Sturdy aluminium frame for durability

Specifications

Product Overview

Product

Merida eOne Forty 400 Dual Suspension Electric Mountain Bike High Cream (Black)

Brand

Merida

Parent SKU

Merida24eOne-Forty400HighCreamBlack

Size SKUs

XS: MEEB242402926
SM: MEEB242402927
MD: MEEB242402928

Matrix Barcodes

XS: 4711256466743
SM: 4711256466750
MD: 4711256466767

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

White

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

150mm

Weight

24.86

Charge Time

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806 630Wh

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-EN600

Build

Frame

eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube

Fork

SR Suntour Zeron 36 X

Shock

SR Suntour Edge Plus

Handlebars

Merida Expert eTR

Headset

Acros ICR Merida External Neck w/ Blocklock

Stem

Merida Expert eTR II

Pedals

VP VPE-527

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT | S: 150 SPT | M/L: 200 SPT | XL: 230 SPT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra | R: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra

Groupset

Crankset

Shimano FC-EN600

Chain

Shimano LG500

Brakes

Shimano MT420

Front Rotor

Shimano RT30

Rear Rotor

Shimano RT-EM600

Shifters

F: Shimano SL-MT500-IL | R: Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne Forty 400 Dual Suspension Mountain Bike used for?

The Merida eOne Forty 400 Dual Suspension Mountain Bike is used for spending all day on the trails, thanks to its sturdy aluminium frame, 143 mm of rear wheel travel, and 150 mm front travel, complemented by a large 630 Wh battery.

Why choose the Merida eOne Forty 400 Dual Suspension Mountain Bike?

Choose the Merida eOne Forty 400 Dual Suspension Mountain Bike for its ability to tackle all-day trails while also being suitable for urban environments, featuring integrated mudguards and lights, making it a versatile ride for any setting.

Who is the Merida eOne Forty 400 Dual Suspension Mountain Bike designed for?

The Merida eOne Forty 400 Dual Suspension Mountain Bike is designed for riders who want a capable trail machine that is budget-friendly, allowing them to enjoy high-quality performance without overspending.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Forty 400 Dual Suspension Electric Mountain Bike High Cream (Black) we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Exceptional Performance

The Merida eOne Forty 400 features a powerful Shimano EP801 drive unit that delivers 85 Nm of torque, ensuring a smooth and responsive ride. Coupled with a 630 Wh battery, it allows for longer adventures without the worry of running out of power.

Versatile Design

This electric mountain bike is not only trail-ready but also equipped for urban environments with integrated mudguards and lights. Its sturdy aluminium frame and thoughtful design make it suitable for various terrains and conditions.

Budget-Friendly Choice

The eOne Forty 400 is perfect for riders who want a high-quality trail machine without breaking the bank. It combines performance, durability, and affordability, making it an excellent choice for budget-conscious adventurers.

Riders Height (cm)

Merida eOne Forty 400 Dual Suspension Electric Mountain Bike High Cream (Black) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

616

620

624

Reach

431

451

471

Top Tube Length

543

564

585

Seat Tube Length

400

410

425

Seat Tube Angle

79.7

79.6

Fork Length

557

Head Tube Length

100

105

110

Head Tube Angle

66.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

758

752

746

Minimum Seat Height

Maximum Seat Height
