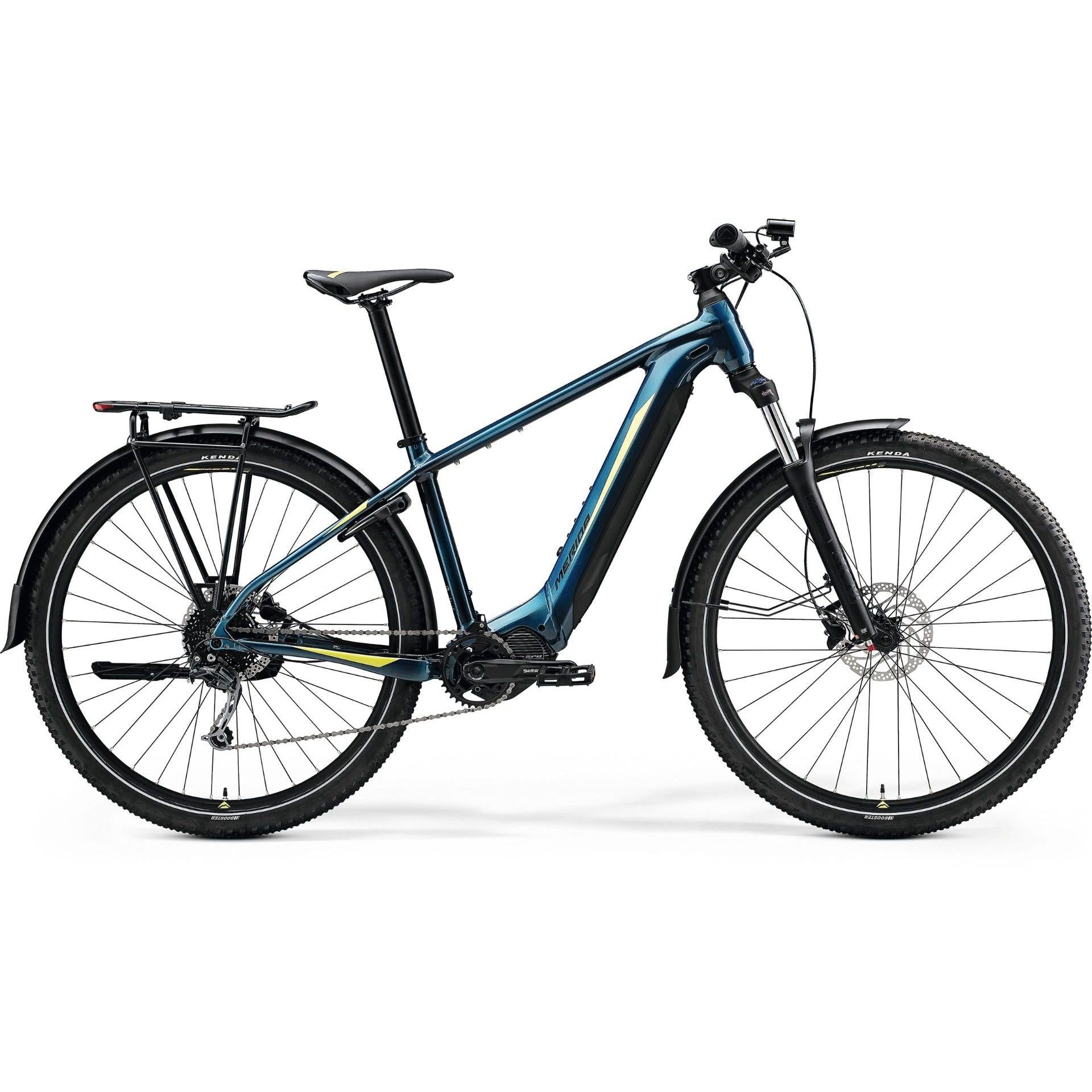

Merida eBig.Nine 400 EQ 630Wh Electric Hardtail MTB Teal/Lime

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eBig.Nine 400 EQ 630Wh Electric Hardtail MTB in Teal/Lime is the perfect companion for adventure seekers looking to conquer both rugged trails and urban landscapes. Powered by a robust Shimano STePS EP6 motor and a 630Wh battery, this bike offers impressive torque and range, ensuring a smooth and enjoyable ride. With its 29" wheels, hydraulic disc brakes, and essential accessories like a rear rack and integrated lights, it is designed for both comfort and practicality, making it ideal for long rides and daily commutes.

Key Features

Shimano STePS EP6 Motor
630Wh Battery for extended range
85Nm Torque for powerful climbs
Mid-drive pedal assist for efficiency
Equipped with essential commuting accessories

Specifications

Product Overview

Product

Merida eBig.Nine 400 EQ 630Wh Electric Hardtail MTB Teal/Lime

Brand

Merida

Parent SKU

22MeridaeBig.Nine400EQTeal-Blue/Lime

Size SKUs

SM: MEEB2239980
MD: MEEB2239991
LG: MEEB2240006
XL: MEEB2240017

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Weight Limit

150kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano STePS EP6 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano BT-EN806

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube

Fork

Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable

Pedals

VP VPE-537

Saddle

MERIDA EXPERT TK; V-mount

Seat Post

MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Tyres

KENDA Booster; 29x2.2"; wire

Groupset

Crankset

Shimano CRE70-B; 34 ATC

Chain

KMC e10s

Shifters

Shimano Deore M4100

Rear Derailleur

Shimano Deore M5120; SGS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eBig.Nine 400 EQ 630Wh Hardtail MTB used for?

The Merida eBig.Nine 400 EQ 630Wh is used for both commuting and off-road adventures. Its powerful motor and versatile design make it suitable for tackling challenging trails and navigating urban environments.

Why choose the Merida eBig.Nine 400 EQ 630Wh Hardtail MTB?

Choose the Merida eBig.Nine 400 EQ for its powerful performance, extended battery range, and comfortable ride. It combines the best features of an electric mountain bike with essential commuting accessories, making it a versatile choice for all riders.

Who is the Merida eBig.Nine 400 EQ 630Wh Hardtail MTB designed for?

The Merida eBig.Nine 400 EQ is designed for adventure enthusiasts and commuters alike. It caters to riders who seek a reliable, efficient bike that excels in both off-road conditions and daily travel.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig.Nine 400 EQ 630Wh Electric Hardtail MTB Teal/Lime we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Performance

The Merida eBig.Nine 400 EQ features a Shimano STePS EP6 motor that delivers an impressive 85Nm of torque, making steep climbs feel effortless. With four assist modes, riders can easily customize their experience based on terrain and energy levels.

Versatile Design

This electric mountain bike boasts a lightweight frame and 29" wheels, providing excellent stability and comfort across various surfaces. Whether navigating city streets or tackling rugged trails, the eBig.Nine 400 EQ adapts seamlessly to your riding style.

Commuter-Friendly Features

Designed with everyday use in mind, the bike includes a rear rack capable of carrying up to 25kg, integrated mudguards, and front and rear lights. These features ensure you stay clean, visible, and prepared for any journey, making it an ideal choice for commuters.

Riders Height (cm)

Merida eBig.Nine 400 EQ 630Wh Electric Hardtail MTB Teal/Lime geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
