35% Off Full Price Clearance

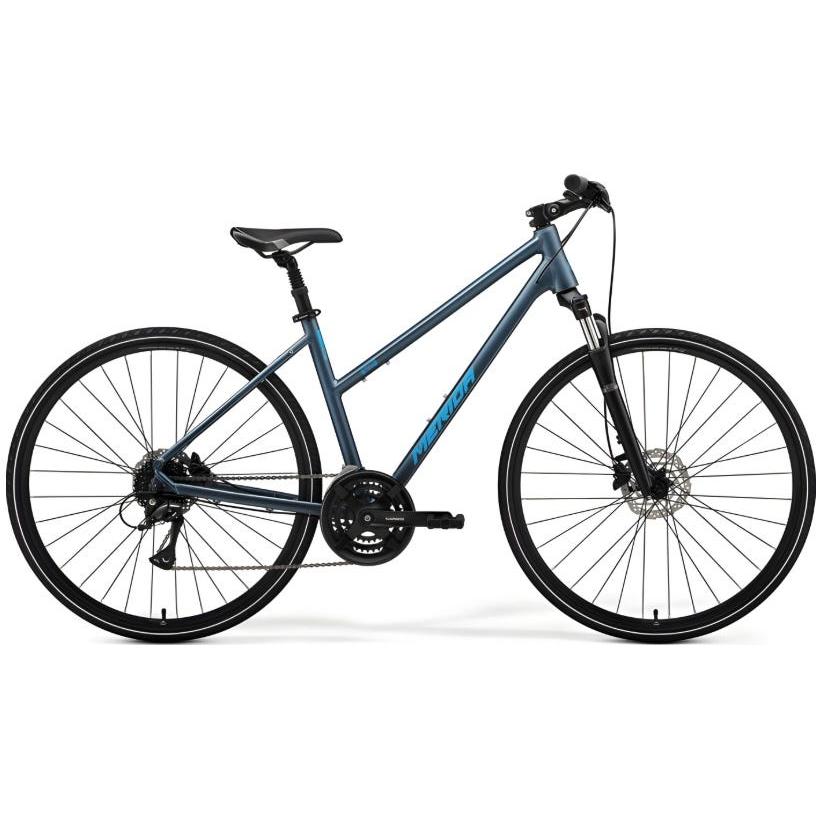

Merida Crossway 20 L Hybrid Bike Silk Steel Blue/Blue

Brand: Merida

SKU: Select a size

Other Colours

Black

Blue

Grey

Size: Select a size

WXXS WXS WSM WMD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$649.00 Full price

$649.00

Club price

$999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

Step-Through Style Frame

700c Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

Experience the perfect blend of comfort, enjoyment, and functionality with the Merida Crossway 20 L Hybrid Bike in Silk Steel Blue/Blue. This versatile bike features powerful, low-maintenance disc brakes for reliable stopping in all weather, an upright riding position, and comfort-focused elements like a Suntour NX lockout suspension fork, suspension seat post, and adjustable stem. Crafted from lightweight aluminum, it's ready for daily commutes or weekend adventures, with 700c wheels and 40mm wide tires offering quick ground coverage, puncture protection, grip, and comfort. Designed to accommodate mudguards, racks, and kickstands, the Crossway 20 is your ideal companion for any journey.

Key Features

Reliable all-weather disc brakes
Comfortable upright riding position
Lightweight aluminum frame, accessory ready
Puncture-protected 700c wheels
Versatile for commute or adventure

Specifications

Product Overview

Product

Merida Crossway 20 L Hybrid Bike Silk Steel Blue/Blue

Brand

Merida

Parent SKU

Merida24Crossway20LSilkSteelBlueBlue

SKU

Merida24Crossway20LSilkSteelBlueBlue

Size SKUs

WXXS: MEHB2424D0017
WXS: MEHB2424D0018
WSM: MEHB2424D0019
WMD: MEHB2424D0020

Matrix Barcodes

WXXS: 4711256474007
WXS: 4711256473994
WSM: 4711256473987
WMD: 2401077

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Step-Through

Colour

Blue

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Front Travel

under 100mm

Build

Frame

CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR

Fork

Suntour NEX HLO; Coil; 63 STR; lockout; 700x50C max. WHS

Handlebars

MERIDA CC; MAT aluminium; 660 WHB; 25 RHB

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA TK; MAT aluminium; 25.4 DSH; adjustable, 100 mm all sizes

Bottom Bracket

FSA TH-7420ST, 68-124

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK; 27.2 DSP; 13 SSB; 40 SST

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

700c

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 100x9 WHF; 32 SPH; Centerlock:Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

MERIDA K1171; 700x40C; wire:MERIDA K1171; 700x40C; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 48-38-28 ATC

Chain

KMC Z8.1

Brakes

Tektro M275 [or Shimano BR-MT200]

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

Microshift TS39 [or Shimano ST-EF505]

Front Derailleur

Shimano FD-TY601

Rear Derailleur

Shimano RD-M3020-8; SGS

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Crossway 20 L used for?

The Merida Crossway 20 L is used for versatile riding, suitable for daily commutes or weekend adventures.

Why choose the Merida Crossway 20 L?

Choose the Merida Crossway 20 L for its reliable all-weather disc brakes, comfortable upright riding position, and lightweight aluminum frame that is ready for accessories.

Who is the Merida Crossway 20 L designed for?

The Merida Crossway 20 L is designed for riders seeking a comfortable and functional hybrid bike for commuting or leisure rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 20 L Hybrid Bike Silk Steel Blue/Blue we suggest the following size.

More comfort More speed

WXXS

WXS

WSM

WMD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

WXXS

WXS

WSM

WMD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Crossway 20 L Hybrid Bike Silk Steel Blue/Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

620

631

645

Reach

382

387

393

399

Top Tube Length

560

565

580

590

Seat Tube Length

390

430

470

510

Seat Tube Angle

74.0

73.5

Fork Length

468

Head Tube Length

130

140

155

Head Tube Angle

70.5

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

678

713

748

782

Minimum Seat Height

Maximum Seat Height
