Merida Crossway 10 V Hybrid Bike Silk Anthracite/Grey/Black

Merida Crossway 10 V Hybrid Bike Silk Anthracite/Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

WXS WSM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

Trapeze Style Frame

700c Wheel Size

Rim Brake

Shimano Mixed Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

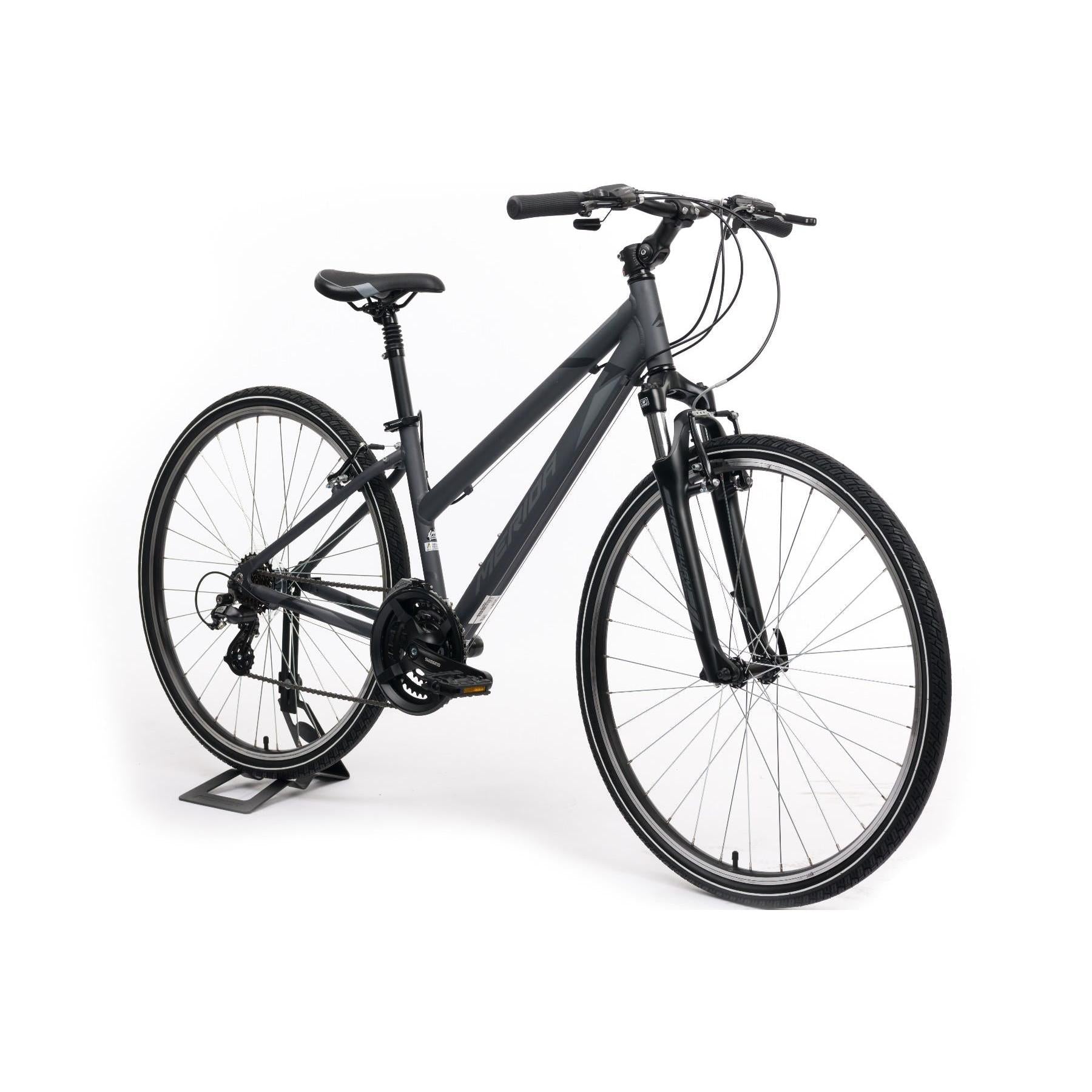

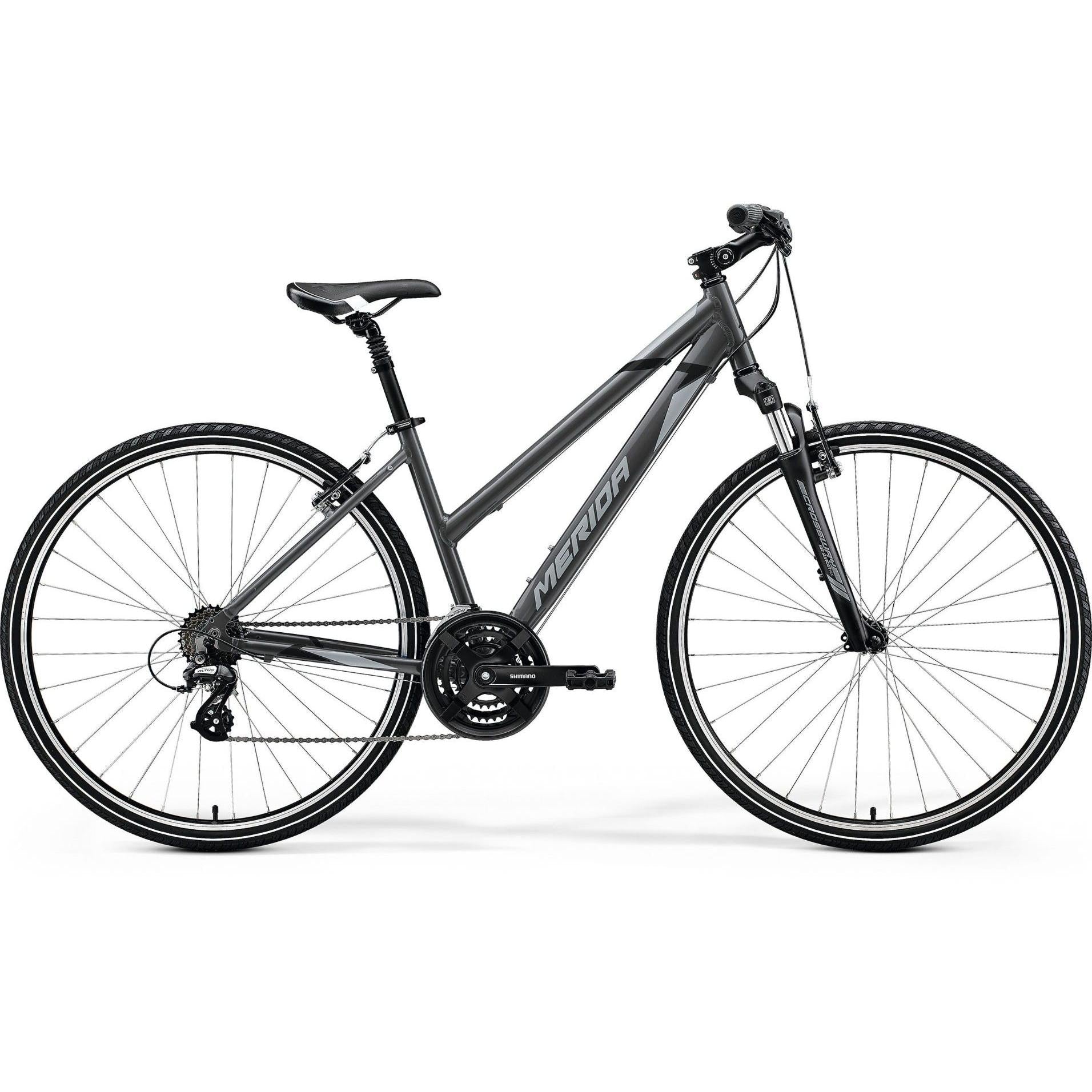

The Merida Crossway 10V is a hybrid bike designed for women, offering specific sizing and comfort for versatile riding. It's ideal for commuting or casual rides, whether on bike paths or dirt trails. The bike features a durable yet lightweight alloy double-butted frame, ensuring strength without compromising on weight. Its relaxed geometry combines elements of road and mountain bikes, with a sloping top tube and oversized tubing for reliable steering and a stiff frame.

Specifications

Product Overview

Product

Merida Crossway 10 V Hybrid Bike Silk Anthracite/Grey/Black

Brand

Merida

Parent SKU

21MeridaCrossway10VWSilkAnthraciteGreyBlack

Size SKUs

WXS: MEHB2188482
WSM: MEHB2188493
WMD: MEHB2188501

Year Model

2021

Product Features

Frame Material

Alloy

Wheel Size

700c

Brake Type

Rim Brake

Gears

3 x 7

Front Travel

under 100mm

Weight Limit

120kg (includes bike)

Build

Frame

CROSSWAY DT; MAT aluminium; 700C WHS; 135x9 AST; BSA BBR

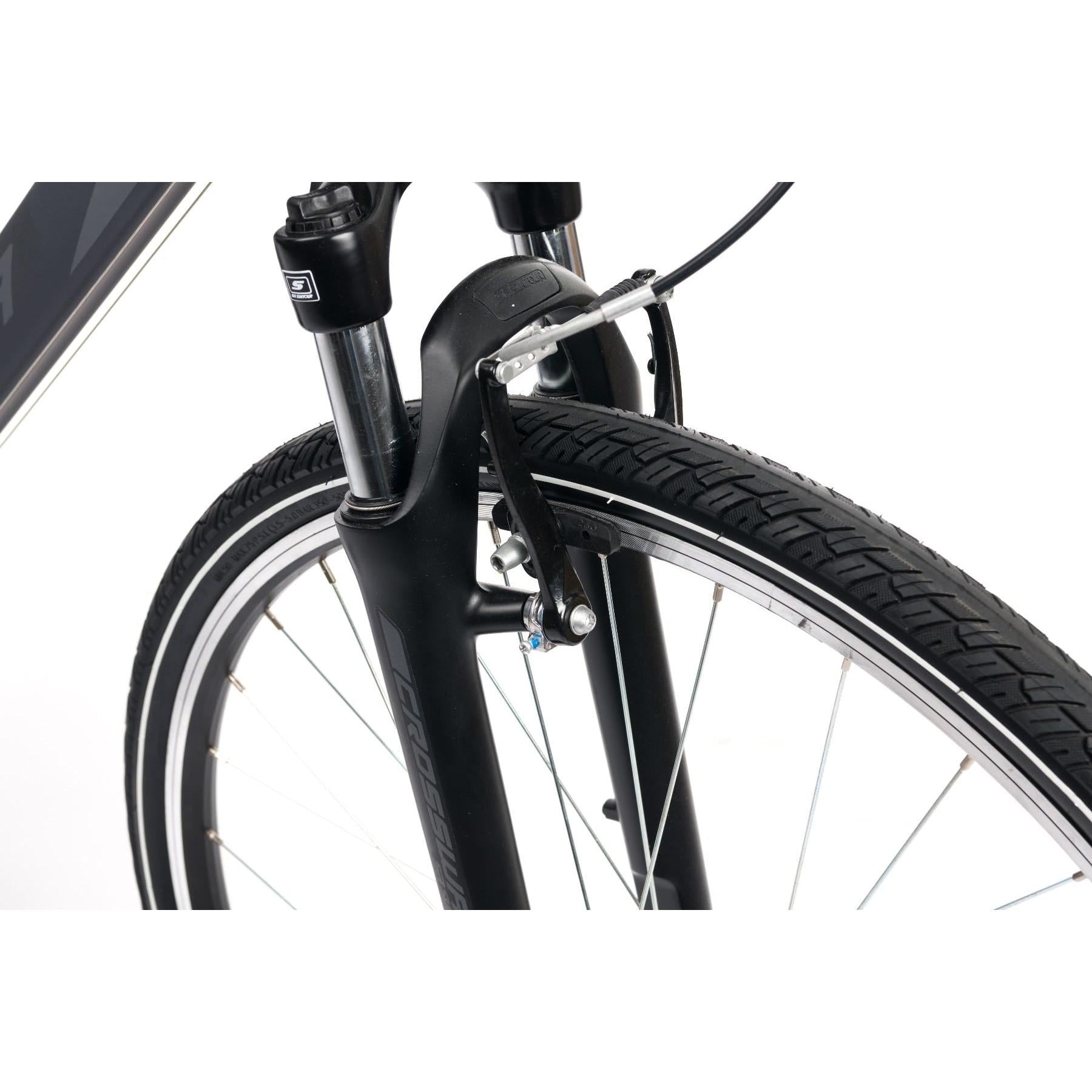

Fork

Suntour NEX; Coil; 63 STR

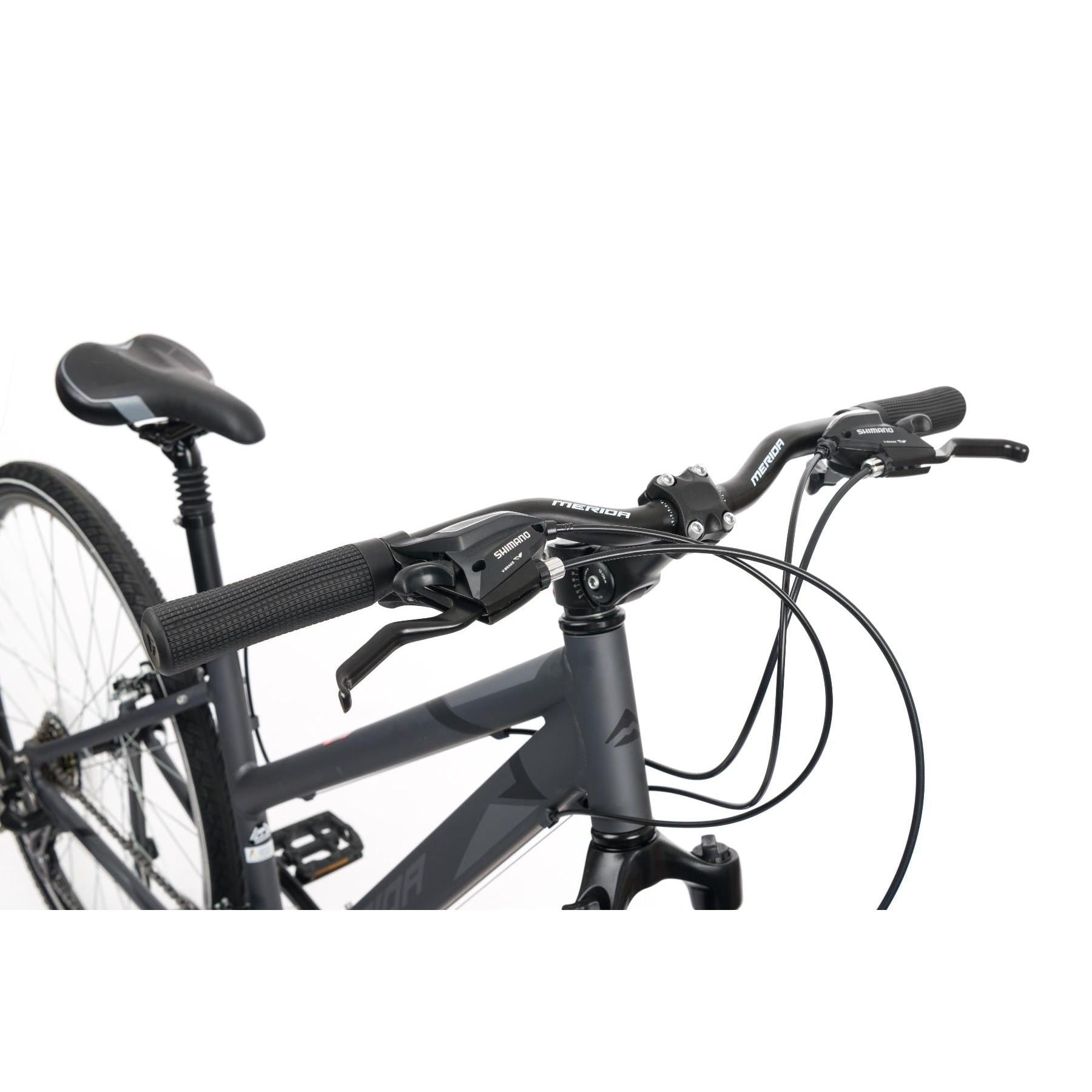

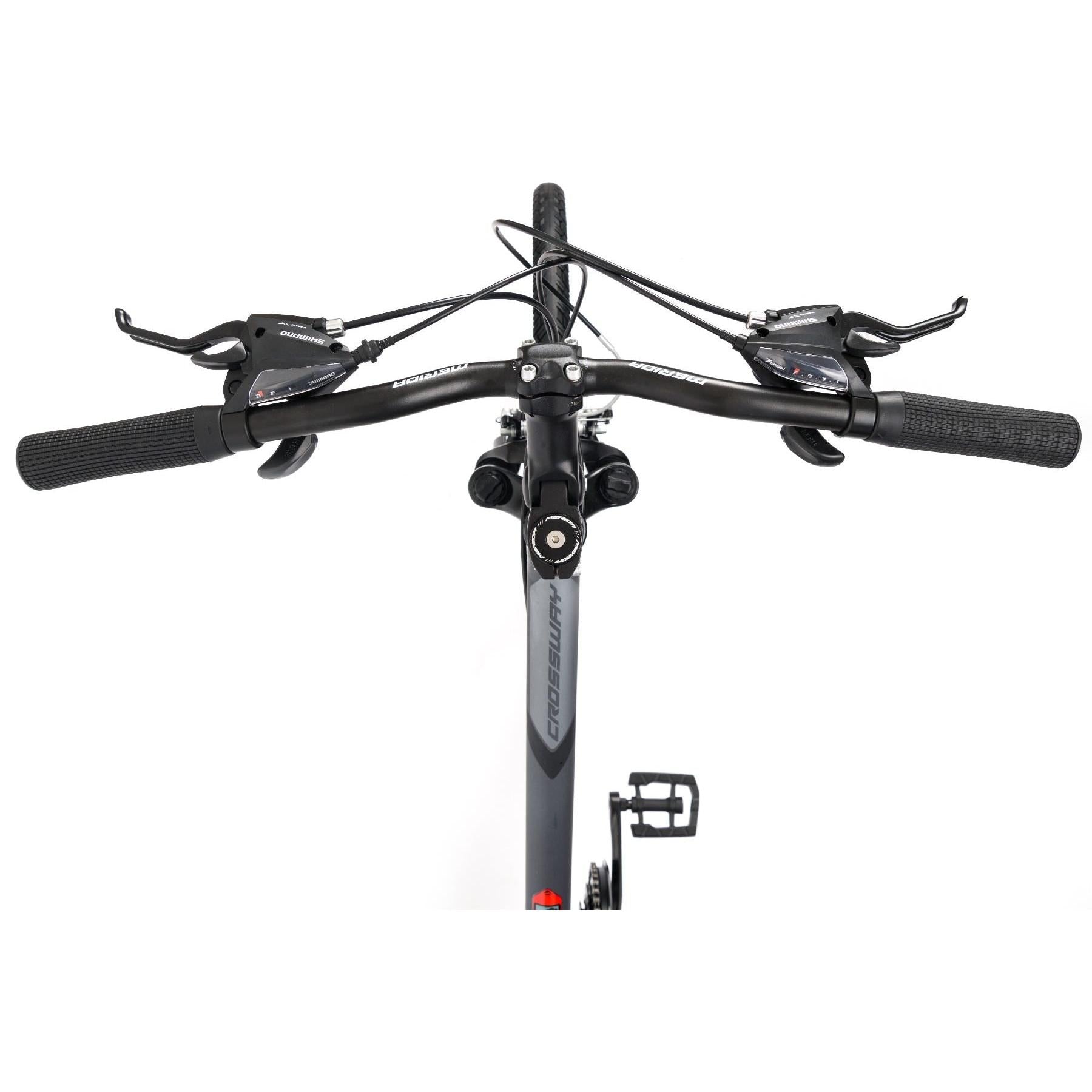

Handlebars

MERIDA CC; MAT steel; 620 Wide; 30 Rise

Headset

FSA TH888

Grips

MERIDA EC

Stem

MERIDA TK; MAT aluminium; 25.4 Diameter; adjustable

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK; 27.2 Diameter; 13 Setback; 40 SST

Wheels

Wheel Size

700c

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Joytech JY-752DSE; 135x9 WHR; 32 Spokes

Tyres

MERIDA K1171; 700x40C; wire

Spokes

Steel UCP

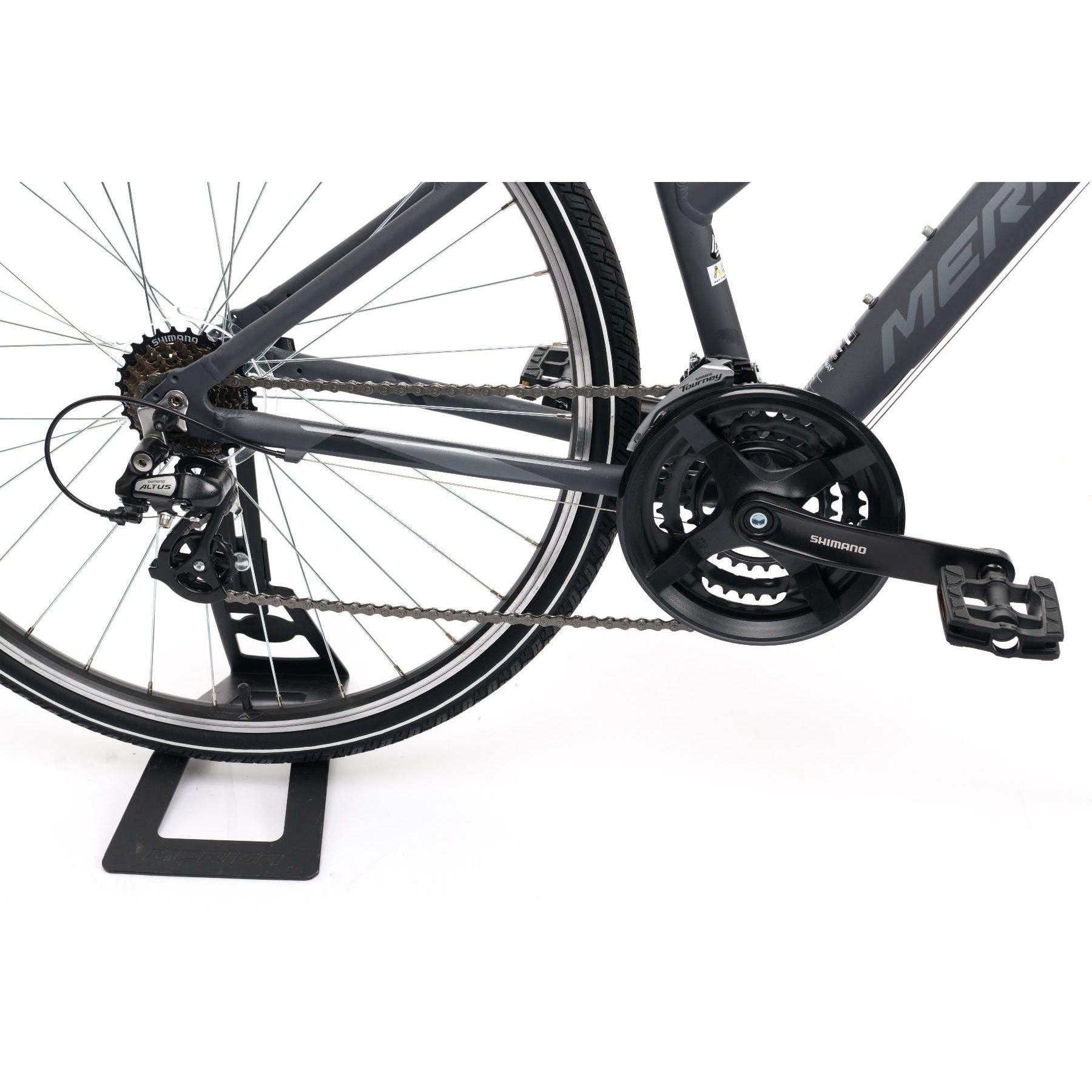

Groupset

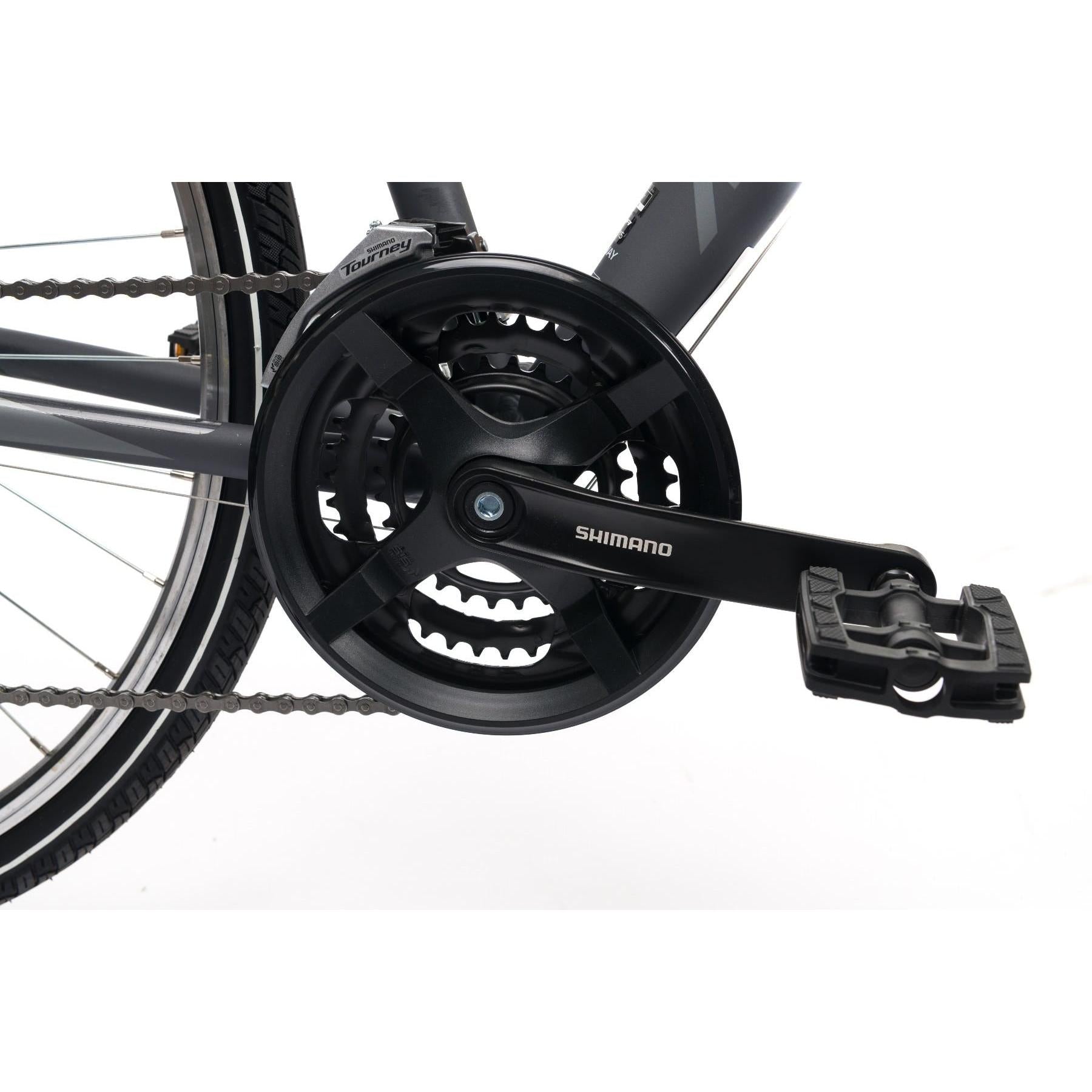

Crankset

Shimano TY301; 48-38-28 ATC

Chain

KMC Z7

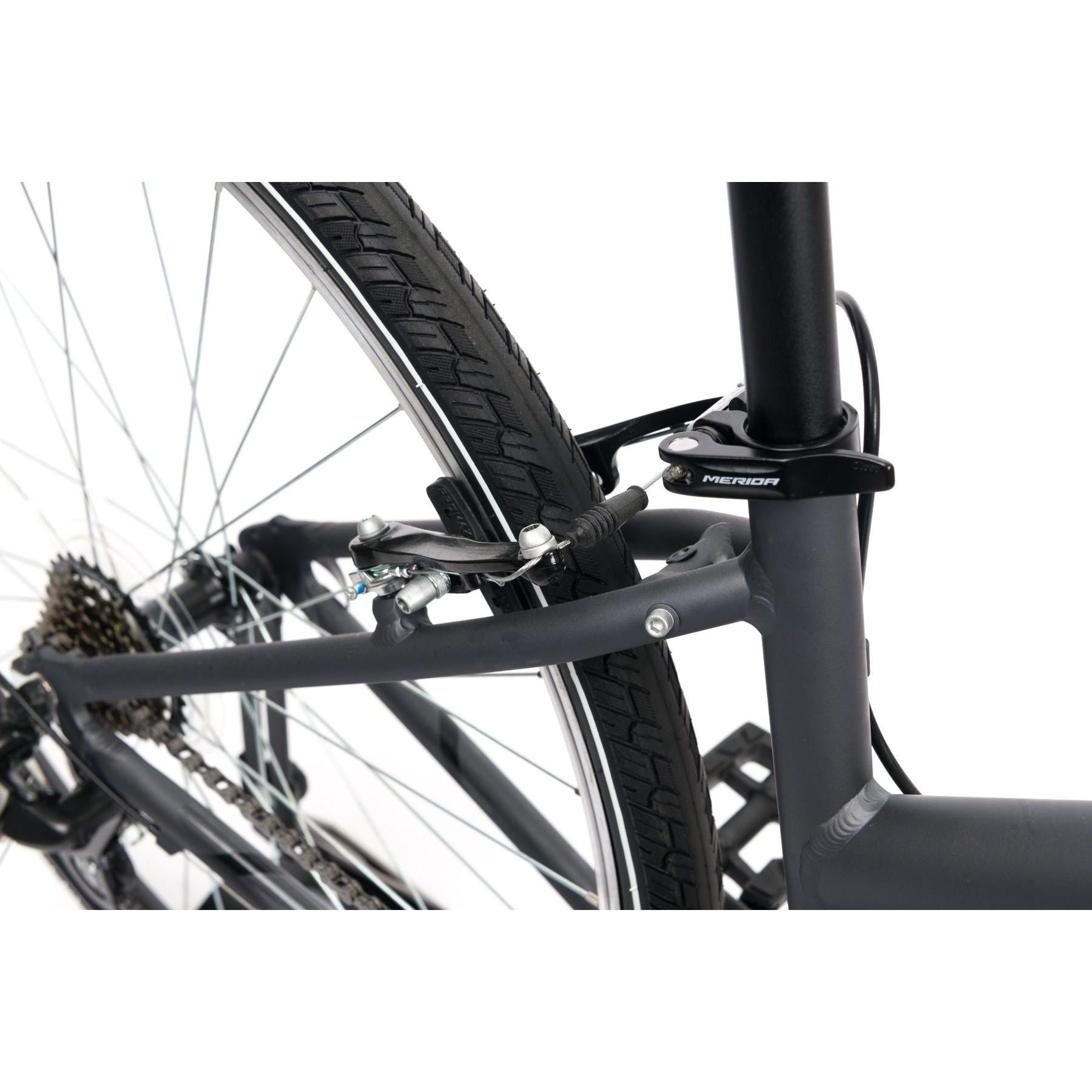

Brakes

Promax MTV-117A

Shifters

Shimano ST-EF500

Front Derailleur

Shimano FD-TY510

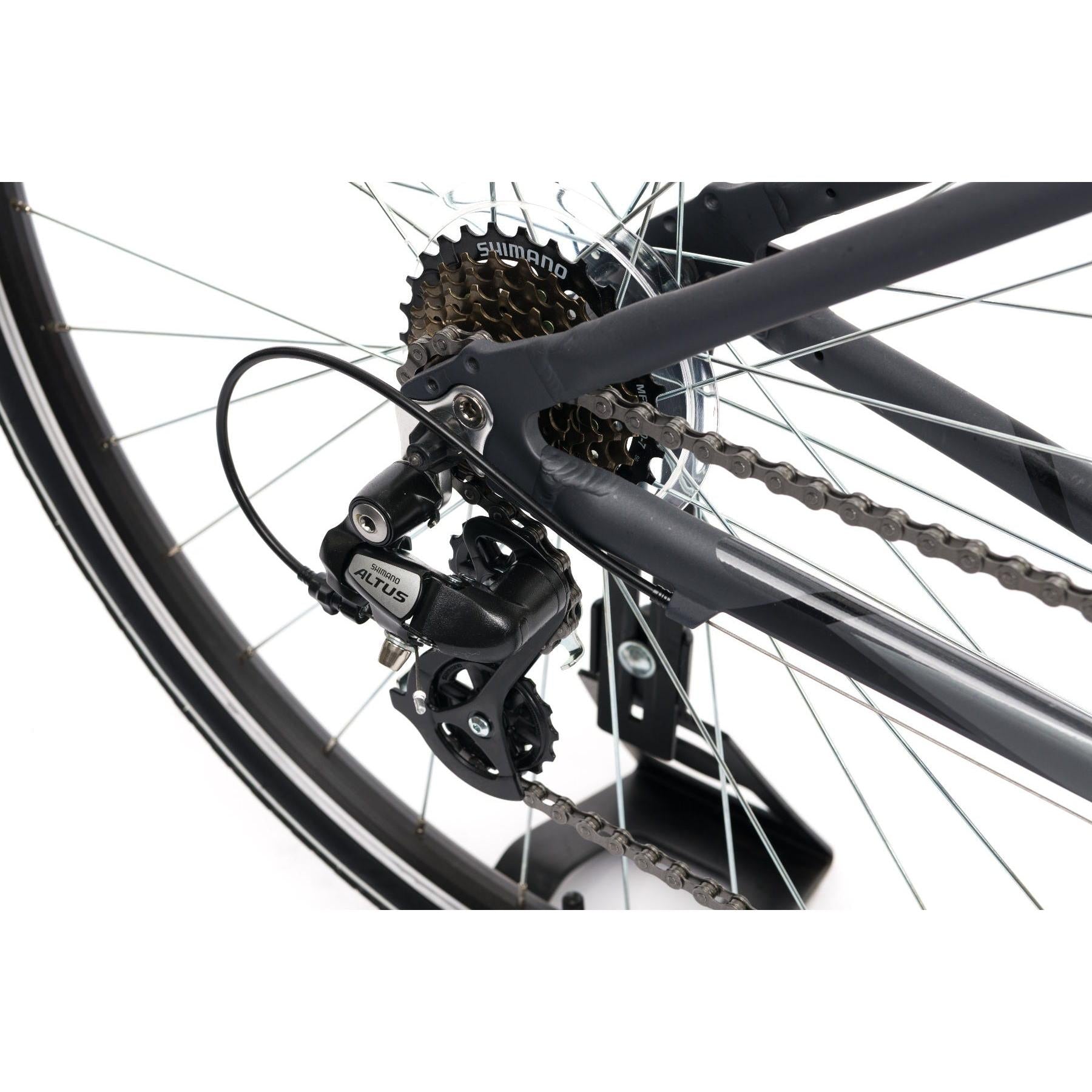

Rear Derailleur

Shimano RD-M310

Cassette

7 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 10 V Hybrid Bike Silk Anthracite/Grey/Black we suggest the following size.

More comfort More speed

WXS

WSM

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

SM/MD

MD/LG

XXL

Merida Crossway 10 V Hybrid Bike Silk Anthracite/Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

607

612

Reach

391

394

Top Tube Length

565

575

Seat Tube Length

390

430

Seat Tube Angle

74.0

73.5

Fork Length

Head Tube Length

135

140

Head Tube Angle

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

592

590

Minimum Seat Height

Maximum Seat Height
