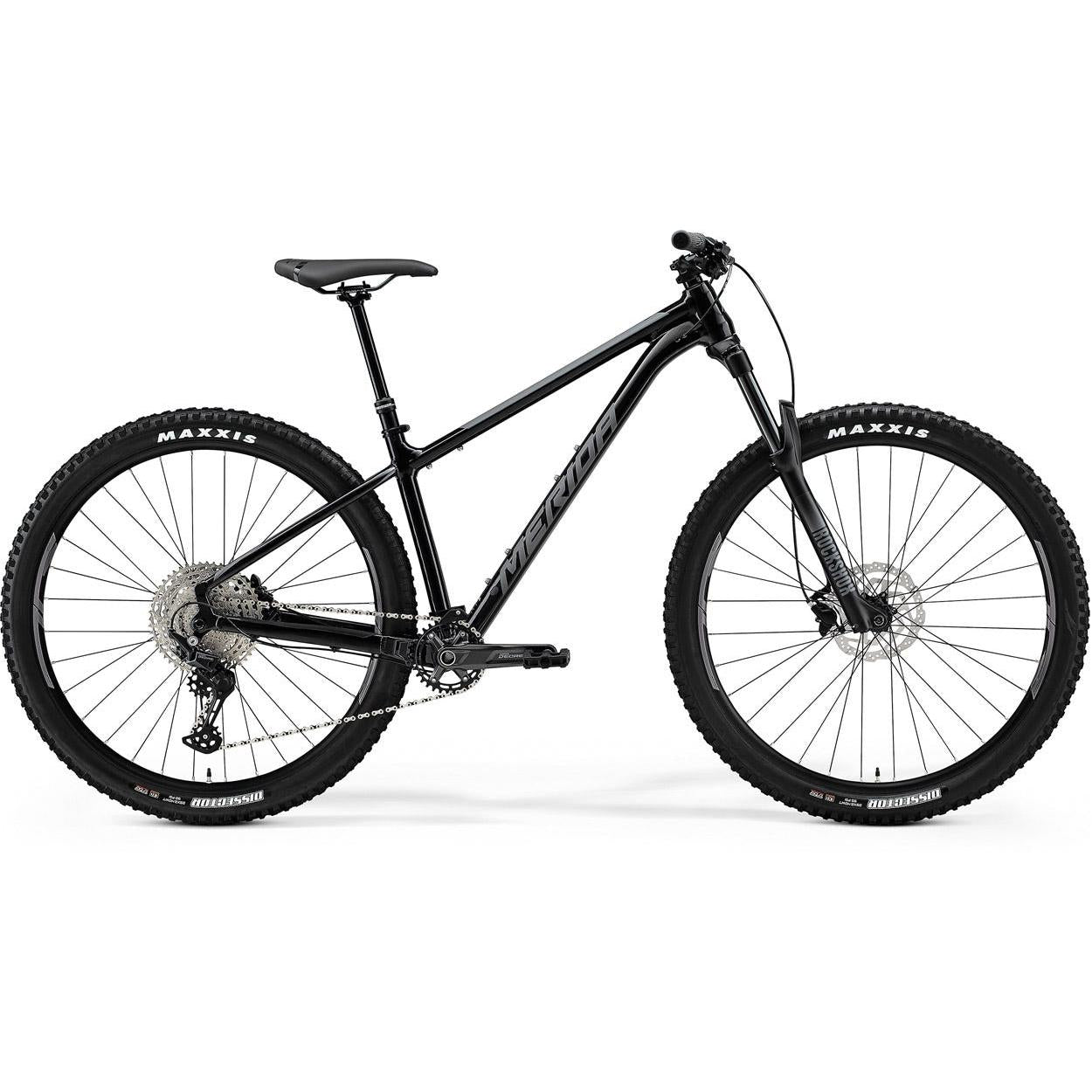

Merida Big Trail 500 Mountain Bike Glossy Black/Matt Cool Grey

Brand: Merida

SKU: MEHP2181838

Size: MD

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

140mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big.Trail is an excellent choice for those purchasing their first mountain bike or for riders seeking an affordable trail hardtail.

Specifications

Product Overview

Product

Merida Big Trail 500 Mountain Bike Glossy Black/Matt Cool Grey

Brand

Merida

Parent SKU

21MeridaBigTrail500GlossyBlackMattCoolGrey

Size SKUs

SM: MEHP2181827
MD: MEHP2181838
LG: MEHP2181849
XL: MEHP2181850

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

140mm

Weight Limit

135kg (includes bike)

Build

Frame

BIG.TRAIL TFS; MAT aluminium; 29 WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Recon Silver RL; 140 STR; Tapered; 42mm fork offset

Handlebars

MERIDA EXPERT TR; MAT aluminium; 780 Wide; 20 Rise

Headset

MERIDA M4455

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT TR; MAT aluminium; 35 Diameter; 0 Angle

Bottom Bracket

Shimano BSA 68/73 ‚Äì 24mm

Pedals

VP VPE-891

Saddle

MERIDA COMP CC

Seat Post

MERIDA COMP TR; 30.9 Diameter; 0 Setback; S: 125 SPT - M/L/XL: 150 SPT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano MT400-B; 148x12 WHR; 32 Spokes; Centerlock

Tyres

Maxxis Dissector; 29x2.4"; fold; TR EXO Dual

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC

Chain

Shimano Deore HG601

Brakes

Tektro M275; 2 piston; Rotors: Shimano RT10, 180mm/180mm

Shifters

Shimano Deore M5100

Rear Derailleur

Shimano Deore M5100 Shadow+

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Trail 500 Mountain Bike Glossy Black/Matt Cool Grey we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Modern Trail Geometry

A long reach, paired with a slack 65.5° head angle and a steep seat angle make the BIG.TRAIL a solid descender even when the trail is full of roots and rocks, maintaining impressive climbing abilities, due to the central seating position over the bottom bracket. The extra short seat tube and low stand over height help create lots of space to manoeuvre the bike when the trail is tough but also allow for long travel dropper posts.

Boost Technology

The entire BIG.TRAIL range offers Boost technology at the front and rear. The shallower axle standard of 110 mm (front) and 148 mm (rear) allows for a wider spoke angle, resulting in a stiffer and stronger wheel, hugely beneficial on trail hardtails with 29er wheels.

Tyre Clearance

Our BIG.TRAIL rolls on 29er wheels and has tyre clearance for up to 2.5 trail tyres. The combination of 29er wheels and 2.5 tyres offer plenty or corner and climbing grip, while the big tyre volume and the 29er rolling over ability give our trail hardtail extra comfort and stability.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Trail 500 Mountain Bike Glossy Black/Matt Cool Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

641

Reach

435

Top Tube Length

600

Seat Tube Length

410

Seat Tube Angle

75.5

Fork Length

Head Tube Length

100

Head Tube Angle

65.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

723

Minimum Seat Height

Maximum Seat Height
