Merida Big Seven 20 Mountain Bike White/Purple

Merida Big Seven 20 Mountain Bike White/Purple

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$699.00 Full price

$699.00

Club price

$899.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Altus Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 20 Mountain Bike is equipped with a Shimano Altus drivetrain featuring 2 front chainrings and 8 rear gears, offering a versatile range for both climbs and descents. It includes Shimano Hydraulic disc brakes for reliable stopping power in all conditions. The bike's lightweight aluminum frame accommodates a maximum wheel and tire clearance of 27.5 x 2.25" and uses a 135 x 9mm axle standard. The Suntour XCT30 HLO fork provides 100mm of travel, enhancing grip on natural trails with roots and rocks. Its lockout feature allows for efficient climbing while maintaining suspension for rough descents and flat terrains.

Key Features

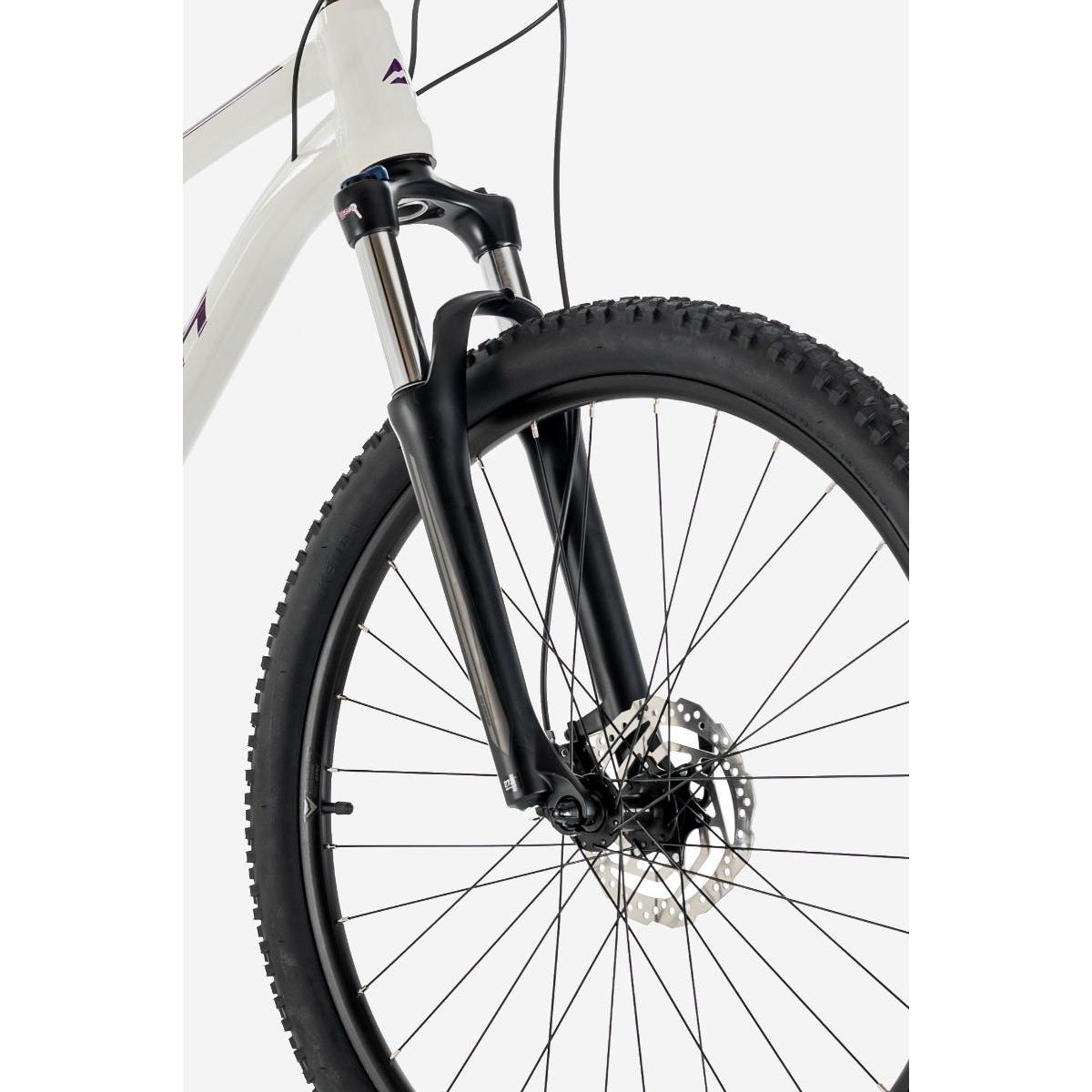

Suntour XCT30 HLO Fork with 100mm travel and lockout
Agile 27.5-inch wheels
Alloy frame with internal cable routing
Shimano MT-200 hydraulic disc brakes
2x8 speed Shimano drivetrain

Specifications

Product Overview

Product

Merida Big Seven 20 Mountain Bike White/Purple

Brand

Merida

Parent SKU

22MeridaBig.Seven20White/Purple

Size SKUs

XS: MEHA2248004
SM: MEHA2248015
MD: MEHA2248026
LG: MEHA2248037

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

White

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Weight

14.5kg

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Suntour XCT30 HLO; Coil; 100mm suspension travel LOCKOUT

Handlebars

Merida CC aluminium; 690mm width 15mm rise

Headset

Merida M2345

Grips

Merida EC

Stem

Merida CC aluminium; 31.8 diameter 6° angle

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

Merida Sport Comfort

Seat Post

Merida CC aluminium; 30.9mm diameter; 15mm setback

Seat Clamp

Merida Comp QR

Wheels

Wheel Size

27.5" (650b)

Rims

Merida CC; 17mm inner width, aluminium

Hubs

F: Shimano Tourney TX HB-TX505 100x9mm, 32h, centrelock | R: Shimano Tourney TX HB-TX505 135x9mm, 32h, centrelock

Tyres

MERIDA K1080; 27.5 x 2.2"; wire bead

Spokes

Black steel

Groupset

Crankset

Shimano Altus FC-M315-2 Length 170mm

Chain

Sunrace M84

Brakes

POWER DS 100, 2 piston, hydraulic disc

Front Rotor

Shimano RT10; 160mm

Rear Rotor

Shimano RT10; 160mm

Shifters

microSHIFT Mezzo TS39

Front Derailleur

Shimano Altus FD-M315-TS 2x

Rear Derailleur

Shimano Acera RD-M360

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Big Seven 20 used for?

The Merida Big Seven 20 is used for mountain biking, offering versatility for both climbs and descents on natural trails.

Why choose the Merida Big Seven 20?

Choose the Merida Big Seven 20 for its lightweight aluminum frame, reliable Shimano hydraulic disc brakes, and versatile 2x8 speed drivetrain, making it suitable for various terrains.

Who is the Merida Big Seven 20 designed for?

The Merida Big Seven 20 is designed for mountain biking enthusiasts who seek a reliable and versatile bike for trail riding.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 20 Mountain Bike White/Purple we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Seven 20 Mountain Bike White/Purple geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
