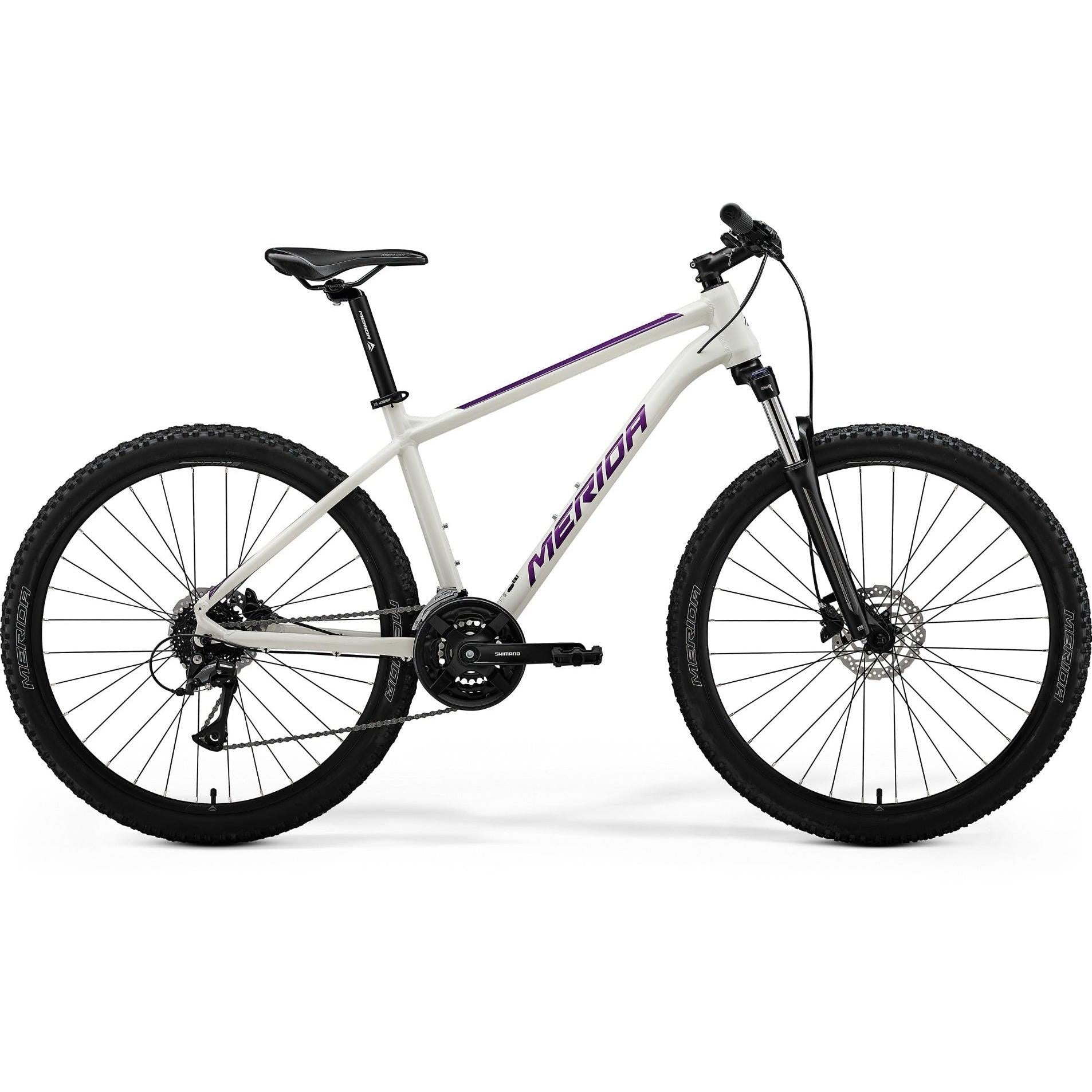

Merida Big.Seven 20 Hardtail Mountain Bike White/Purple

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$647.00 Full price

$647.00

Club price

$899.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Seven 20 is an entry-level hardtail perfect for cross-country trails. It features a 3x8 drivetrain for a wide range of gears, making it suitable for both climbs and descents. The bike is equipped with quality hydraulic disc brakes for reliable stopping power in various conditions. Its lightweight aluminum frame accommodates 27.5 x 2.25" tires and a 135 x 9mm axle, designed for trail riding. The Suntour XCT30 HLO fork offers 100mm of travel, enhancing grip and control on uneven terrain. The fork's lockout feature allows for efficient climbing while still providing suspension for rough descents. Ideal for fire roads and easier trails, the Merida Big Seven 20 offers a great riding experience.

Key Features

Lightweight aluminum frame with 27.5" wheel clearance
3x8 drivetrain for versatile climbing and descending
Hydraulic disc brakes for reliable all-weather stopping
100mm lockout suspension fork for efficient climbing
Internal cable routing for a clean, modern look

Specifications

Product Overview

Product

Merida Big.Seven 20 Hardtail Mountain Bike White/Purple

Brand

Merida

Parent SKU

Merida24Big.Seven20WhitePurple

Size SKUs

XS: MEHA242400994
SM: MEHA242400995
MD: MEHA242400996
LG: MEHA242400997

Matrix Barcodes

XS: 4711256474748
SM: 4711256474731
MD: 4711256474724
LG: 4711256474717

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

White

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Front Travel

100mm

Build

Frame

BIG.SEVEN TFS IV; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS

Handlebars

MERIDA CC; MAT aluminium; 690 WHB; 15 RHB

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD, 70 mm-XS/S, 80 mm-M, 90 mm-L

Bottom Bracket

Shimano BB-UN101 73-123

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 30.9 DSP; 15 SSB

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 100x9 WHF; 32 SPH; Centerlock:Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

MERIDA K1080; 27.5x2.2"; wire:MERIDA K1080; 27.5x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 42-34-24 ATC

Chain

KMC Z8.1

Brakes

Tektro M275 [or Shimano BR-MT200]

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

Microshift TS39 [or Shimano ST-EF505]

Front Derailleur

Shimano FD-TY600

Rear Derailleur

Shimano RD-M3020-8; SGS

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Big.Seven 20 used for?

The Merida Big.Seven 20 is used for off-road mountain biking, providing a reliable and versatile experience on trails and rough terrains.

Why choose the Merida Big.Seven 20?

Choose the Merida Big.Seven 20 for its lightweight frame, reliable components, and excellent performance on various terrains, making it a great choice for both beginners and experienced riders.

Who is the Merida Big.Seven 20 designed for?

The Merida Big.Seven 20 is designed for mountain biking enthusiasts who seek a dependable and agile bike for trail riding and off-road adventures.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Seven 20 Hardtail Mountain Bike White/Purple we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Internal Cable Routing

With internal cable routing you have the benefit of a modern clean look and the added benefit of preventing rust and fraying of your shift and brake cable, being internal also means your cables are protected while in storage or being transported on the car!

HYDRAULIC DISC BRAKES

Hydraulic disc brakes offer better braking performance in all conditions, including wet weather and off-road. The hydraulic system offers greater control and better feedback through your levers for increased braking confidence!

100mm Lockout Front Suspension

With front suspension forks to help soak up the bumps on your ride, this bike will have you riding in comfort. Don't worry about the little bumps on the road and focus on what's important. The fun of riding!

Riders Height (cm)

XXS

XXL

Merida Big.Seven 20 Hardtail Mountain Bike White/Purple geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

563

577

591

605

Reach

378

394

409

425

Top Tube Length

550

570

590

610

Seat Tube Length

340

380

440

480

Seat Tube Angle

73.0

Fork Length

487

Head Tube Length

100

115

130

145

Head Tube Angle

69.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

649

689

740

778

Minimum Seat Height

Maximum Seat Height
