$560 Off Full Price

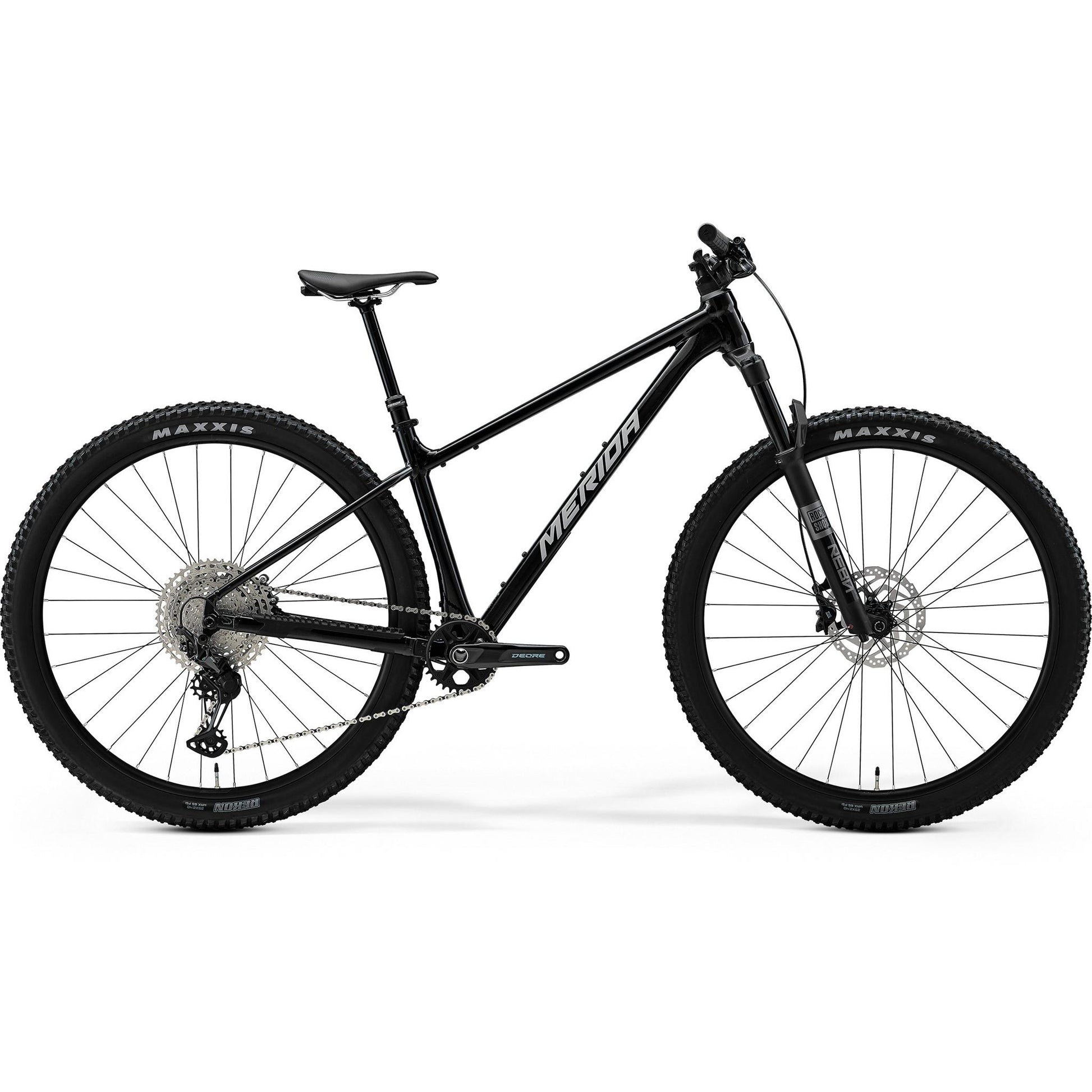

Merida Big.Nine TR Limited Cross-Country Bike Metallic Black/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,239.00 Full price

$2,239.00

Club price

$2,799.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big.Nine TR Limited is a high-performance cross-country bike designed for riders who demand agility and durability on the trails. Featuring a lightweight alloy frame and a 120mm RockShox Reba RL fork, this bike offers excellent shock absorption and control. The Shimano Deore XT groupset ensures smooth and precise shifting, while the hydraulic disc brakes provide reliable stopping power in all conditions. With 29" Maxxis Rekon tires, the Big.Nine TR Limited delivers superior traction and stability, making it an ideal choice for tackling challenging terrains.

Key Features

Lightweight alloy frame
120mm RockShox Reba RL fork
Shimano Deore XT groupset
Hydraulic disc brakes
29" Maxxis Rekon tires

Specifications

Product Overview

Product

Merida Big.Nine TR Limited Cross-Country Bike Metallic Black/Silver

Brand

Merida

Parent SKU

Merida26BIGNINETRLIMITEDMETALLICBLACKSILVER

SKU

Merida26BIGNINETRLIMITEDMETALLICBLACKSILVER

Size SKUs

SM: MERE2600601
MD: MERE2600602
LG: MERE2600603
XL: MERE2600604
XXL: MERE2600605

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

120mm

Build

Frame

BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Reba RL; Air; 120 STR; Tapered; 44 mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 760 WHB; 10 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 60mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount; Brake Adapter SM-MA-R160D/D; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Rekon; 29x2.4"; wire | R: Maxxis Rekon; 29x2.4"; wire

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano Deore M6100; 32 ATC; 170 mm for all sizes

Chain

KMC X12

Brakes

F: Shimano SLX M7100; 2 piston | R: Shimano SLX M7110; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 180mm

Shifters

F: Shimano SL-MT500-IL | R: Shimano Deore M6100

Rear Derailleur

Shimano XT; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Big.Nine TR Limited used for?

The Merida Big.Nine TR Limited is used for cross-country biking, offering a blend of speed, agility, and durability for tackling various trail conditions.

Why choose the Merida Big.Nine TR Limited?

Choose the Merida Big.Nine TR Limited for its lightweight frame, superior suspension, and reliable components, making it an excellent choice for both competitive and recreational trail riding.

Who is the Merida Big.Nine TR Limited designed for?

The Merida Big.Nine TR Limited is designed for cross-country enthusiasts and trail riders who seek a high-performance bike capable of handling diverse terrains with ease.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Nine TR Limited Cross-Country Bike Metallic Black/Silver we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Superior Suspension System

The 120mm RockShox Reba RL fork provides exceptional shock absorption, ensuring a smooth ride over rough terrain. Its air suspension design allows for easy adjustments to suit different rider preferences and trail conditions.

Precision Shifting

Equipped with the Shimano Deore XT groupset, the Merida Big.Nine TR Limited offers seamless and accurate gear changes. This ensures that riders can maintain optimal cadence and efficiency, whether climbing steep hills or speeding down descents.

Reliable Braking Performance

The hydraulic disc brakes on the Big.Nine TR Limited deliver consistent and powerful stopping power. This feature enhances rider safety and confidence, especially in wet or muddy conditions where braking can be challenging.

XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big.Nine TR Limited Cross-Country Bike Metallic Black/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

624

633

643

Reach

420

440

460

480

500

Top Tube Length

594

614

637

659

681

Seat Tube Length

380

410

440

470

500

Seat Tube Angle

74.2

74.0

74.2

Fork Length

530

Head Tube Length

105

115

125

Head Tube Angle

66.9

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

712

713

715

723

758

Minimum Seat Height

Maximum Seat Height
