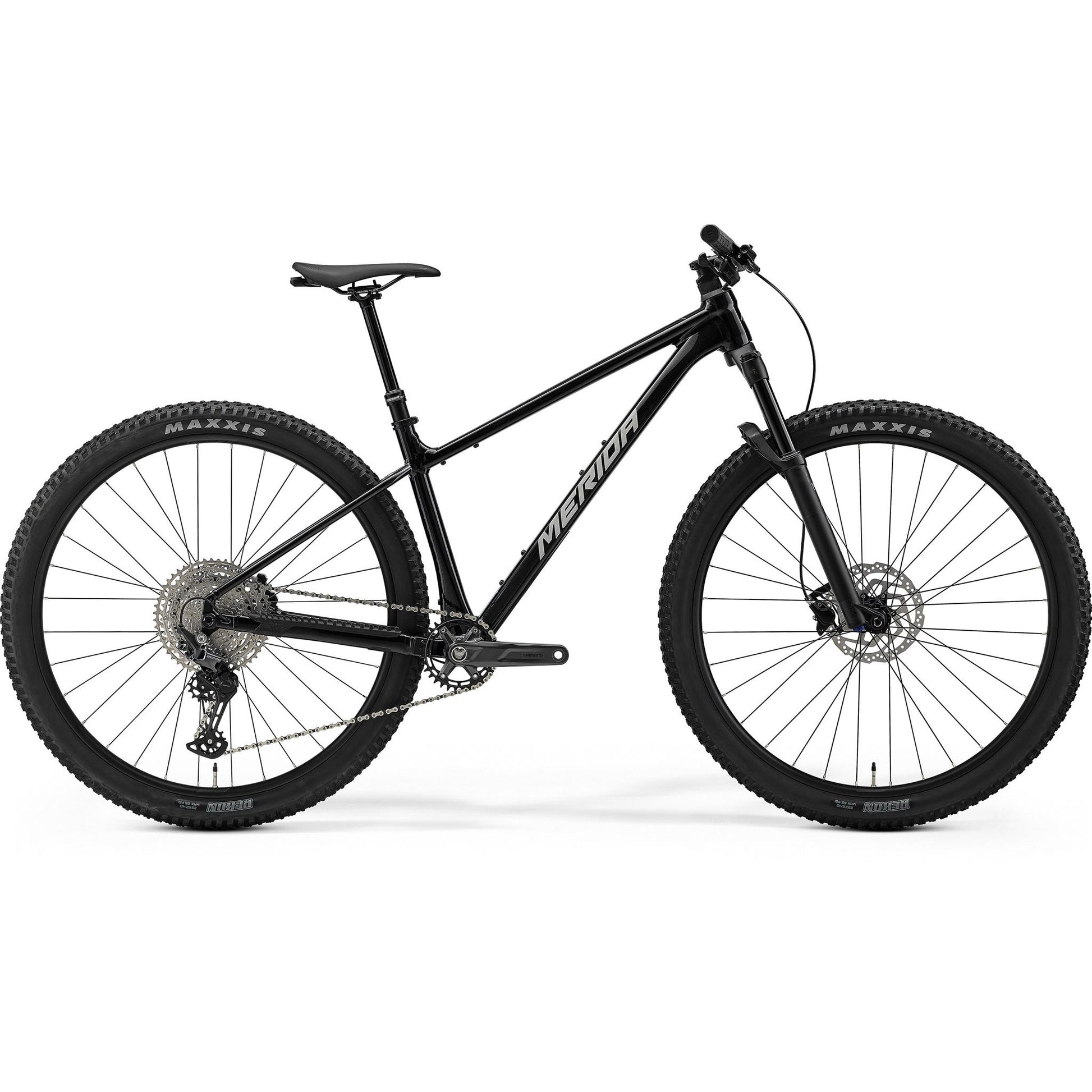

Merida Big.Nine TR 700 Cross-Country Bike Metallic Black/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Manitou Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big.Nine TR 700 is a versatile cross-country bike designed for riders who seek performance and reliability on the trails. Its lightweight alloy frame and 120mm Manitou Machete Comp fork provide a smooth and controlled ride over rough terrain. Equipped with a Shimano Deore groupset, this bike ensures precise shifting and efficient power transfer. The hydraulic disc brakes offer reliable stopping power in all conditions, while the 29" tubeless-ready wheels enhance traction and stability. Whether you're tackling challenging trails or enjoying a leisurely ride, the Merida Big.Nine TR 700 delivers a balanced and enjoyable cycling experience.

Key Features

Lightweight alloy frame
120mm front suspension travel
Shimano Deore groupset
Hydraulic disc brakes
29" tubeless-ready wheels

Specifications

Product Overview

Product

Merida Big.Nine TR 700 Cross-Country Bike Metallic Black/Silver

Brand

Merida

Parent SKU

Merida26BIGNINETR700METALLICBLACKSILVER

Size SKUs

SM: MERE2600611
MD: MERE2600612
LG: MERE2600613
XL: MERE2600614
XXL: MERE2600615

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

120mm

Build

Frame

BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR

Fork

Manitou Machete Comp; Air; 120 STR; Tapered; 44 mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 760 WHB; 10 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 60mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA Multitool with saddlebox

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Rekon; 29x2.4"; wire | R: Maxxis Rekon; 29x2.4"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano Deore MT512; 32 ATC; 170 mm for all sizes

Chain

KMC X12

Brakes

F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 180mm

Shifters

F: Shimano SL-MT500-IL | R: Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Big.Nine TR 700 used for?

The Merida Big.Nine TR 700 is used for cross-country cycling, offering a reliable and efficient ride on various trail conditions. Its design is tailored for both challenging terrains and leisurely rides.

Why choose the Merida Big.Nine TR 700?

Choose the Merida Big.Nine TR 700 for its lightweight frame, smooth suspension, and reliable Shimano components. It provides a balanced and enjoyable cycling experience, making it ideal for both seasoned riders and beginners.

Who is the Merida Big.Nine TR 700 designed for?

The Merida Big.Nine TR 700 is designed for cross-country enthusiasts who value performance and reliability. It's suitable for riders looking for a versatile bike that can handle both challenging trails and casual rides.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Nine TR 700 Cross-Country Bike Metallic Black/Silver we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Smooth and Controlled Ride

The Merida Big.Nine TR 700 features a 120mm Manitou Machete Comp fork, providing excellent shock absorption and control on rough trails. This ensures a comfortable and stable ride, allowing you to tackle challenging terrains with confidence.

Reliable Performance

With a Shimano Deore groupset, the Merida Big.Nine TR 700 offers smooth and precise gear changes. This enhances your riding efficiency and ensures you can handle various trail conditions with ease.

Enhanced Stopping Power

Equipped with hydraulic disc brakes, the Merida Big.Nine TR 700 delivers consistent and reliable stopping power. This feature ensures safety and control, even in wet or muddy conditions, giving you peace of mind on every ride.

Riders Height (cm)

XXS

XXL

Merida Big.Nine TR 700 Cross-Country Bike Metallic Black/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

624

633

643

Reach

420

440

460

480

500

Top Tube Length

594

614

637

659

681

Seat Tube Length

380

410

440

470

500

Seat Tube Angle

74.2

Fork Length

530

Head Tube Length

105

115

125

Head Tube Angle

66.9

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

712

713

715

723

758

Minimum Seat Height

Maximum Seat Height
