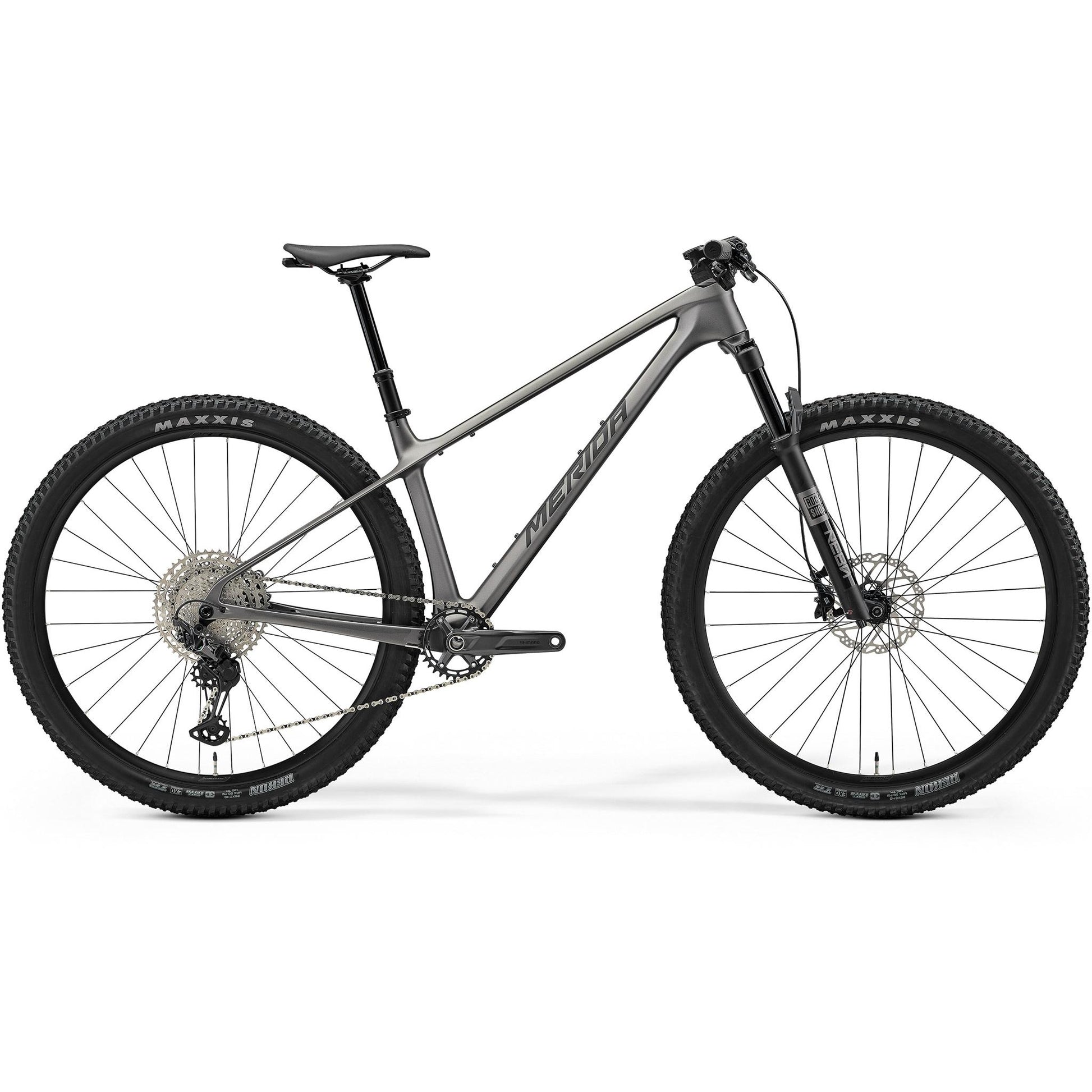

Merida Big.Nine TR 5000 Cross-Country Bike Silk Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,199.00 Full price

$3,199.00

Club price

$3,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore XT Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big.Nine TR 5000 is a high-performance cross-country bike designed for riders who demand speed and agility on the trails. Its carbon frame ensures a lightweight yet robust structure, while the 120mm RockShox Reba RL fork provides smooth handling over rough terrain. Equipped with a Shimano Deore XT groupset, this bike offers precise shifting and efficient power transfer. The hydraulic disc brakes deliver reliable stopping power in all conditions, and the tubeless-ready Maxxis Rekon tires enhance grip and control. Whether you're tackling steep climbs or fast descents, the Merida Big.Nine TR 5000 is built to excel.

Key Features

Carbon frame for lightweight performance
120mm RockShox Reba RL front travel
Shimano Deore XT groupset for precision
Hydraulic disc brakes for reliable stopping
Tubeless-ready Maxxis Rekon tires

Specifications

Product Overview

Product

Merida Big.Nine TR 5000 Cross-Country Bike Silk Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida26BIGNINETR5000SILKGUNMETALGREYBLACK

Size SKUs

SM: MERE2601079
MD: MERE2601080
LG: MERE2601081
XL: MERE2601082
XXL: MERE2601083

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

120mm

Build

Frame

BIG.NINE TR CF3 III; MAT carbon; 29x2.4" max WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Reba RL; Air; 120 STR; Tapered; 44 mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat

Headset

Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; incl. MERIDA SMART MOUNT; 60mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; S/M: 150 SPT - L/XL/XXL: 170 SPT

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC II; 25 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO | R: Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO

Spokes

Double Butted Black stainless w/black nipples

Groupset

Crankset

Shimano Deore MT512; 32 ATC; 170 mm for all sizes

Chain

KMC X12

Brakes

F: Shimano SLX M7100; 2 piston | R: Shimano SLX M7100; 2 piston

Front Rotor

Shimano RT54; 180mm

Rear Rotor

Shimano RT54; 160mm

Shifters

F: JD-FL lever | R: Shimano Deore M6100

Rear Derailleur

Shimano XT; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Big.Nine TR 5000 used for?

The Merida Big.Nine TR 5000 is used for cross-country biking, offering speed and agility on various trail conditions.

Why choose the Merida Big.Nine TR 5000?

Choose the Merida Big.Nine TR 5000 for its lightweight carbon frame, advanced suspension, and reliable Shimano components, ensuring a high-performance ride.

Who is the Merida Big.Nine TR 5000 designed for?

The Merida Big.Nine TR 5000 is designed for cross-country riders seeking a competitive edge with a bike that excels in speed, control, and durability.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Nine TR 5000 Cross-Country Bike Silk Gunmetal Grey/Black we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Lightweight Carbon Frame

The Merida Big.Nine TR 5000 features a carbon frame that combines strength and lightness, making it ideal for cross-country racing. This material choice ensures quick acceleration and easy handling on challenging trails.

Advanced Suspension System

With a 120mm RockShox Reba RL fork, the bike offers superior shock absorption and control. This advanced suspension system allows for smooth rides over rough terrain, enhancing comfort and performance.

Precision and Control

The Shimano Deore XT groupset and hydraulic disc brakes provide precise shifting and reliable stopping power. These components ensure that the Merida Big.Nine TR 5000 delivers exceptional control and efficiency on any trail.

Riders Height (cm)

XXS

XXL

Merida Big.Nine TR 5000 Cross-Country Bike Silk Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

624

633

643

Reach

420

440

460

480

500

Top Tube Length

594

614

637

659

681

Seat Tube Length

380

410

440

470

500

Seat Tube Angle

74.2

Fork Length

530

Head Tube Length

105

115

125

Head Tube Angle

66.9

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

711

717

738

759

Minimum Seat Height

Maximum Seat Height
