Discontinued

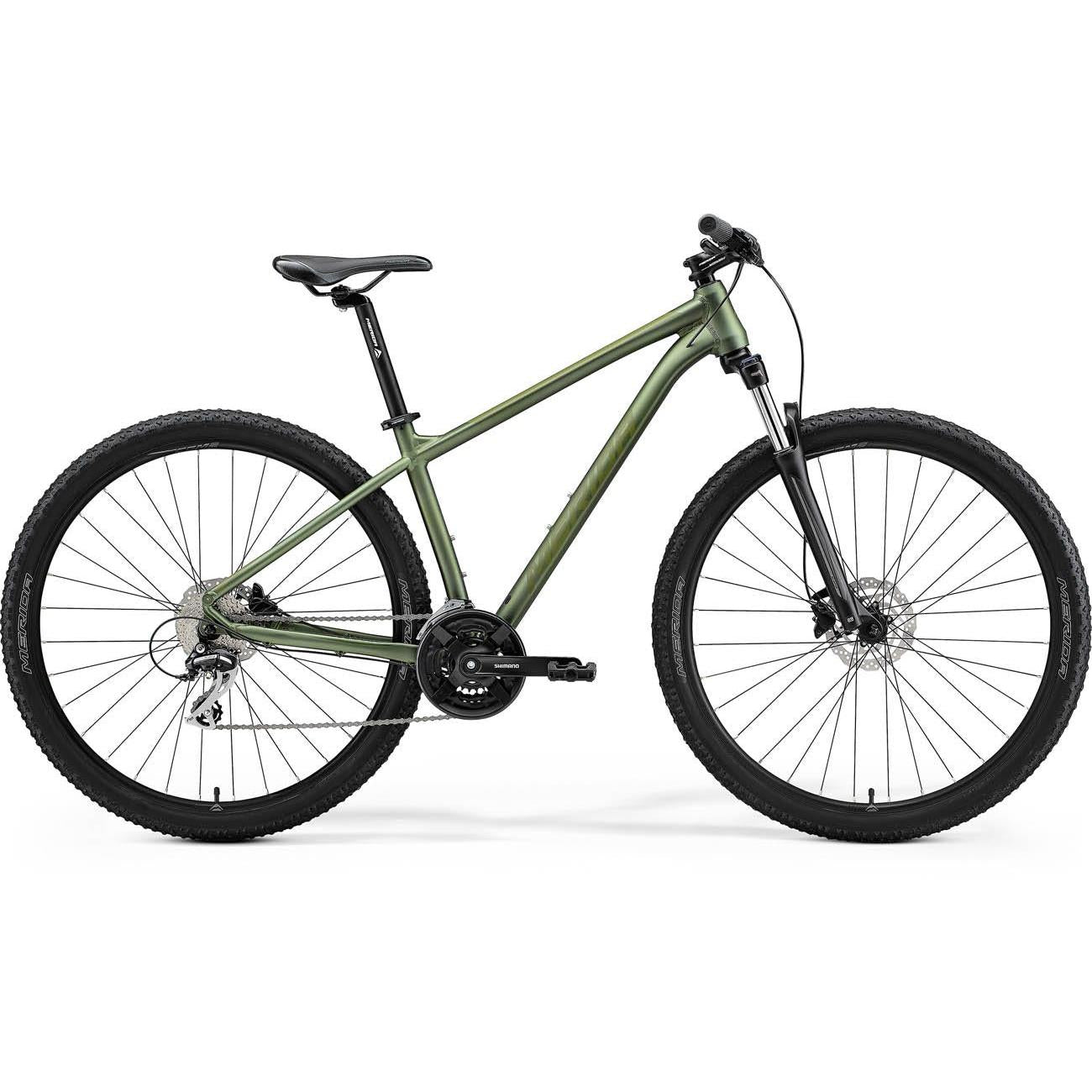

Merida Big Nine 20 Mountain Bike Matt Fog Green/Moss Green

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Nine 20 is a 29" hardtail mountain bike designed for recreational riders. It features a lightweight Big Nine Alloy frame with internally routed cables for reduced maintenance and a clean look. The bike is equipped with a 2x8 speed Shimano Drivetrain, providing smooth efficiency and reliable gear changes for challenging climbs. The Suntour XCT30 HLO Fork offers 100mm of travel, striking a balance between handling rough terrain and maintaining agility for an enjoyable ride.

Key Features

Suntour XCT30 HLO Fork with 100mm Travel
Alloy frame
Shimano MT-200 Hydraulic Disc Brakes
2x8 speed Shimano Drivetrain

Specifications

Product Overview

Product

Merida Big Nine 20 Mountain Bike Matt Fog Green/Moss Green

Brand

Merida

Parent SKU

21MeridaBigNine20MattFogGreenMossGreen

Size SKUs

MD: MEHA2196367
LG: MEHA2196378
XL: MEHA2196389
XXL: MEHA2196390

Year Model

2021

Product Features

Frame Material

Alloy

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

BIG.NINE TFS III; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100 STR; lockout

Handlebars

MERIDA CC; MAT aluminium; 690 Wide; 15 Rise

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

Plastic VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 30.9 Diameter; 15 Setback

Wheels

Wheel Size

29"

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

MERIDA K1080; 29x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano FC-M315-2; 36-22

Chain

Sunrace M84

Brakes

POWER DS 100, 2 piston, hydraulic disc

Shifters

microSHIFT Mezzo TS39

Front Derailleur

Shimano FD-M315-TS

Rear Derailleur

Shimano RD-M360

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 20 Mountain Bike Matt Fog Green/Moss Green we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

XXL

Merida Big Nine 20 Mountain Bike Matt Fog Green/Moss Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

642

656

Reach

398

414

429

Top Tube Length

590

610

630

Seat Tube Length

430

470

510

Seat Tube Angle

73.0

Fork Length

Head Tube Length

115

130

145

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

727

763

800

Minimum Seat Height

Maximum Seat Height
