Merida Big Nine 20 Mountain Bike Matt Dark Silver/Silver

Merida Big Nine 20 Mountain Bike Matt Dark Silver/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Altus Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

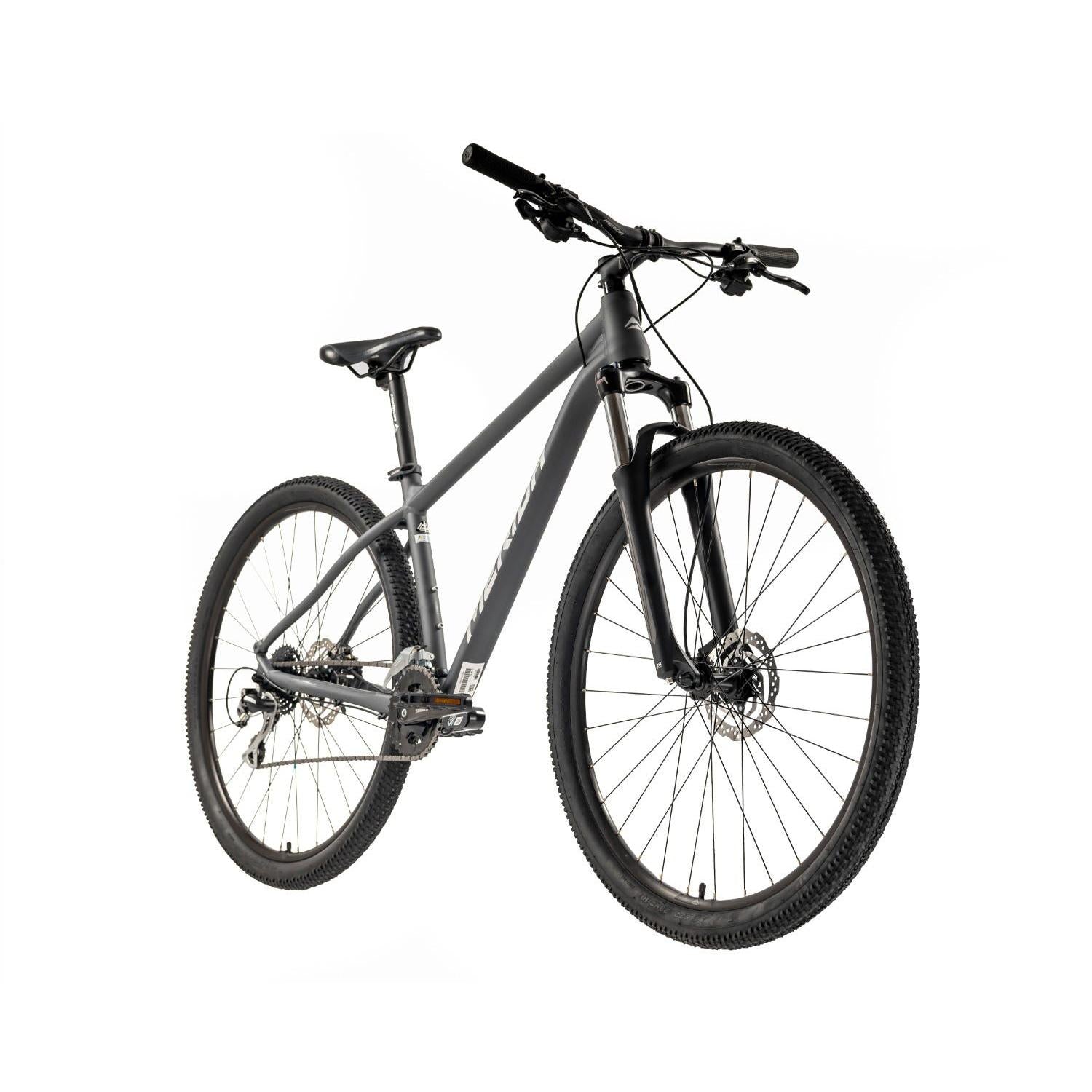

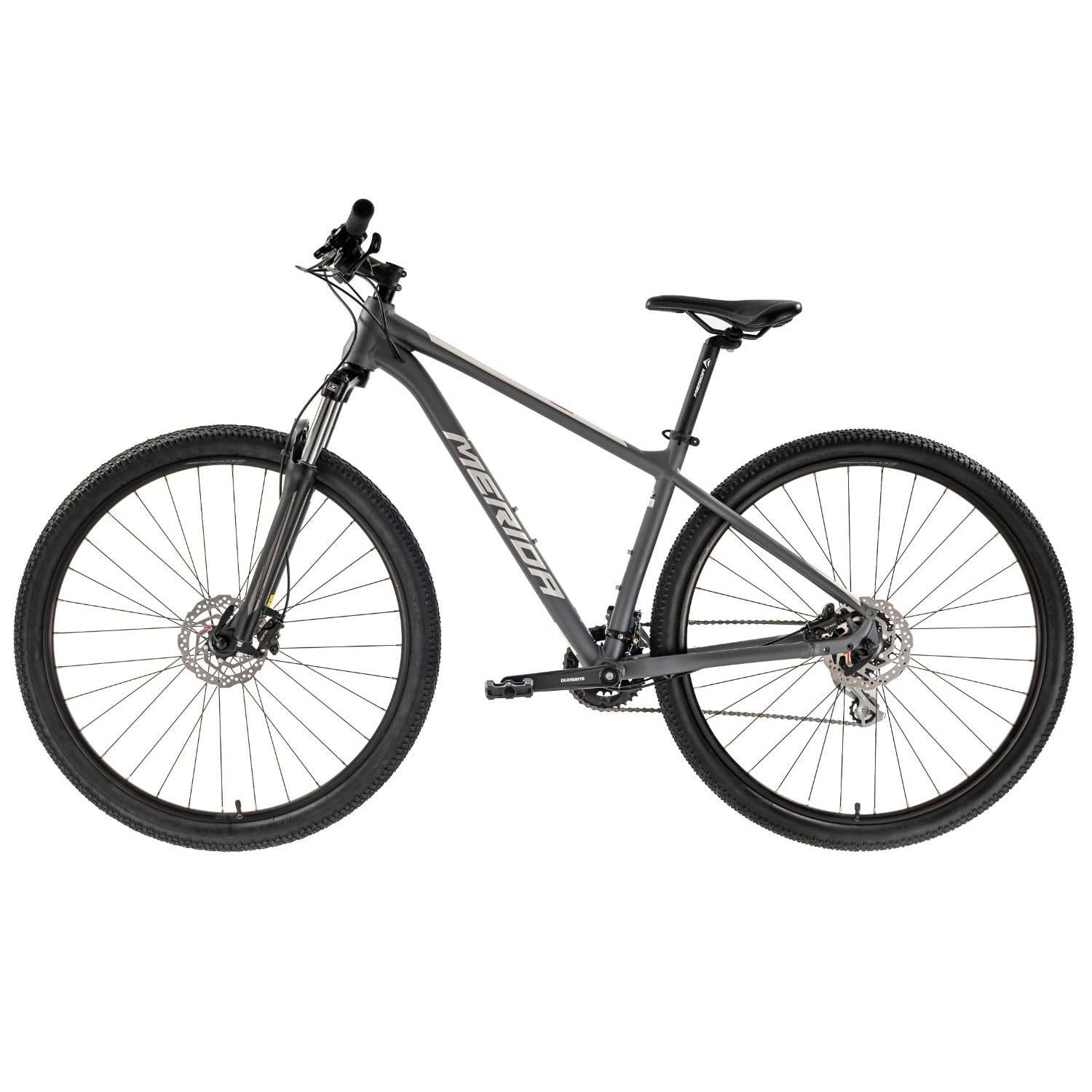

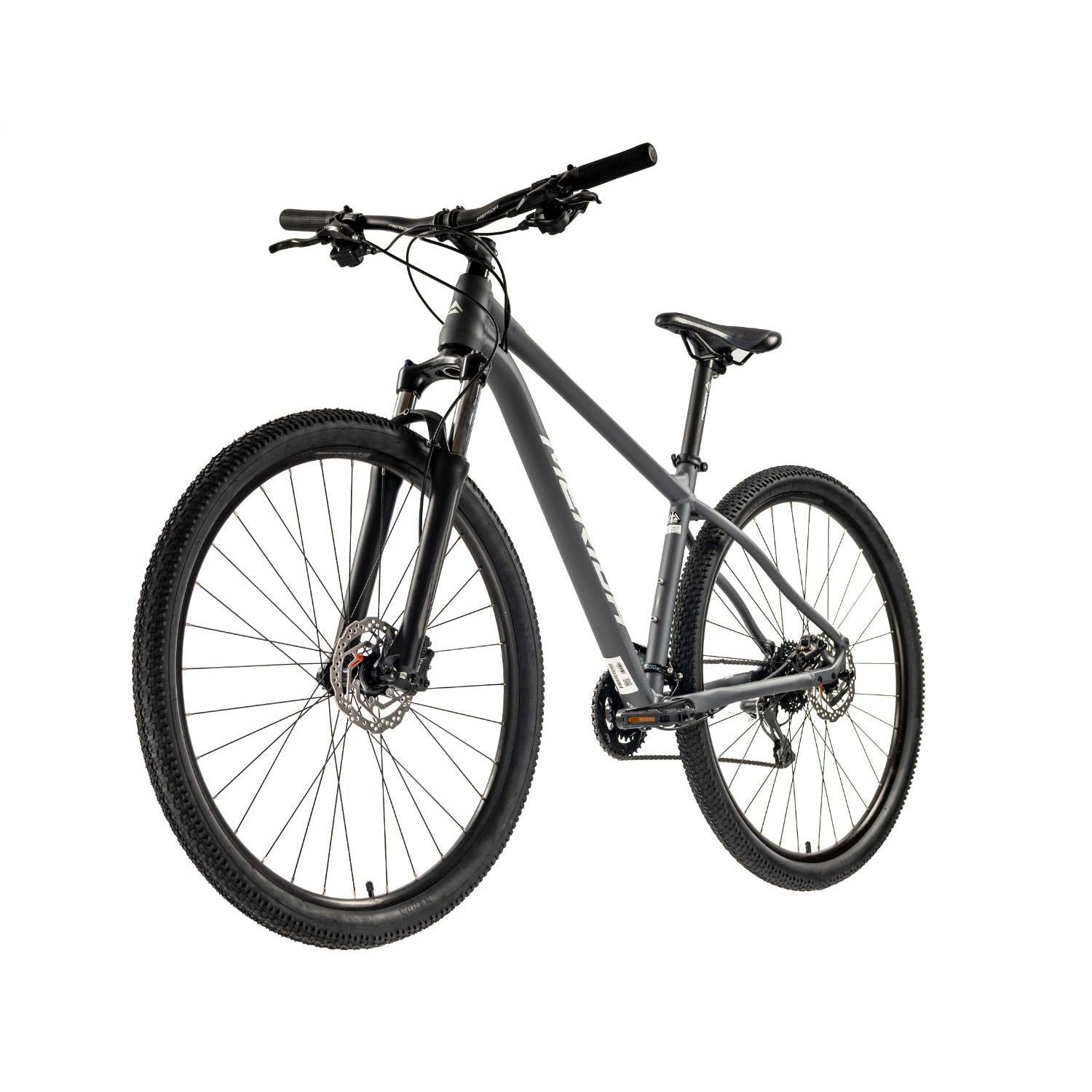

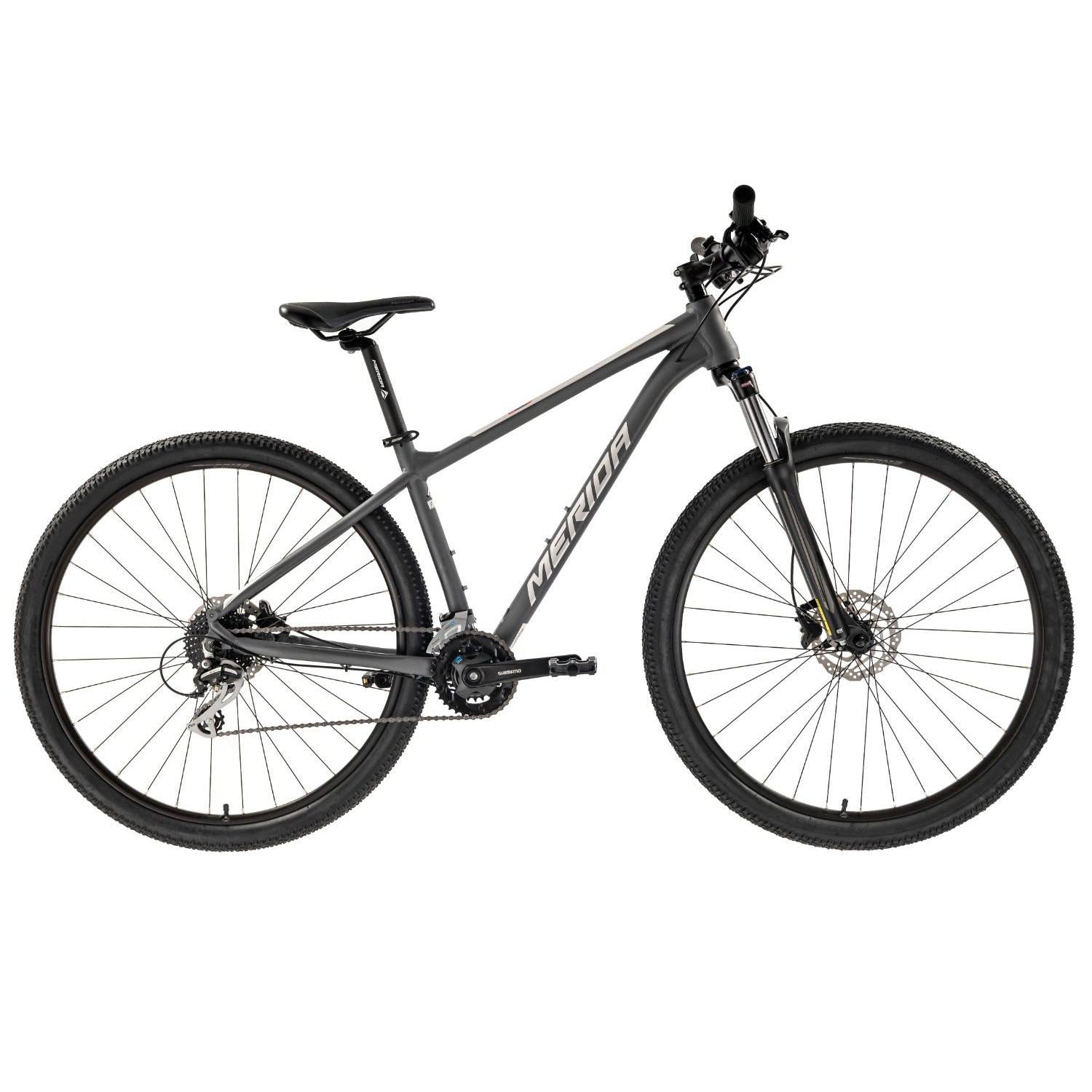

The Merida Big Nine 20 Mountain Bike is equipped with a Shimano Altus drivetrain featuring 2 front chainrings and 8 rear gears, offering a wide range for both climbs and descents. It includes Shimano Hydraulic disc brakes for reliable stopping power in all conditions. The bike's lightweight aluminum frame accommodates 29 x 2.25" tires and a 135 x 9mm axle. The Suntour XCT30 HLO fork provides 100mm of travel, enhancing grip and power on trails with tree roots and loose rocks. The fork's lockout feature allows for efficient climbing while maintaining suspension for rough descents and flats.

Key Features

Suntour XCT30 HLO Fork with 100mm travel and lockout
Smooth 29-inch wheels
Alloy frame featuring internal cable routing
2x8 speed Shimano drivetrain

Specifications

Product Overview

Product

Merida Big Nine 20 Mountain Bike Matt Dark Silver/Silver

Brand

Merida

Parent SKU

22MeridaBig.Nine20MattDarkSilver/Silver

Size SKUs

MD: MEHA2247735
LG: MEHA2247746
XL: MEHA2247757
XXL: MEHA2247768

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Weight

14.48kg

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

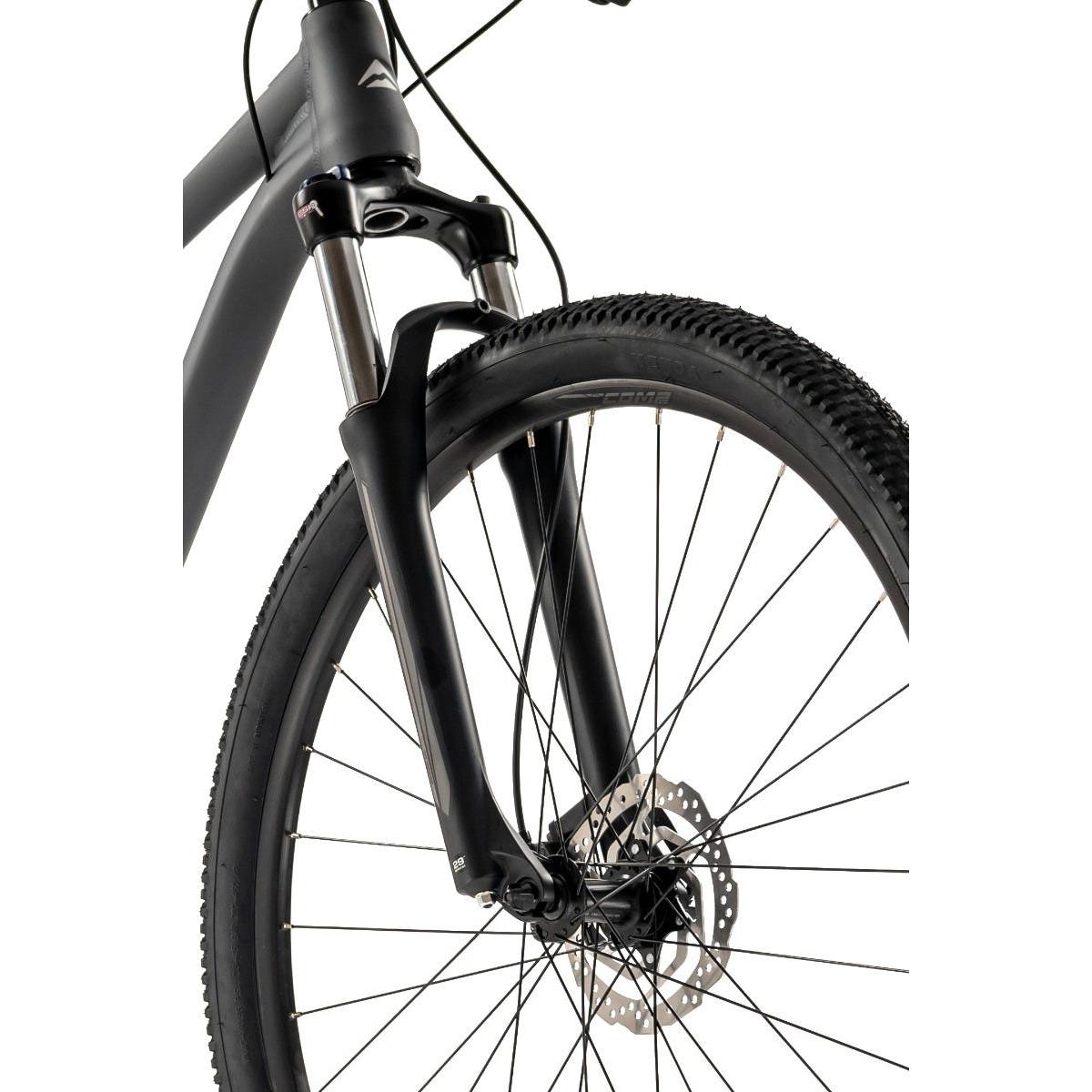

Suntour XCT30 HLO; Coil; 100mm suspension travel LOCKOUT

Handlebars

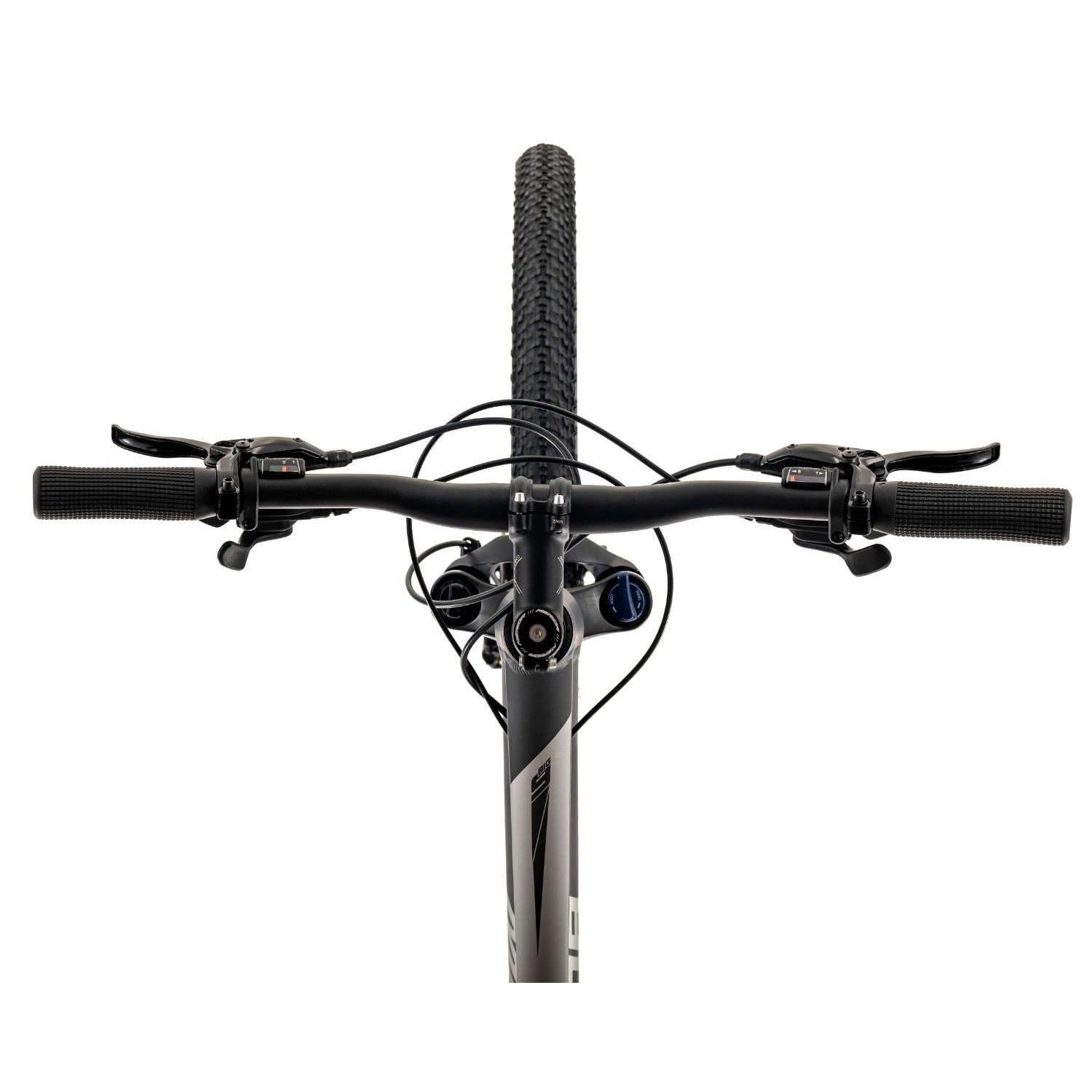

Merida CC aluminium; 690mm width 15mm rise

Headset

Merida M2345

Grips

Merida EC

Stem

Merida CC aluminium; 31.8 diameter 6° angle

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

Merida Sport Comfort

Seat Post

Merida CC aluminium; 30.9mm diameter; 15mm setback

Seat Clamp

Merida Comp QR

Wheels

Wheel Size

29"

Rims

Merida CC; 17mm inner width, aluminium

Hubs

F: Shimano Tourney TX HB-TX505 100x9mm, 32h, centrelock | R: Shimano Tourney TX HB-TX505 135x9mm, 32h, centrelock

Tyres

MERIDA K1080; 29 x 2.2"; wire bead

Spokes

Black steel

Groupset

Crankset

Shimano Altus FC-M315-2 (Length 170mm S | 175mm M-XXL)

Chain

Sunrace M84

Brakes

POWER DS 100, 2 piston, hydraulic disc

Front Rotor

Shimano RT10 160mm

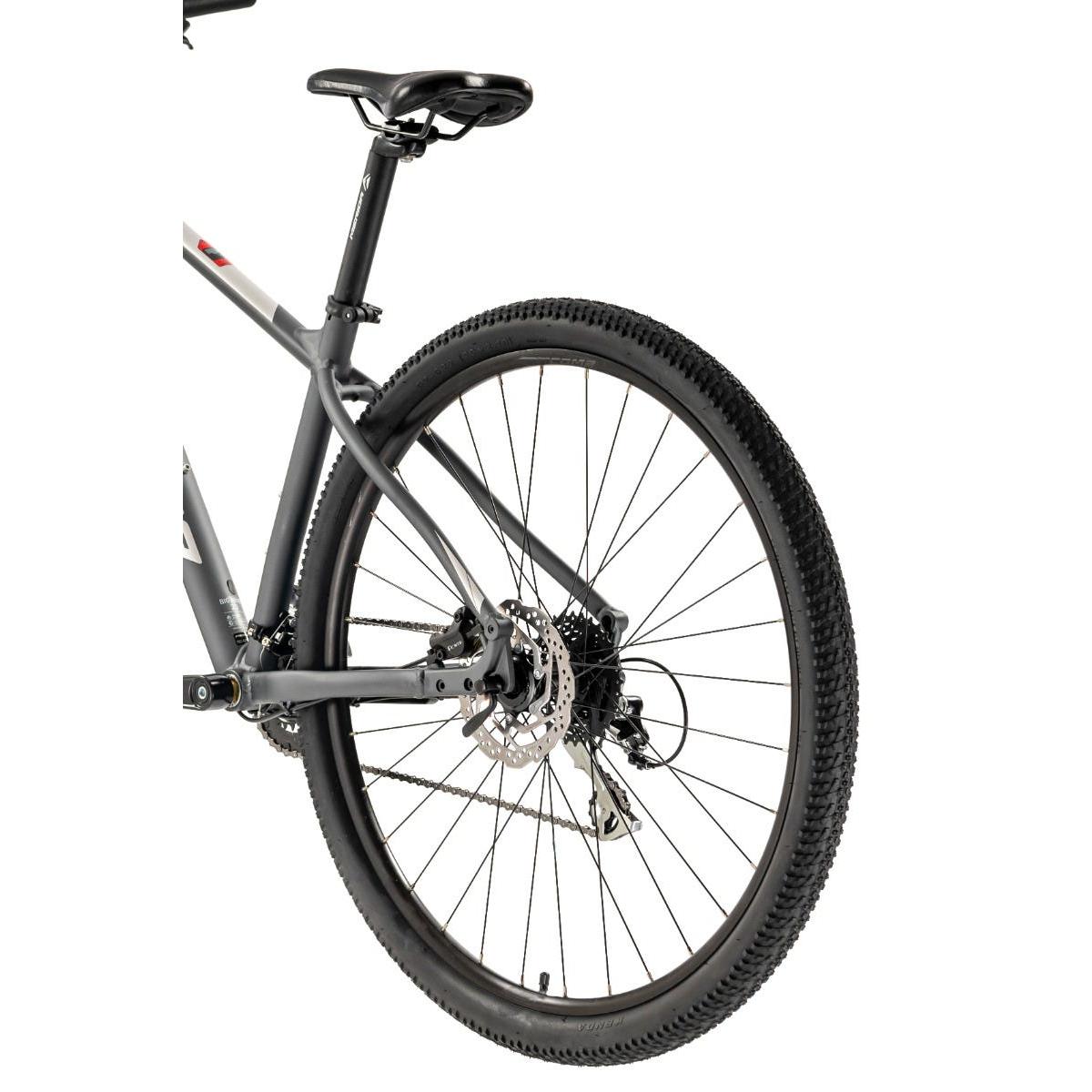

Rear Rotor

Shimano RT10 160mm

Shifters

microSHIFT Mezzo TS39

Front Derailleur

Shimano Altus FD-M315-TS 2x

Rear Derailleur

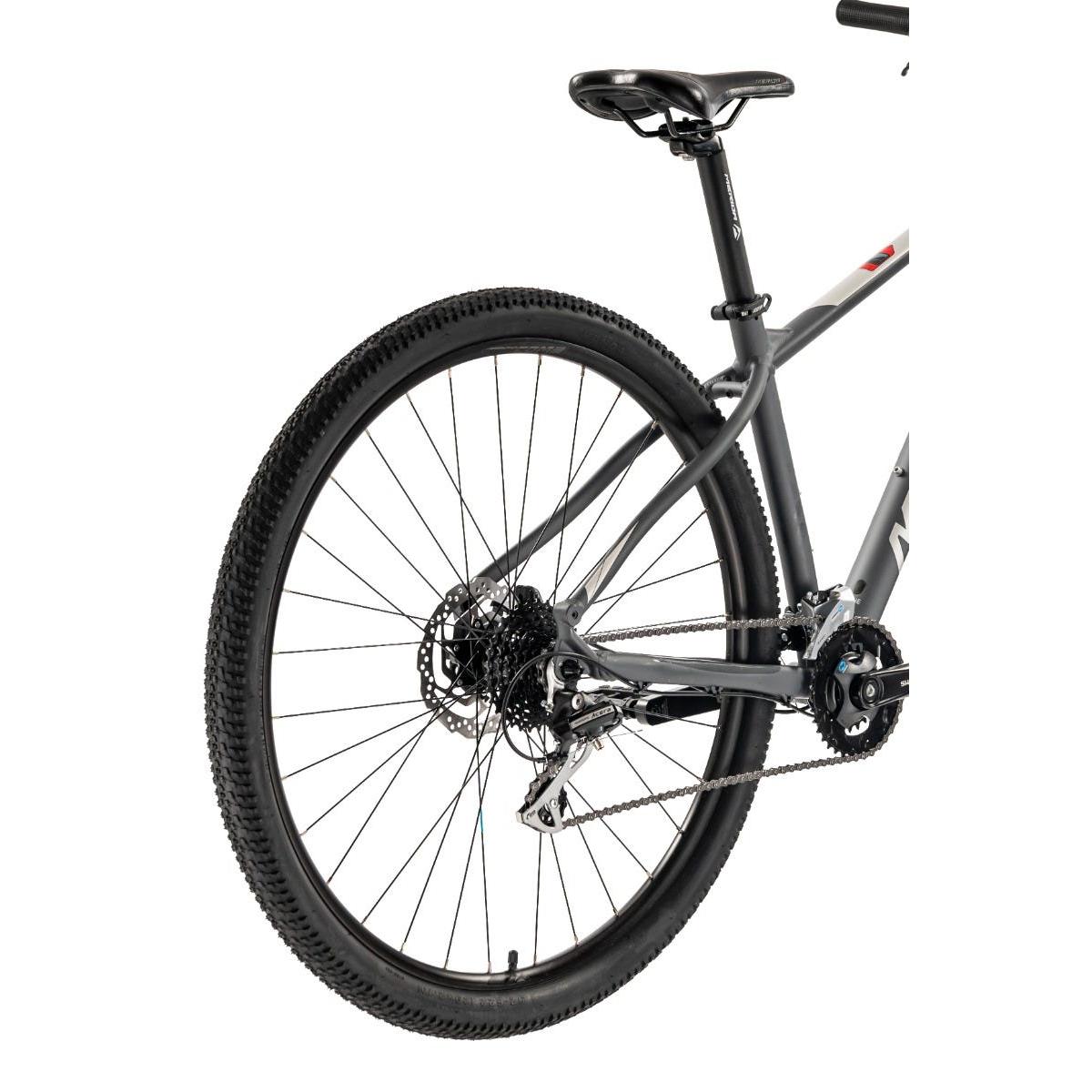

Shimano Acera RD-M360

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 20 Mountain Bike Matt Dark Silver/Silver we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine 20 Mountain Bike Matt Dark Silver/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

642

656

670

Reach

398

414

429

445

Top Tube Length

590

610

630

650

Seat Tube Length

430

470

510

560

Seat Tube Angle

73.0

Fork Length

506

Head Tube Length

115

130

145

160

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

727

763

800

843

Minimum Seat Height

Maximum Seat Height
