$1042 Off Full Price

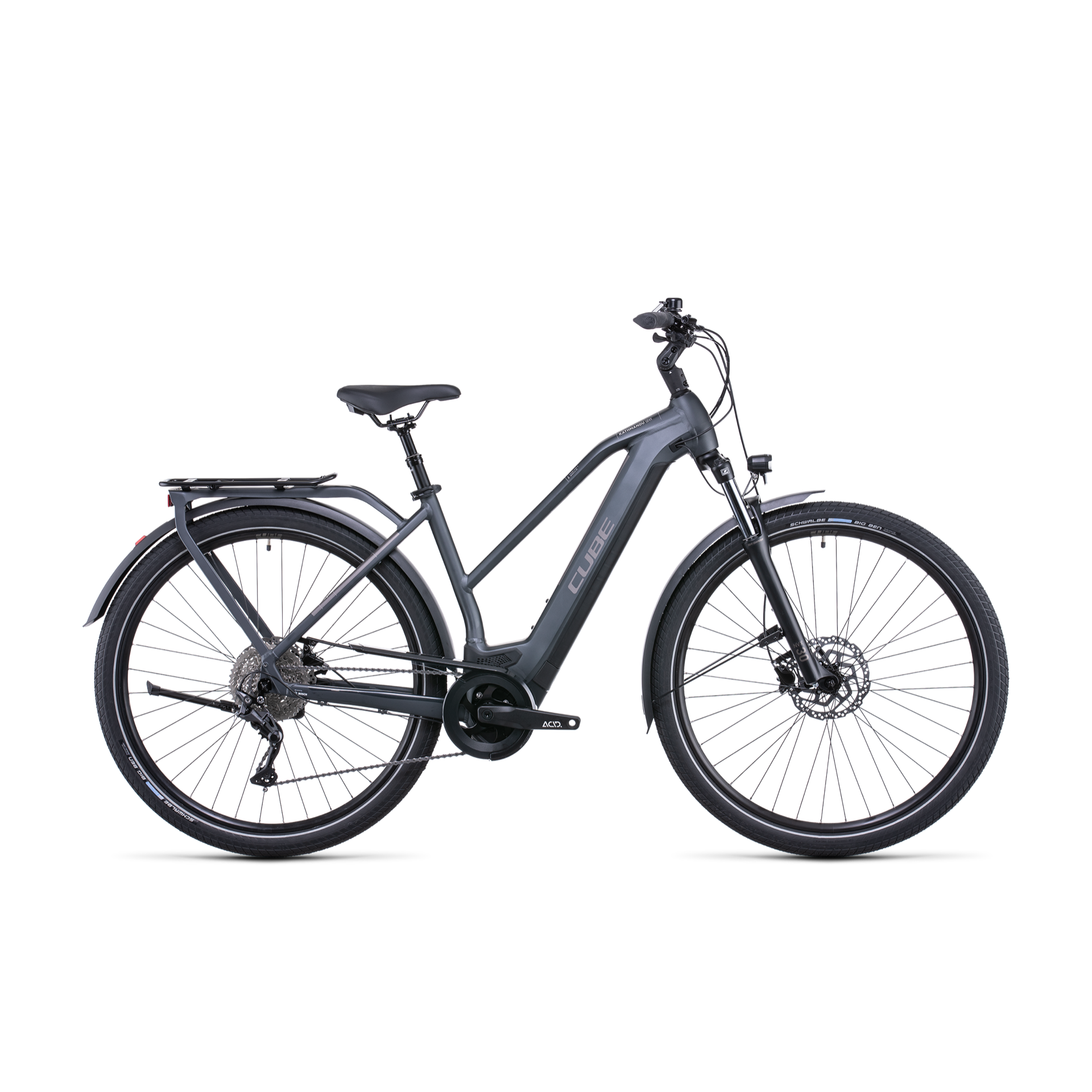

Cube Kathmandu Hybrid ONE 500 Trapeze Hybrid Bike Grey 'n' Teak

Brand: Cube

SKU: CUEBG2231171TP46

Size: XS

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 58 km Range

Bosch Performance CX Gen 4 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

500Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Cube Kathmandu Hybrid ONE 500 Trapeze Hybrid Bike in Grey 'n' Teak is the perfect choice for cyclists seeking comfort, versatility, and durability. Equipped with a high-capacity Bosch battery, this bike offers an impressive range for long rides, while its Efficient Comfort Geometry ensures a smooth pedaling experience. The stylish Integrated Carrier 3.0 provides practical storage for accessories, and built-in lights enhance safety, making it ideal for urban commuting and weekend adventures alike.

Key Features

High-capacity Bosch battery for extended range
Efficient Comfort Geometry for smooth rides
Integrated luggage carrier for added convenience
Front and rear lights for safety
Boost148 hub for improved handling

Specifications

Product Overview

Product

Cube Kathmandu Hybrid ONE 500 Trapeze Hybrid Bike Grey 'n' Teak

Brand

Cube

Parent SKU

22CubeKathmanduHybridONE500TPgreyteak

Size SKUs

XS: CUEBG2231171TP46
SM: CUEBG2231171TP50
MD: CUEBG2231171TP54

Matrix Barcodes

XS: 4054571366283
SM: 4054571366290
MD: 4054571366306

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Trapeze

Colour

Grey

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Weight

25.5kg

Charge Time

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) 25KPH

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

500

Battery

Bosch PowerTube 500

Max. Range (KMs)

Charge Time (Hours)

Display

Bosch Purion

Build

Frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0

Fork

SR Suntour NVX30 Coil, 100mm

Handlebars

CUBE Comfort Trail Bar, 700mm

Headset

M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Grips

Natural Fit Comfort

Stem

CUBE Comfort Stem Pro, 31.8mm, Adjustable

Pedals

ACID PP Trekking

Saddle

Natural Fit Sequence Comfort

Seat Post

CUBE Suspension Seatpost HD, 30.9mm | Clamp: CUBE Varioclose, 34.9mm

Accessories

Kickstand: CUBEstand Cmpt, Bell: Easy Bell, Carrier: CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible, Charger: Bosch 2A

Wheels

Rims

CUBE EX23, 36H, Disc, Tubeless Ready

Hubs

F: Shimano HB-TX505, QR, Centerlock | R: Shimano FH-TX505, QR, Centerlock

Tyres

Schwalbe Big Ben, Performance, K-Guard, 55-622

Groupset

Crankset

ACID E-Crank, 38T, 175mm (EE: 170mm)

Chain

KMC X10

Brakes

Shimano BR-MT200, Hydr. Disc Brake (180/180)

Front Rotor

180mm

Rear Rotor

180mm

Shifters

Shimano Deore SL-M4100, Rapidfire-Plus

Rear Derailleur

Shimano Deore RD-M4120-SGS, 10-Speed

Cassette

10 Speed

Frequently Asked Questions

What is the Cube Kathmandu Hybrid ONE 500 used for?

The Cube Kathmandu Hybrid ONE 500 is used for comfortable and stylish transportation, whether commuting or embarking on weekend adventures.

Why choose the Cube Kathmandu Hybrid ONE 500?

Choose the Cube Kathmandu Hybrid ONE 500 for its fully equipped design, which integrates essential features for convenience and safety, making it ready for any journey.

Who is the Cube Kathmandu Hybrid ONE 500 designed for?

This bike is designed for adventure lovers who prefer cycling over being stuck in traffic, offering comfort and capability for both daily commutes and outdoor explorations.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Kathmandu Hybrid ONE 500 Trapeze Hybrid Bike Grey 'n' Teak we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Integrated Luggage Carrier

The Kathmandu Hybrid ONE 500 features a sleek integrated luggage carrier that seamlessly accommodates pannier bags. Its spring clamp design makes it easy to stow your gear securely while riding.

Built-in Lighting System

Stay safe during your rides with the integrated front and rear lights powered by the bike's battery. This convenient feature ensures you only need to charge the bike for both mobility and visibility.

Boost148 Hub Technology

The Boost148 rear hub enhances wheel stiffness and handling, allowing for better performance on various terrains. This innovation ensures you can ride faster and with greater control without sacrificing shifting accuracy.
