Cube Aim Hardtail Mountain Bike Black 'n' Blue Euro Spec

Cube Aim Hardtail Mountain Bike Black 'n' Blue Euro Spec

Brand: Cube

SKU: Select a size

Size: Select a size

MD XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Rapidfire Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Cube Aim is crafted from lightweight aluminum with internal cable routing for extended maintenance intervals. It features a 2 x 8-speed Shimano Drivetrain for versatile riding, whether climbing or cruising. The Suntour XCE Fork provides 100mm of travel, complemented by 2.25" tires for enhanced comfort and grip. Tektro mechanical disc brakes ensure reliable stopping power in all conditions. The design includes a lower top tube and wide handlebars for agile handling. Ideal for beginners, the Cube Aim offers a confident and controlled trail riding experience.

Specifications

Product Overview

Product

Cube Aim Hardtail Mountain Bike Black 'n' Blue Euro Spec

Brand

Cube

Parent SKU

22CubeAimblackblueEURO

Size SKUs

XS: CUHTG22011000014
SM: CUHTG22011000016
MD: CUHTG22011000018
LG: CUHTG22011000020
XL: CUHTG22011000022

Matrix Barcodes

XS: 4054571354976
SM: 4054571354983
MD: 4054571354990
LG: 4054571355003
XL: 4054571355010

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Weight Limit

115kg (includes bike)

Build

Frame

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

Fork

SR Suntour XCE, 100mm

Handlebars

CUBE Rise Trail Bar, 680mm

Grips

Natural Fit Performance

Pedals

CUBE PP MTB

Saddle

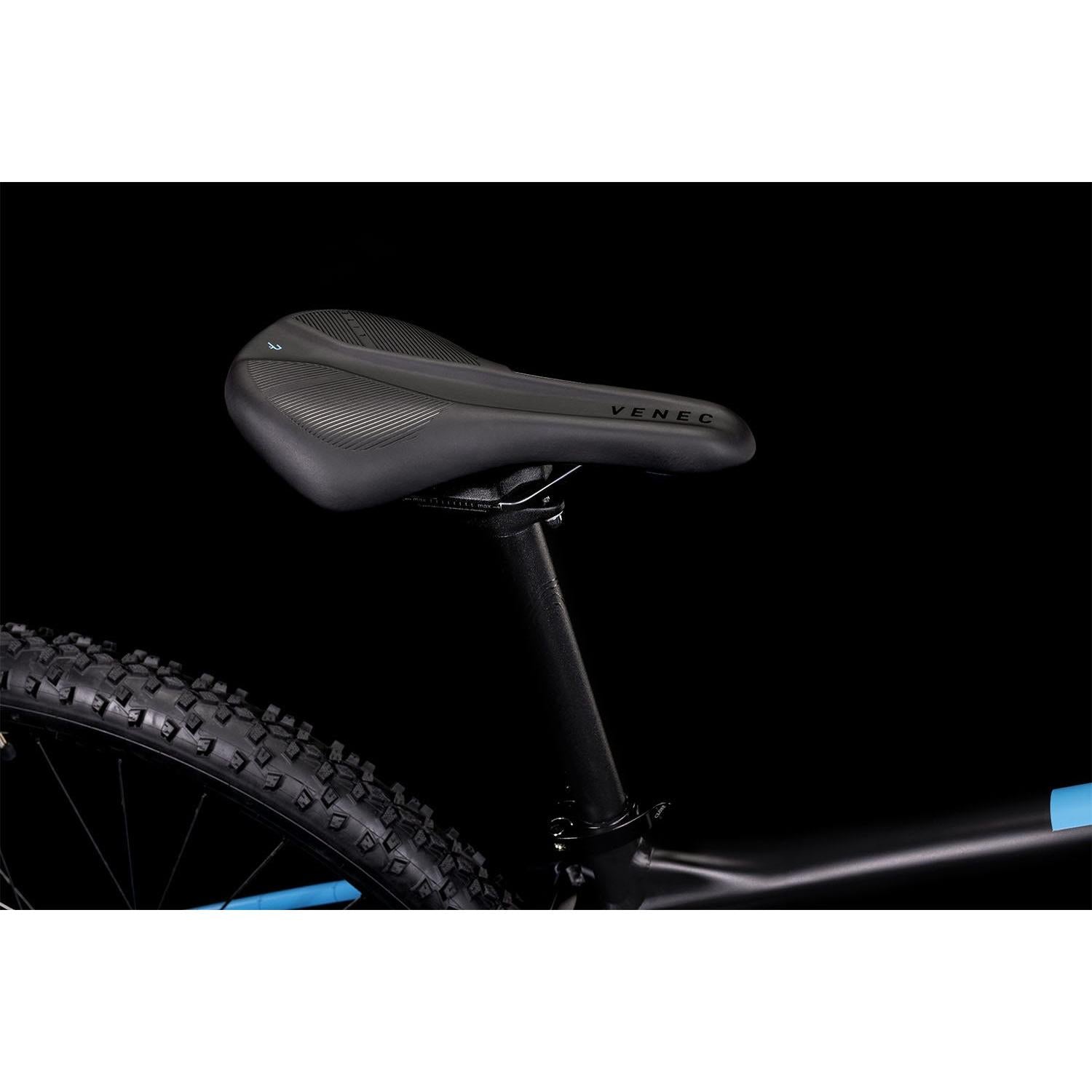

Natural Fit Venec Lite

Seat Post

CUBE Performance Post, 27.2mm

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

CUBE ZX20, 32H, Disc

Hubs

CUBE Alloy Light, QR, 6-Bolt

Tyres

CUBE IMPAC Smartpac, 2.25

Groupset

Crankset

Shimano FC-M315, 36x22T, 170mm

Chain

KMC Z8.3

Brakes

Clarks Clout 1, Hydr. Disc Brake (160/160)

Shifters

Shimano SL-M315, Rapidfire-Plus

Front Derailleur

Shimano FD-TY710-2-TS3, 8-Speed, Top Swing, 31.8mm Clamp

Rear Derailleur

Shimano RD-TX800, 8-Speed

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Aim Hardtail Mountain Bike Black 'n' Blue Euro Spec we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

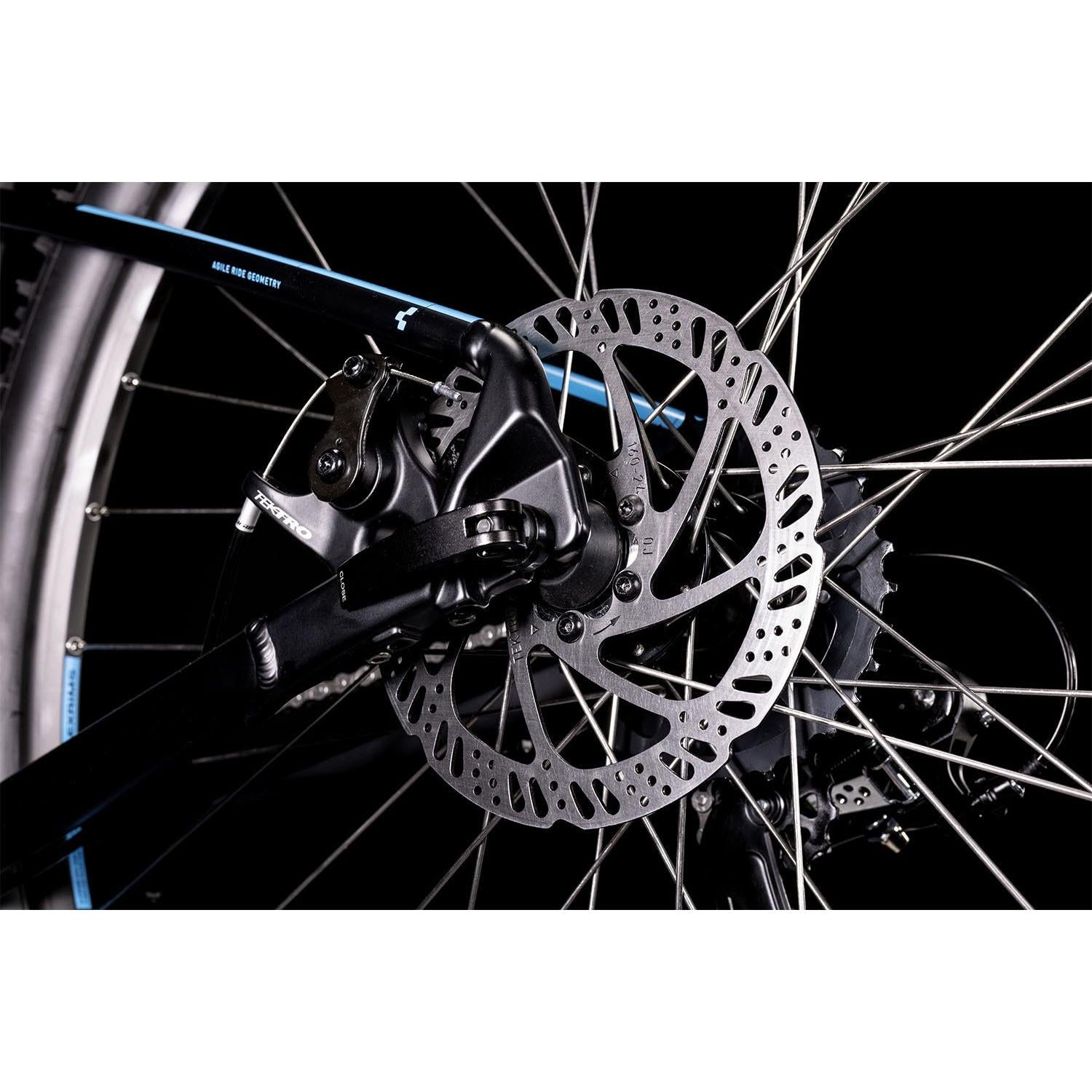

Mechanical Disc Brakes

The mechanical disc brakes offer that extra stopping power so you can ride with confidence, even in areas with large hills or in wet weather.

Double Butting

Butting offers varying thickness in tubing throughout frame construction so you get the benefit of strength where you need it and a lightweight design everywhere else. As part of the process, frames are heated and cooled significantly increasing the strength of the tubing.

Internal Cable Routing

With internal cable routing, you have the benefit of a modern clean look and the added benefit of preventing rust and fraying of your shift and brake cable, being internal also means your cables are protected while in storage or being transported on the car!

Riders Height (cm)

SM/MD

MD/LG

XXL

Cube Aim Hardtail Mountain Bike Black 'n' Blue Euro Spec geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

627

656

Reach

409

441

Top Tube Length

595

635

Seat Tube Length

420

515

Seat Tube Angle

73.5

Fork Length

Head Tube Length

110

141

Head Tube Angle

68.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

824

Minimum Seat Height

Maximum Seat Height
