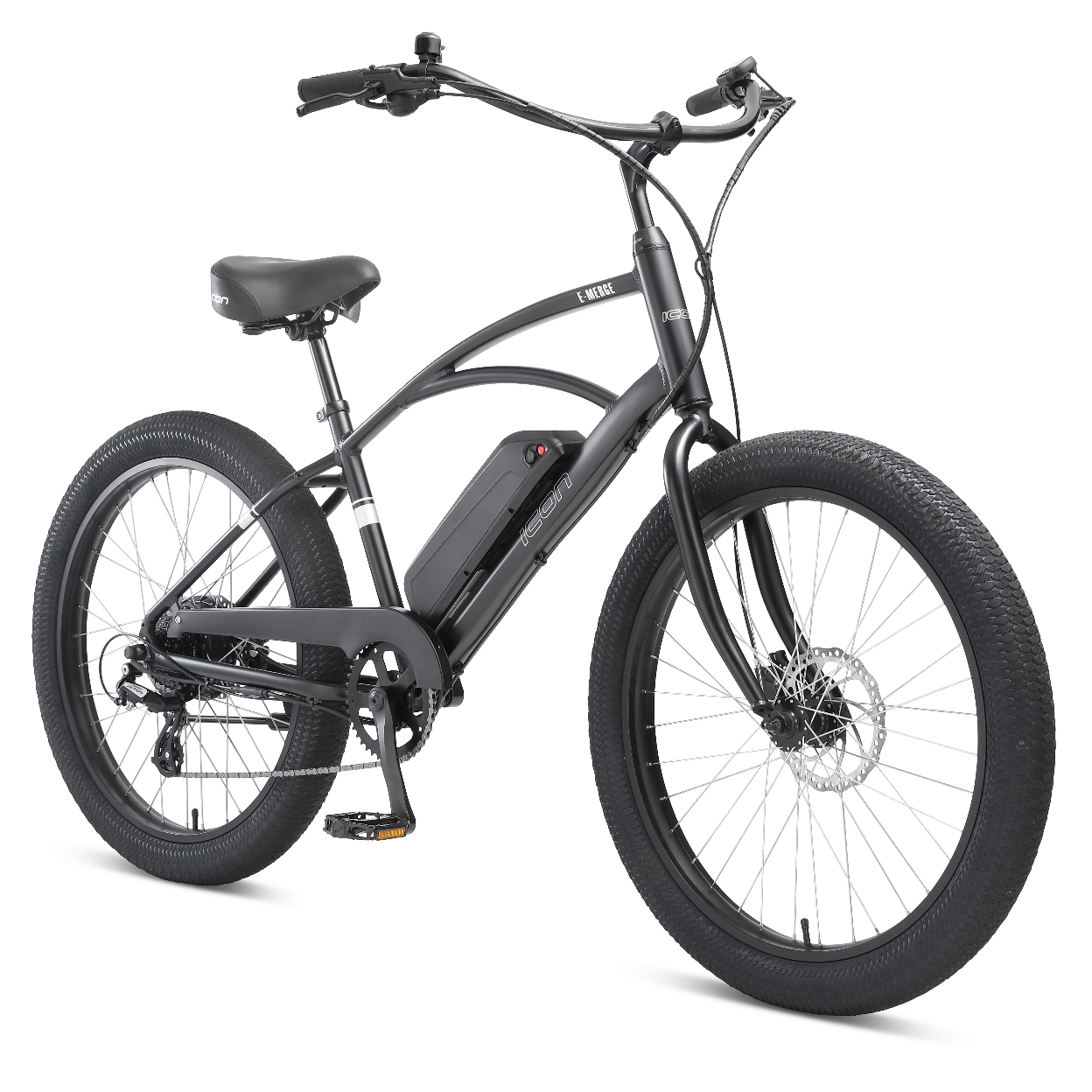

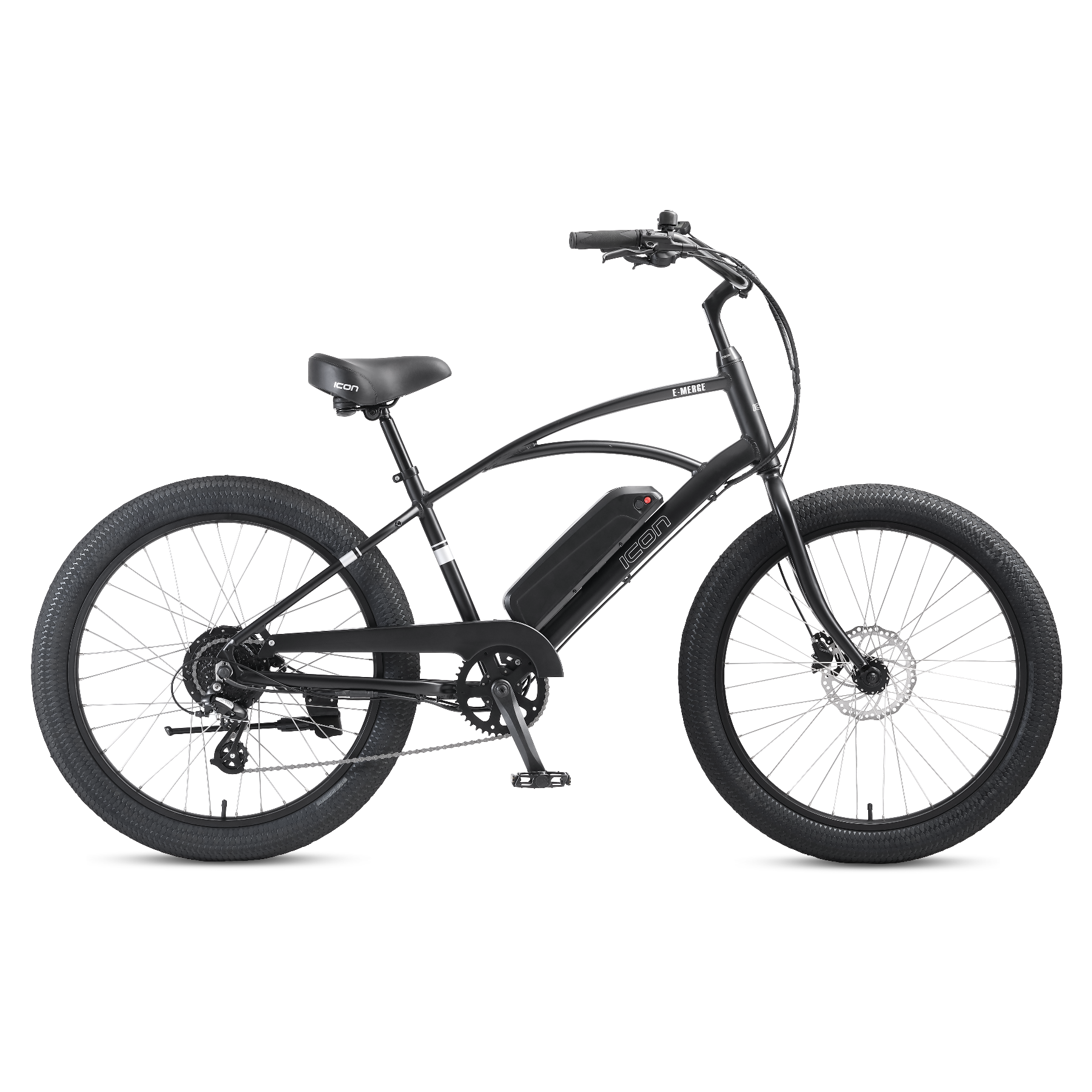

XDS Icon E-Merge Electric Cruiser Bike Midnight Black

XDS Icon E-Merge Electric Cruiser Bike Midnight Black

Brand: Icon

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Moderately Steep Hills / 45 Nm Torque

Up to 58 km Range

Bafang Motor

Alloy Frame/ Steel Fork

417Wh Battery

Step-Through Style Frame

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The XDS Icon E-Merge Electric Cruiser Bike offers a blend of style, comfort, and e-bike assistance. It features a Bafang RM G120 250w hub drive electric motor, enabling speeds up to 25km/h with ease. The bike is equipped with a 36v 2900mAh Panasonic cell battery, ensuring reliable and long-lasting performance.

Specifications

Product Overview

Product

XDS Icon E-Merge Electric Cruiser Bike Midnight Black

Brand

Icon

Parent SKU

20iconemergeblack

Size SKUs

MD: ICEL-MERGE26MB-17
LG: ICEL-MERGE26MB-19

Year Model

2020

Product Features

Frame Material

Alloy

Frame Style

Step-Through

Colour

Black

Wheel Size

26"

Brake Type

Hydraulic Disc Brake

Gears

1 x 8

Fork Material

Steel

Weight

23.35kg

Motor and Battery System

Drive Type

Rear Wheel

Motor Brand

Bafang

Motor

Bafang RM G120 250w 25KPH

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

417

Battery

2900MAH-18650 10S4P/11.6AH 250W 15A

Max. Range (KMs)

Build

Frame

Alloy 26×19" H/T:φ50*φ44*200MM, S/T:φ31.8*2.2T,WB:1171.3,RC:500MM W:138

Fork

Steel φ25.4*φ28.6*224mm

Handlebars

Steel W:630mm*1.6T,64° H=241MM

Headset

Steel ED,10pcs,φ25.4*φ44*φ30,H:25.5mm

Grips

Rubber L/R:120mm Closed End

Stem

Alloy φ25.4*180mm,E:90mm,35°

Bottom Bracket

Steel/Alloy L:68*127.5mm

Pedals

Alloy 9/16″ W/Ball AS

Saddle

PU Steel ED rail, W/PVC Spring Clip

Seat Post

Alloy φ27.2*400mm*2.55T

Wheels

Wheel Size

26"

Rims

Alloy 26"*3.0*13G*36H,H:18MM A/V

Hubs

Alloy M9*13G*36H*100*108, W/QR KT-204Y

Tyres

Rubber 26"*3.0 w/Tube AV

Spokes

SS 13G W/14mm Brass Nipple

Groupset

Crankset

Steel/Alloy 1/2*3/32"*42T*170L,ED Steel Chainwheel, Black Alloy Crank

Chain

Steel 1/2"*3/32"*130L

Brakes

Shimano BR-MT200 Hydraulic Disc Brakes

Shifters

Shift Lever, SL-M310, Right 8-Speed 2400MM Stainless Inner W/ Optical Gear Display

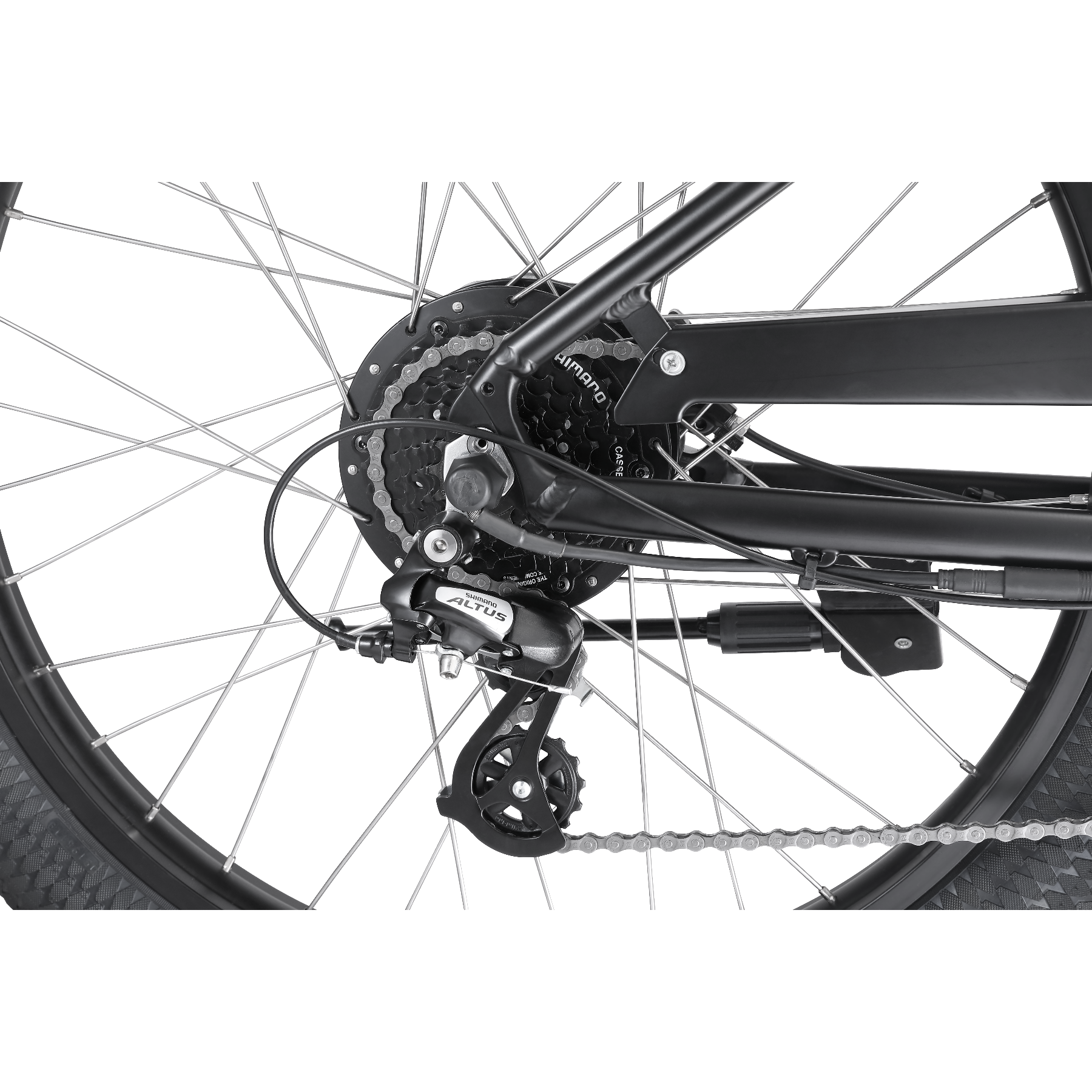

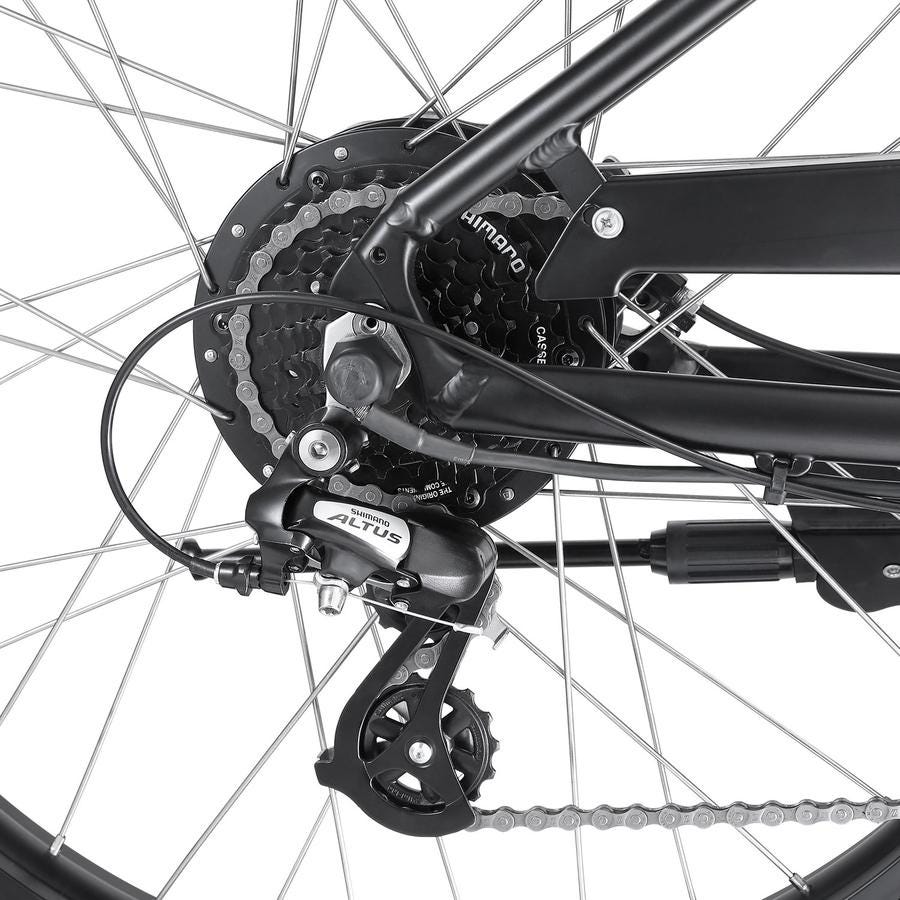

Rear Derailleur

RD-M310-L, Altus 7/8-Speed Direct Attachment Black

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
