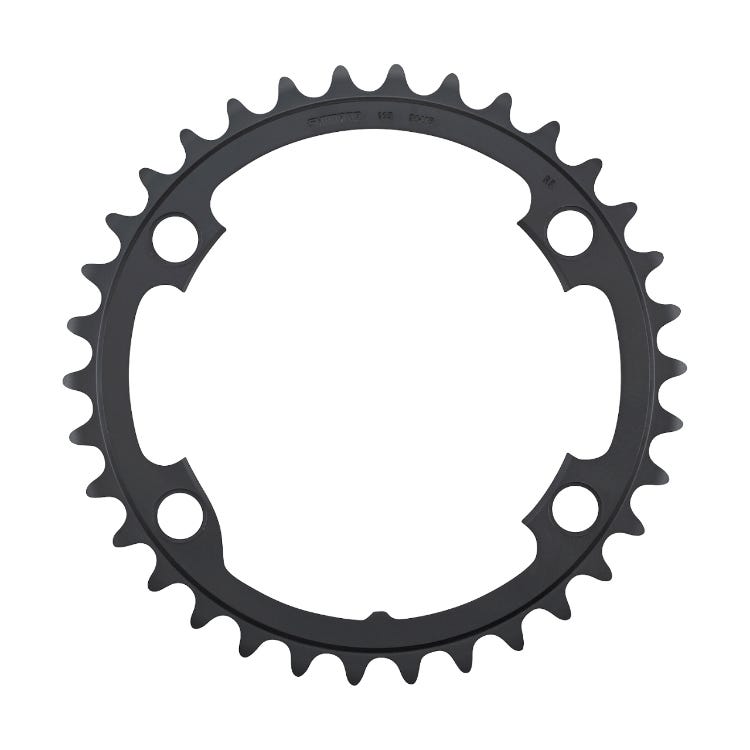

Truvativ Chain Ring 36T 104BCD 10sp pinned
Truvativ Chain Ring 36T 104BCD 10sp pinned
Your store:
No location set
Click & Collect:
In Store
Available Nearby:
Select a size to view stock availability at this store.
Shipping to:
No location set
Select a size to view stock availability at this location.
Product Details
Product Details
Description
The Truvativ 10S 36T 104BCD MTB Alloy Chain Ring is designed for optimal performance with SRAM and Truvativ cranks, but it is also compatible with other drive trains. It can be mounted without a chain protection ring. SKU: TV116215188430.
Key Features
- Material: Aluminium 7075
- Teeth: 36T (36T-S1)
- Drivetrain Speed: 10-speed (2x10)
- Bolts: 4 (4-Arm)
- Bolt Circle Diameter: 104mm (104BCD)
- Pin Length: 10mm
- Thickness: 5mm
- Chainline: 49mm
- Chain Compatibility: SRAM 10 | Shimano 10
- Grading: Dual Compatible Bottom Bracket: GXP and BB30
- Ring Position: Outer
- Part Number: 11.6215.188.430
- Weight: 64g
- Colour Name: Blast Black
- Round or Oval: Round
- Application: MTB | City | Touring
- Manufacturer: SRAM
- TruVativ is a subsidiary of SRAM
- SRAM chains are a must to comply with your warranty
- Bolt holes are not threaded
- Truvativ 10S 36T 104BCD MTB Alloy Chainring
- Use only with 22-V3 (22T 36/22)
- Box Contents: 1 x Truvativ 10S 36T 104BCD AL5 LP (36/22) MTB Chainring Blast Black
