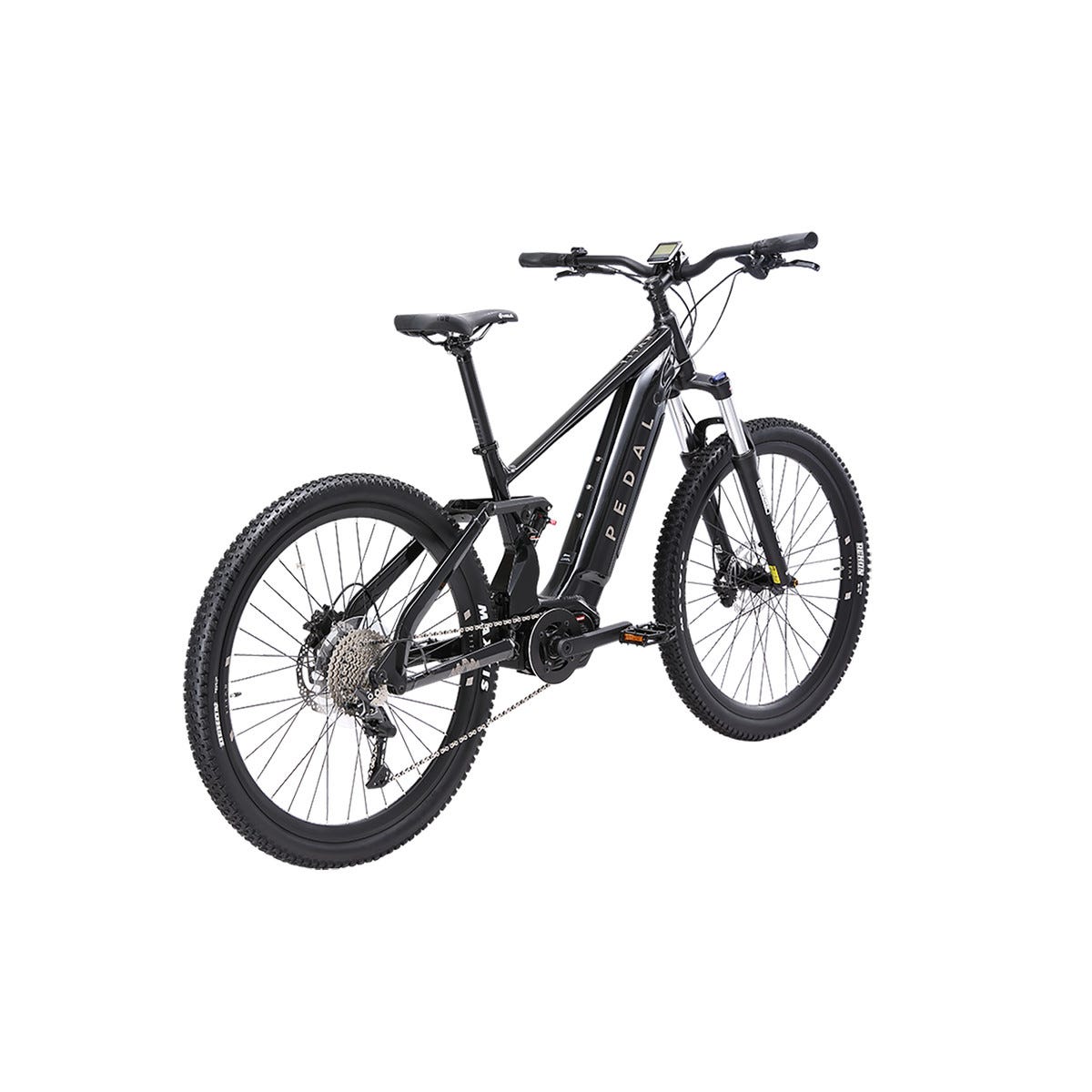

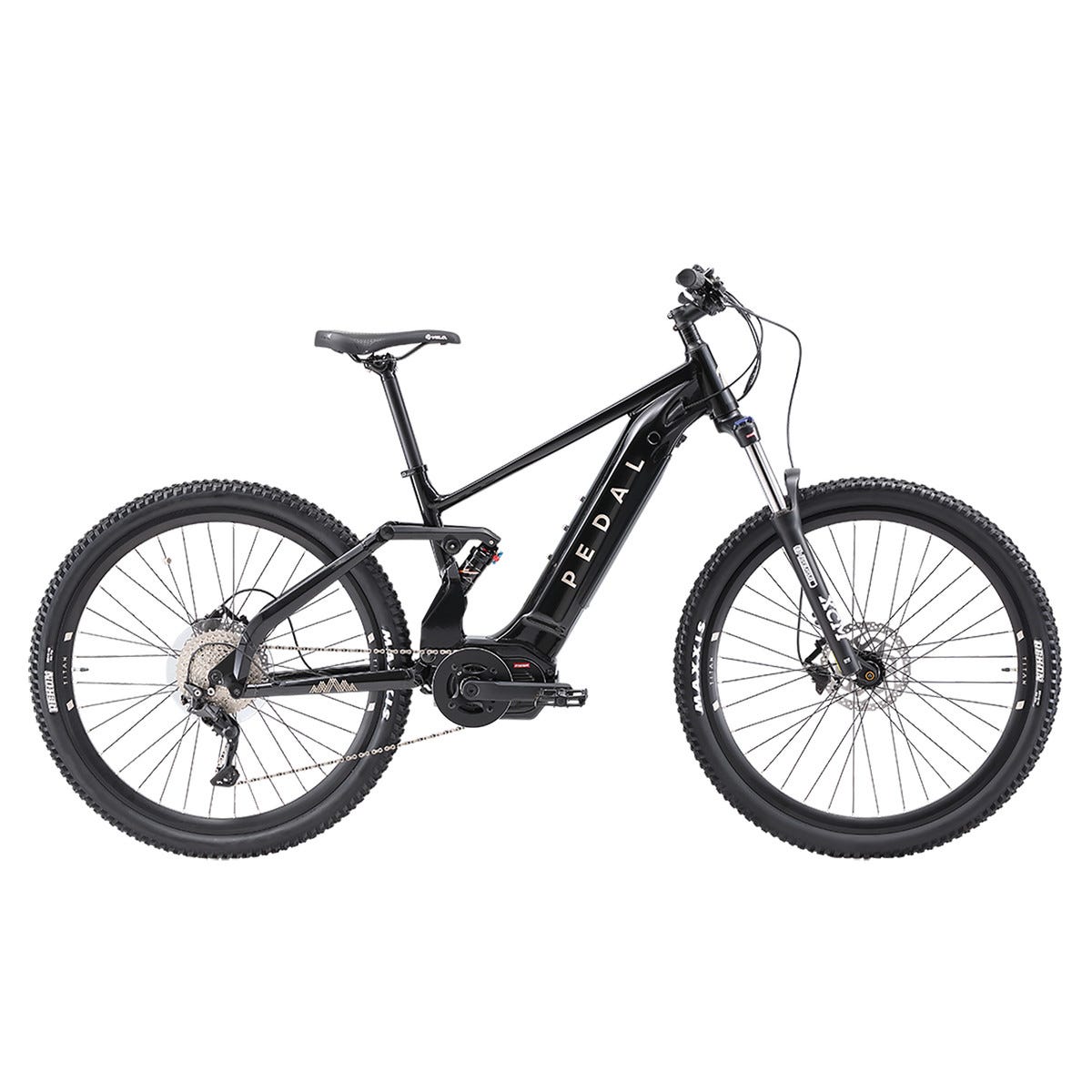

Pedal Titan Electric Dual Suspension Mountain Bike Black/Silver

Pedal Titan Electric Dual Suspension Mountain Bike Black/Silver

Brand: Pedal

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 110 Nm Torque

Up to 52 km Range

ANANDA ANANDA M100 Motor

Alloy Frame/ Suntour Fork

130mm Front Travel / 130mm Rear

540Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

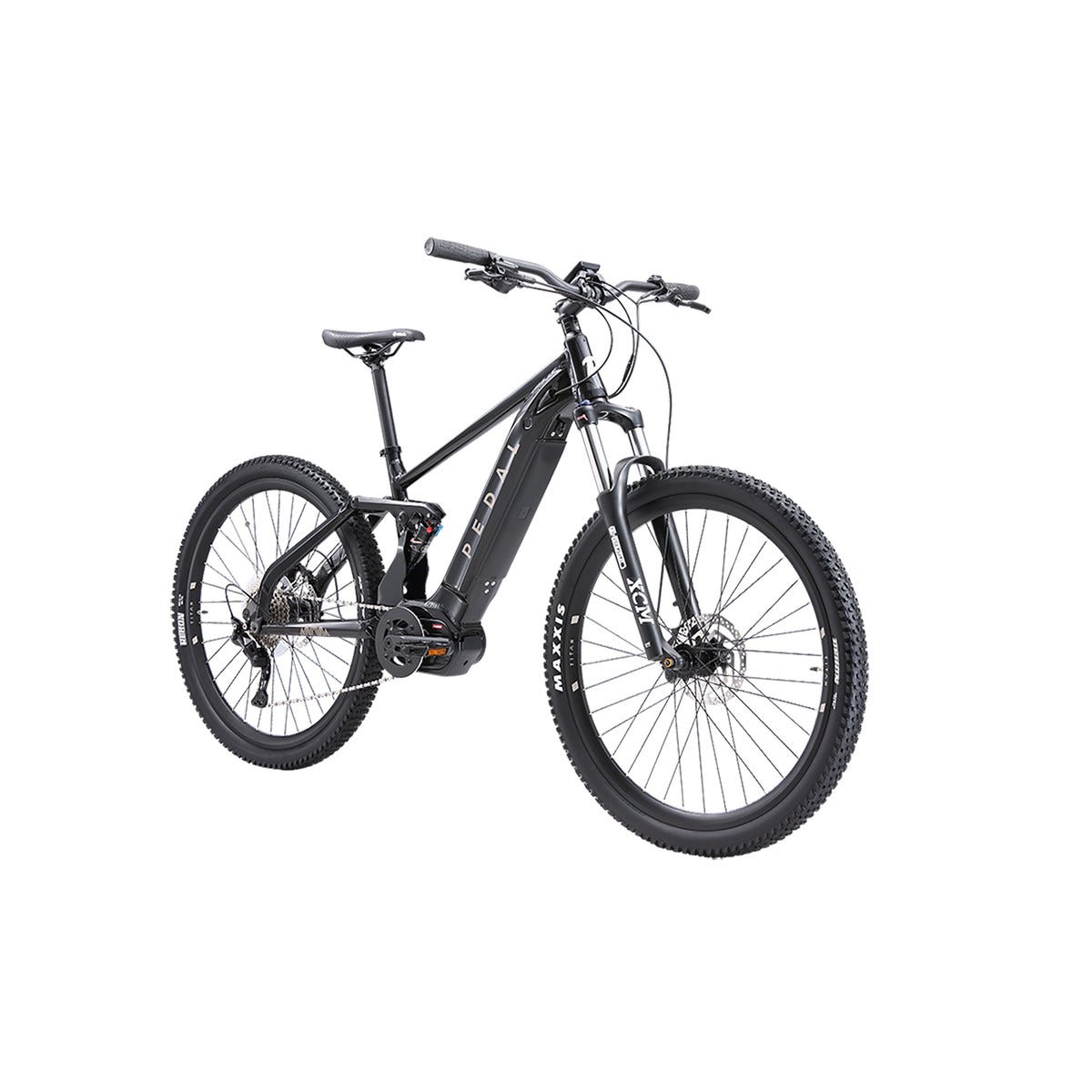

The Pedal Titan is a Dual Suspension E-MTB featuring 29" wheels and wide Maxxis tires, providing a smooth ride. It includes front and rear suspension with lockouts for efficient climbing and a powerful 110Nm motor for enhanced control on rough trails. The bike's mountain geometry, with a slack head angle and large wheels, ensures stability across various terrains. Comfort is prioritized with ergonomic grips, a premium saddle, an upright pedaling position, and soft suspension to absorb bumps.

Specifications

Product Overview

Product

Pedal Titan Electric Dual Suspension Mountain Bike Black/Silver

Brand

Pedal

Parent SKU

Pedal23PedalTitanBlackSilver

Size SKUs

MD: PDRDTTBK17
LG: PDRDTTBK19

Matrix Barcodes

MD: 9356844003068
LG: 9356844003075

Year Model

2023

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

130mm

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

ANANDA

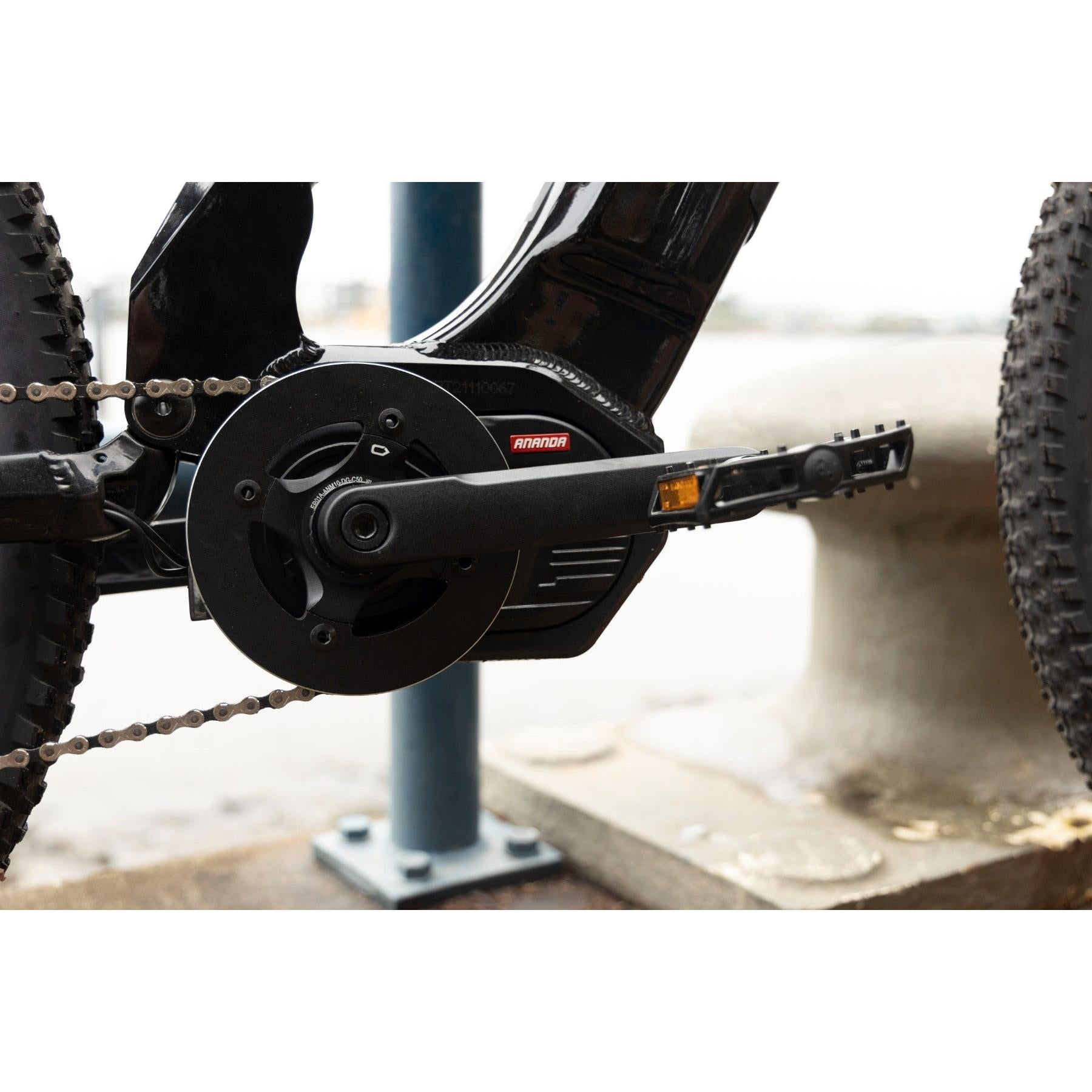

Motor

Ananda M100BBTR mid-drive 25KPH

Torque (Nm)

110

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

540

Battery

36v15ah Lishen battery with 2600 cells

Max. Range (KMs)

Display

Ananda D10 LCD Display

Build

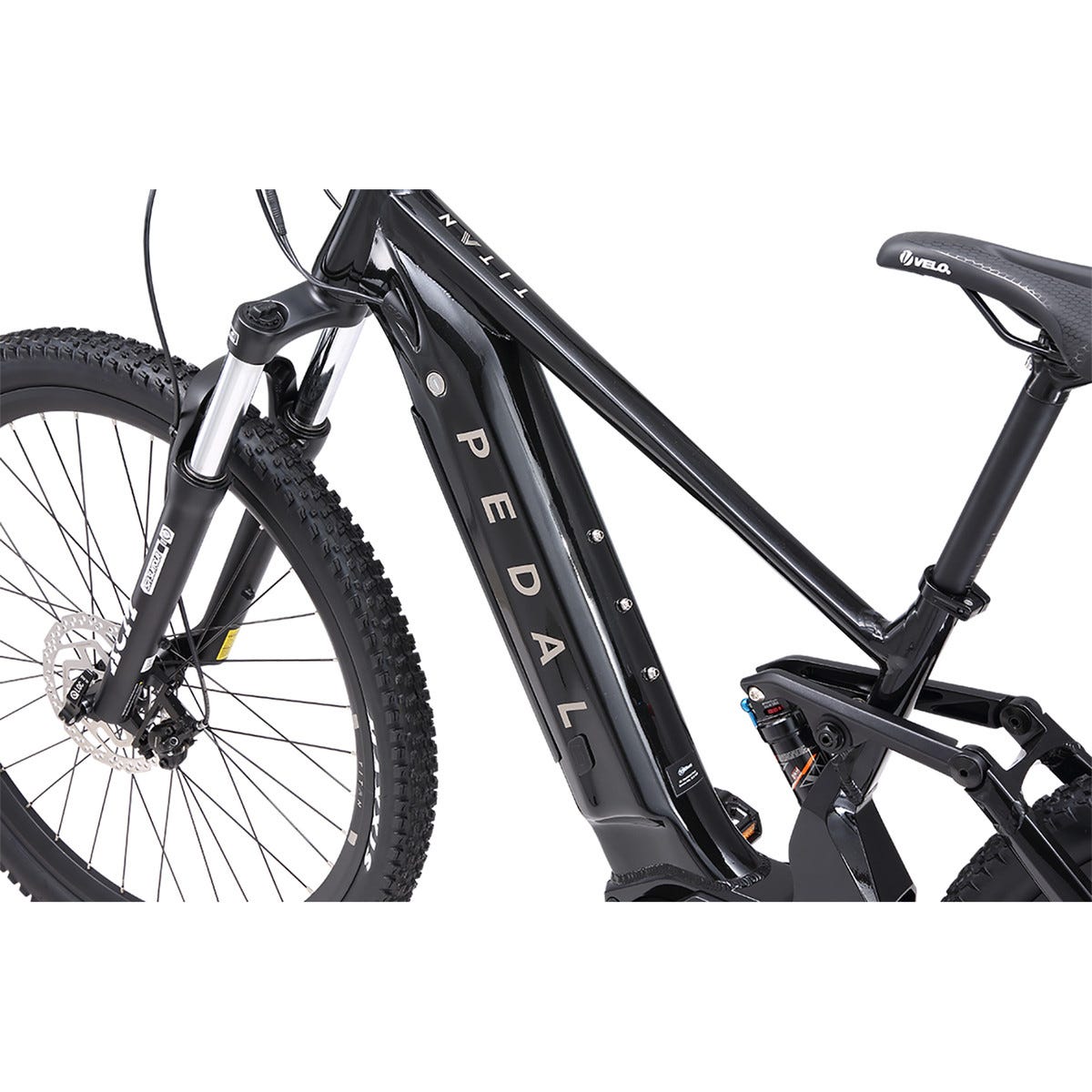

Frame

Alloy

Fork

SR Suntour XCM34 Boost with 130mm travel

Shock

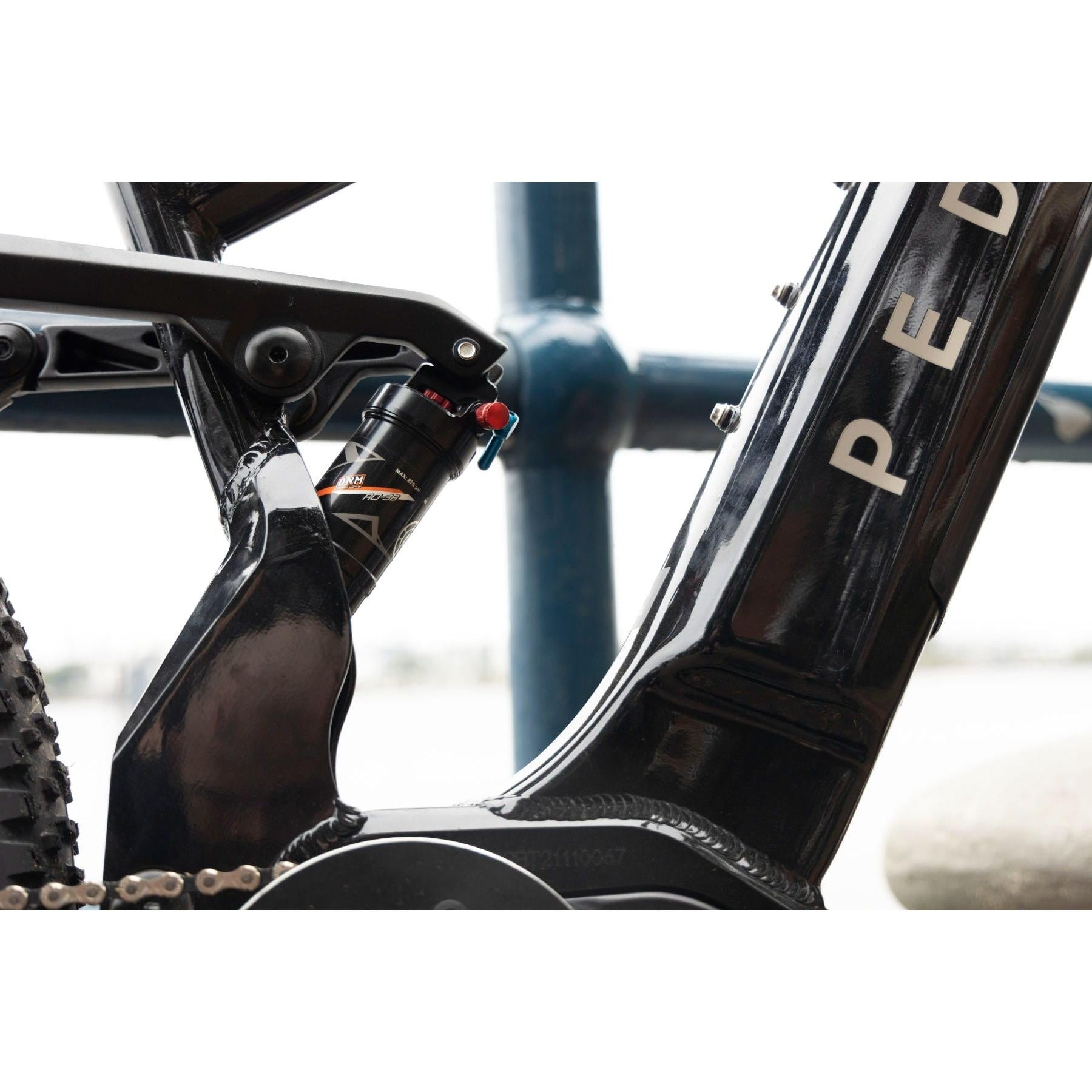

DNM Air Shock 210mm x 53mm

Handlebars

760mm handlebars with 25mm rise

Saddle

Velo comfort saddle

Seat Post

35mm quick release seat post

Seat Clamp

35mm quick release

Accessories

CHARGER: 42v3a Australian charger

Wheels

Wheel Size

29"

Rims

29" 36h double wall alloy rims

Hubs

F: KT MS6F 15mm x 110mm | R: KT KT-M4TR 12mm x 148mm rear hub

Tyres

Maxxis Rekon 2.4" x 29" tyres

Groupset

Crankset

170mm alloy cranks with 34T chainring

Chain

KMC e10 Sport

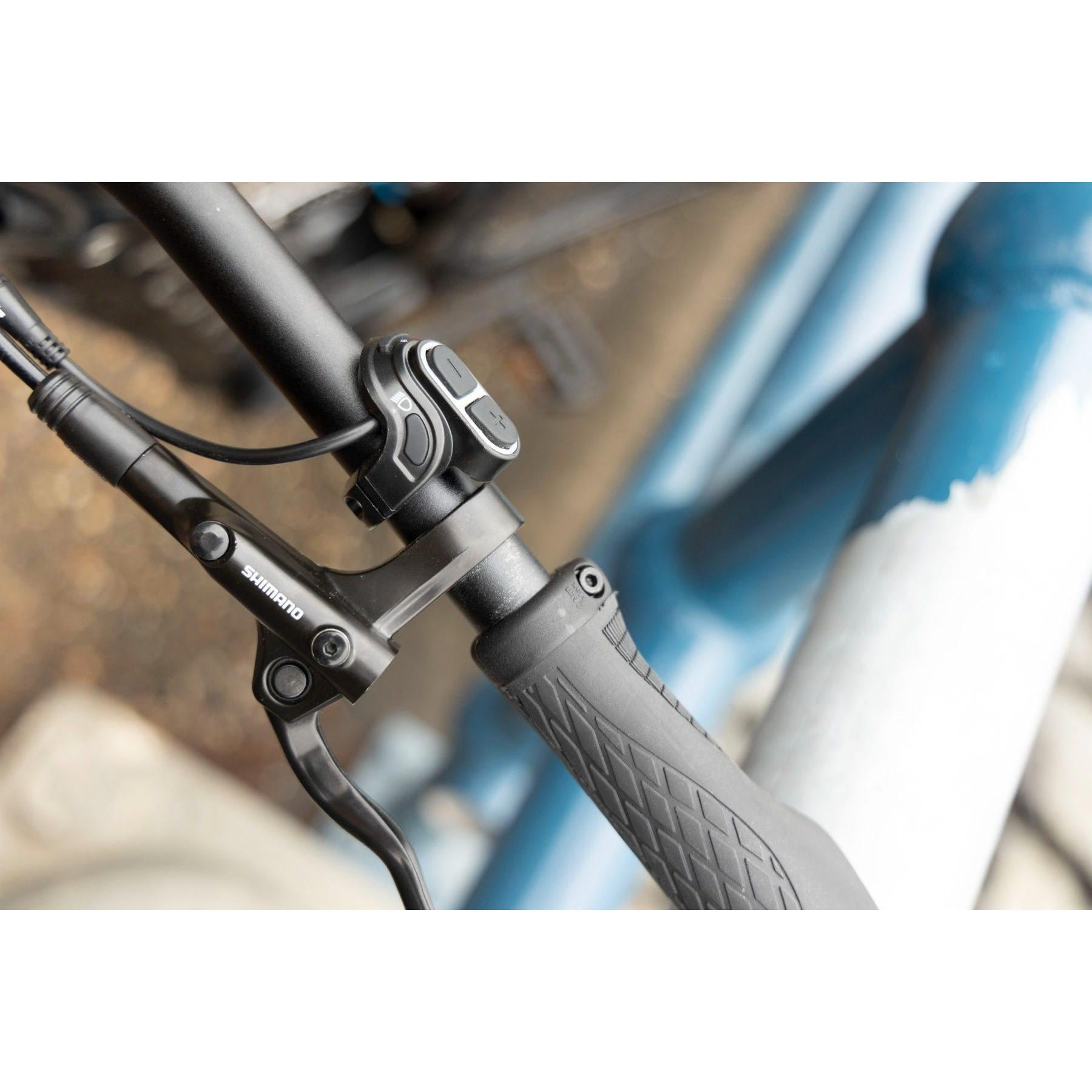

Brakes

Shimano MT200 Hydraulic disk brakes with 180mm rotor

Front Rotor

180mm

Rear Rotor

180mm

Shifters

Shimano Deore SL-M4100-R Shifter

Rear Derailleur

Shimano Deore M4120 10s Shadow Design

Cassette

10 Speed
