53% Off Full Price

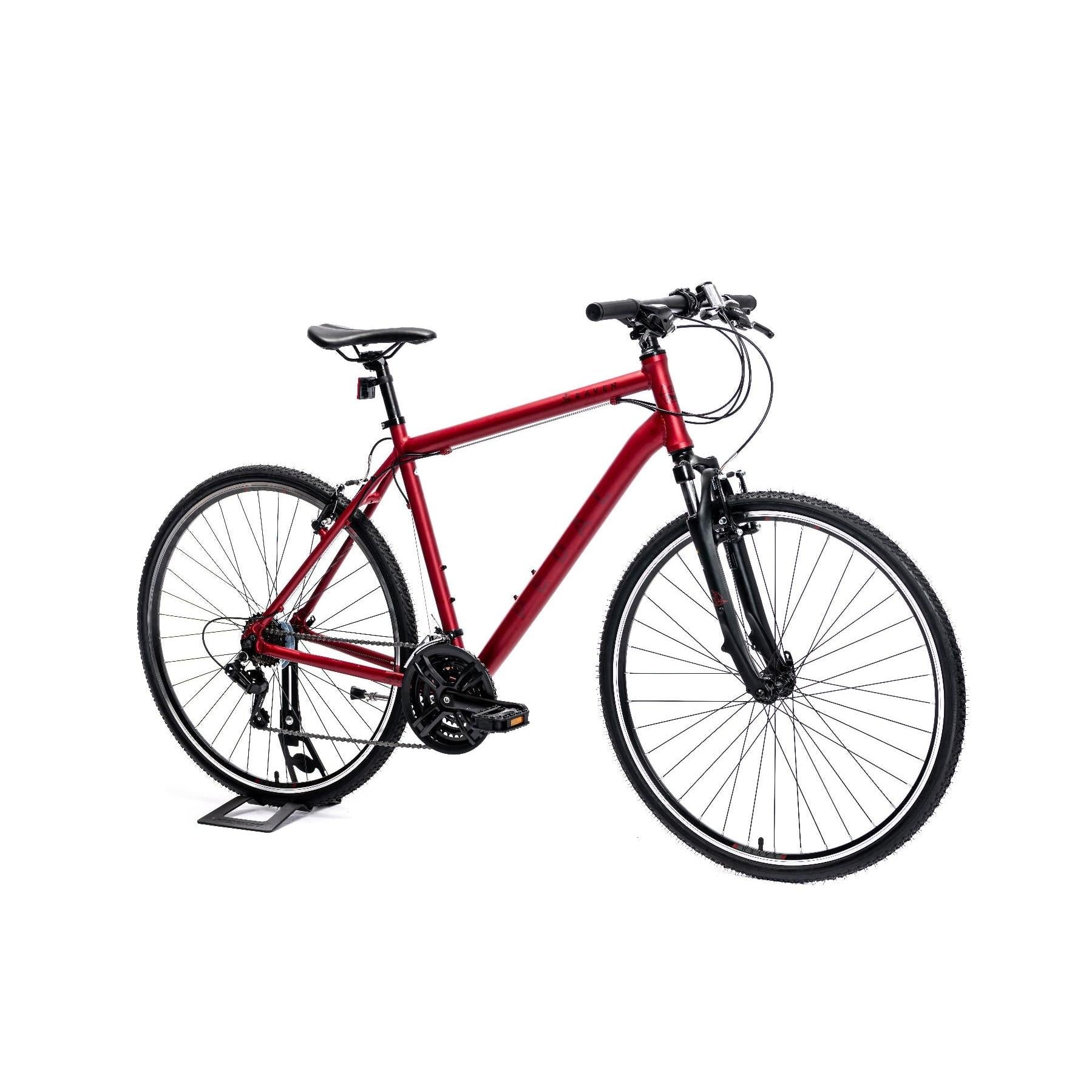

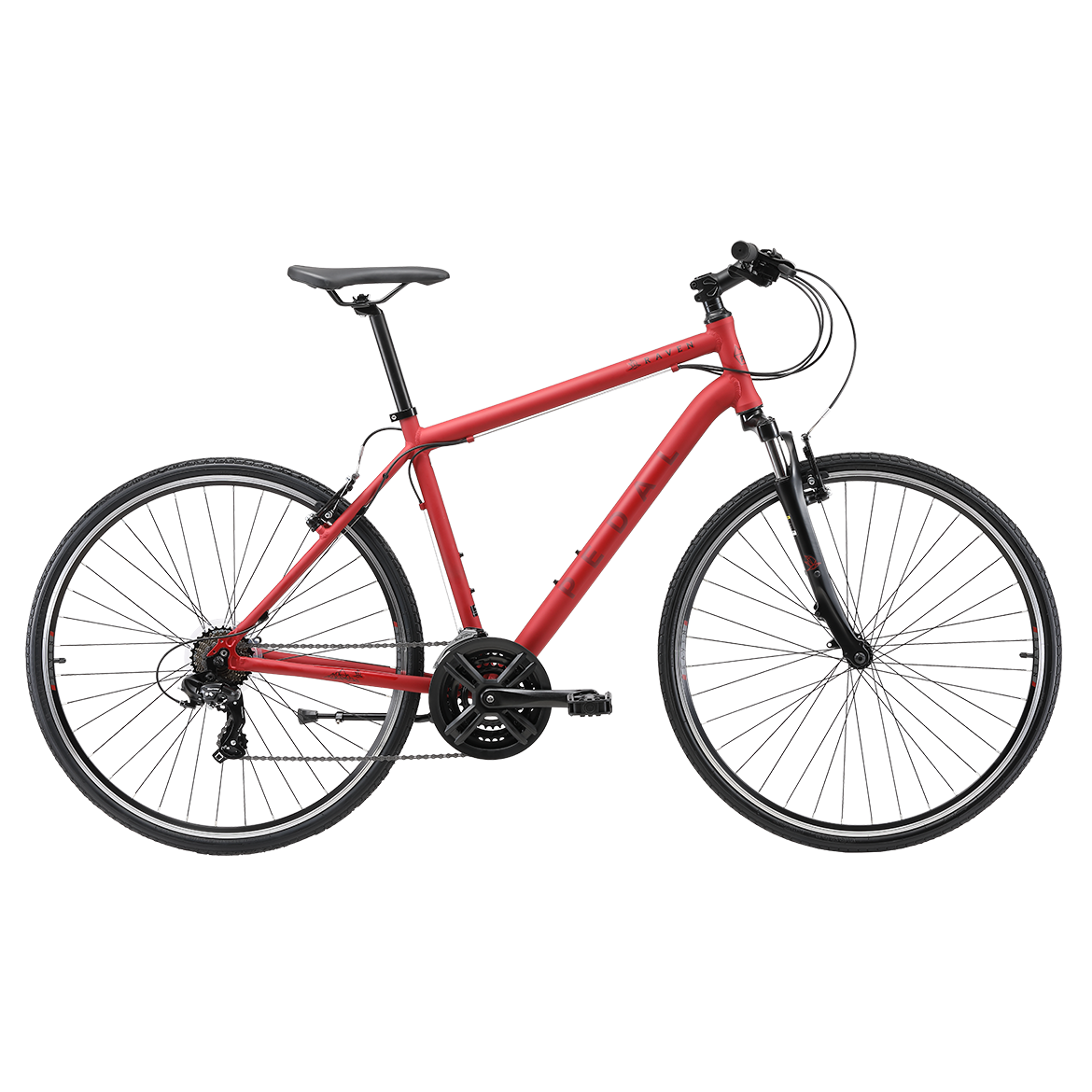

Pedal Raven 2 Hybrid Bike Dark Red

Brand: Pedal

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Alloy Fork

700c Wheel Size

Rim Brake

Shimano Tourney Groupset

3 x 7 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Pedal Raven Hybrid Bike combines road bike efficiency with mountain bike versatility, enhanced by comfort features. Its lightweight alloy frame ensures easy control, especially on hills. The Zoom Suspension Fork and tough alloy double wall rims allow smooth rides over potholes and bumps. Equipped with 700x32c tires, it balances speed and comfort. The Shimano rear derailleur and shifters provide reliable performance, making the Raven a dependable choice for commuting and adventures. Enjoy the freedom of riding with its emphasis on comfort, reliability, and value.

Specifications

Product Overview

Product

Pedal Raven 2 Hybrid Bike Dark Red

Brand

Pedal

Parent SKU

PedalRaven2DarkRed

Size SKUs

SM: PDRDRVDR48
MD: PDRDRVDR51
LG: PDRDRVDR54

Matrix Barcodes

SM: 9356844001064
MD: 9356844001071
LG: 9356844001088

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

700c

Brake Type

Rim Brake

Gears

3 x 7

Fork Material

Alloy

Weight Limit

100kg (excludes bike)

Build

Frame

Alloy

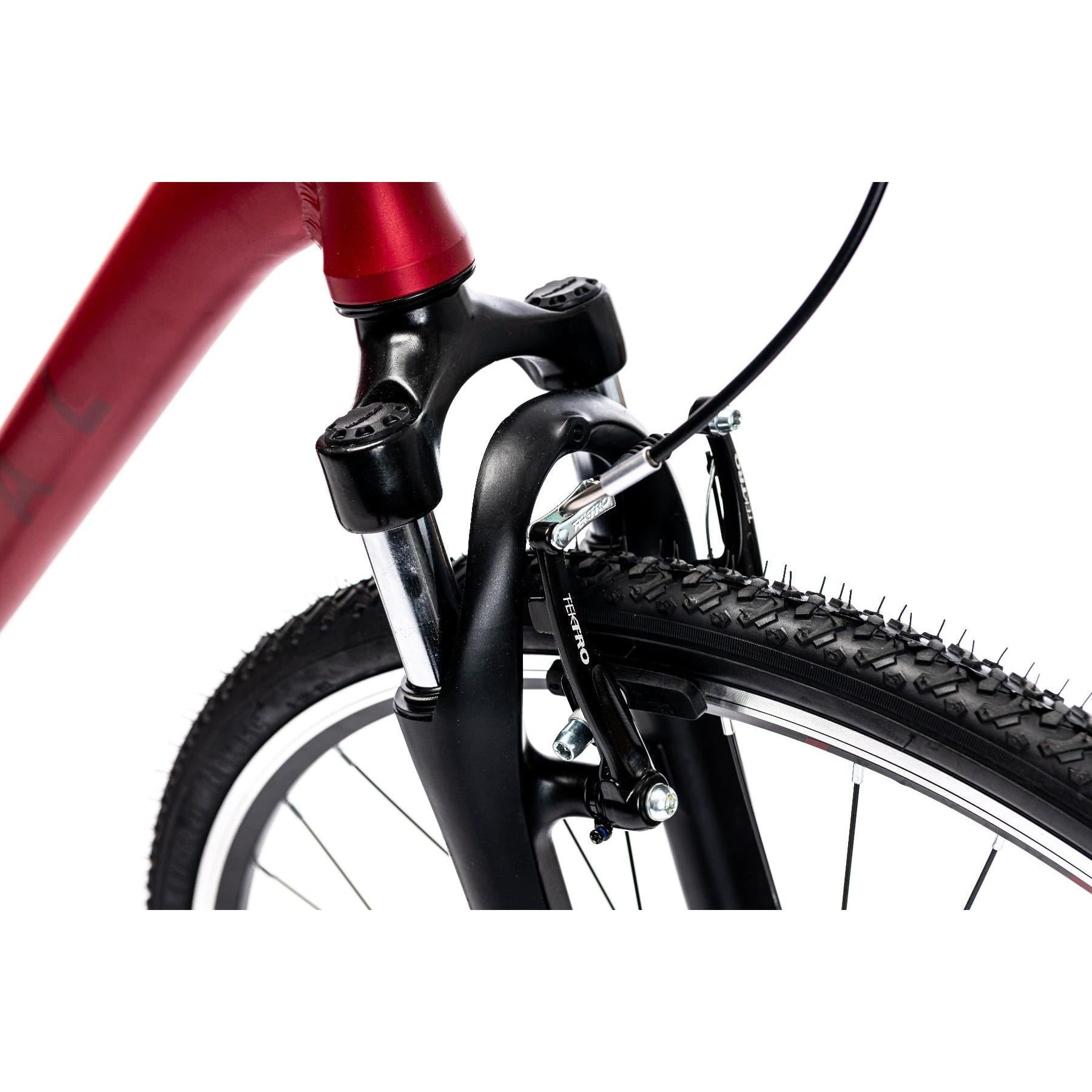

Fork

700C Blade :28.6mm Steerinng :28.6*25.4mm

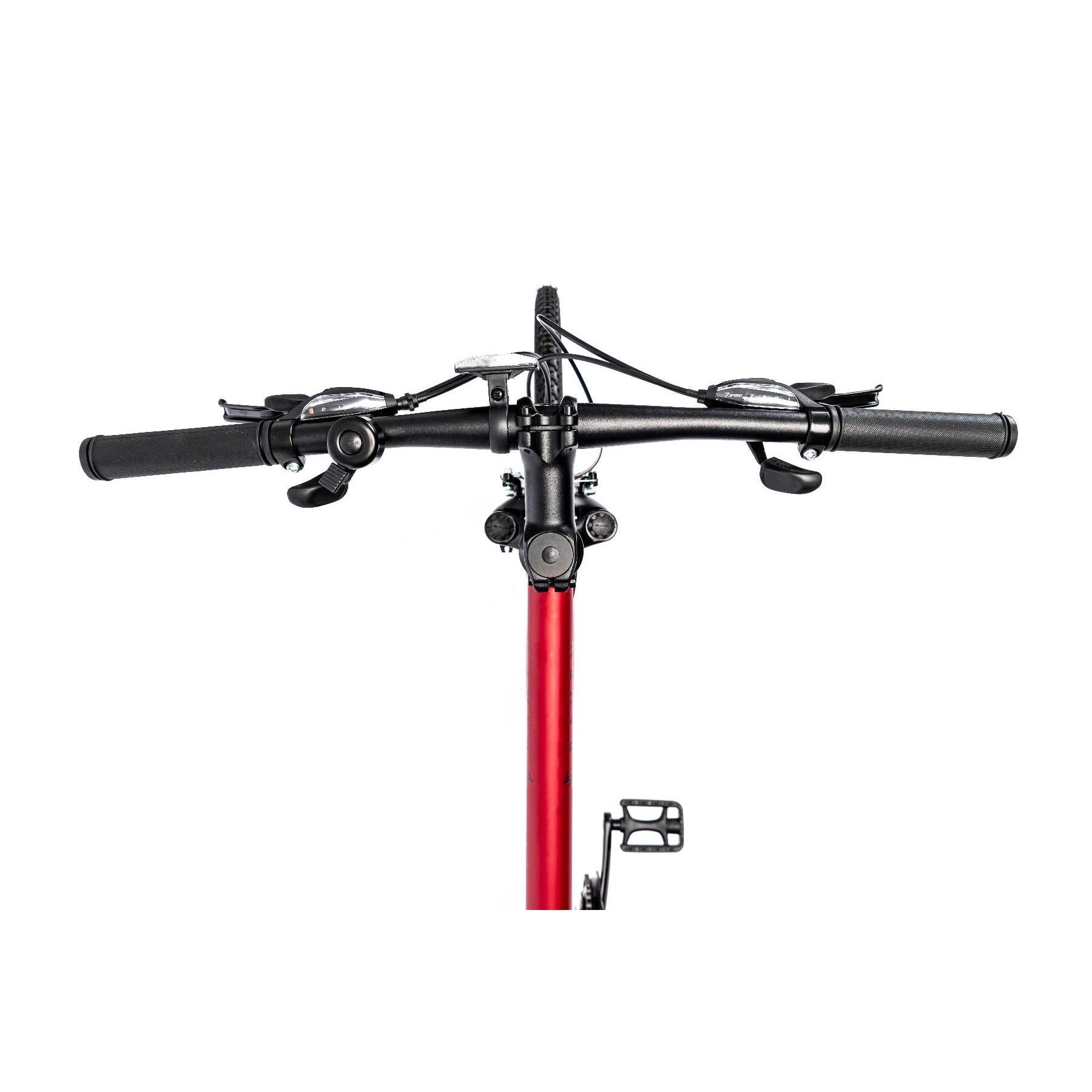

Handlebars

Width:620mm *6° W/O LOGO

Grips

L/R:125MM CLOSED END

Bottom Bracket

W/O SCREW

Pedals

9/16 W/BALL , AS REFLECTOR,WITH R/L STICKER

Saddle

BLK COVER, ED RAIL & CLAMP W/O PRINTING

Seat Post

27.2*300mm,W/CLAMP ,W/O LOGO

Wheels

Wheel Size

700c

Rims

700C*1.5*36H*14G*A/V DOUBLE WALL W/DESINGED DECALS*4 PER WHEEL,W/ETRTO WARNING

Hubs

Front: 14G*36H/108*M9, QUICK RELEASE,W/O LOGO, Rear: 14G*36H*7SPD/145*M10,QUICK RELEASE W/O LOGO

Tyres

700C*32C A/V 48MM 30TPI W/O LOGO

Spokes

14G STEEL UCP NIPPLE

Groupset

Crankset

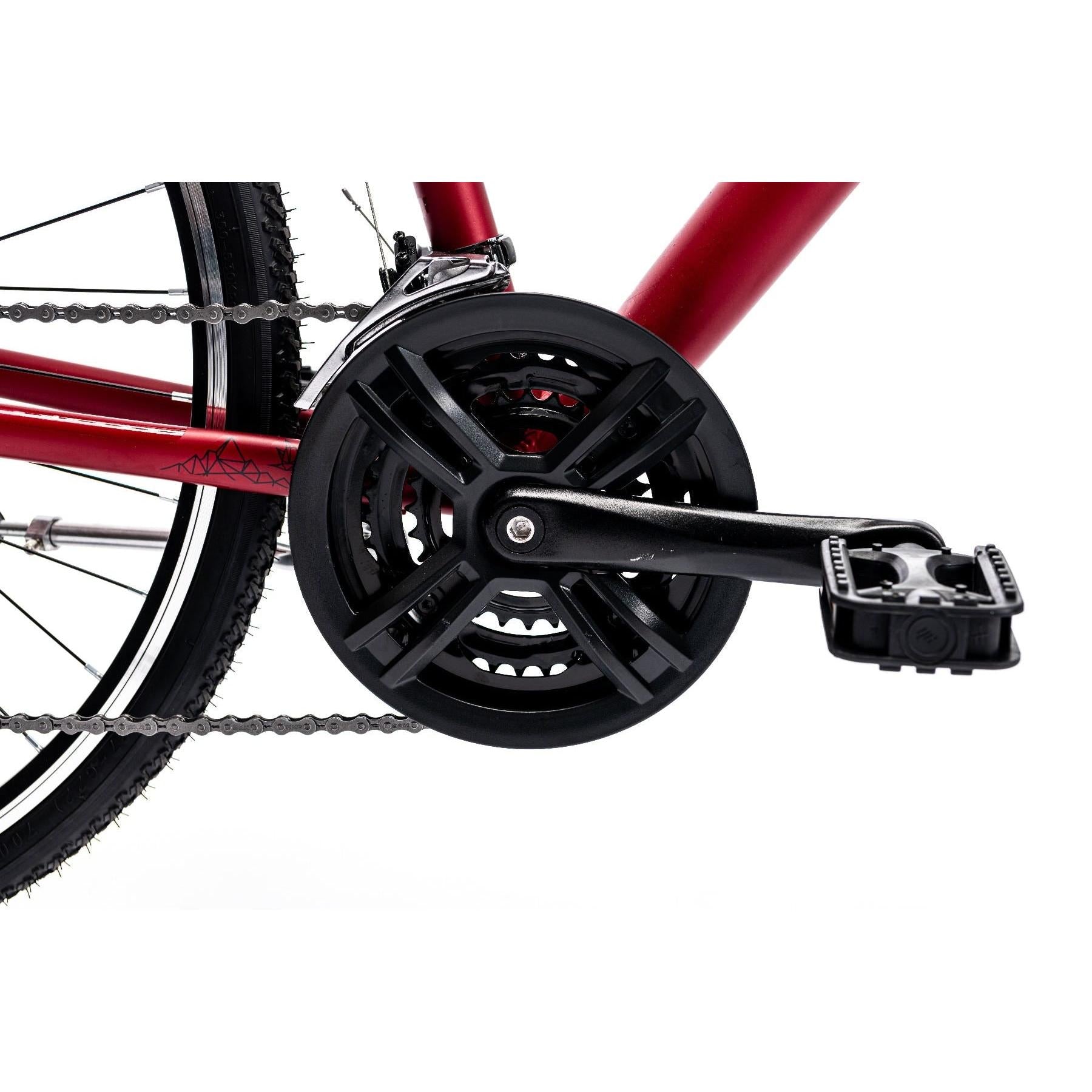

3 Ring Crankset

Chain

KMC Z33

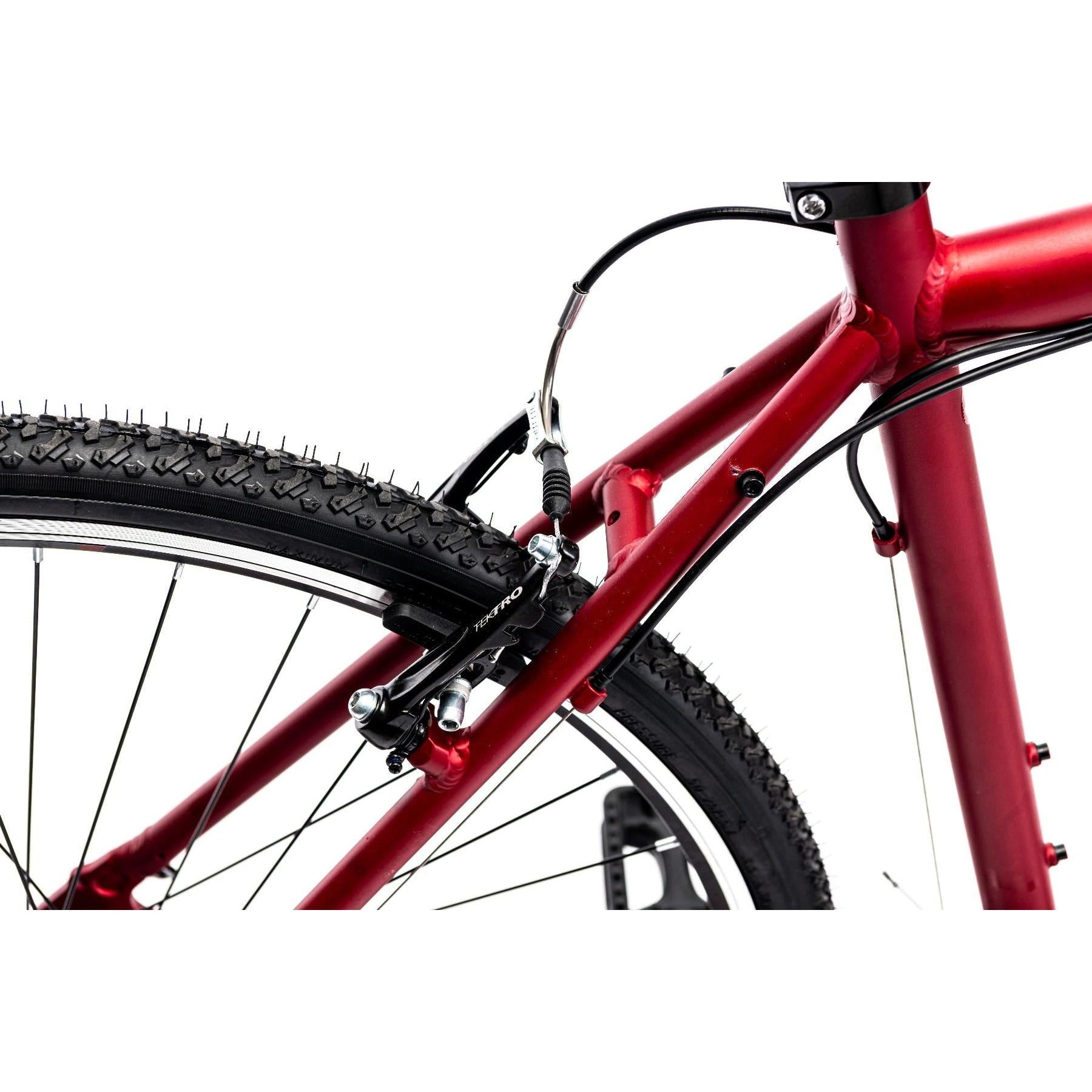

Brakes

W/63MM BRAKE SHOES,W/LOGO

Shifters

Left: SHIFT/BRAKE LEVER, ST-EF41-L, LEFT 3-SPEED,1800MM INNER,EZ-FIRE PLUS, 2F-STEEL/RESIN, FOR V-BRAKE, BLACK, Right: SHIFT/BRAKE LEVER, ST-EF41-7R, RIGHT 7-SPEED,2050MM INNER,EZ-FIRE PLUS,2F-STEEL/RESIN, FOR V-BRAKE, BLACK

Front Derailleur

FRONT DERAILLEUR, FD-TY500-TS3, TOURNEY,TOP-SWING, DUAL-PULL,FOR REAR 6/7-SPEED,BAND TYPE (W/31.8MM ADAPTER), CS ANGLE: 63-66, FOR 42T, CL: 47.5/50MM

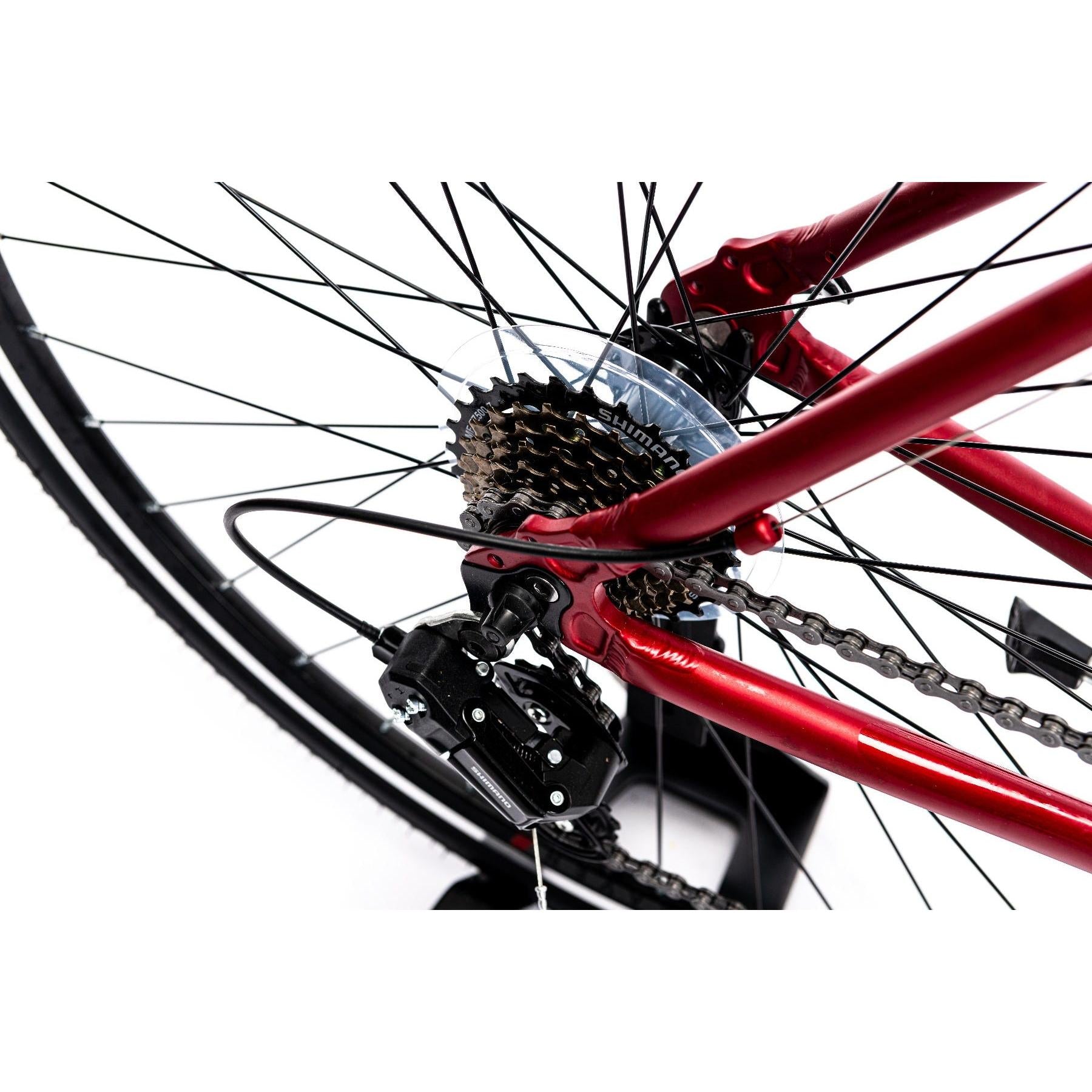

Rear Derailleur

REAR DERAILLEUR, RD-TY300, TOURNEY, 6/7-SPEED, DIRECT ATTACHMENT TYPE

Cassette

7 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Pedal Raven 2 Hybrid Bike Dark Red we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Pedal Raven 2 Hybrid Bike Dark Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
