Discontinued

Pedal Raptor Recreational Bike Black/Green

Pedal Raptor Recreational Bike Black/Green

Brand: Pedal

SKU: Select a size

Size: Select a size

XS SM MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Steel Fork

27.5" (650b) Wheel Size

Rim Brake

Shimano Tourney Groupset

1 x 6 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

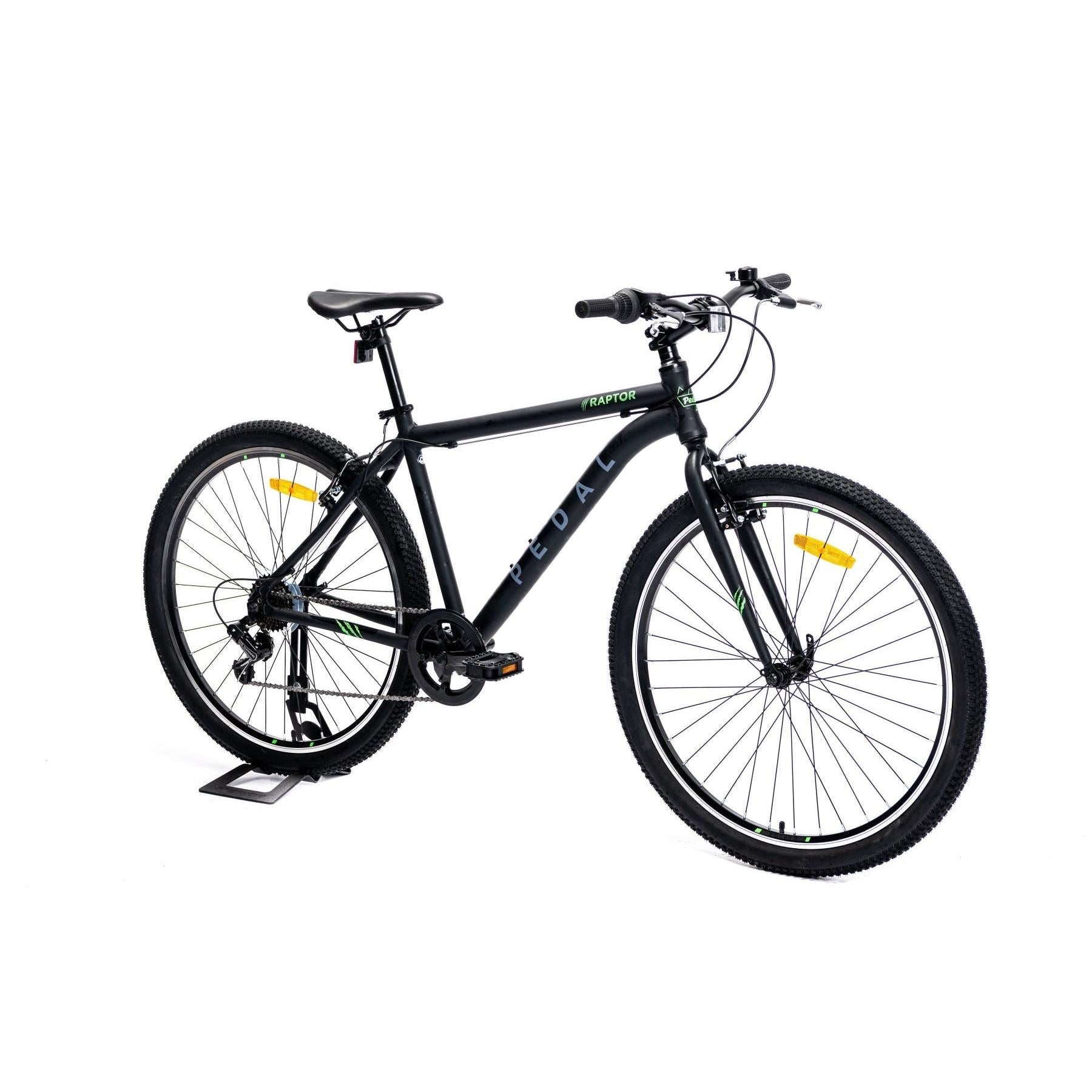

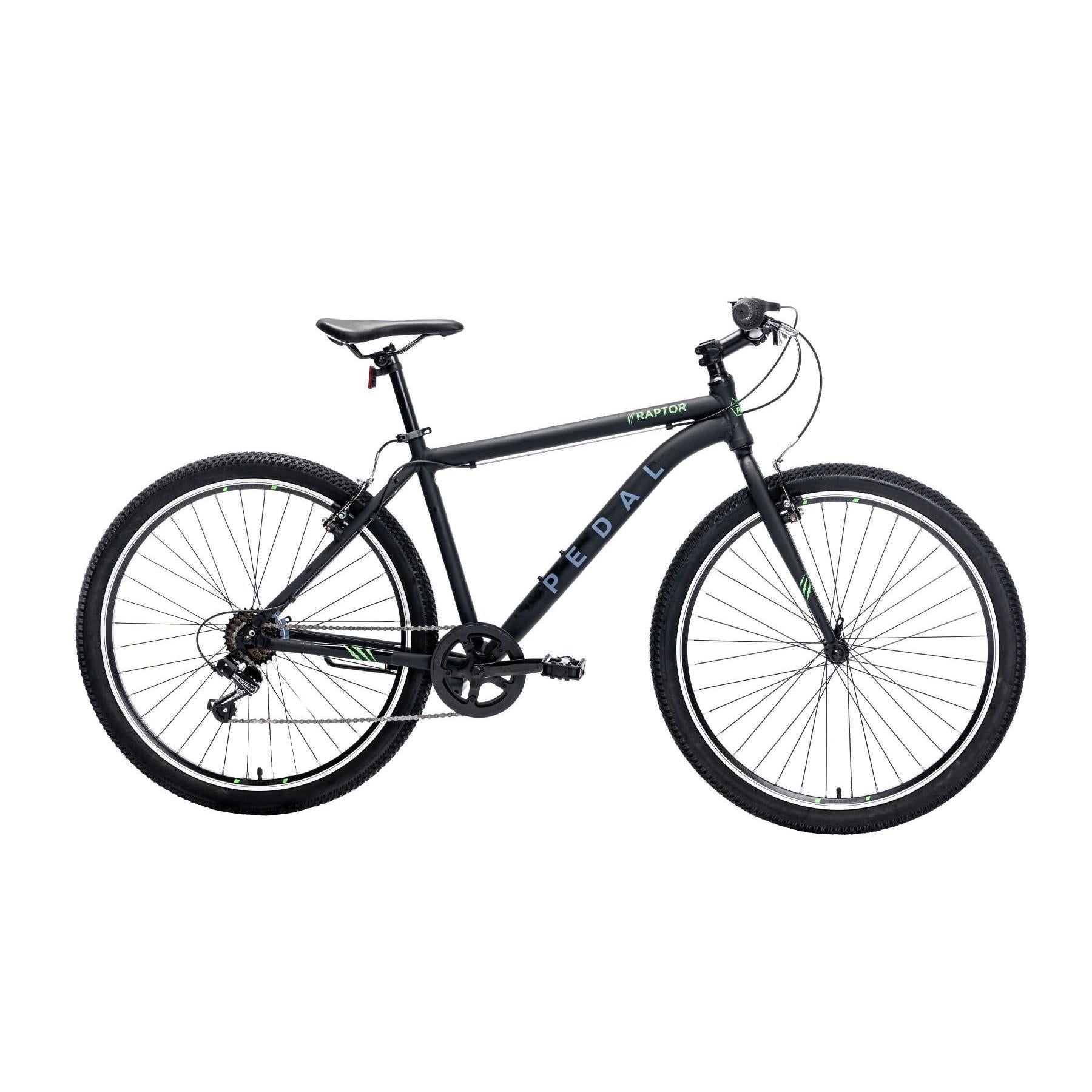

The Pedal Raptor features a 6061 aluminum frame, offering a lightweight and easily controllable ride. Its rigid steel fork is designed for durability on smooth surfaces like concrete and asphalt. The bike is equipped with 27.5 x 2.1 inch tires for a smooth ride and enhanced grip, complemented by lightweight and durable double-wall alloy rims. The 6-speed drivetrain is user-friendly, ideal for beginners, and the Shimano Tourney rear derailleur enhances performance. Front and rear Sunrun V-Brakes provide reliable stopping power, boosting rider confidence. This entry-level bike is perfect for those seeking a stable, hassle-free ride on bike paths and park trails.

Specifications

Product Overview

Product

Pedal Raptor Recreational Bike Black/Green

Brand

Pedal

Parent SKU

PedalRaptorBlackGreen

Size SKUs

XS: PDRDRPBG14
SM: PDRDRPBG16
MD: PDRDRPBG18

Matrix Barcodes

XS: 9356844001125
SM: 9356844001132
MD: 9356844001149

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

27.5" (650b)

Brake Type

Rim Brake

Gears

1 x 6

Fork Material

Steel

Weight Limit

100kg (excludes bike)

Build

Frame

Alloy

Fork

27.5" rigid steel

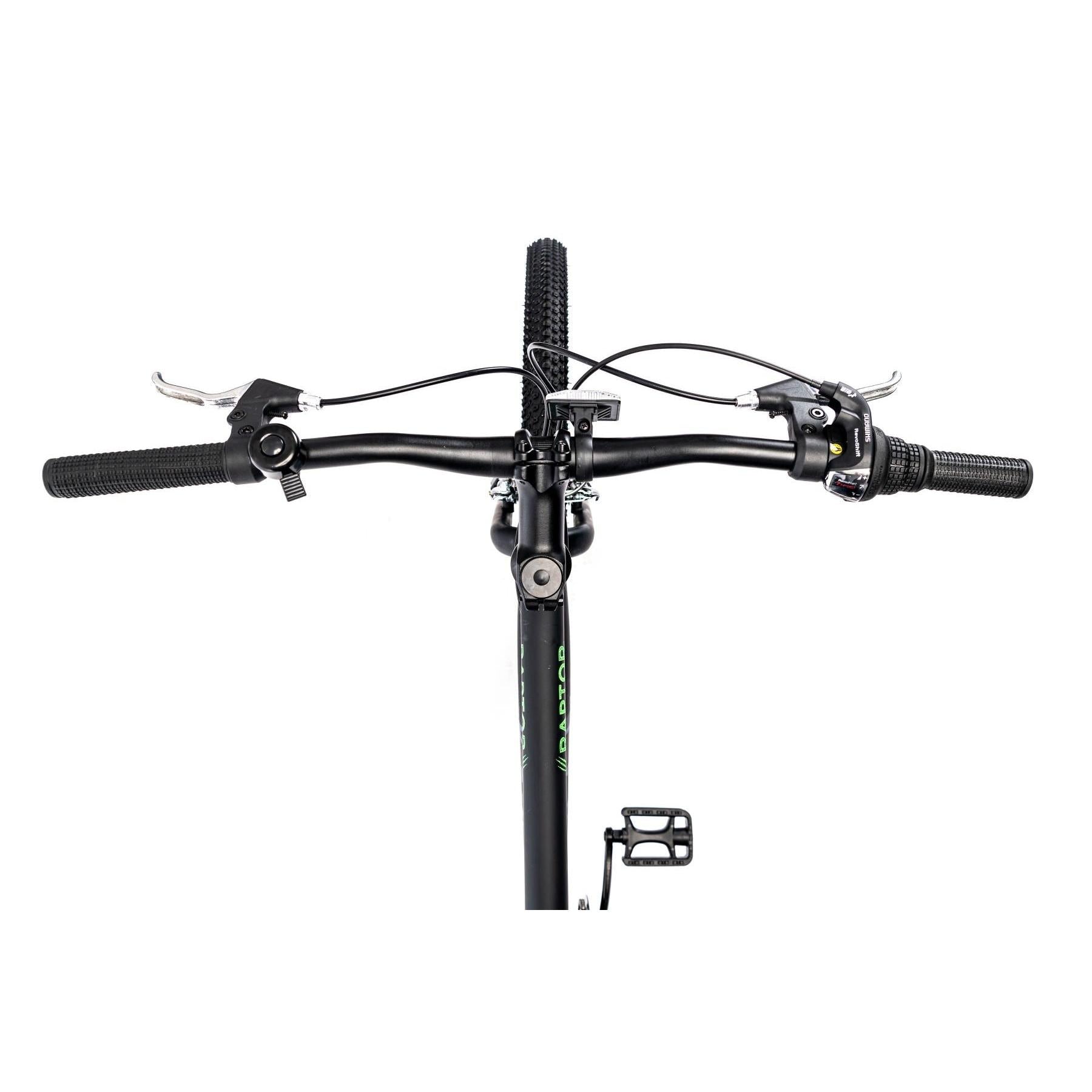

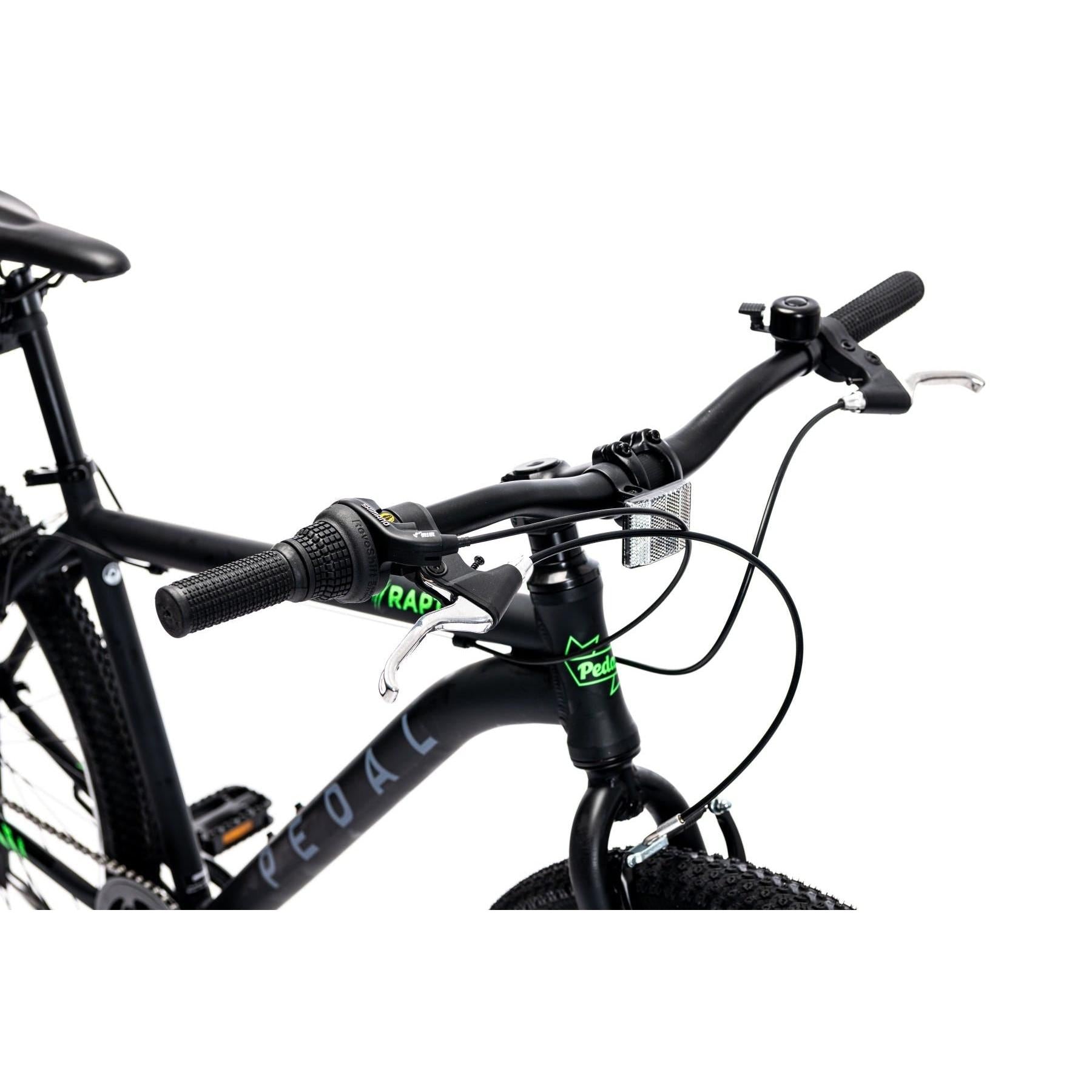

Handlebars

680*10¬∞*1.4T ,BARBORE‚àÆ31.8 R:20MM

Grips

L/R:75MM CLOSE END

Bottom Bracket

1.37"*24T 5PCS+3S AXLE

Pedals

9/16" W/BALL W/AS REFLECTOR

Saddle

BLACK COVER, ED RAIL AND CLAMP

Seat Post

27.2*300MM

Wheels

Wheel Size

27.5" (650b)

Rims

27.5*36H,DOUBLE WALL

Hubs

Front: M9*100*140*36H,NUT TYPE W/QR, Rear: M10*135*180*36H,NUT TYPE, 7SP W/QR

Tyres

27.5*2.10 W/O LOGO

Spokes

14G STEEL W/STEEL NIPPLE 256/258MM

Groupset

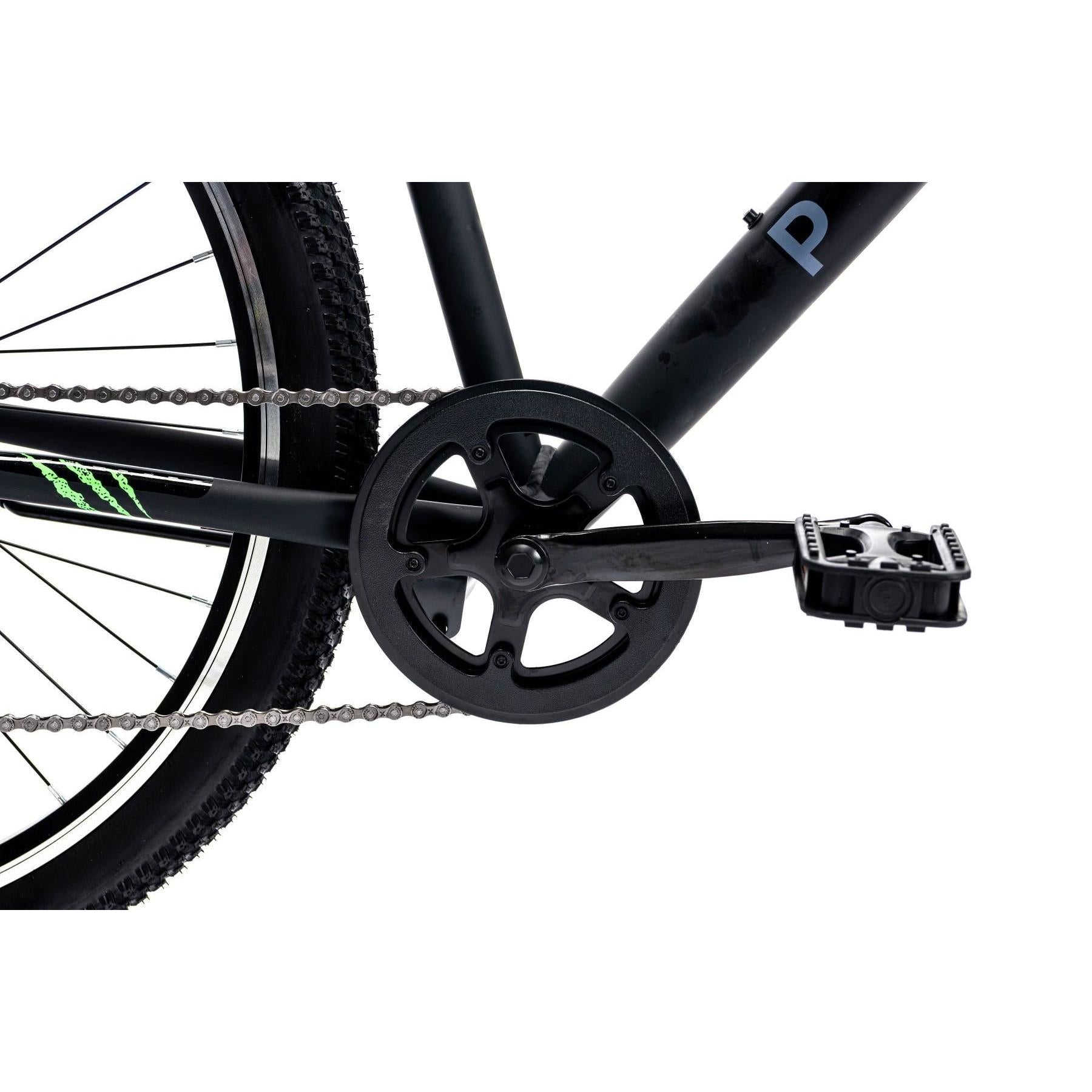

Crankset

170mm Steel, Single Ring

Chain

1/2*3/32*112L

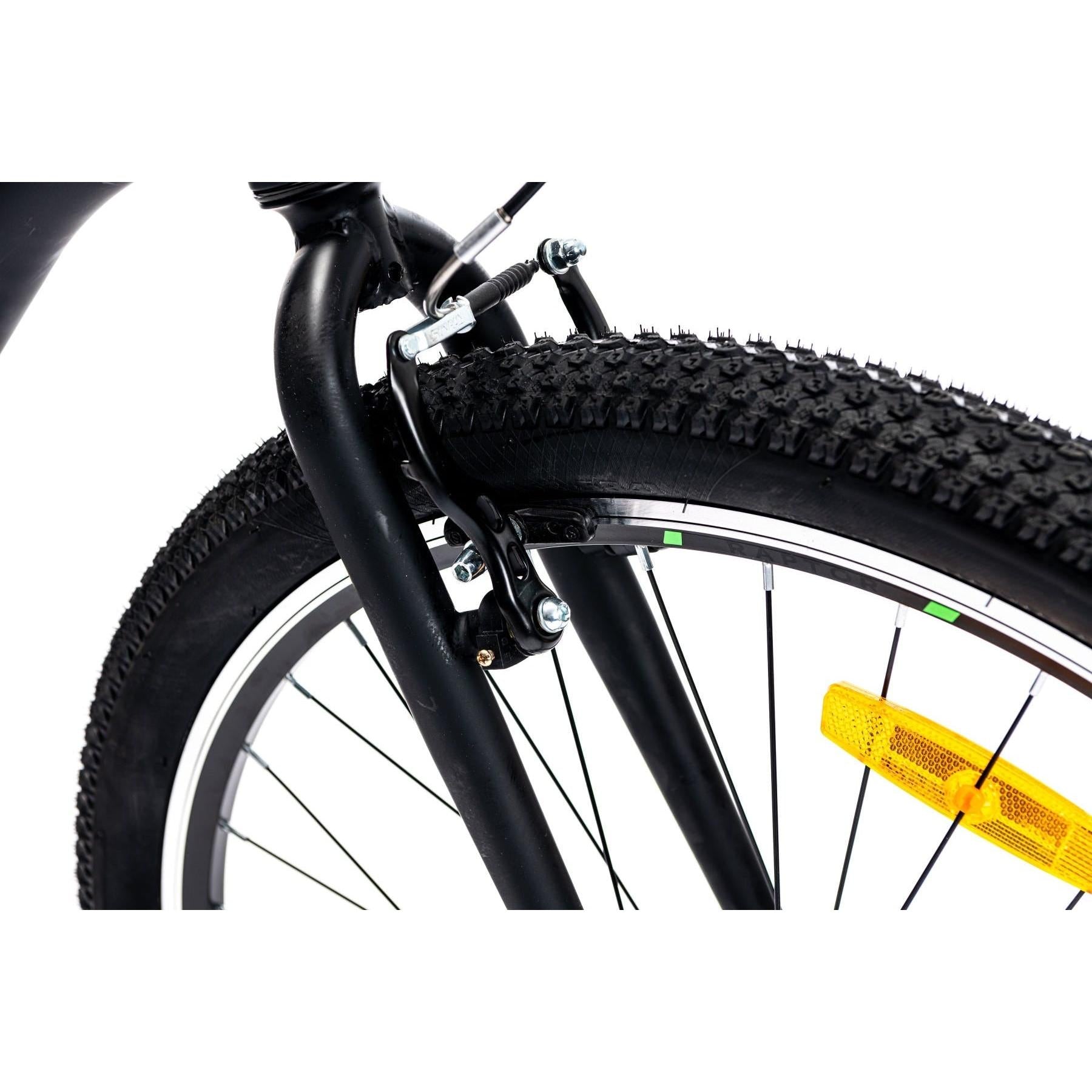

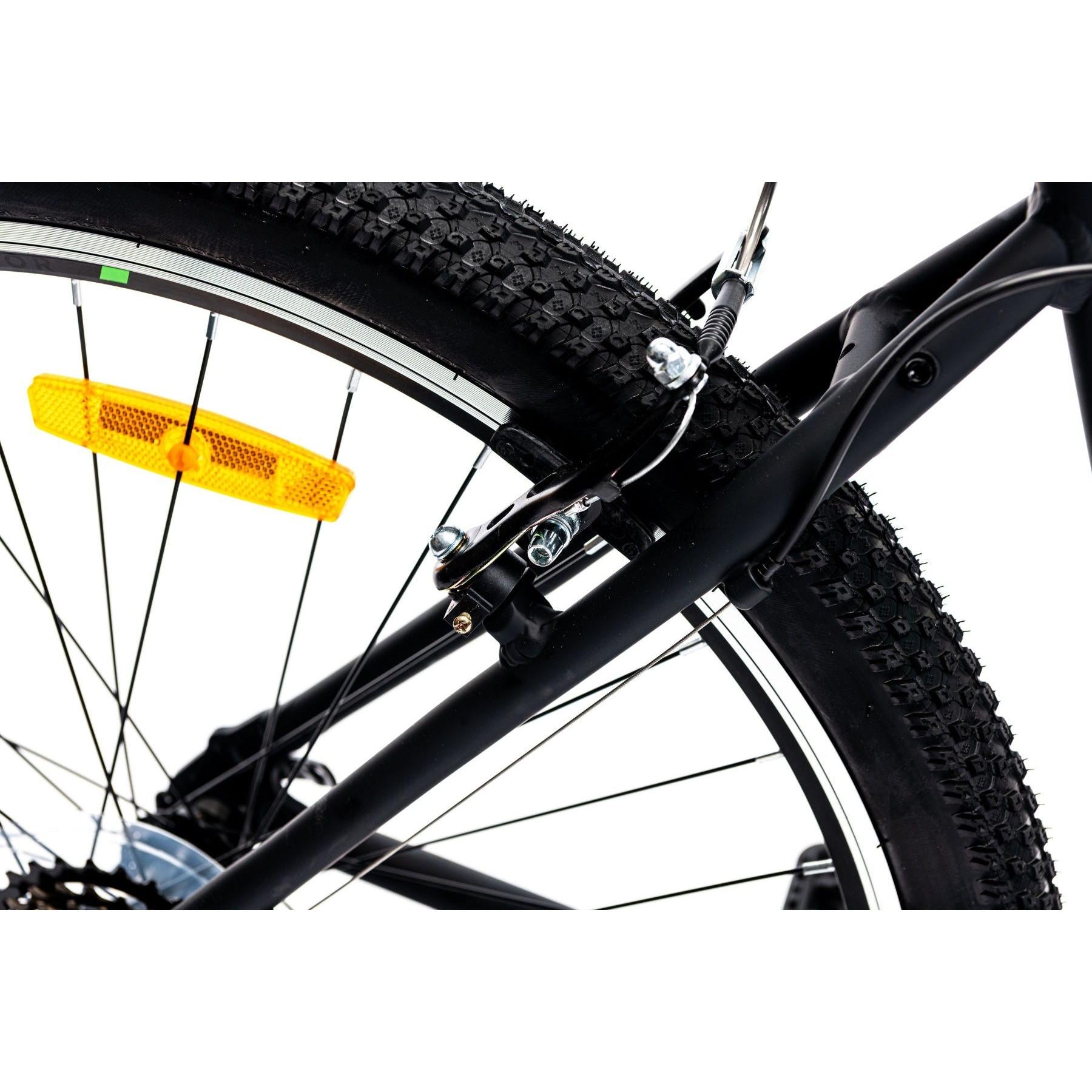

Brakes

V-BRAKE

Shifters

Left: NIL, Right: SHIFT LEVER, SL-RS35-7R, TOURNEY 7-SPEED REVO SHIFTER 2050MM INNER WITH O.G.D.(WINDOW TYPE), BULK

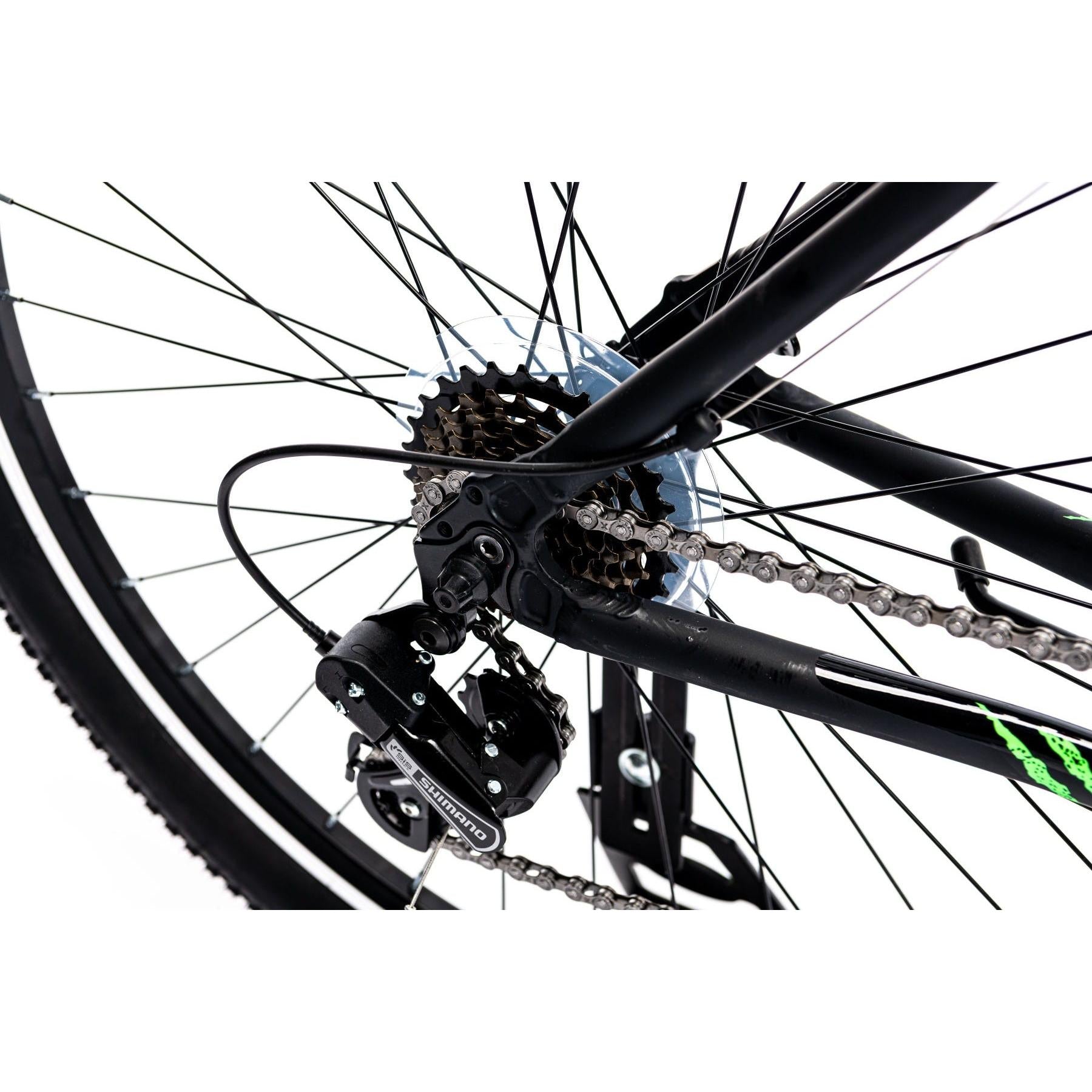

Rear Derailleur

REAR DERAILLEUR, TOURNEY , RD-TY21-B, GS 6-SPEED, DIRECT ATTACHMENT TYPE, BLACK, BULK

Cassette

6 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Pedal Raptor Recreational Bike Black/Green we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Pedal Raptor Recreational Bike Black/Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

435

Top Tube Length

552

582

602

Seat Tube Length

381

432

457

Seat Tube Angle

74.0

73.0

Fork Length

420

Head Tube Length

150

160

Head Tube Angle

70.0

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
