Pedal Phoenix Mountain Bike Red

Brand: Pedal

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

MICROshift Acolyte Groupset

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

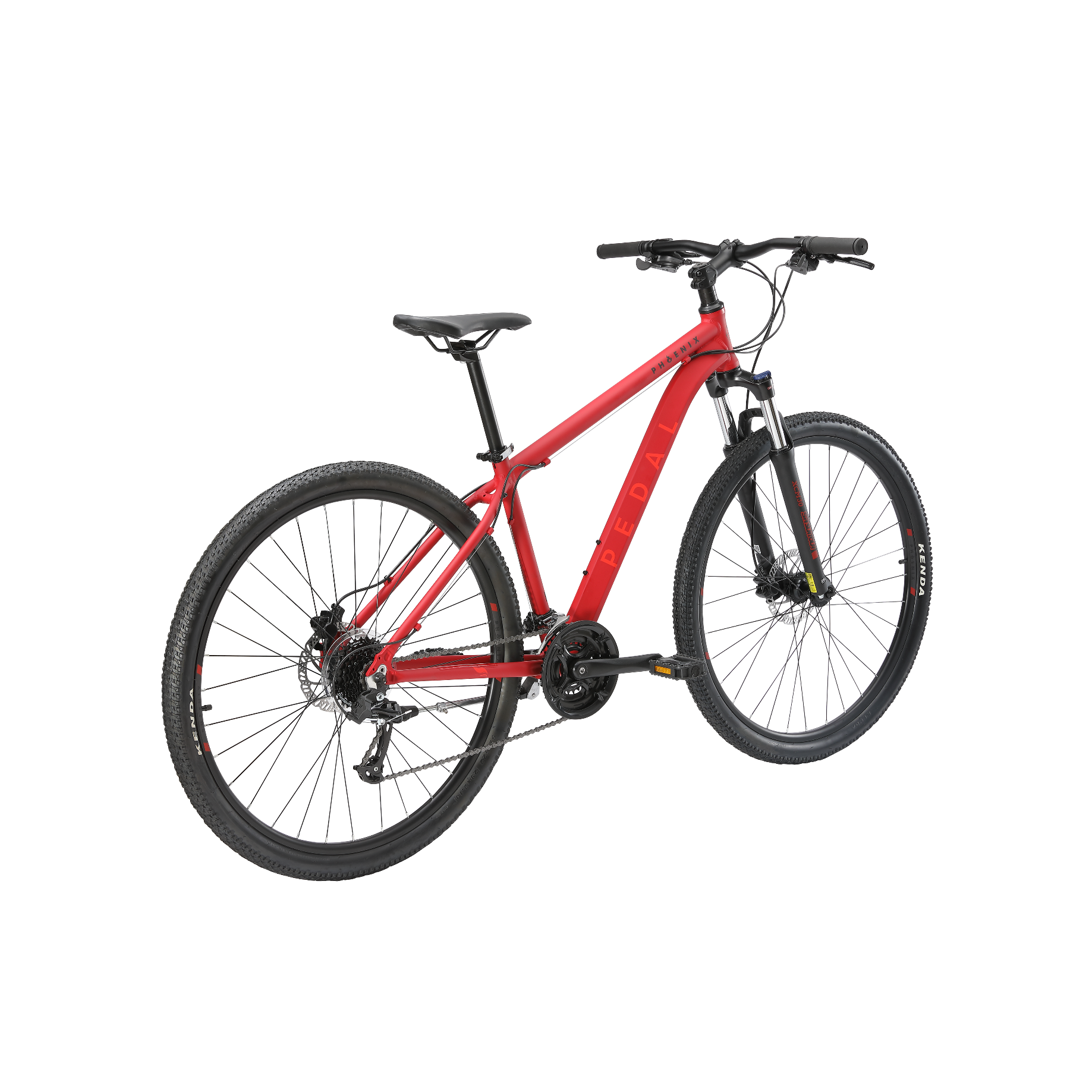

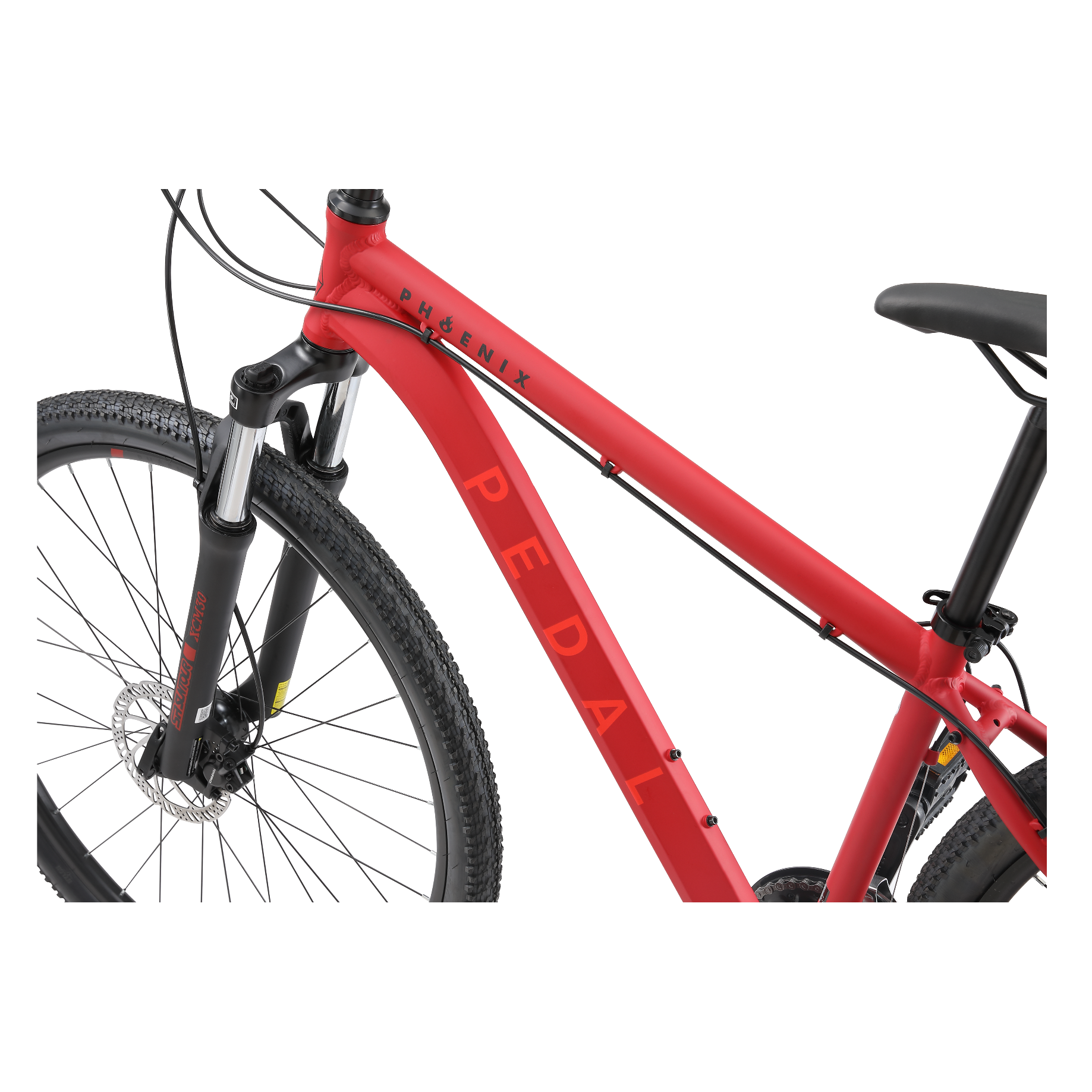

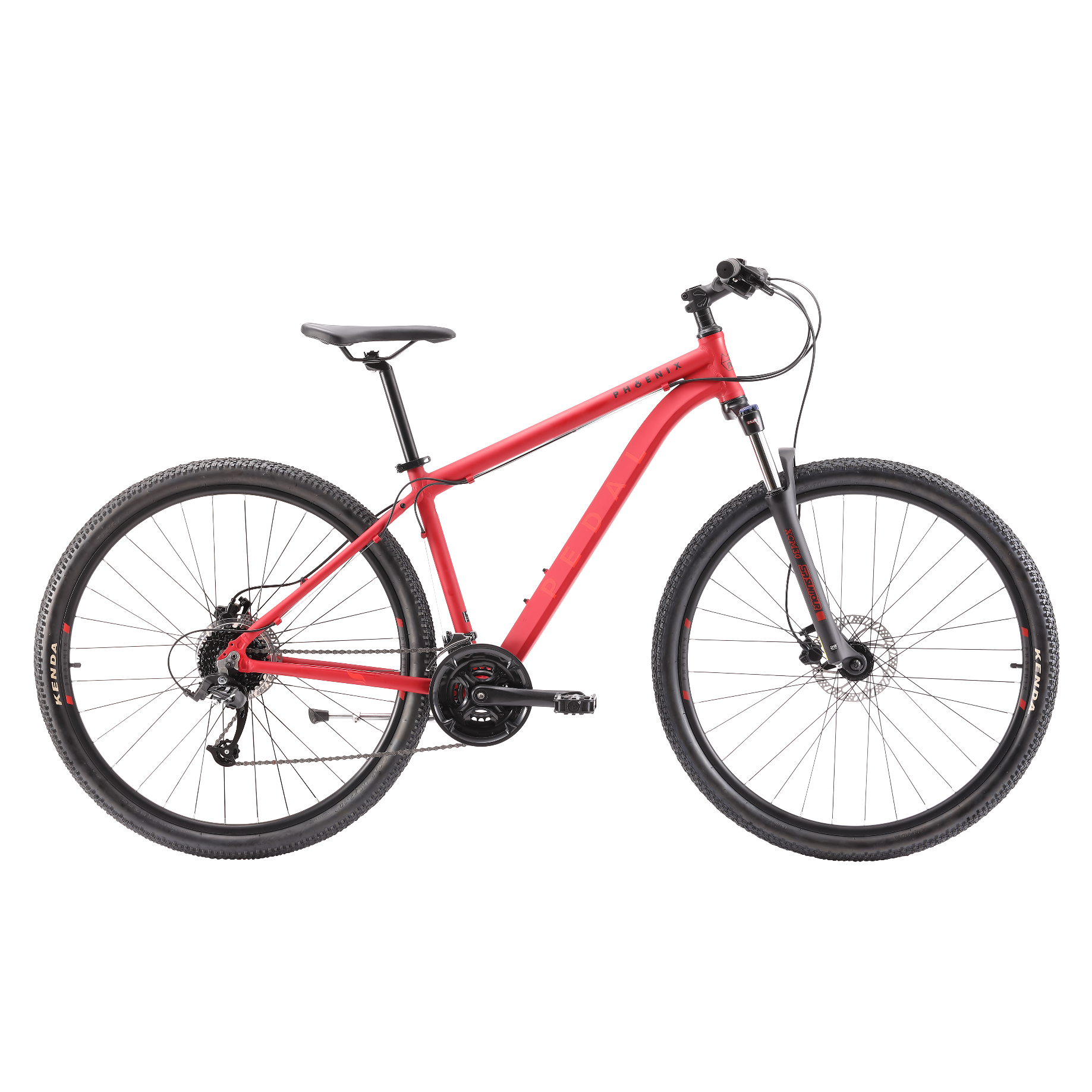

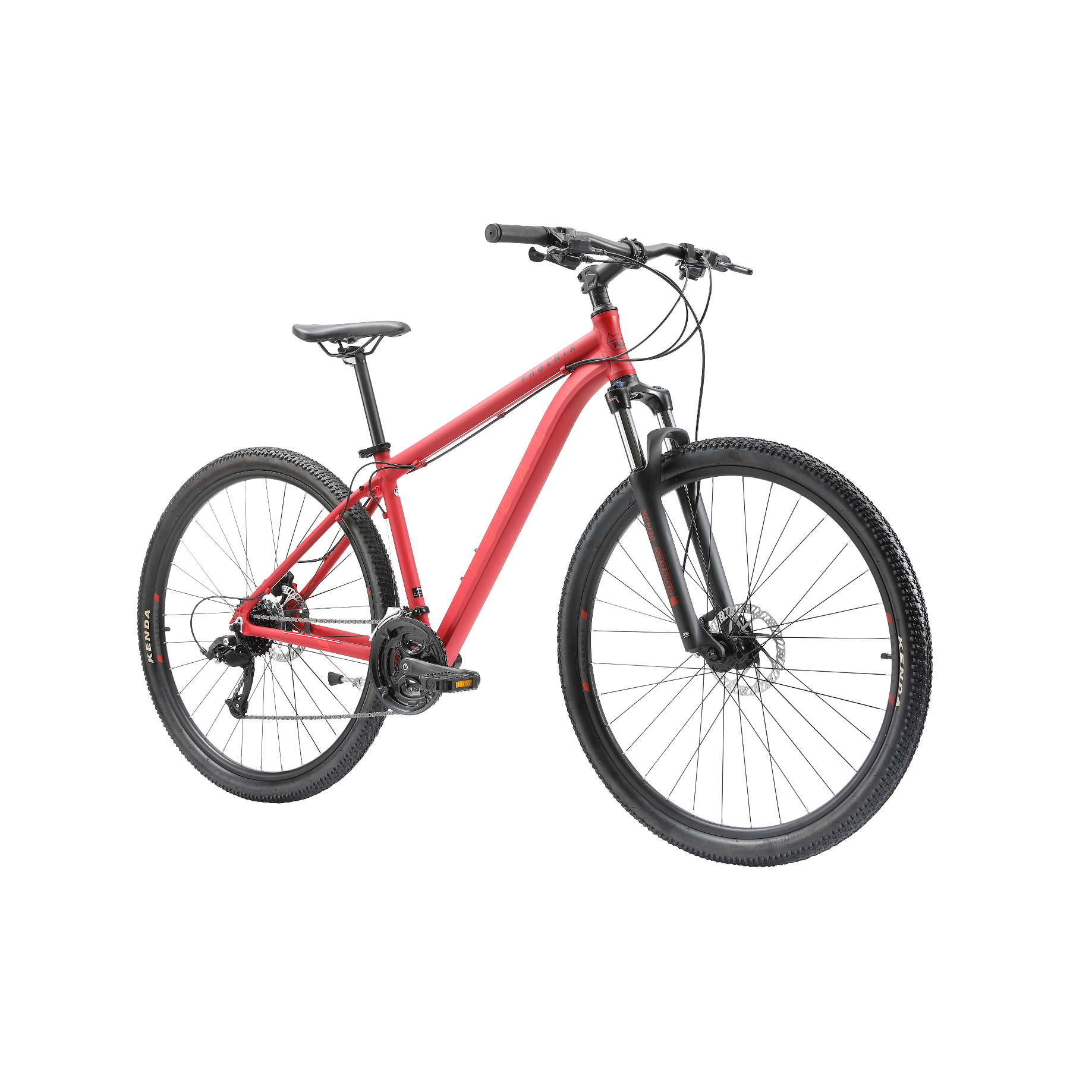

The Pedal Phoenix features a lightweight alloy frame and Suntour XCM30 front suspension with 100mm travel, offering versatility for various surfaces. Its adjustable preload allows customization to your riding style, while the remote mechanical lockout and MicroSHIFT Acolyte 3 x 8-speed drivetrain enhance climbing efficiency and downhill performance. Equipped with Tektro M275 hydraulic disc brakes, 160mm rotors, and resin pads, it ensures control across all conditions. The 29" double-walled alloy rims improve handling, and the wide tyres provide excellent grip and fast rolling on mixed surfaces. Ideal for amateur trail riders, it offers quality and performance at an attractive price.

Specifications

Product Overview

Product

Pedal Phoenix Mountain Bike Red

Brand

Pedal

Parent SKU

PedalPhoenixRed

Size SKUs

MD: PDRDPHXRD17
LG: PDRDPHXRD19
XL: PDRDPHXRD21

Matrix Barcodes

MD: 9356844000821
LG: 9356844000838
XL: 9356844001194

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Front Travel

100mm

Weight Limit

100kg (excludes bike)

Build

Frame

Alloy

Fork

29" ALLOY BLK CROWN, ED STANCHIONS, TRAVEL:100MM, PRE-LOAD ADJUST,MECHANICAL LOCK-OUT,WITH RMEOTE LOCKOUT

Handlebars

∮22.2*2.2T*6°*720MM,barbore∮31.8mm

Headset

JINGYE DH-068DE 1-1/8"，∮28.6/44/30，H=23mm,THREADLESS

Grips

L/R:125MM CLOSE END

Stem

90 x 41 x 7°

Bottom Bracket

1.37"*24T,BEARING

Pedals

9/16" W/BALL W/AS REFLECTOR

Saddle

BLACK COVER, ED RAIL AND CLAMP

Seat Post

∮31.6*350*1.4T,W/O CLAMP

Seat Clamp

34.9MM CLAMP W/QUICK RELEASE

Accessories

Kickstand

Wheels

Wheel Size

29"

Rims

32h Double Wall Alloy Pinned

Hubs

Front: M9*100W*108L*14G*36H,W/QR, WITH 6 HOLE DISC,W/O LOGO, Rear: M10*135W*146L*14G*36Hole,8SPD CASSETTE,W/QR WITH 6 HOLE DISC,W/O LOGO

Tyres

29 x 2.10"

Spokes

14G*288MM

Groupset

Crankset

170mm Steel Crank, 3 Ring Crankset

Chain

KMC 1/2"*11/128"*112L

Brakes

Tektro HD-M275

Front Rotor

Shimano B01S Resin

Rear Rotor

Shimano B01S Resin

Shifters

Left: SHIFT LEVER, 8-SPEED, W/ OPTICAL GEAR DISPLAY; R: SHIFT LEVER, 3-SPEED, W/ OPTICAL GEAR DISPLAY

Front Derailleur

MICROshift Mezzo

Rear Derailleur

MICROshift Acolyte 8 Speed

Cassette

8 Speed
