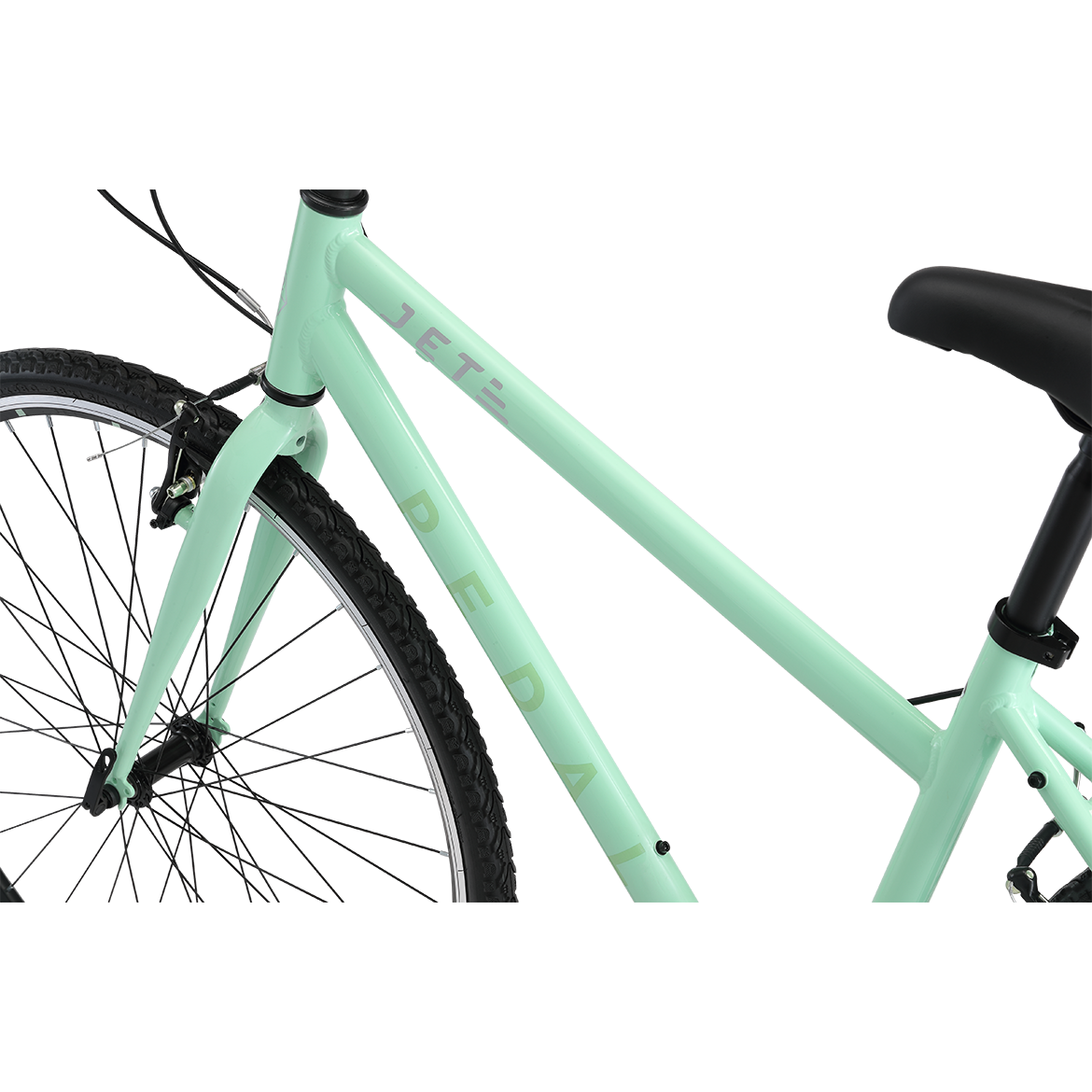

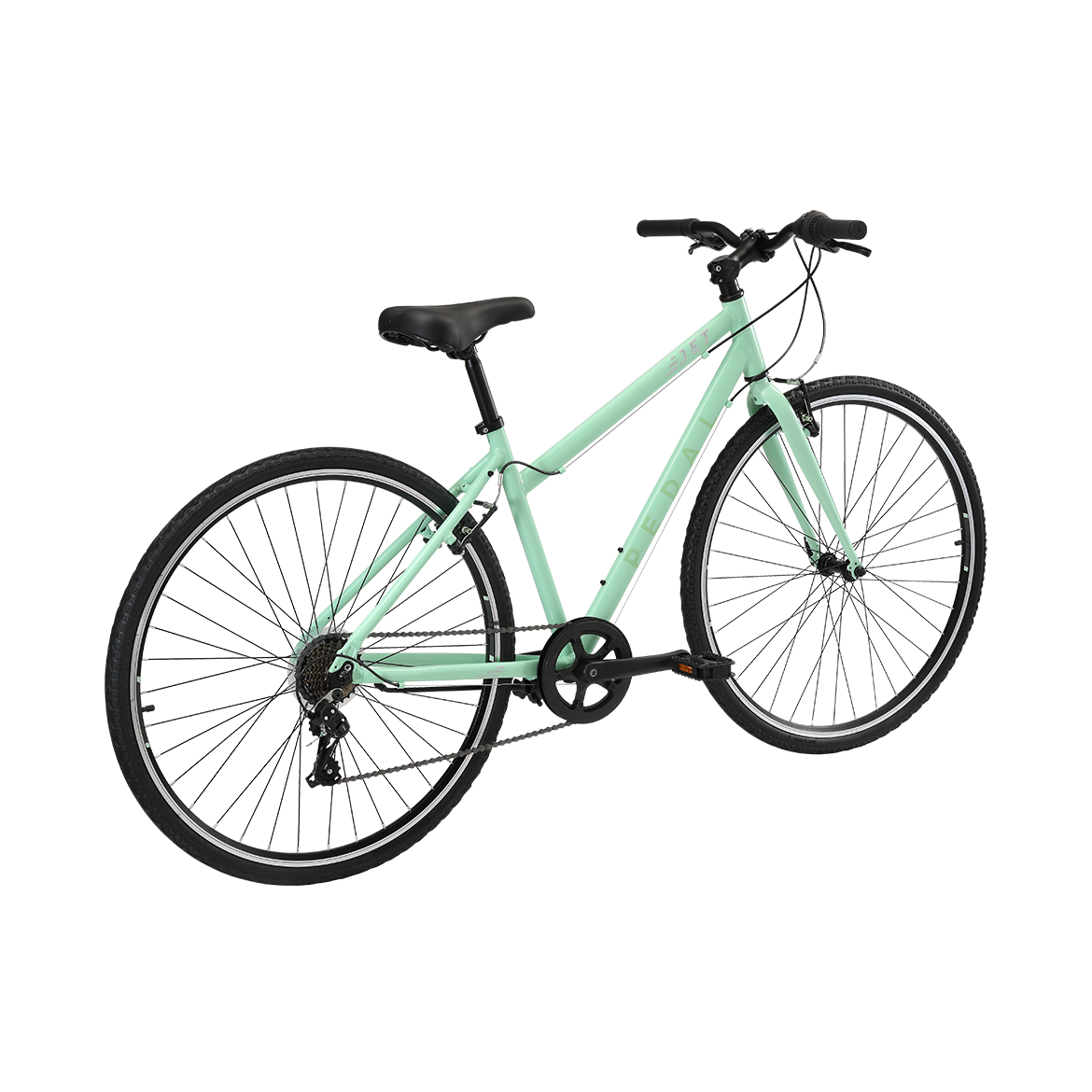

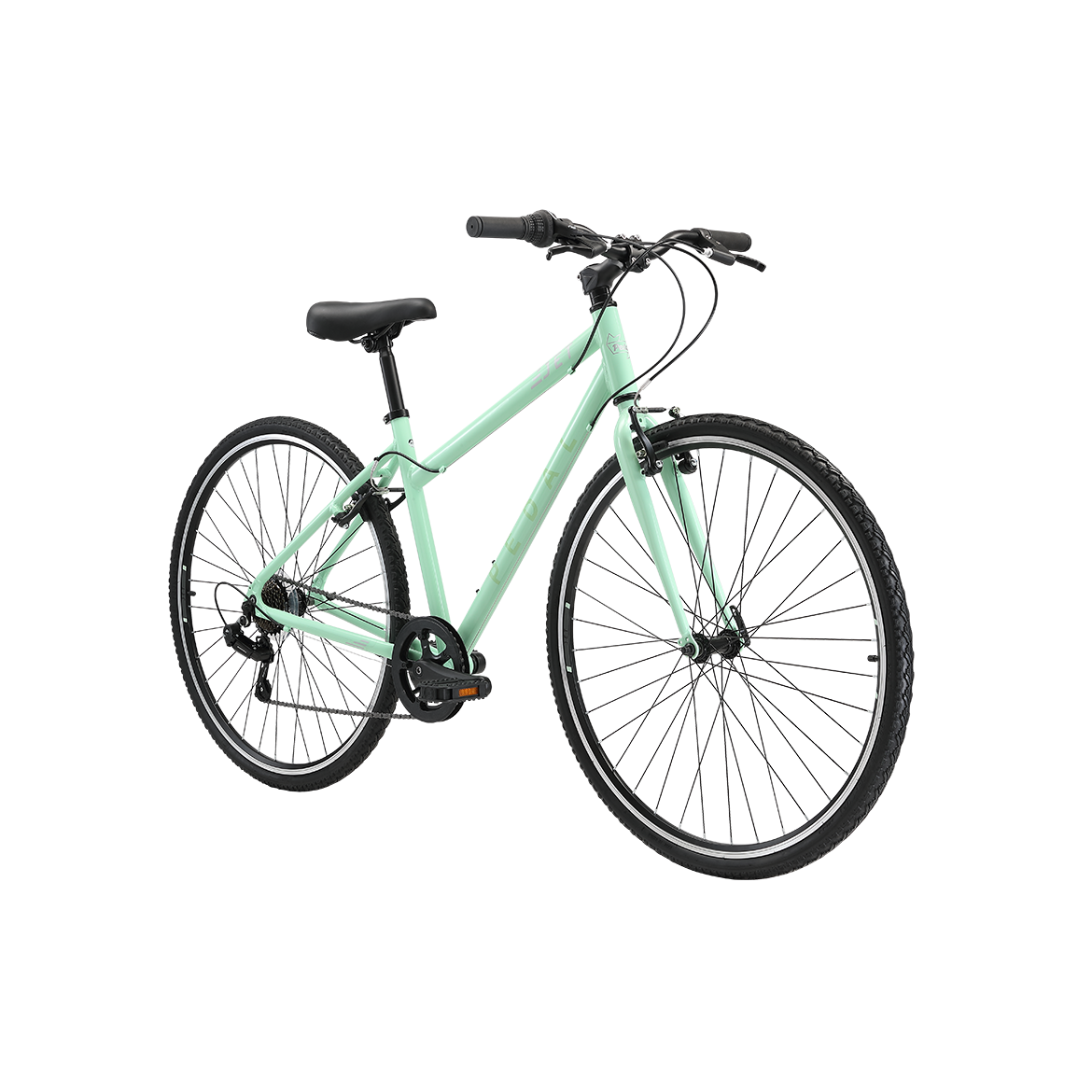

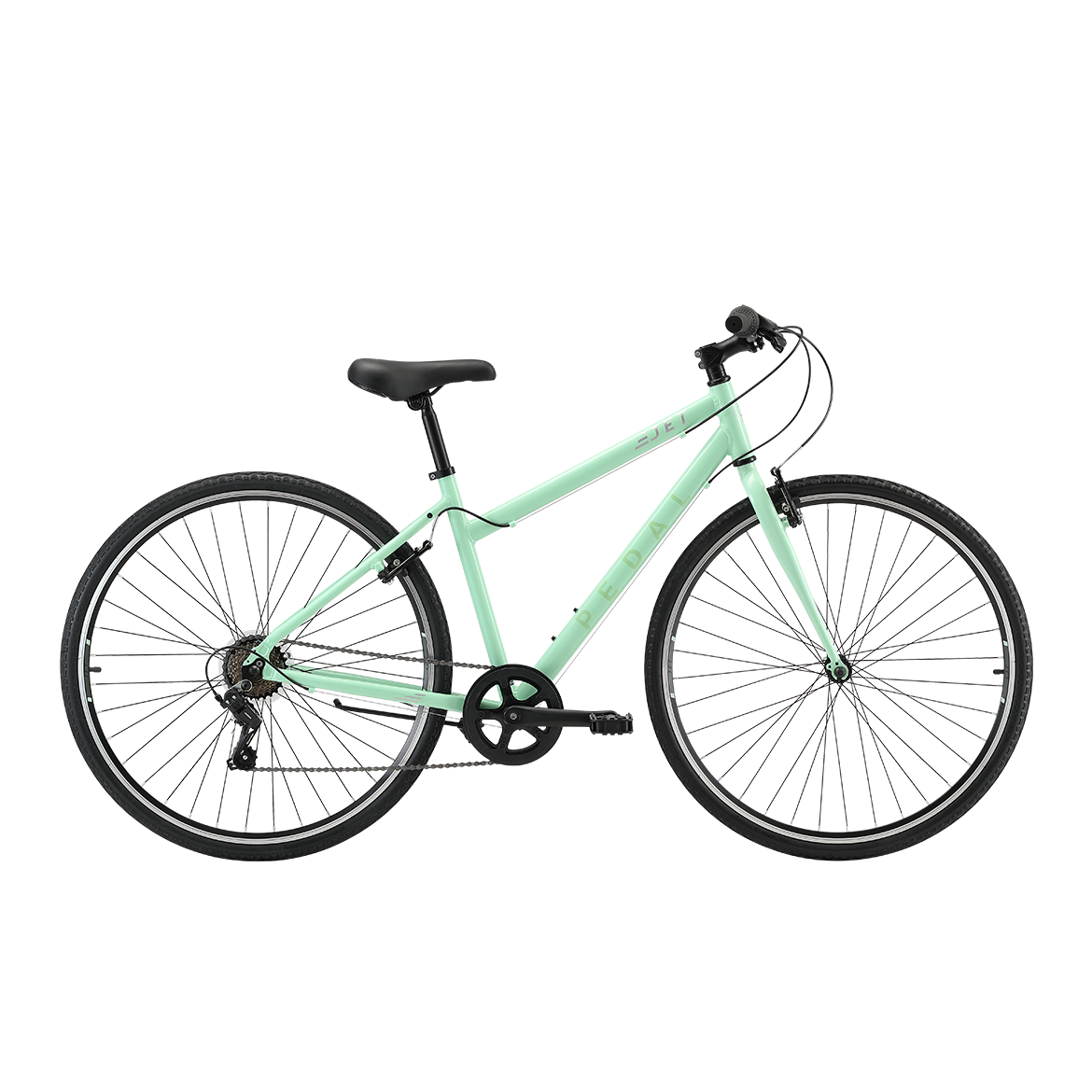

Pedal Jet 2 Trapeze Flat Bar Road Bike Mint

Pedal Jet 2 Trapeze Flat Bar Road Bike Mint

Brand: Pedal

SKU: Select a size

Size: Select a size

WXS SM MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Steel Fork

Trapeze Style Frame

700c Wheel Size

Rim Brake

Shimano Tourney Groupset

1 x 7 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Pedal Jet 2 is designed for recreational riding around town and on local bike paths. It features a lightweight alloy frame for easy control and uphill riding. The upright geometry ensures a comfortable position with a wide field of view and smooth handling. Its rigid fork is perfect for fast, efficient riding on footpaths. The Shimano 7-speed shifting provides a wide range of gears for tackling hilly terrain. Equipped with V-brakes, it offers excellent stopping power. The bike is completed with double wall rims and 700x35c tires, balancing grip and speed. Ideal for commuting, fitness, or casual rides with friends.

Specifications

Product Overview

Product

Pedal Jet 2 Trapeze Flat Bar Road Bike Mint

Brand

Pedal

Parent SKU

PedalJet2TrapezeMint

Size SKUs

WXS: PDRDJT21V245
WSM: PDRDJT21V248
WMD: PDRDJT21V251

Matrix Barcodes

SM: PDRDJT21V245
MD: PDRDJT21V248
LG: PDRDJT21V251

Year Model

2023

Product Features

Frame Material

Alloy

Frame Style

Trapeze

Colour

Green

Wheel Size

700c

Brake Type

Rim Brake

Gears

1 x 7

Fork Material

Steel

Weight Limit

100kg (excludes bike)

Build

Frame

Alloy

Fork

700C, RIGID, D TYPE TUBE TAPPER, STEEL

Handlebars

600mm*10° BAR BORE: 31.8MM R:20MM

Headset

1-1/8", AHEAD TYPE

Grips

L/R:125MM CLOSED END

Stem

28.6*31.8*90MM*7°, A-HEAD TYPE

Pedals

9/16 W/BALL , AS REFLECTOR,WITH R/L STICKER

Saddle

BLK COVER, ED RAIL & CLAMP W/O PRINTING

Seat Post

27.2*300MM

Wheels

Wheel Size

700c

Rims

700C*36H DOUBLE WALL

Hubs

F: M9*100*108*36H, QUICK RELEASE | R: M10*135*146*36H,QUICK RELEASE

Tyres

700C*35C A/V

Groupset

Crankset

Shangmeng 170mm Alloy

Chain

KMC HP-6L

Brakes

MINI V BRAKE ARM:90MM W/55MM BRAKE SHOES

Shifters

SHIFT LEVER, SHIFTER 2050MM

Rear Derailleur

Tourney 6/7 Speed

Cassette

7 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Pedal Jet 2 Trapeze Flat Bar Road Bike Mint we suggest the following size.

More relaxed More aggressive

WXS

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Pedal Jet 2 Trapeze Flat Bar Road Bike Mint geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
