Norco XFR 1 Hybrid Bike Brown/Copper (2021)

Norco XFR 1 Hybrid Bike Brown/Copper (2021)

Brand: Norco

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Norco XFR 1 Hybrid Bike is designed for everyday adventures, from commuting to light off-road trails. It features a Suntour XCT30 Suspension Fork with 80mm travel and lockout for handling bumps, and fast-rolling multi-terrain tires for a smooth ride. The upright geometry X6 aluminum frame enhances comfort and stability while remaining lightweight and easy to control. SKU: 21NorcoFR1BrownCopper.

Specifications

Product Overview

Product

Norco XFR 1 Hybrid Bike Brown/Copper (2021)

Brand

Norco

Parent SKU

21NorcoFR1BrownCopper

Size SKUs

MD: NOHB2100111825
LG: NOHB2100111826

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

under 100mm

Weight Limit

150kg (includes bike)

Build

Frame

Alloy

Fork

SR Suntour XCT30, 80mm, Lockout

Handlebars

Aluminum, 660mm (XS), 680mm (S, M) 700mm (L, XL), 25mm Rise

Grips

Norco

Stem

Aluminum, 60mm Reach, 31.8mm Clamp

Bottom Bracket

Cartridge Bearing, BSA Threaded

Pedals

City, Black

Saddle

Norco Sport

Seat Post

Aluminum, 27.2mm

Wheels

Wheel Size

700c

Rims

WTB SX19 Double Wall, 29", 32H

Hubs

Alloy, Weather Sealed, 9x100mm, 6-bolt

Tyres

Kenda 700x50c Fast Rolling

Spokes

Black Stainless

Groupset

Crankset

Forged Aluminum, 38T, 170mm (XS, S, M), 175mm (L, XL)

Chain

KMC X10

Brakes

Tektro HD-M275 Hydraulic Disc

Shifters

Shimano Deore

Front Derailleur

Rear Derailleur

Shimano Deore, Clutch

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco XFR 1 Hybrid Bike Brown/Copper (2021) we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Versatile Components

Multi-terrain tyres roll quickly on pavement and maintain traction on loose surfaces. The Shimano Deore drivetrain provides a wide gear range, while disc brakes deliver excellent stopping power and control in any weather.

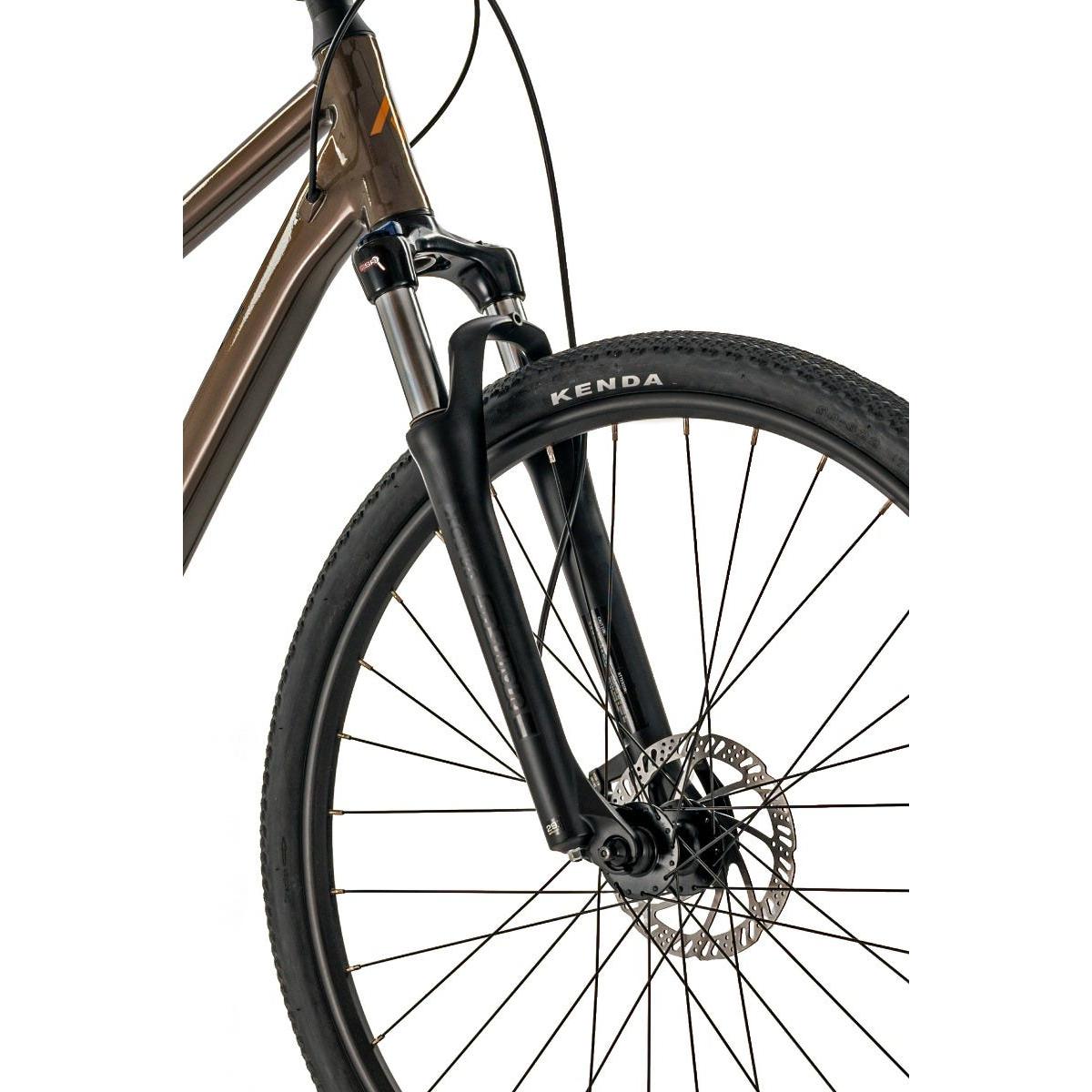

Suspension Fork

80mm of bump-eating travel smooths out choppy pathways for a more comfortable and safer ride.

Comfort Geometry

An upright riding position keeps your head up allowing you to scan traffic, as well as allowing for an upright pedalling position that is efficient and comfortable. A generous wheelbase gives the bike a confident, stable feeling ride.

Riders Height (cm)

Norco XFR 1 Hybrid Bike Brown/Copper (2021) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

648

662

Reach

405

430

Top Tube Length

591

620

Seat Tube Length

470

510

Seat Tube Angle

74.0

Fork Length

Head Tube Length

140

155

Head Tube Angle

69.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

668

704

Minimum Seat Height

Maximum Seat Height
