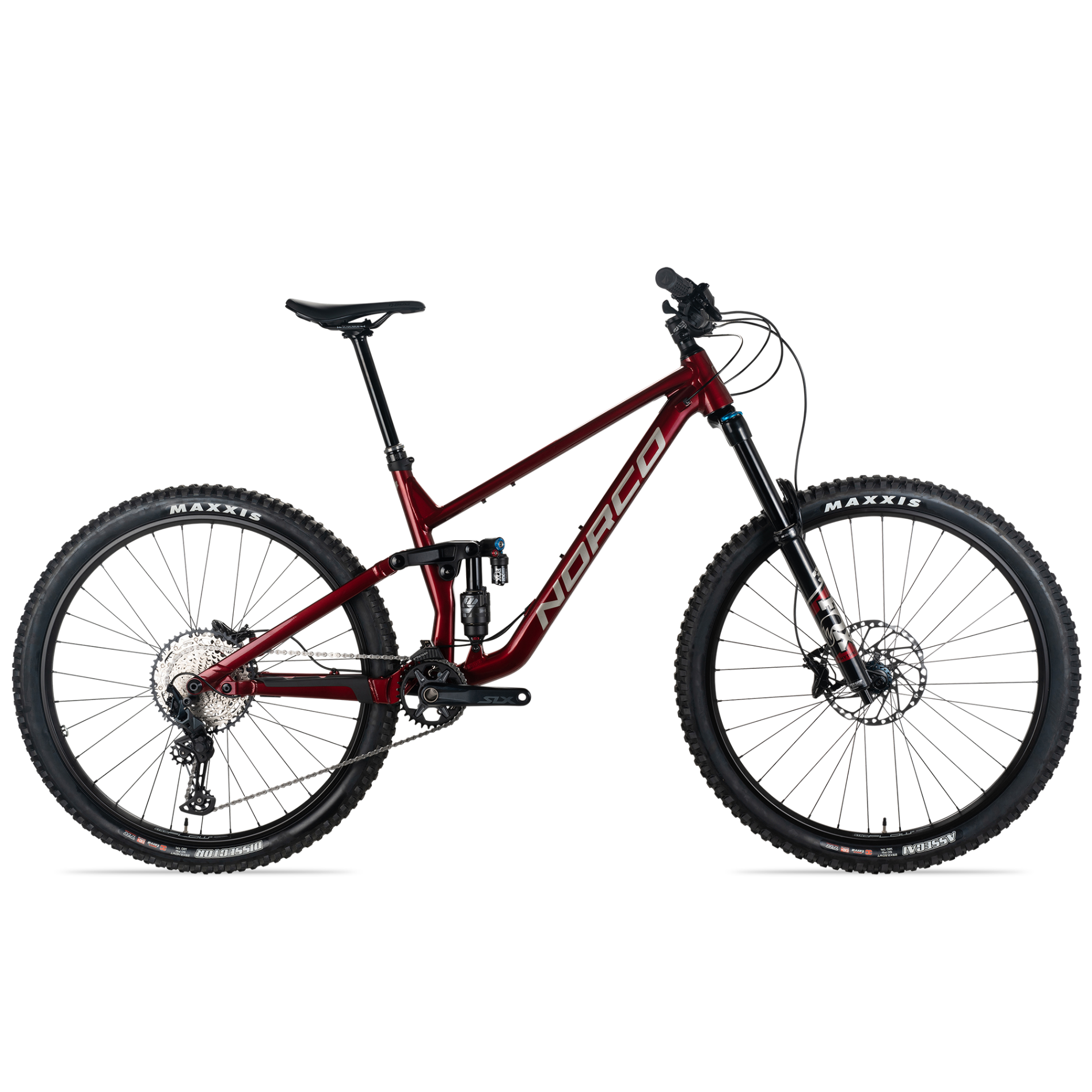

Norco Sight A2 29 Mountain Bike Red/Silver

Norco Sight A2 29 Mountain Bike Red/Silver

Brand: Norco

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Fox Fork

160mm Front Travel / 150mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano SLX Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Norco Sight A2 is designed for all-mountain versatility, offering exceptional grip for both climbing and descending on technical terrain. It comes with either 27.5" or 29" wheels and features a lightweight alloy frame. The bike is equipped with a Fox Float Rhythm 36 Fork (160mm travel) and a Fox Performance Float X2 Rear Shock, providing an advanced suspension system. The Ride Aligned System allows customization to match the bike to each rider for optimal performance.

Specifications

Product Overview

Product

Norco Sight A2 29 Mountain Bike Red/Silver

Brand

Norco

Parent SKU

21NorcoSightA229RedSilver

Size SKUs

MD: NODA2123211925
LG: NODA2123211926
XL: NODA2123211927

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

160mm

Rear Travel

150mm

Weight Limit

138kg (includes bike)

Build

Frame

Alloy

Fork

Fox Float Rhythm 36, 160mm, Sweep Adjust, 37mm Offset (27.5), 42mm (29)

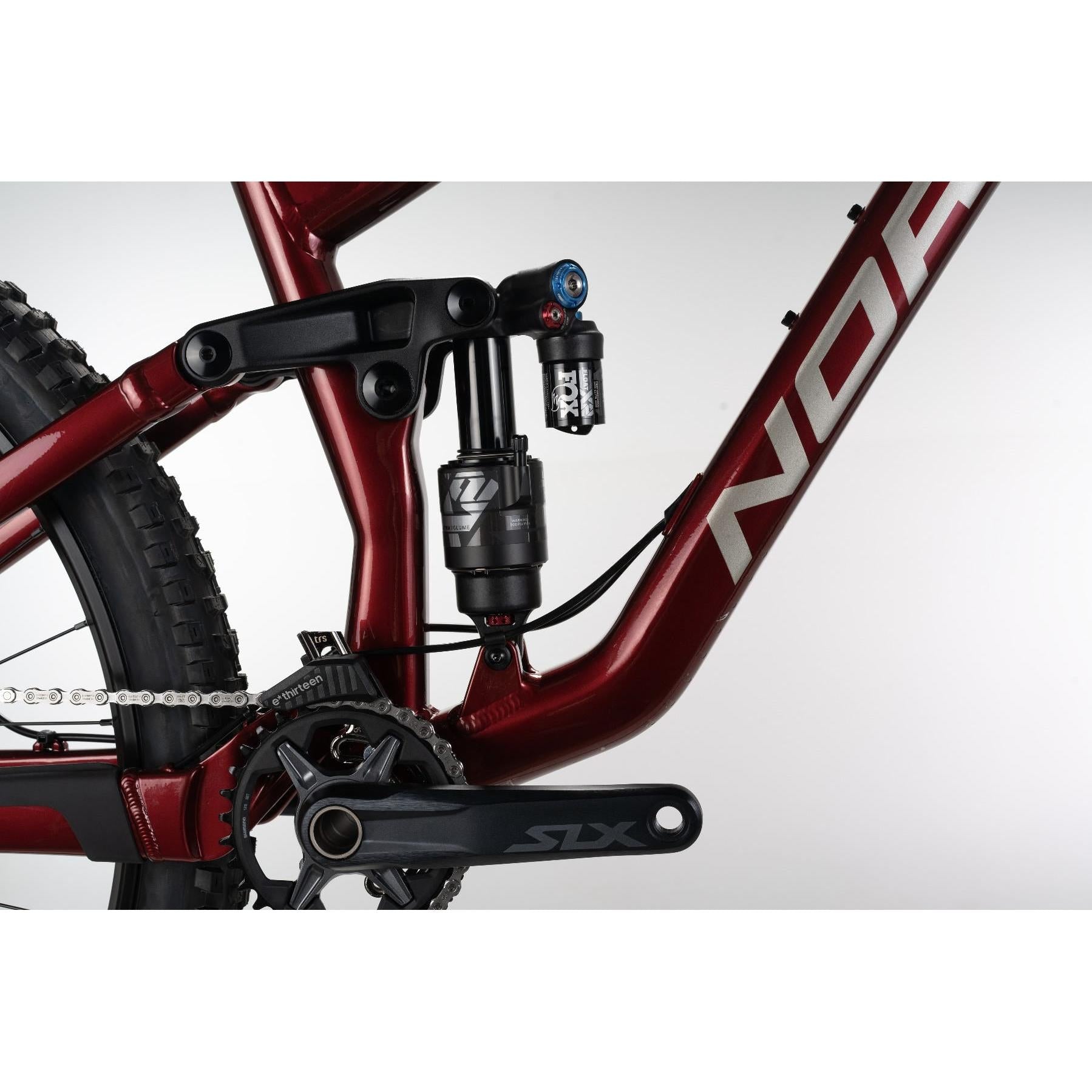

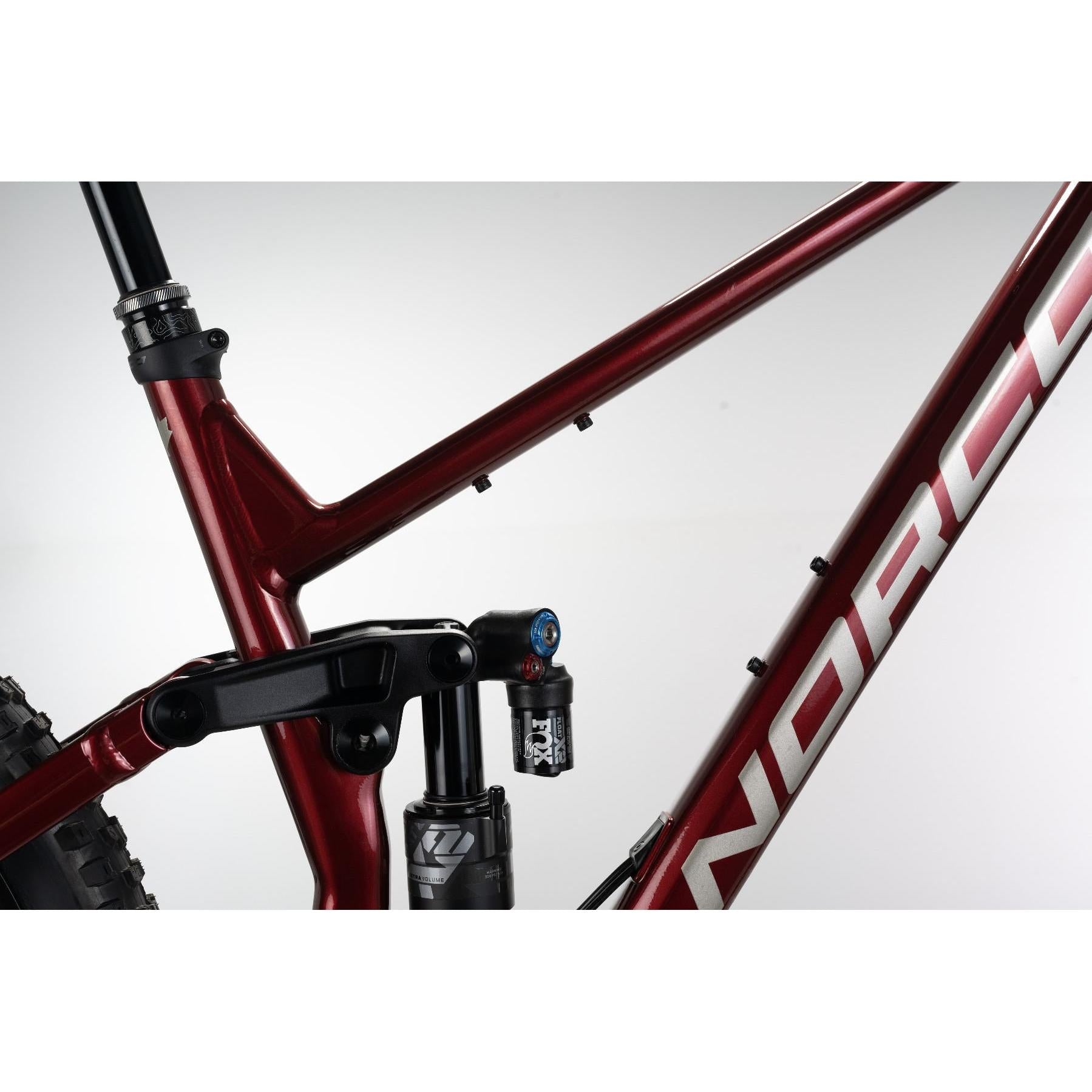

Shock

Fox Performance Float X2 w/LSC LSR, 185x52.5mm, Trunnion

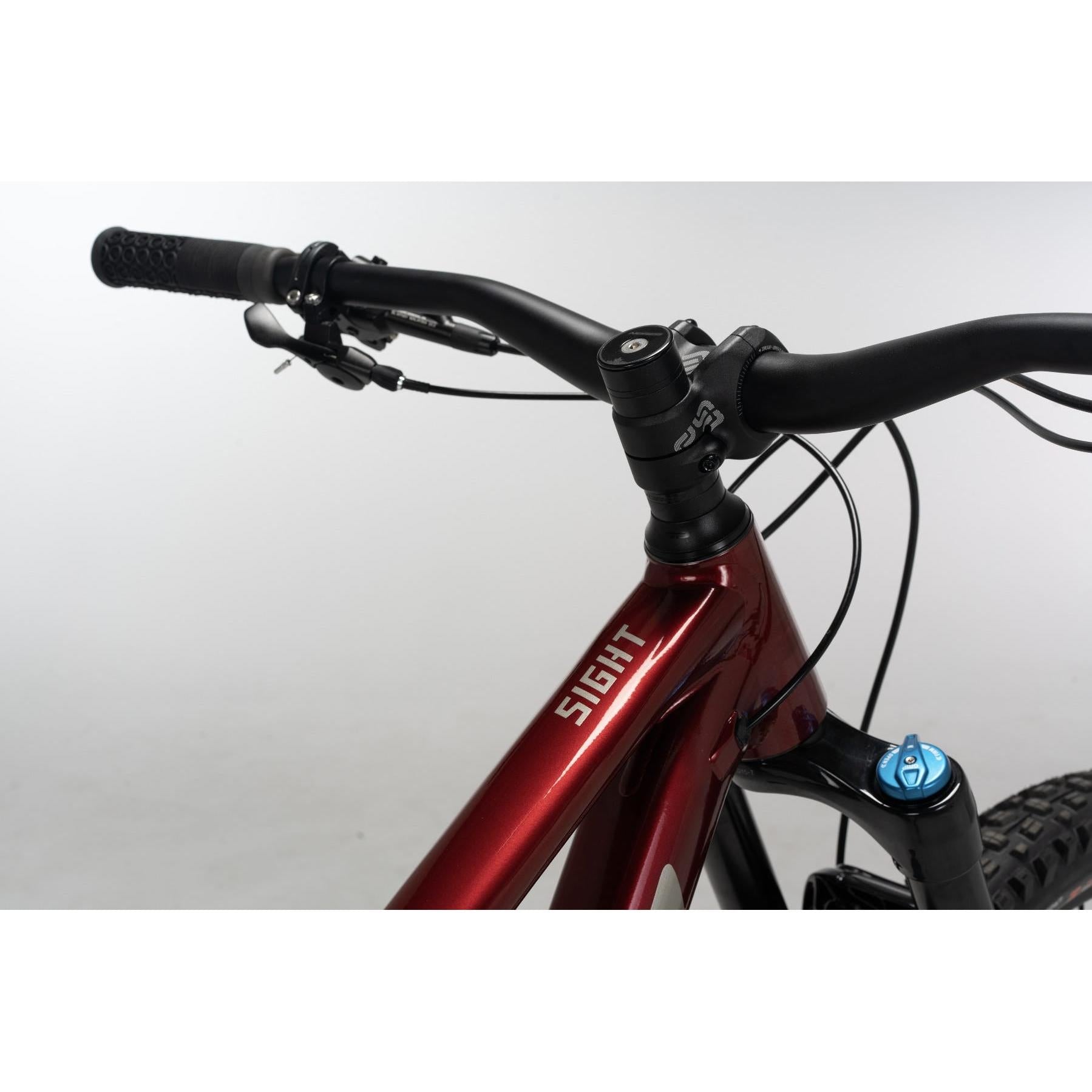

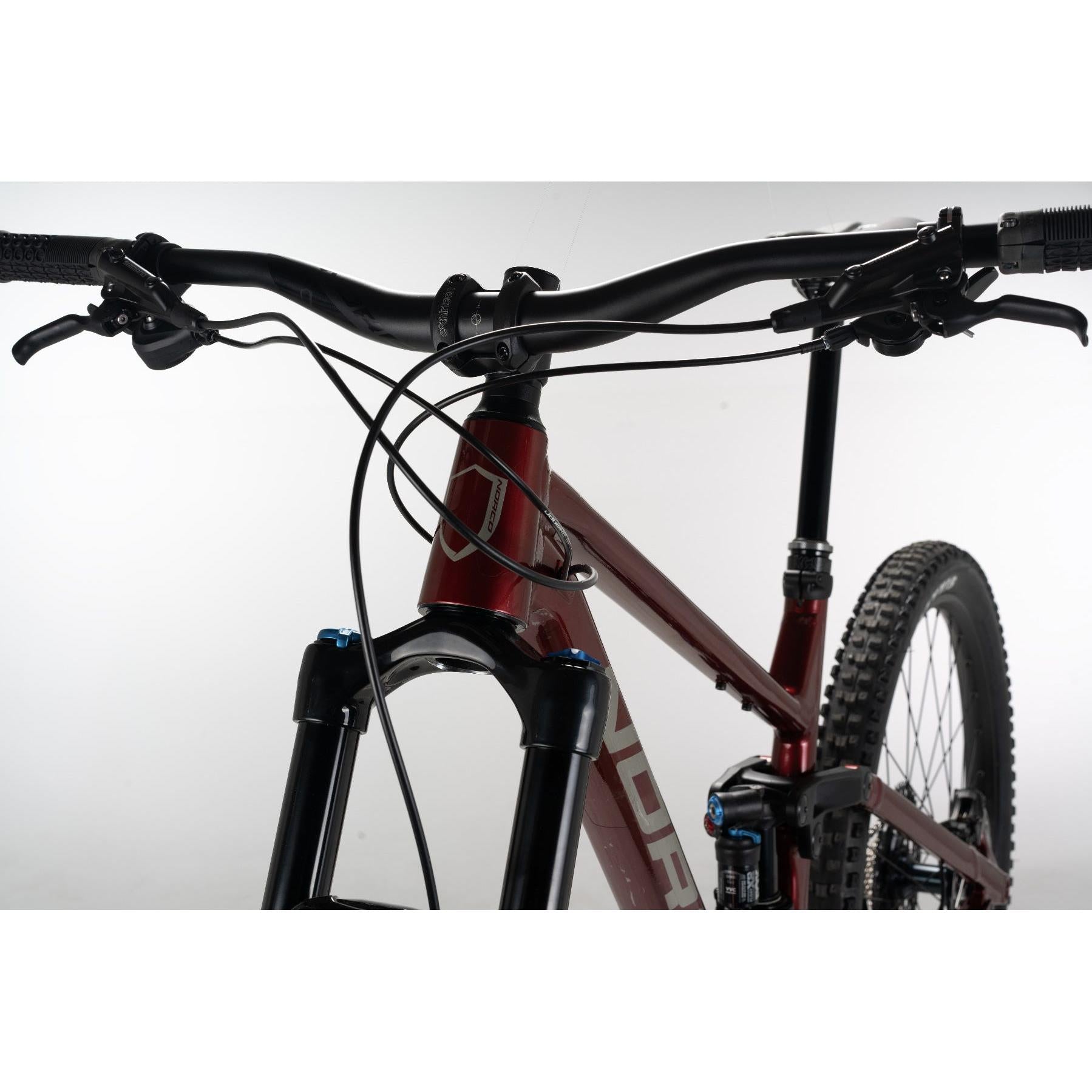

Handlebars

6061 Aluminum, 760mm (S), 780mm (M), 800mm (L, XL), 20mm Rise (S, M), 30mm Rise (L, XL)

Grips

SDG Thrice Lock-On, Thin (S, M), Thick (L, XL)

Stem

e*thirteen Base, 40mm Length, 35mm Clamp

Bottom Bracket

Shimano Sealed Bearing, BSA Threaded

Saddle

SDG Bel Air V3

Seat Post

TranzX YS105 Dropper, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)

Wheels

Wheel Size

29"

Rims

Stans Flow D, 32H

Hubs

Shimano SLX 15x110mm Boost, Center Lock

Tyres

F:Maxxis Assegai 2.5" 3C Maxx Terra, EXO+, TR | R: Maxxis Dissector 2.4" WT 3C Maxx Terra, EXO+, TR

Spokes

Stainless Black

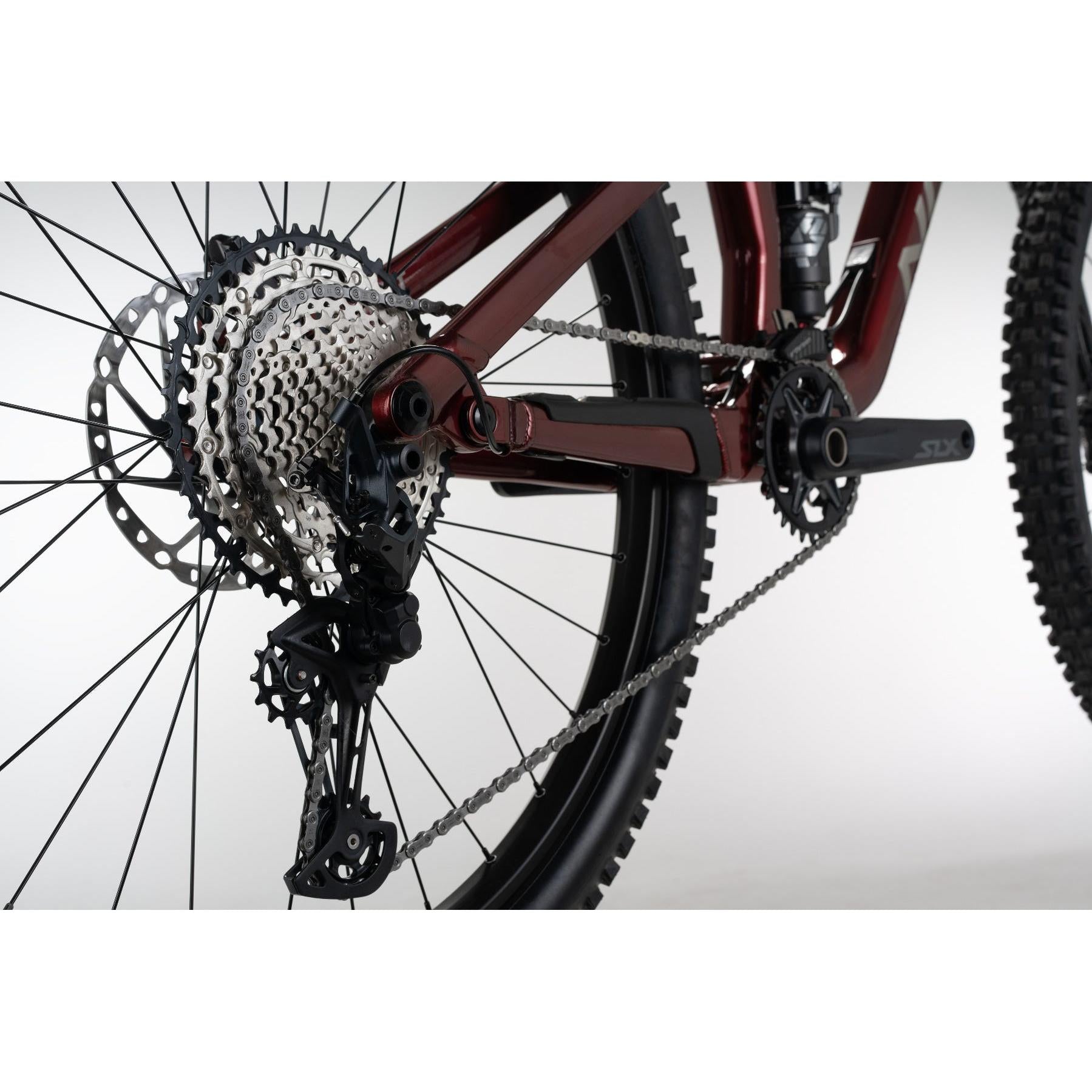

Groupset

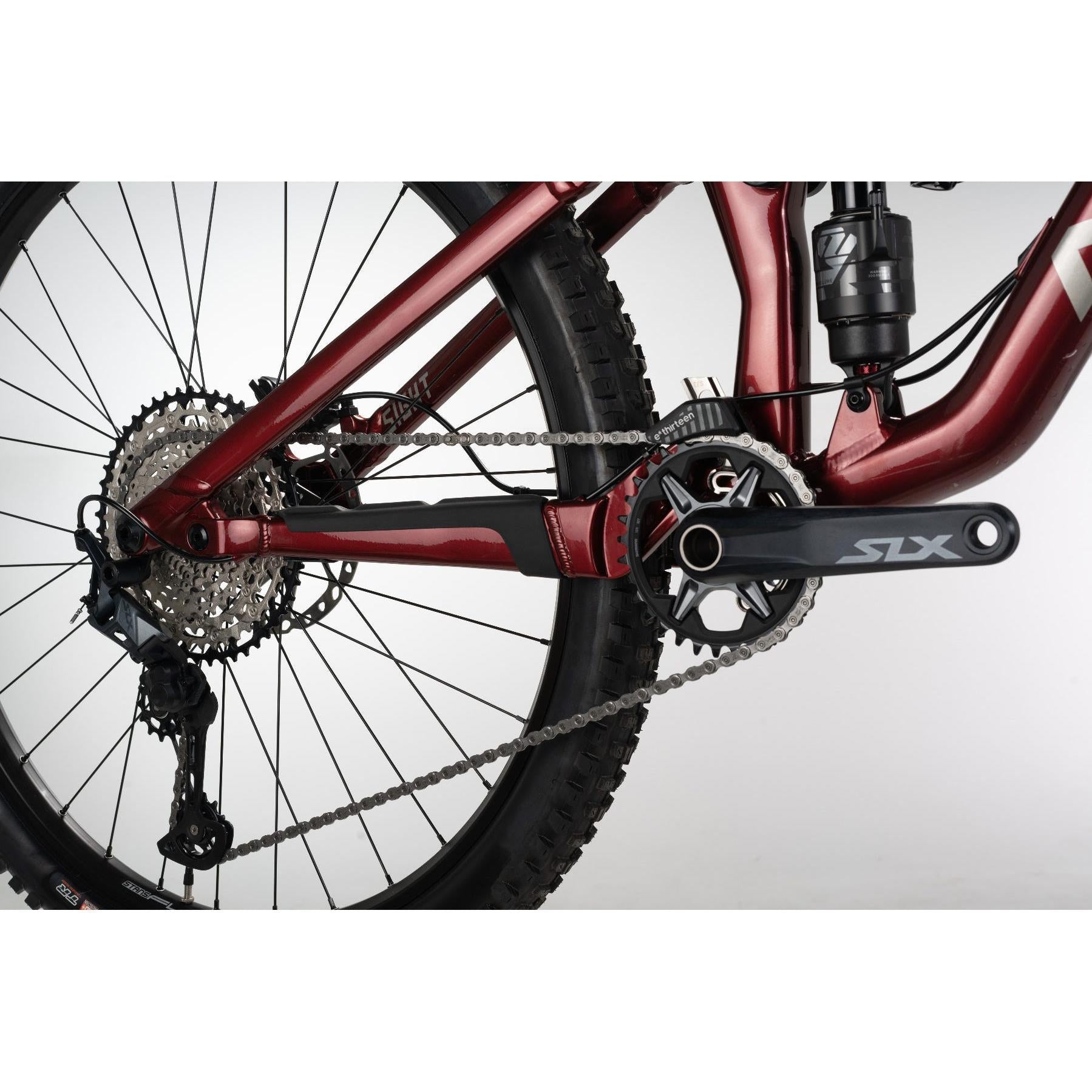

Crankset

Shimano SLX FC-M7100, 34T (27.5), 32T (29), 170mm

Chain

Shimano Deore CN-M6100

Brakes

Shimano BR-MT520, 4 Piston, Metallic Pads

Front Rotor

Shimano RT-64, 200mm

Rear Rotor

Shimano RT-64, 200mm

Shifters

Shimano SLX SL-M7100-R

Rear Derailleur

Shimano SLX RD-M7100

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Sight A2 29 Mountain Bike Red/Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

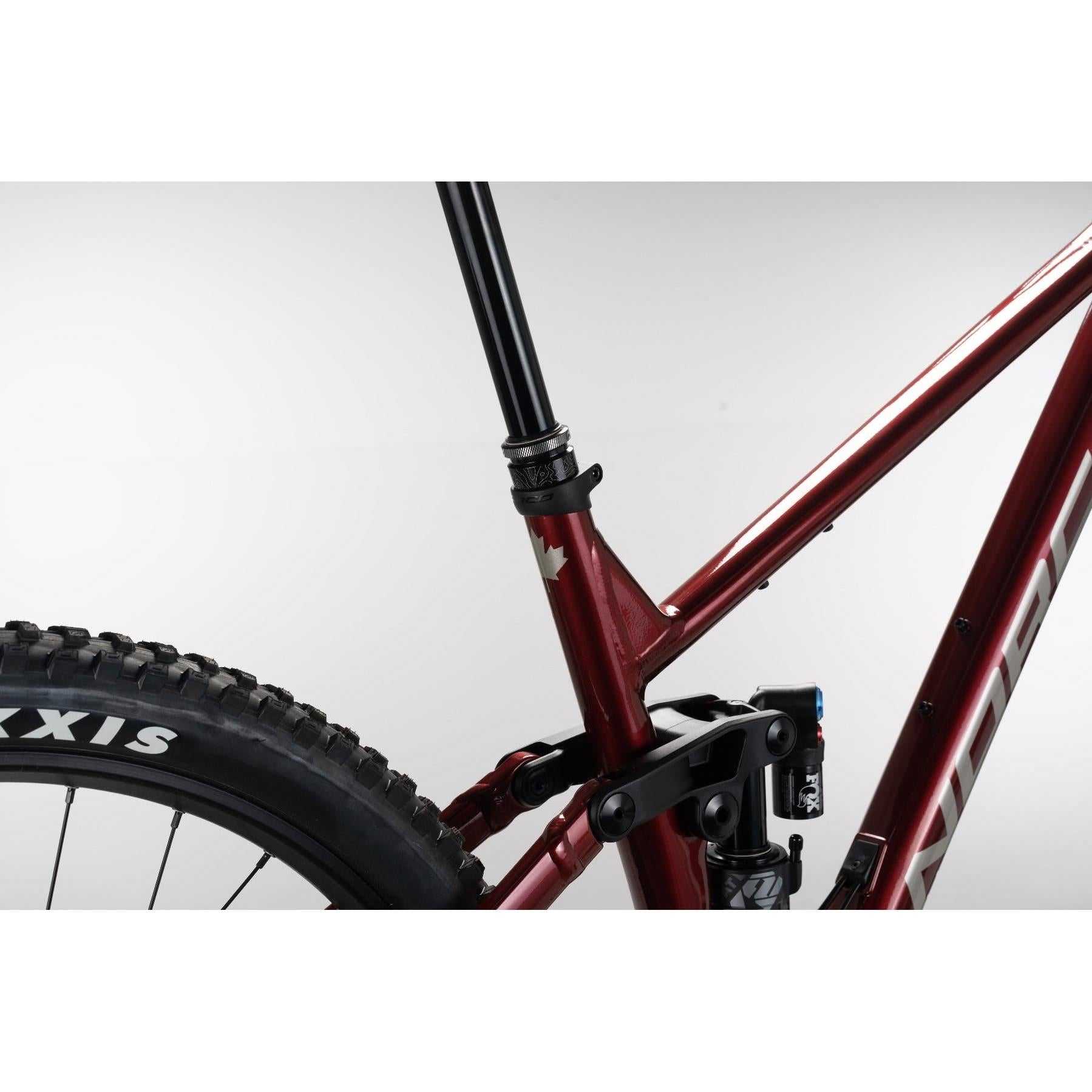

Long Travel Dropper Posts

Every Sight features a short seat tube for maximum standover clearance" allowing size-specific" long-travel dropper posts to get seats completely out of the way in the rough stuff.

Precise Suspension

The suspension components are matched to our precisely-engineered Ride Aligned kinematics to produce 150mm of travel down back and 160mm up front. Combined with the Ride Aligned Bike Setup Guide" the Sight's suspension is easy to dial-in for every rider.

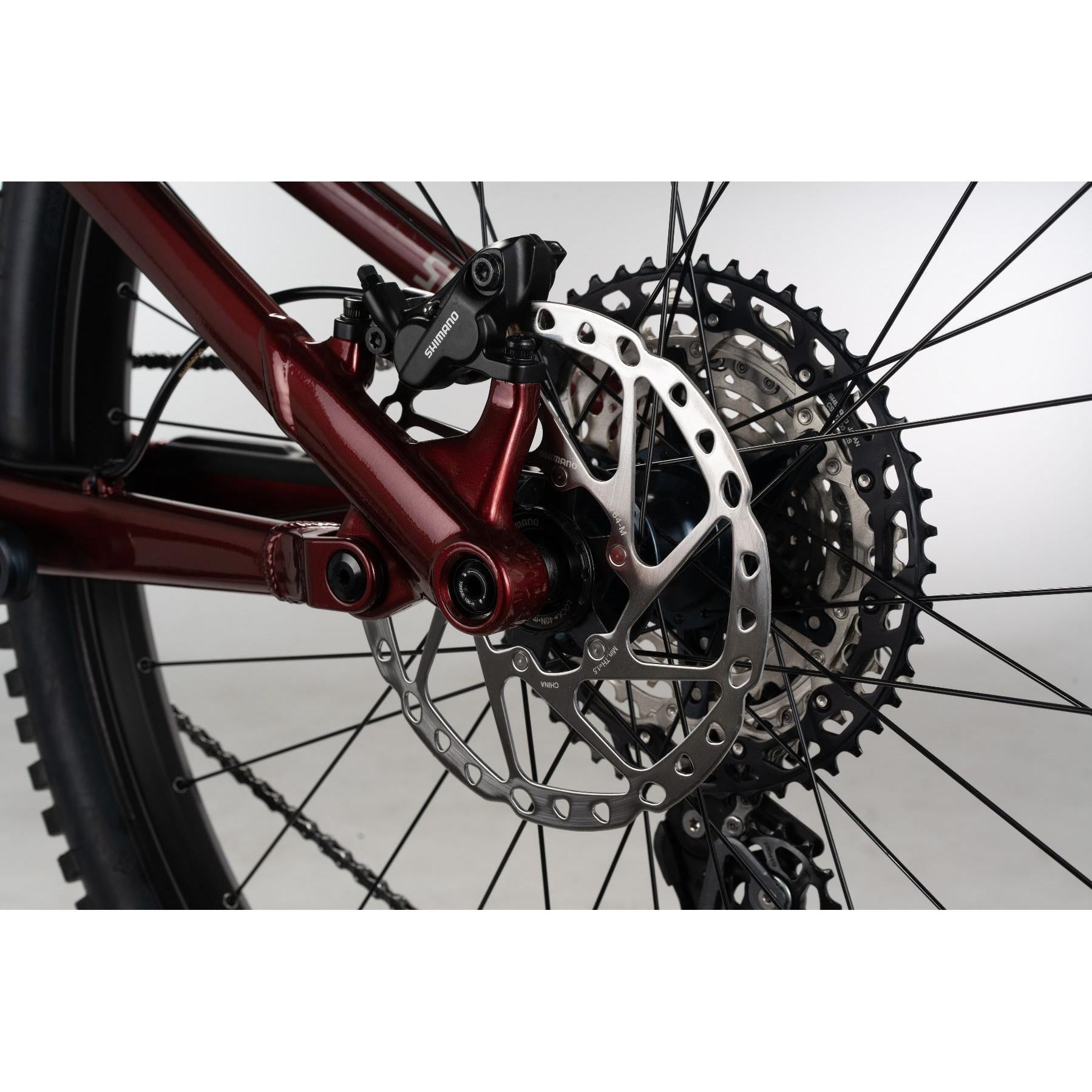

Stopping Power

We equipped every Sight with 4-piston hydraulic disc brakes and 200/180mm rotors to give you the speed-control you need to hit the perfect line on every ride and pull you back when the ruckus gets a little out of hand.

Riders Height (cm)

Norco Sight A2 29 Mountain Bike Red/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

612

621

630

Reach

455

485

515

Top Tube Length

593

621

649

Seat Tube Length

395

435

465

Seat Tube Angle

77.3

77.7

78.0

Fork Length

Head Tube Length

100

110

120

Head Tube Angle

64.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

690

698

712

Minimum Seat Height

Maximum Seat Height
