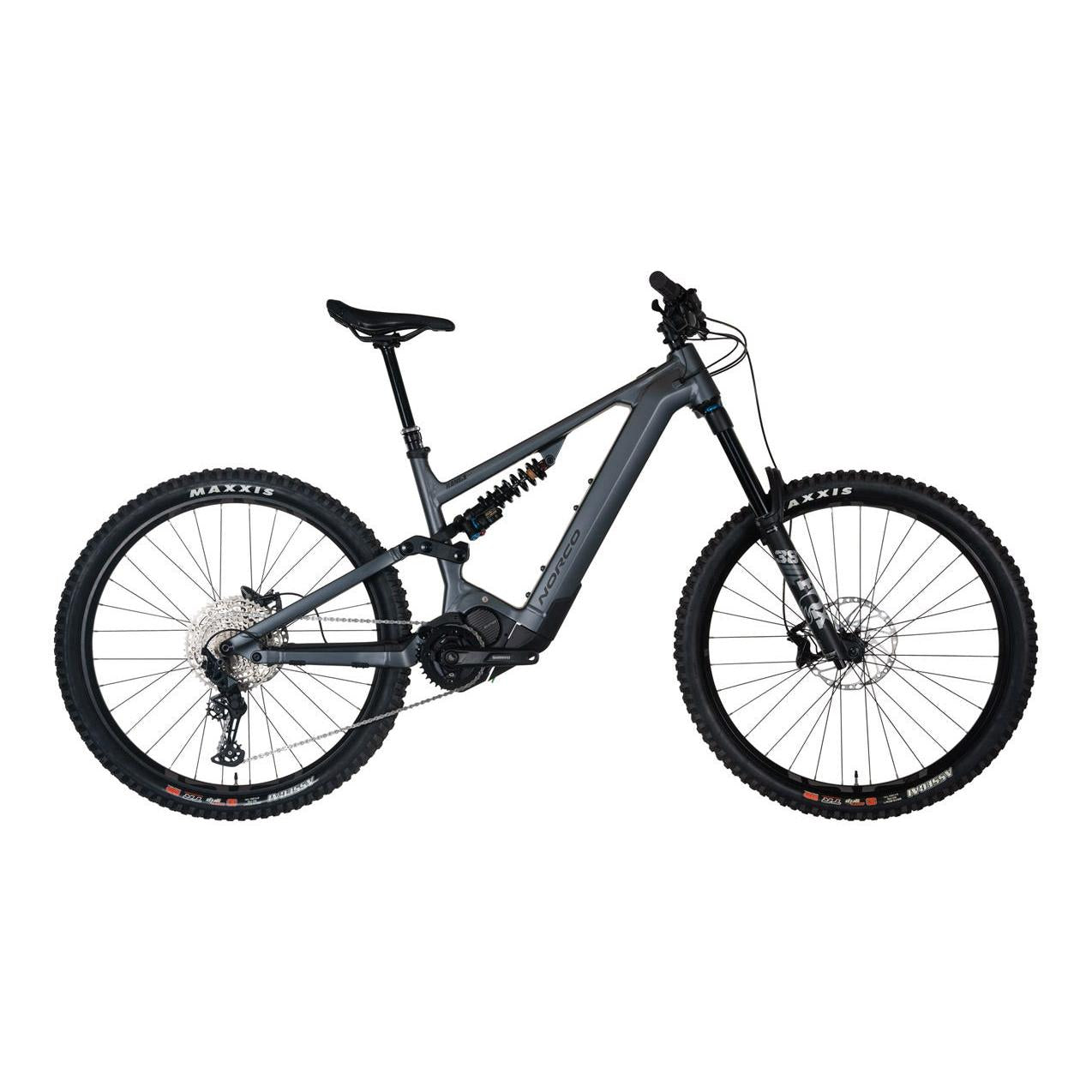

Norco Range VLT A1 Electric Mountain Bike - Battery Sold Separately

Norco Range VLT A1 Electric Mountain Bike - Battery Sold Separately

Brand: Norco

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,499.00 Full price

$5,499.00

Club price

$8,699.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Shimano STePS EP8 Motor

Alloy Frame/ Fox Fork

180mm Front Travel / 170mm Rear

29" Wheel Size

Hydraulic Disc Brake

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

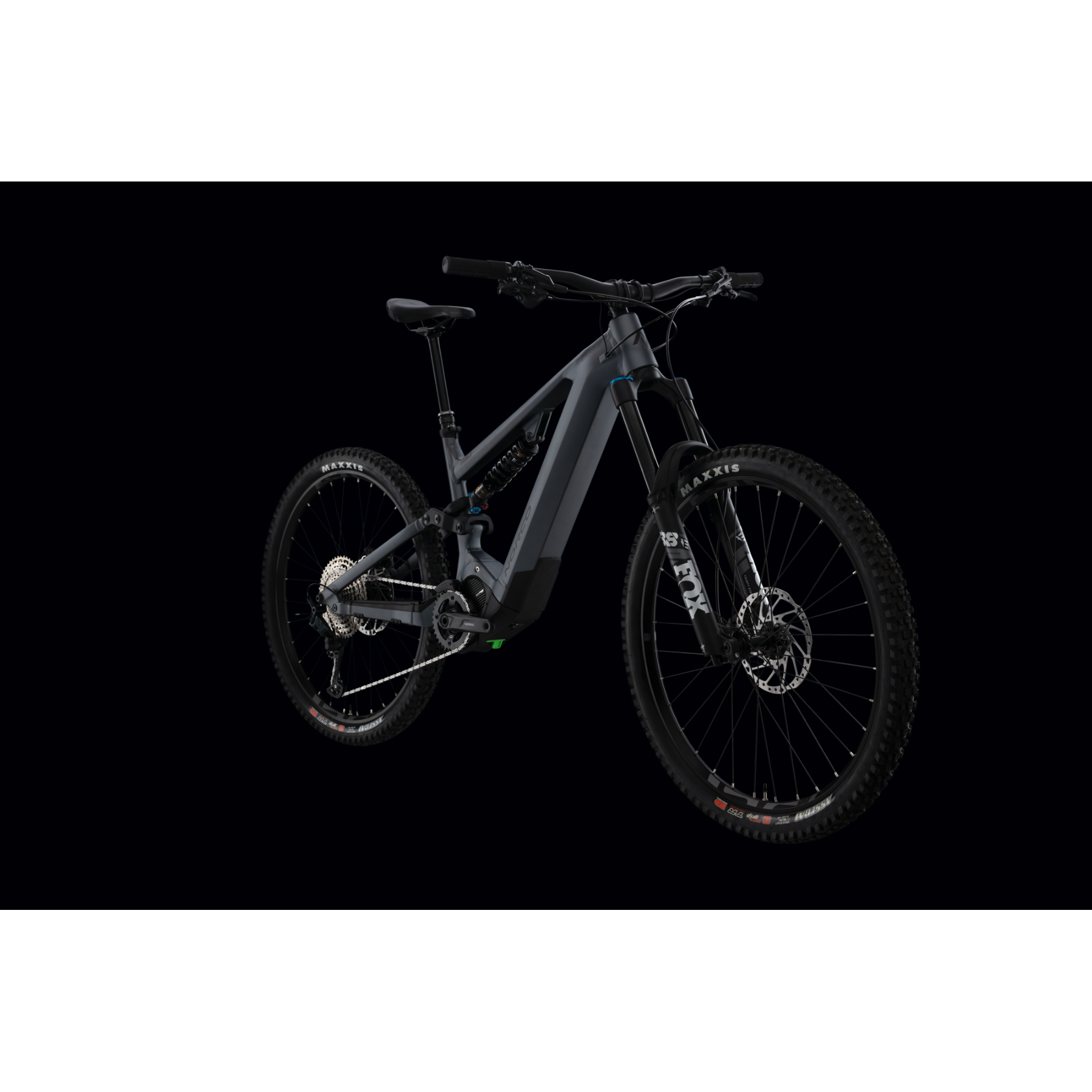

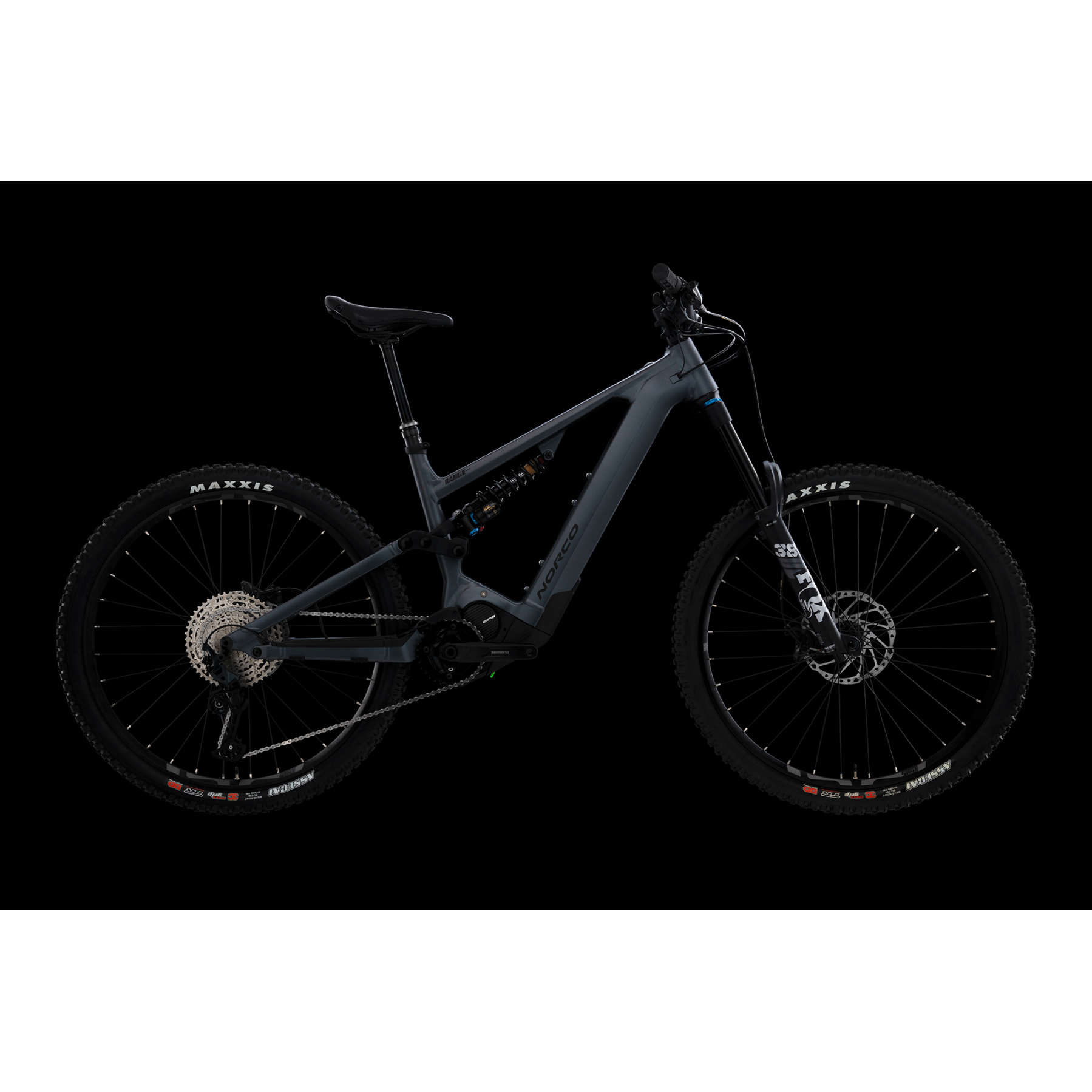

The Norco Range VLT A1 is a state-of-the-art all-mountain electric mountain bike designed for outstanding performance on rugged terrains. With its powerful Shimano EP8 motor and versatile battery options, this bike excels in steep climbs and thrilling descents, while advanced suspension technology ensures a stable and responsive ride for adventurous cyclists.

Key Features

All-New 3rd Generation Design
Alloy Frame for Durability
3 Battery Options Available
Whisper-Quiet Shimano EP8 Motor
Shimano Deore Drivetrain

Specifications

Product Overview

Product

Norco Range VLT A1 Electric Mountain Bike - Battery Sold Separately

Brand

Norco

Parent SKU

NORCO22RANGEVLTA1

Size SKUs

SM: NOEB2106011924
MD: NOEB2106011925
LG: NOEB2106011926
XL: NOEB2106011927

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

180mm

Rear Travel

170mm

Weight Limit

138kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano STEPS EP8 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery

Sold Separately. Removable. 900Wh, 720Wh and 540Wh Options.

Display

SC-EM800

Build

Frame

Aluminum, 170mm Travel, Ride Aligned

Fork

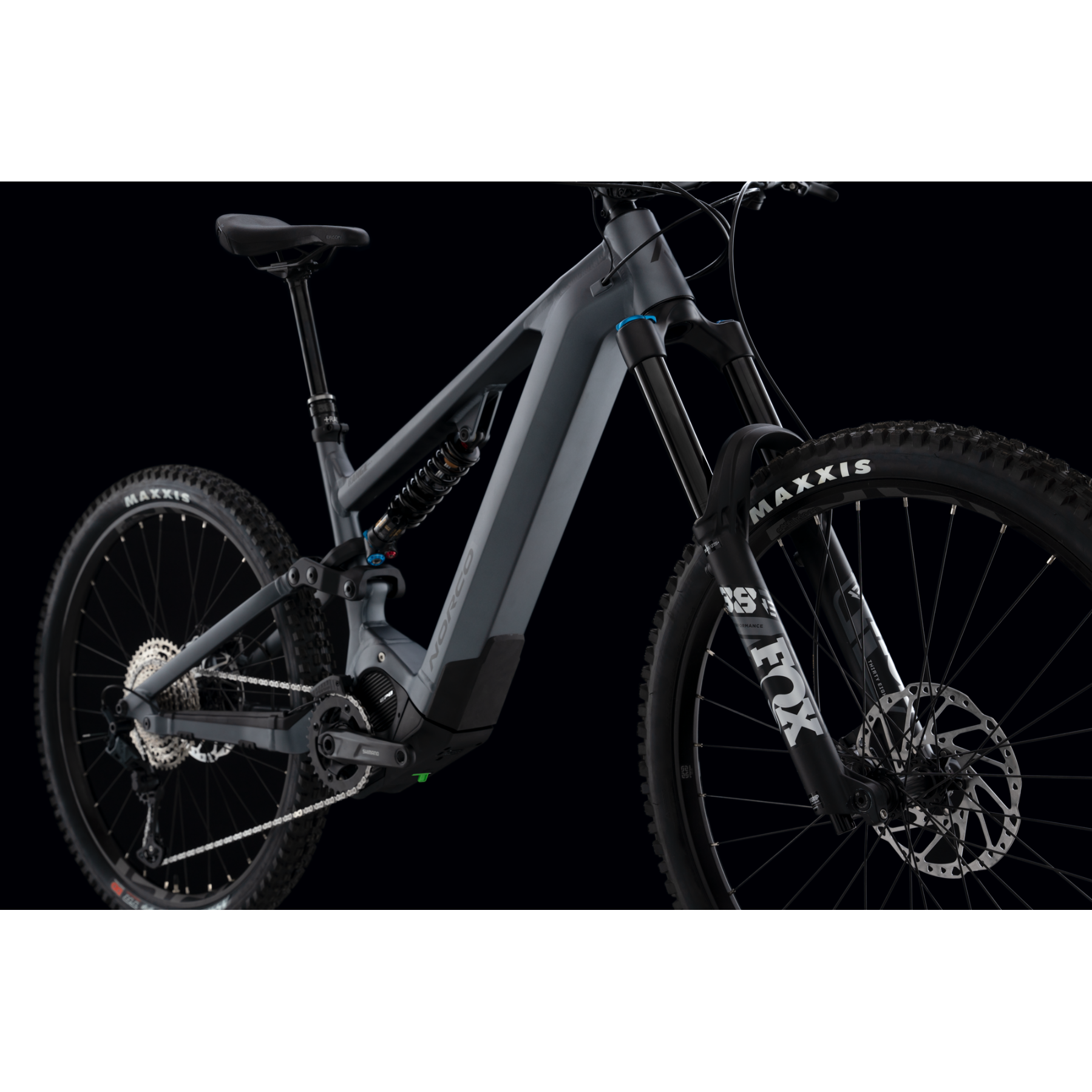

Fox Performance FLOAT 38, 3 Position, 180mm, 44mm Offset, E-Rated

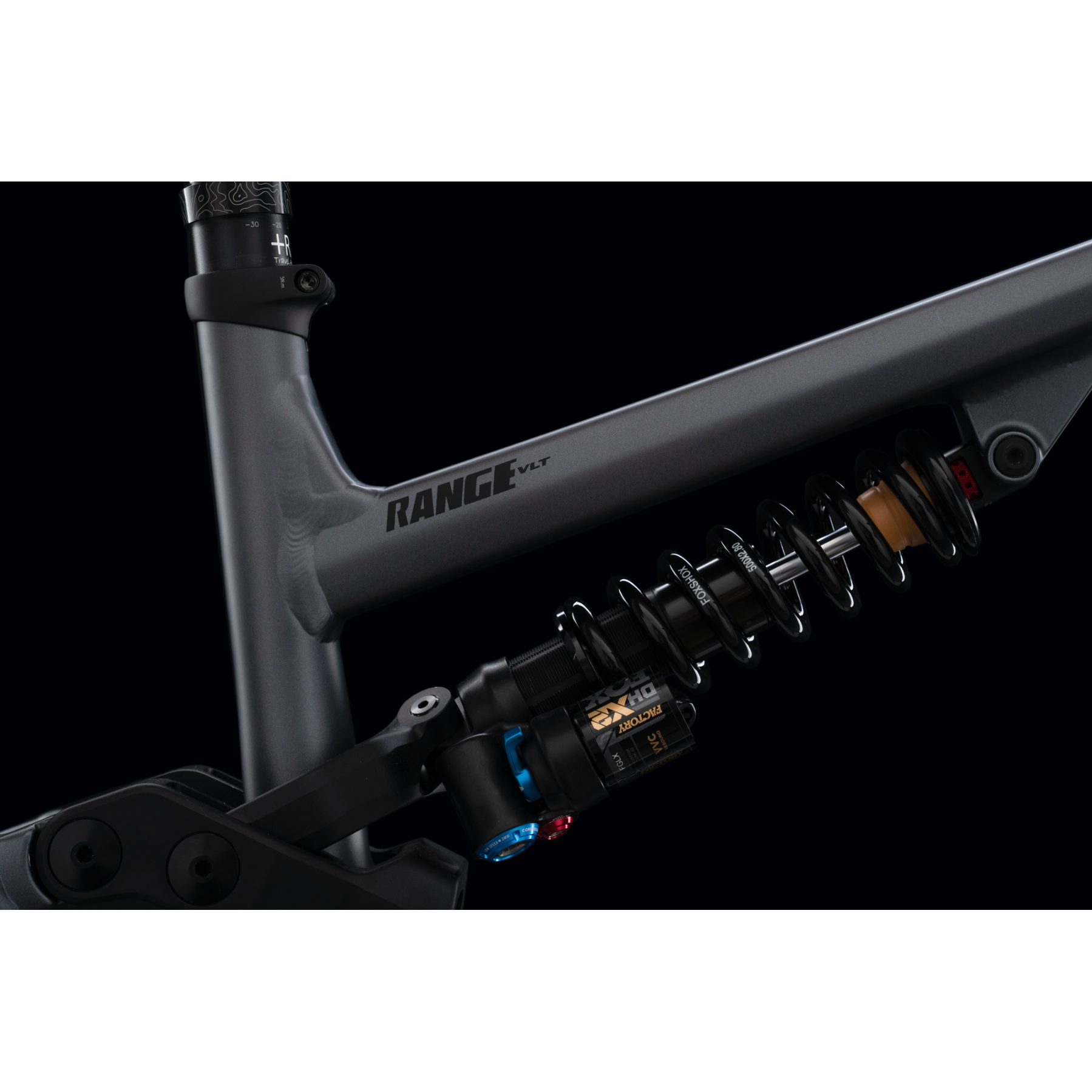

Shock

Fox Performance Elite DHX, HSC/LSC, HSR/LSR, Custom Tune, 230x62.5mm

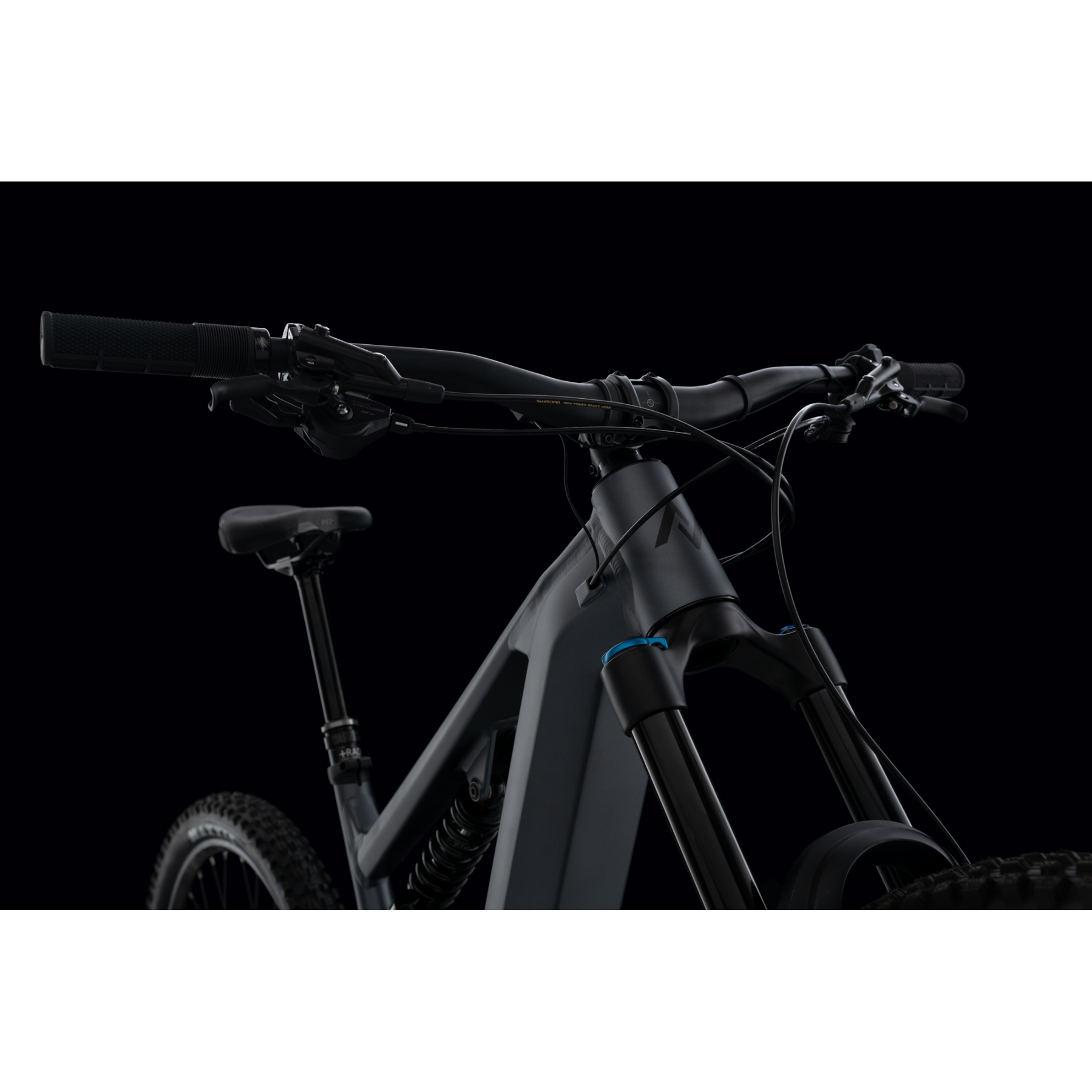

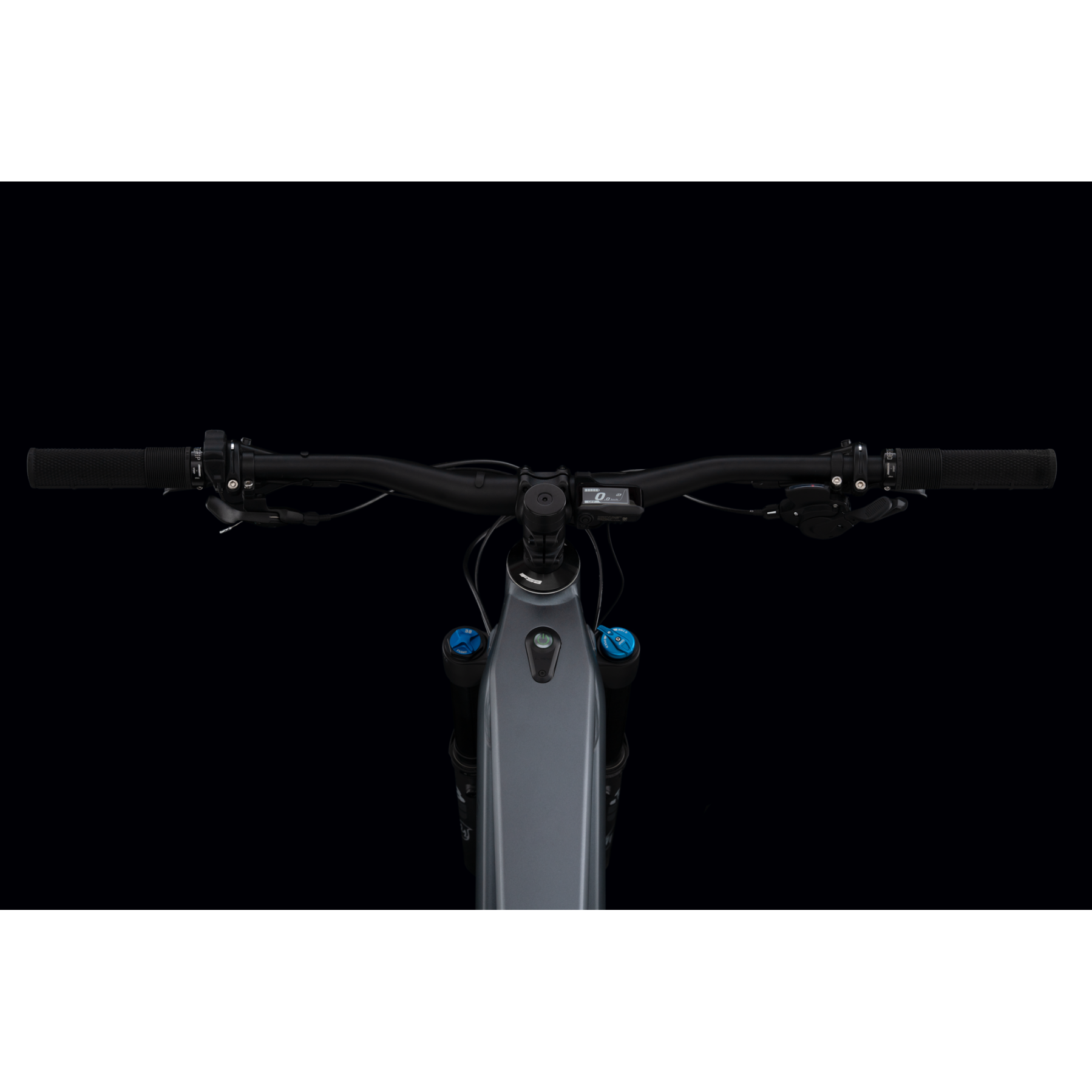

Handlebars

Butted 6061 Alloy, 800mm, 25mm Rise

Headset

FSA No.55R, Sealed Bearing

Grips

DMR DeathGrip A20 Soft, Thin (SM/MD), Thick (LG/XL)

Stem

Aluminum, 40mm Length, 35mm Clamp

Saddle

Ergon SM-10 E-Mountain Sport

Seat Post

TranzX YS105 Adjustable Dropper, 34.9mm, 125mm (SM), 150mm (MD), 170mm (LG), 200mm (XL)

Accessories

Tubeless Ready, Comes with Stan's No Tubes Sealant 200mL; LG & XL Frames Have 2 Bottle Capacity

Wheels

Wheel Size

29"

Rims

e*thirteen LG1 DH, 32H, 29"

Hubs

F: Shimano Deore HB-6010, 15x110mm Boost, Center Lock / R: Shimano Deore HB-6010, 12x148mm Boost, Micro Spline, Center Lock

Tyres

Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT

Spokes

F: DT Swiss Stainless Butted / R: Alpine Rear

Groupset

Crankset

Shimano FC-EM600, 34T, 165mm

Chain

Shimano Deore CN-M6100

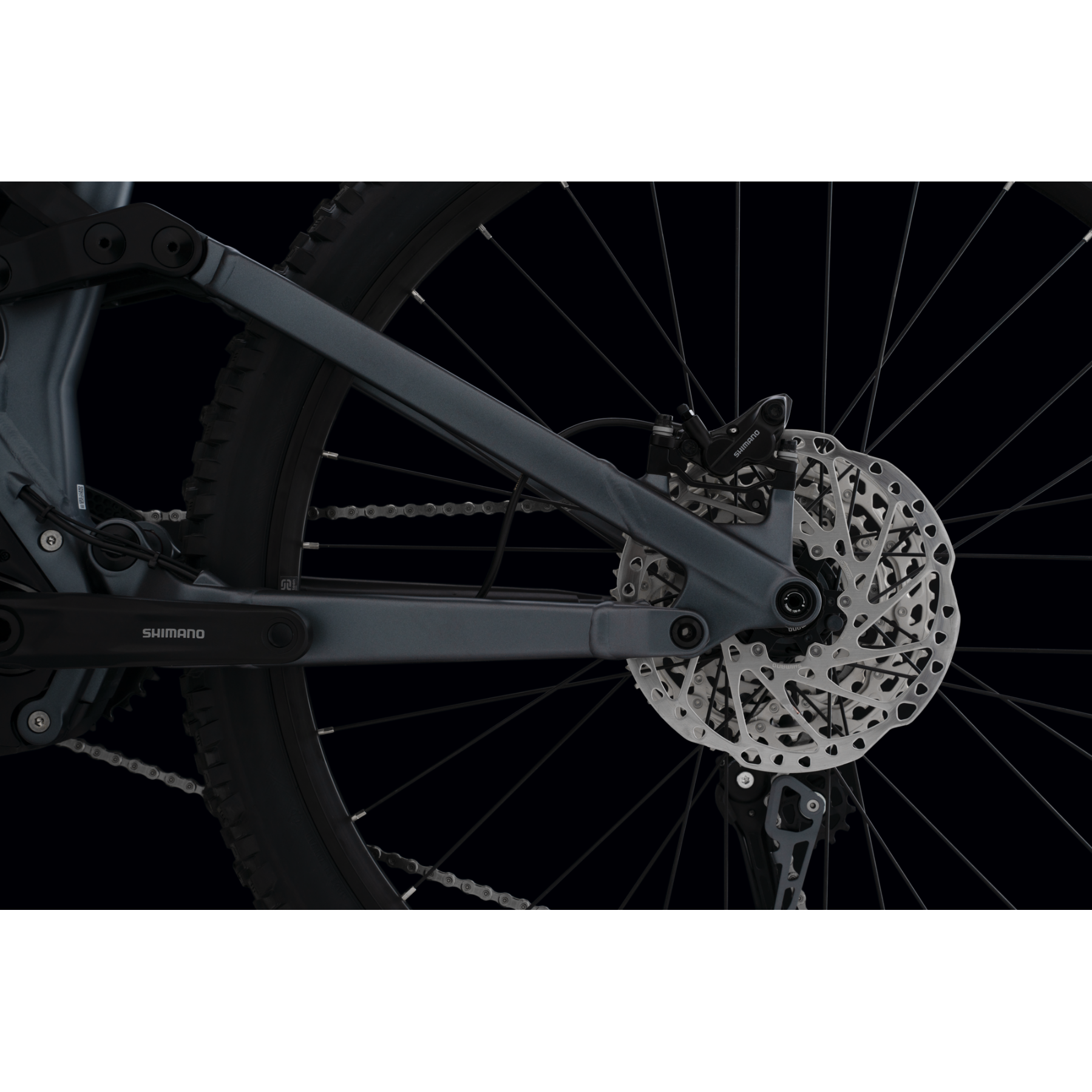

Brakes

Shimano BR MT520, 4 Piston, Metallic Pads

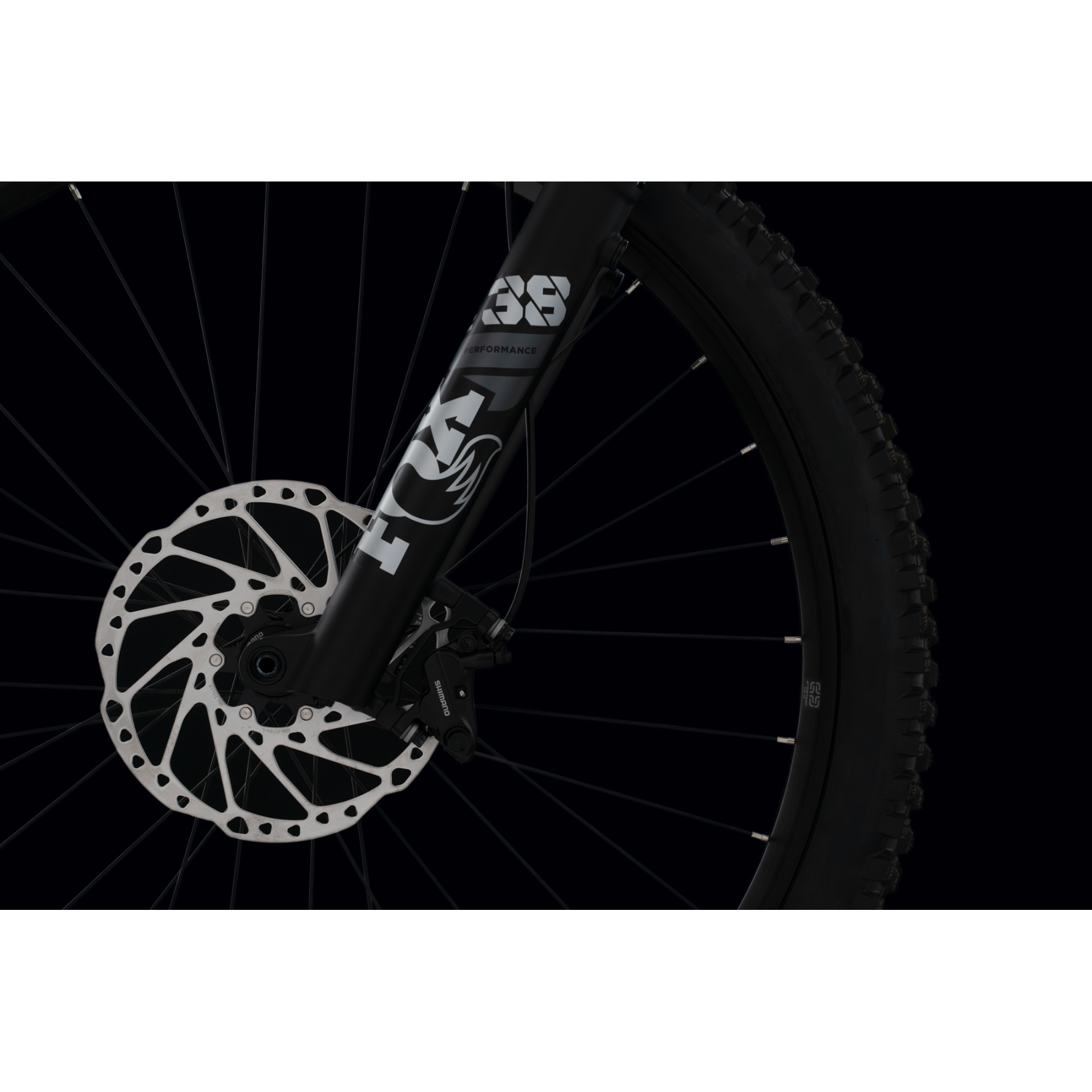

Front Rotor

Shimano RT-64, 203mm

Rear Rotor

Shimano RT-EM600, 203mm, Integrated Sensor Magnet

Shifters

Shimano Deore SL-M6100-R

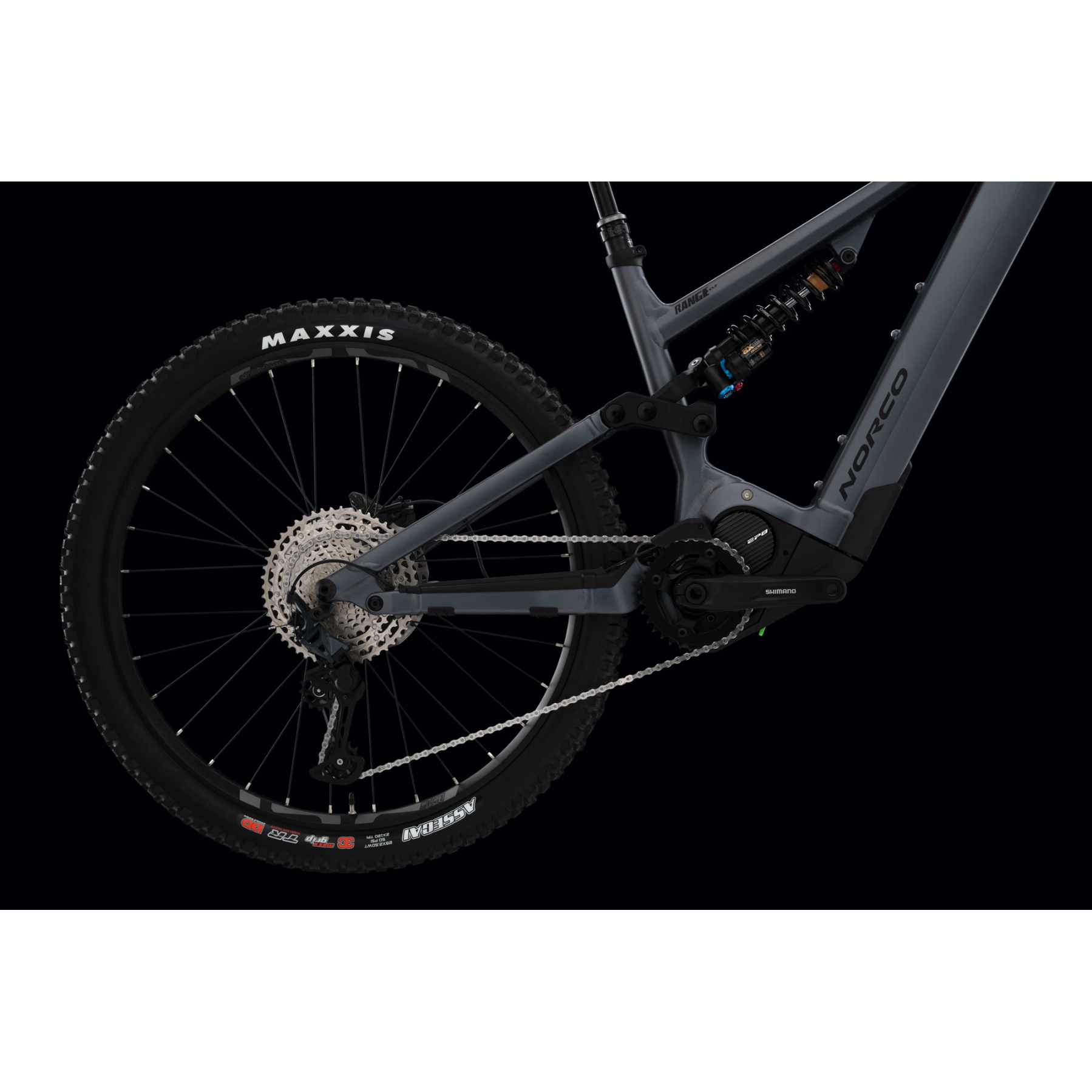

Rear Derailleur

Shimano SLX RD M6100

Cassette

12 Speed

Frequently Asked Questions

What is the Norco Range VLT A1 Mountain Bike used for?

The Norco Range VLT A1 is designed for all-mountain riding, excelling in both steep climbs and technical descents. Its advanced suspension and powerful motor make it ideal for tackling challenging trails.

Why choose the Norco Range VLT A1 Mountain Bike?

Choose the Norco Range VLT A1 for its exceptional performance, innovative design, and versatile battery options. It combines a whisper-quiet motor with advanced suspension technology, ensuring a thrilling ride on any terrain.

Who is the Norco Range VLT A1 Mountain Bike designed for?

The Norco Range VLT A1 is designed for adventurous riders seeking a high-performance electric mountain bike. It caters to those who want to conquer tough trails and enjoy a responsive, stable ride.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Range VLT A1 Electric Mountain Bike - Battery Sold Separately we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Slack Geometry

The Range VLT A1 features one of the slackest head tube angles in its class, enhancing high-speed handling on rough trails. This design, combined with progressive geometry, provides precise control in challenging conditions.

New High Pivot Design

This bike incorporates a unique high pivot point that moves with the suspension, offering a rearward axle path for improved momentum. This innovative setup enhances grip and control, especially on rugged terrain.

Long Travel Dropper Post

With a short seat tube, the Range VLT A1 allows for maximum standover clearance. This design accommodates long-travel dropper posts, ensuring the seat is completely out of the way during aggressive descents.

Riders Height (cm)

Norco Range VLT A1 Electric Mountain Bike - Battery Sold Separately geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
